Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

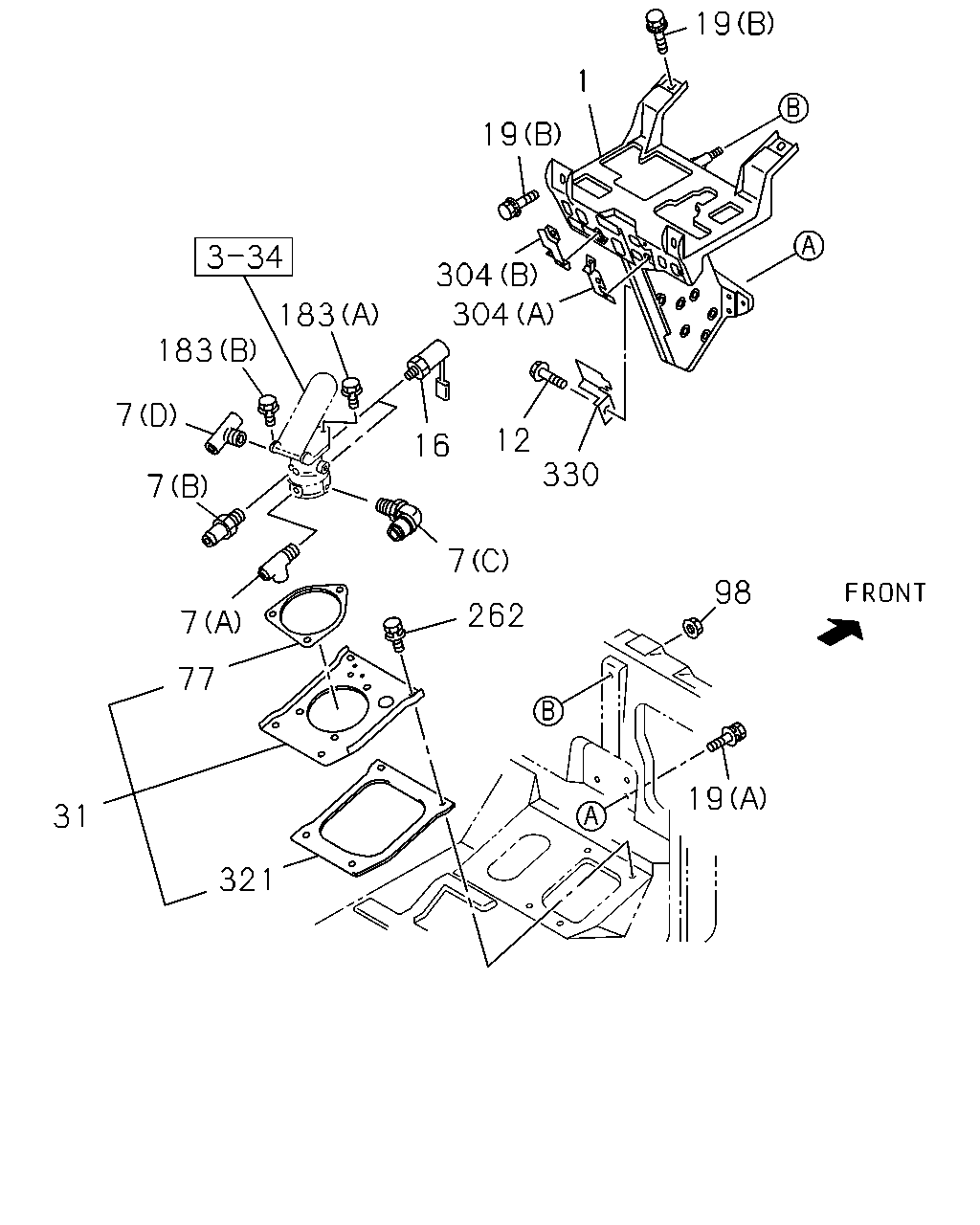

3-10 — BRAKE PEDAL AND CONTROL
(#67126) — 29 parça
Tümü
A - CYZ5MC
B - CYZ5MF
19
1
19
304
304
183
183
7
7
7
77
31
321
262
98
19
7
16
12
330
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
1-73908-191-7
01
1
0710-0711
●
●
1
BRACKET ASM; PEDAL
1-73908-191-7
01
1
0712-
●
●
7
CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (A)
1-09660-969-0
01
1
0710-
●
7
CONNECTOR; BRK VALVE
6WF1 TC-C(1B8) (D)
1-09660-970-0
01
1
0710-
●
7
CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0710-
●
●
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0710-
●
●
7
CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (A) DIN8 & R3/8 & RC1/4 3WAY
1-09661-687-0
01
1
0710-
●
●
7
CONNECTOR; BRK VALVE
6WG1 TC-C(72L) (D) DIN8 & RC1/4 & R3/8 3WAY
8-97620-116-0
01
1
0710-
●
●
12
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0710-0711
●
●
12
BOLT; BRKT
6WG1 TC-C(72L) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0712-
●
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0710-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0710-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0710-0904
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
●
●
31
PLATE; MTG,BRKT VLV
6WF1 TC-C(1B8)
1-73996-271-3
01
1
0710-
●
31
PLATE; MTG,BRKT VLV
6WG1 TC-C(72L)
1-73996-329-1
01
1
0710-
●
●
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0710-
●
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0710-
●
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0710-
●
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0710-
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0710-0904
●
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
0905-
●
●
304
SUPPORT ASM; PEDAL BRKT
(A)
1-73996-341-1
01
1
0710-0711
●
●
304
SUPPORT ASM; PEDAL BRKT
(A)
1-73996-341-1
01
1
0712-
●
●
304
SUPPORT ASM; PEDAL BRKT
(B)
1-73996-342-1
01
1
0710-0711
●
●
304
SUPPORT ASM; PEDAL BRKT
(B)
1-73996-342-1
01
1
0712-
●
●
321
SEAL; VALVE
1-73996-143-0
01
1
0710-
●
●
330
BRACKET; CONNECTOR
8-97616-564-1
01
1
0710-0711
●
●
330
BRACKET; CONNECTOR
6WG1 TC-C(72L)
8-97616-564-1
01
1
0712-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
