2-85 — POWER TAKE OFF CONTROL (#67121) — 11 parça

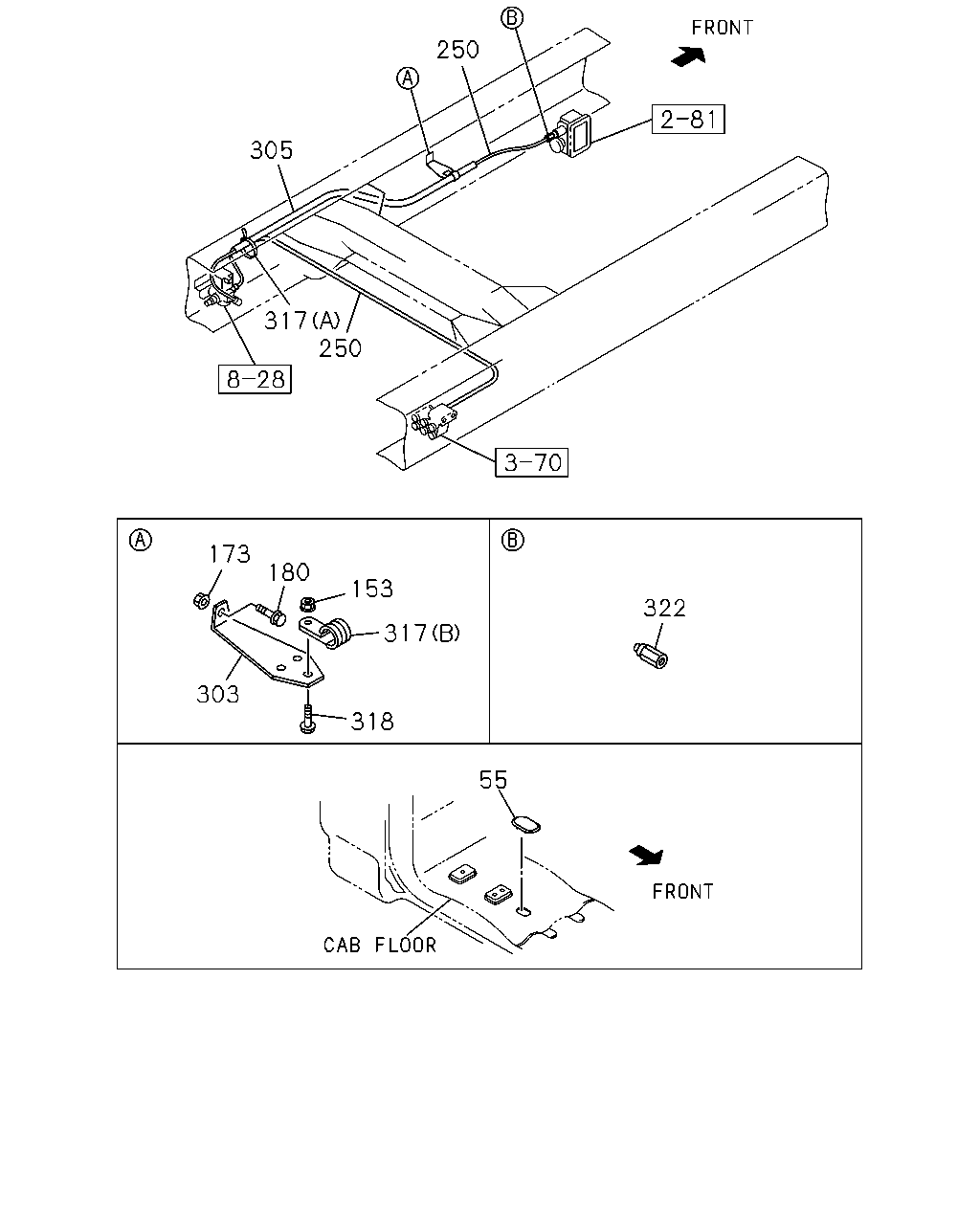

çizim 114611
250 305 317 250 173 303 180 153 318 317 322 55
BalonParca AdiParca NoAdetTipApplied Date A B
55 GROMMET; CABLE 1-09983-068-0 01 1 0710- ● ●
153 NUT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
173 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
180 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0710- ● ●
303 BRACKET; CLIP 1-47479-779-0 01 1 0710- ● ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710- ● ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=11 L=16 		0-95235-025-0 01 1 0710- ● ●
317 CLIP; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=350 		1-09707-183-0 01 1 0710- ● ●
318 BOLT; CLIP
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
322 UNION
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
