◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#6712) — 29 parça

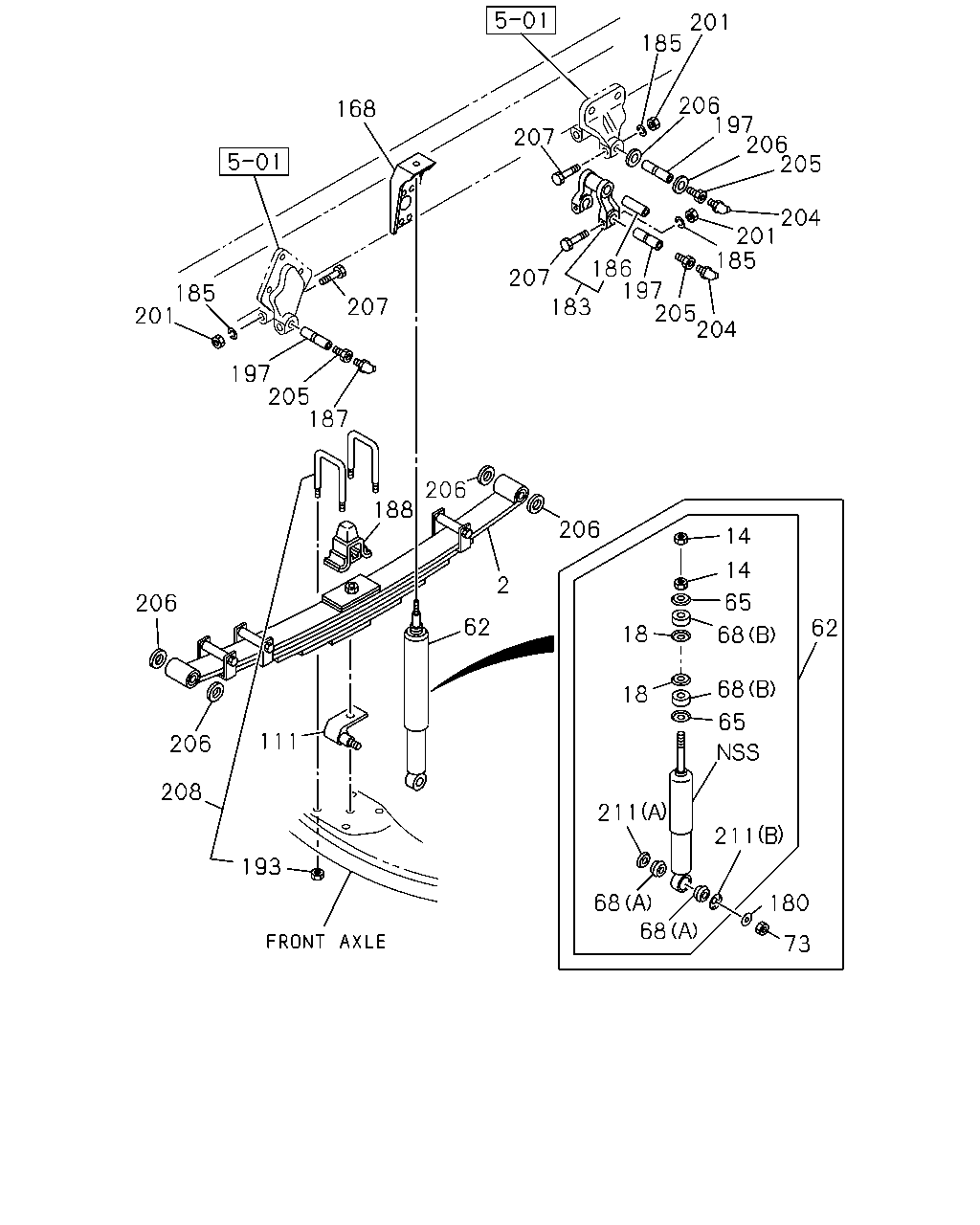

çizim 8063
201 185 206 197 206 205 168 207 204 201 185 186 197 205 204 207 185 201 207 183 197 205 187 206 188 206 14 14 2 65 206 62 62 18 68 68 18 65 111 206 208 211 211 193 68 68 180 73
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97913-795-0 04 1 0011-0312 ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97913-795-0 03 1 0401- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA 		8-97922-658-0 01 1 0401- ● ●
14 NUT; S/ABS,UPR
THA 		8-97914-922-0 04 1 0011- ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97914-919-0 04 1 0011- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		1-51630-180-3 02 1 0011- ● ●
65 WASHER; S/ABS
THA 		8-97914-918-0 04 1 0011- ● ●
68 BUSHING; S/ABS
(A) THA 		8-97914-915-0 04 1 0011- ● ●
68 BUSHING; S/ABS
(B) THA 		8-97914-917-0 04 1 0011- ● ●
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 0011- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-721-1 01 1 0011- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-720-1 01 1 0011- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 0011- ● ●
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 0011- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 0011- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0011- ● ●
186 BUSHING; SHACKLE
OD=38 THA 		1-51351-009-0 02 1 0011- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 0011- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-007-0 02 1 0011- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0011- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0011- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0011- ● ●
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 0011- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0011- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0011- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0011- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-0 04 1 0011- ● ●
211 WASHER; BRKT,SHOCK
(A) THA 		8-97915-706-0 02 1 0011- ● ●
211 WASHER; BRKT,SHOCK
(B) THA 		8-97915-707-0 02 1 0011- ● ●
