2-53 — TRANSMISSION OIL COOLER SYSTEM (#67119) — 59 parça

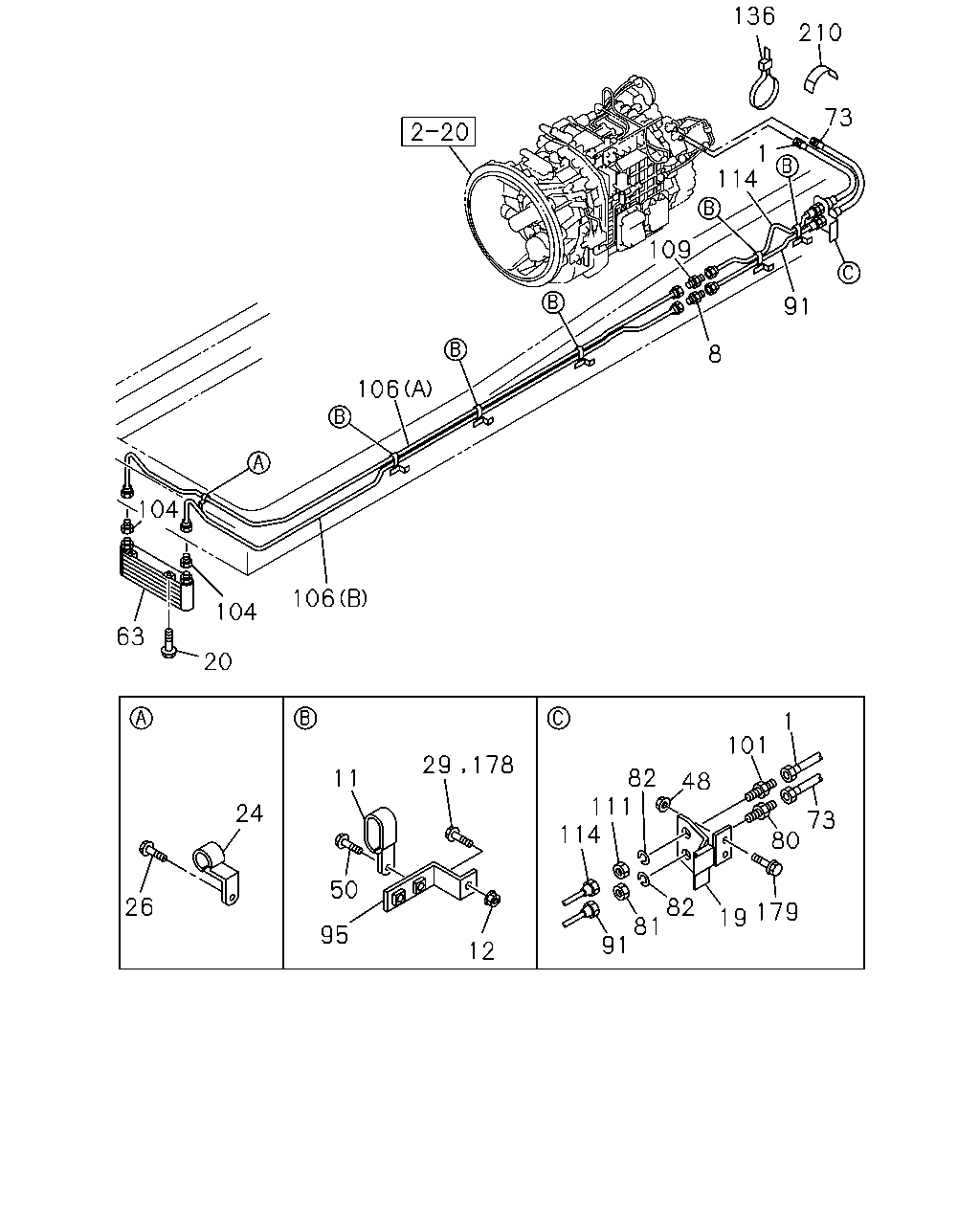

çizim 192873
136 210 73 1 114 91 109 8 106 106 104 104 63 20 26 24 95 11 50 12 29 178 1 73 80 101 48 179 19 82 111 114 91 82 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF
MJX16P M/T(Y3Z) L=600 		1-09365-232-0 01 1 0710- ●
1 HOSE; ATF
L=600 		1-09365-232-0 01 1 0710- ●
8 UNION
M22 L=51 		0-92123-015-0 01 1 0710- ● ●
11 CLIP; PIPE
ID=16X2 L=20 		0-95325-535-0 05 1 0710- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0710- ● ●
19 BRACKET; FLEX HOSE 1-47479-613-1 01 1 0710- ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0710- ● ●
24 CLIP; OIL PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0710- ● ●
26 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
50 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 05 1 0710- ● ●
63 COOLER; OIL
MJX16P M/T(Y3Z),TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-21700-394-0 01 1 0710-1405 ●
63 COOLER; OIL 1-21700-394-0 01 1 0710-1405 ●
63 COOLER; OIL
MJX16P M/T(Y3Z),TRANSMISSION-FULLER RTLO149 18(Y4C) 		8-98269-766-0 01 1 1406- ●
63 COOLER; OIL 8-98269-766-0 01 1 1406- ●
63 COOLER; OIL
TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-21700-395-1 01 1 0710- ●
73 HOSE; FLEX,TRANS
6WG1 TC-C(72L) MJX16P M/T(Y3Z) L=550 		1-09365-231-0 01 1 0710- ● ●
80 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
80 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710- ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0710- ● ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=818 		1-49167-820-0 01 1 0710-0804 ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=818 		1-49167-820-0 01 1 0710-0804 ●
91 PIPE; OIL,FLEX HOSE TO UNION
MJX16P M/T(Y3Z) L=916 		8-98117-505-0 01 1 0805- ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=916 		8-98117-505-0 01 1 0805- ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) L=810 		8-98047-556-0 01 1 0710-0804 ●
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) L=908 		8-98117-673-0 01 1 0805- ●
95 BRACKET; CLIP 1-47479-482-0 05 1 0710- ● ●
101 UNION; FLEX HOSE
MJX16P M/T(Y3Z) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710- ●
101 UNION; FLEX HOSE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-09654-261-1 01 1 0710- ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0710-0804 ● ●
104 CONNECTOR; COOLER
MJX16P M/T(Y3Z),TRANSMISSION-FULLER RTLO149 18(Y4C) 		1-09654-398-0 02 1 0805- ●
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (B) 		8-98117-602-0 01 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION-FULLER RTLO189 18(Y4W) (A) 		8-98117-603-0 01 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) 		1-49167-821-0 01 1 0710-0804 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z),TRANSMISSION-FULLER RTLO149 18(Y4C) (B) 		8-98117-506-0 01 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) 		8-98117-506-0 01 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) 		1-49167-822-0 01 1 0710-0804 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
MJX16P M/T(Y3Z),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) 		8-98117-507-0 01 1 0805- ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) 		8-98117-507-0 01 1 0805- ●
109 UNION
M22 L=51 		0-92123-015-0 01 1 0710- ● ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0710- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=877 		1-49167-823-0 01 1 0710-0804 ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=877 		1-49167-823-0 01 1 0710-0804 ●
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=835 		8-98117-508-0 01 1 0805-0805 ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=835 		8-98117-508-0 01 1 0805-0805 ●
114 PIPE; OIL,UNION TO FLEX HOSE
MJX16P M/T(Y3Z) L=835 		8-98123-941-0 01 1 0806- ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=835 		8-98123-941-0 01 1 0806- ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) L=869 		8-98047-557-0 01 1 0710-0804 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) L=828 		8-98117-674-0 01 1 0805-0805 ●
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) L=827 		8-98123-938-0 01 1 0806- ●
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0710- ● ●
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710- ● ●
