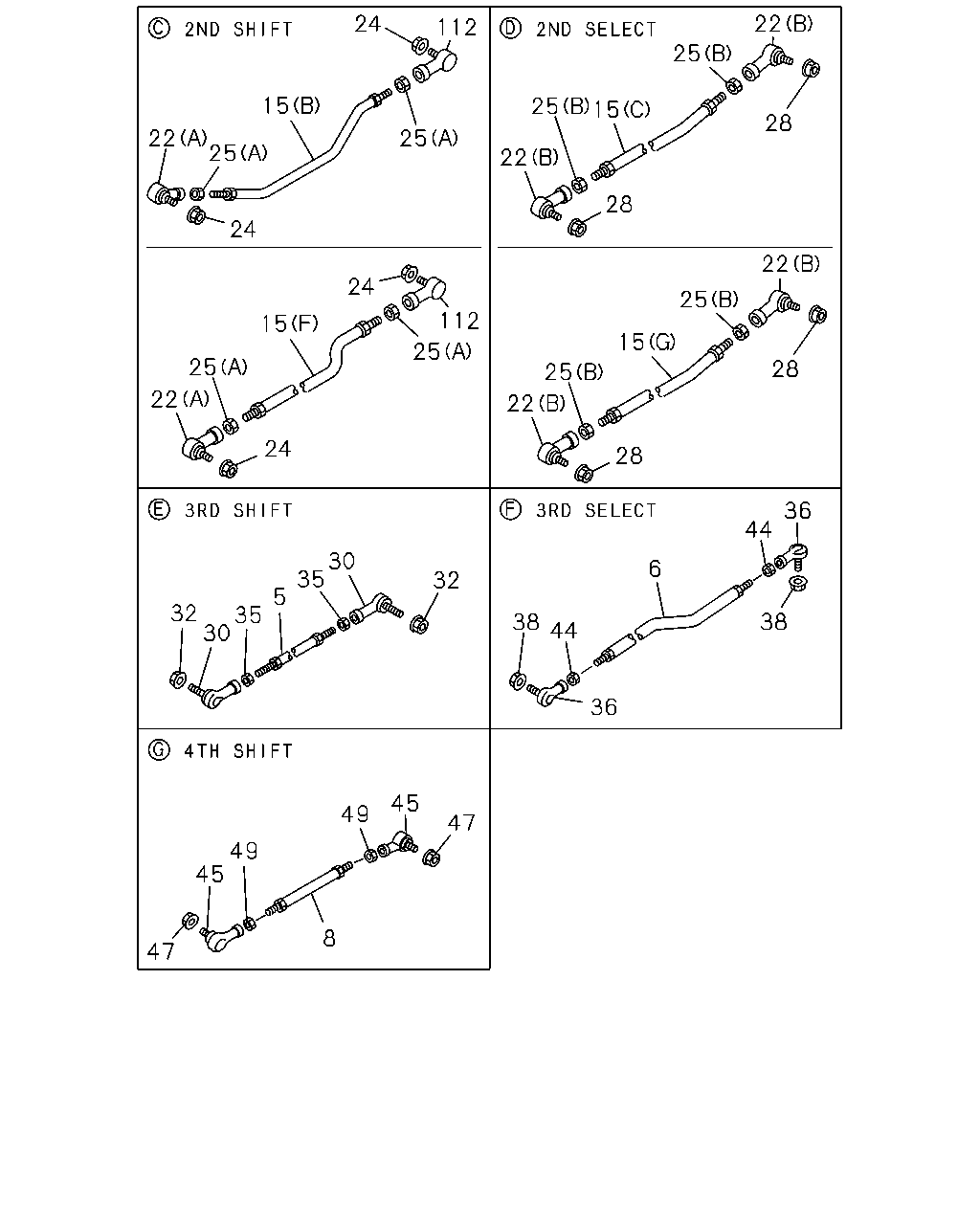

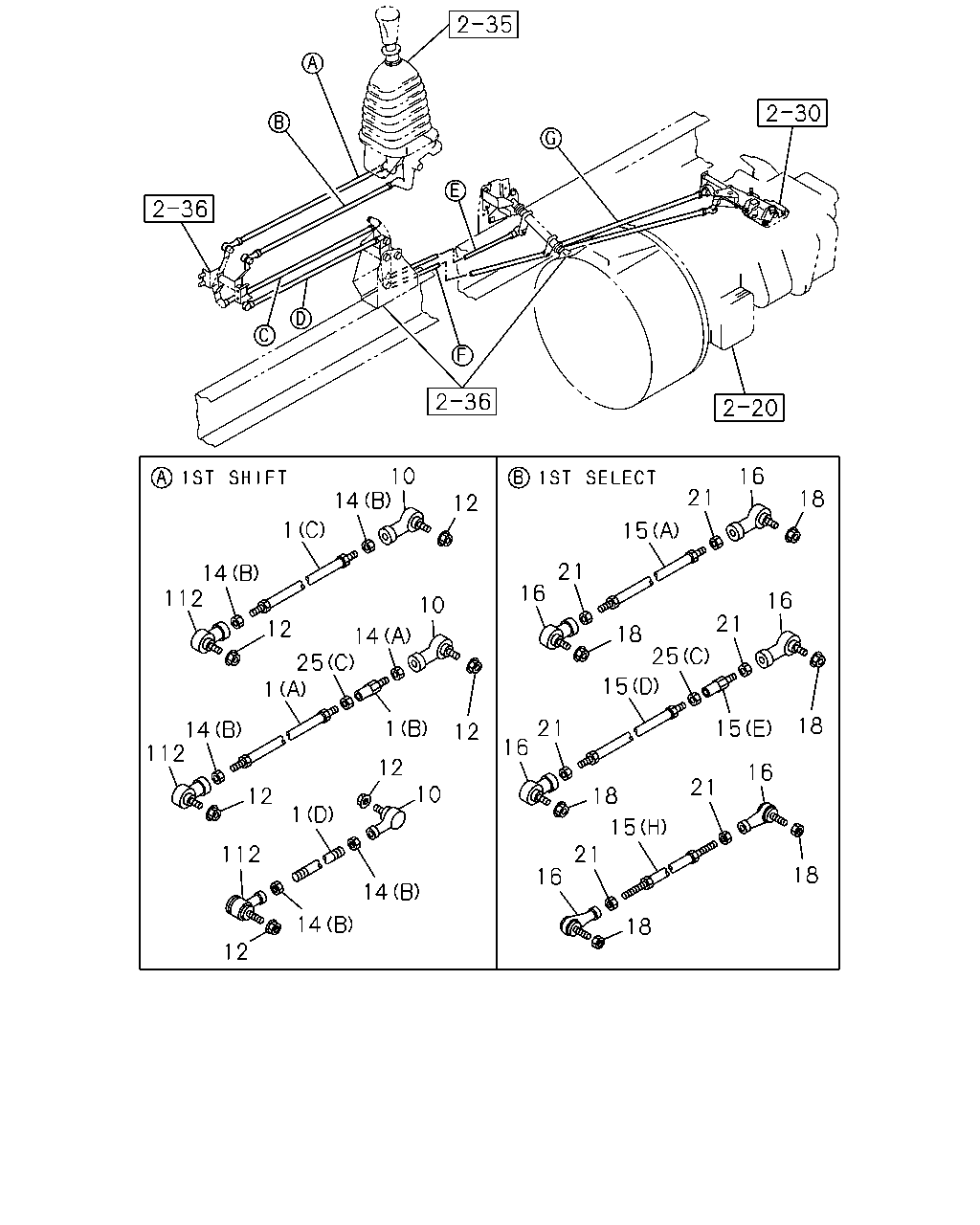

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#67117) — 63 parça

10 14 16 21 18 12 1 15 21 14 112 16 16 10 21 12 18 25 14 25 15 1 18 21 16 15 1 14 112 12 12 16 21 10 18 12 1 15 112 21 18 16 14 14 18 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ROD; LINK,1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=480	9-08401-248-0	01	1	0710-
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=430	1-33652-739-0	01	1	0710-1011
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=490	0-84001-249-0	01	1	1012-
1	ROD; LINK,1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=88	1-33652-740-0	01	1	0710-1011
10	JOINT ASM; BALL,SELECT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	0710-1011
10	JOINT ASM; BALL,SELECT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-125-0	01	1	1012-
10	JOINT ASM; BALL,SELECT ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	01	1	0710-1011
12	NUT; 1ST LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0710-
14	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	02	1	0710-1011
14	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	02	1	1012-
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M10	0-91111-510-0	01	1	0710-1011
14	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) M12	0-91111-512-0	01	1	0710-1011
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0710-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (H) L=460	1-33652-373-0	01	1	1012-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0710-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0710-
16	JOINT ASM; BALL,CONT ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	0710-1011
16	JOINT ASM; BALL,CONT ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-108-0	02	1	1012-
16	JOINT ASM; BALL,CONT ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-109-0	02	1	0710-1011
18	NUT; 1ST LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0710-
21	NUT; LK,RIGHT SCREW,LINK ROD 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) M8	0-91111-508-0	02	1	0710-
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0710-1011
21	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) M8	9-09111-408-0	02	1	1012-
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0710-
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0710-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 LH THREAD	9-09840-167-0	02	1	0710-1011
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0710-
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0710-
112	JOINT; RUBBER 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0710-

22 24 15 25 25 24 112 22 25 25 28 15 28 22 22 28 25 22 25 15 28 112 25 24 15 25 22 24 32 30 35 5 35 30 32 6 36 44 38 44 38 36 47 45 49 49 45 47 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	ROD; LINK,3RD SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) L=1120	1-33652-603-0	01	1	0710-
6	ROD; LINK,3RD SELECT FULLER M/T<X9B> L=1638	1-33652-997-1	01	1	0710-
8	ROD; LINK,4TH SHIFT FULLER M/T<X9B> L=480	1-33652-730-0	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (A) L=435	1-33652-696-0	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (B) L=474	1-33652-803-2	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A) (C) L=446	1-33652-998-2	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=370	1-33652-737-0	01	1	0710-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (H) L=460	1-33652-373-0	01	1	1012-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (E) L=88	1-33652-740-0	01	1	0710-1011
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (F) L=475	1-33662-018-3	01	1	0710-
15	ROD; LINK 1ST SHIFT 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (G) L=460	1-33662-019-4	01	1	0710-
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-09760-109-0	02	1	0710-
22	JOINT; BALL,SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-09760-125-0	01	1	0710-
24	NUT; 2ND LINK ROD,SHIFT TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0710-
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10	0-91111-510-0	02	1	0710-
25	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) (A) M12	0-91111-512-0	02	1	0710-
25	NUT; LK,RIGHT SCREW,LINK ROD 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M10 LH THREAD	9-09840-167-0	02	1	0710-1011
28	NUT; 2ND LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE	1-09440-062-1	02	1	0710-
30	JOINT; BALL,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A)	1-09760-124-0	02	1	0710-
32	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0710-
35	NUT; LK,RIGHT SCREW,LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10	0-91111-510-0	02	1	0710-
36	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-124-0	02	1	0710-
38	NUT; 3RD LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0710-
44	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M10	0-91111-510-0	02	1	0710-
45	JOINT; BALL,RIGHT SCREW,LINK ROD FULLER M/T<X9B>	1-09760-125-0	02	1	0710-
47	NUT; 4TH LINK ROD TRANSMISSION CONTROL LINK TYPE(B2A) M10 FLANGE	1-09440-061-0	02	1	0710-
49	NUT; LK,RIGHT SCREW,LINK ROD FULLER M/T<X9B> M12	0-91111-512-0	02	1	0710-
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0710-
112	JOINT; RUBBER 6WF1 TC-C(1B8) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	01	1	0710-
112	JOINT; RUBBER 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A)	1-33670-413-1	02	1	0710-
