◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#67115) — 170 parça

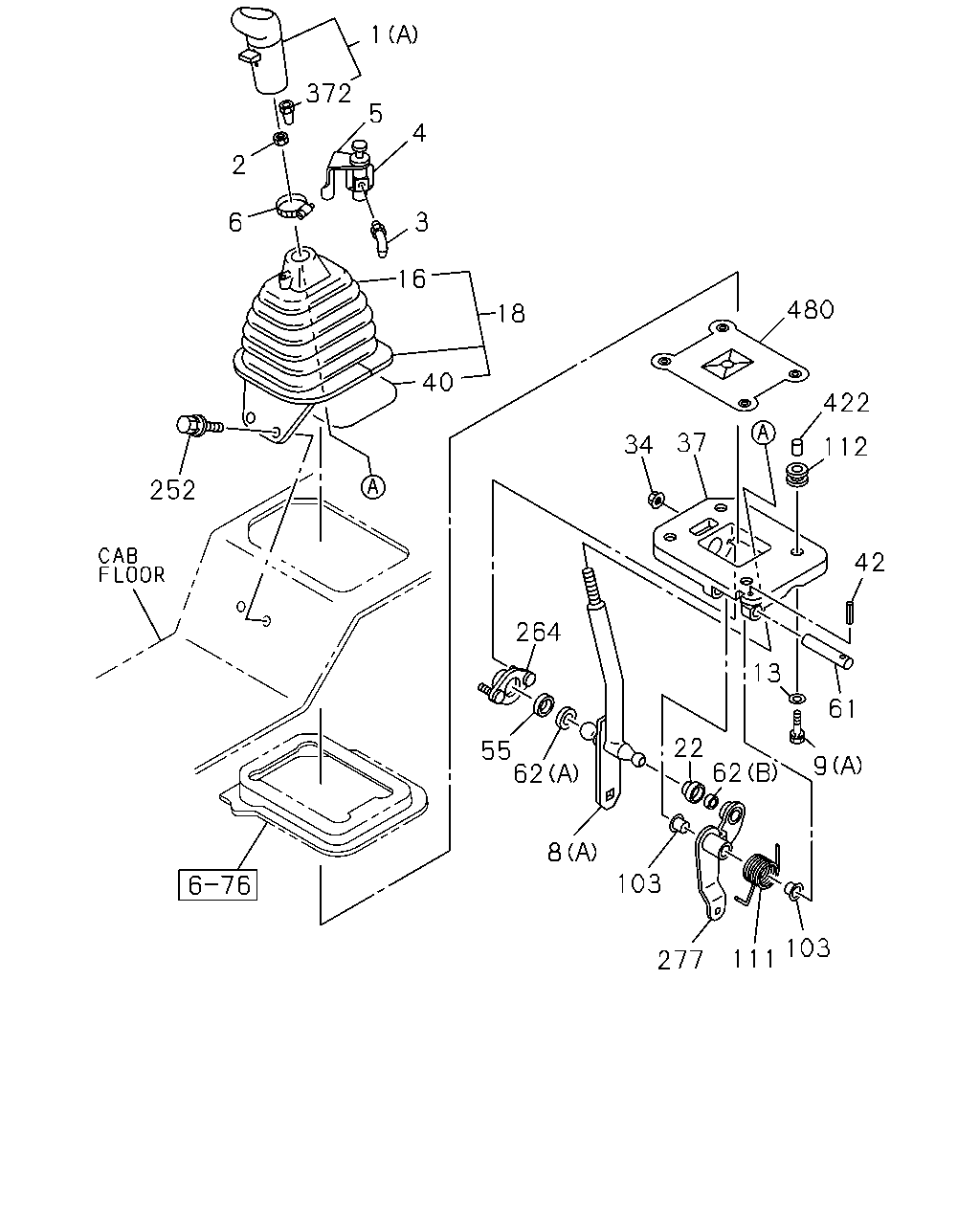

çizim 113790
1 372 5 4 2 6 3 16 18 40 252 480 422 34 37 112 42 264 13 61 22 62 9 55 62 8 103 277 111 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		1-33611-116-0 01 1 0710-0804 ●
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		8-98120-384-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33611-124-0 01 1 0710-0911 ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-124-0 01 1 0710-0911 ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		8-98152-481-0 01 1 0912-1010 ●
1 KNOB; CHANGE LEVER
(B) 		8-98152-481-0 01 1 0912-1010 ●
2 NUT; KNOB
FULLER M/T<X9B> 1/2-13UNC 		1-33619-033-0 01 1 0710- ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 0710-0804 ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		8-98114-398-0 02 1 0805- ●
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 0710- ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 0710- ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 0710- ●
8 LEVER; CHANGE
FULLER M/T<X9B> (A) 		1-33613-349-0 01 1 0710- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
(B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(C) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
(C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
13 WASHER; PL,SUPER SHIFT LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) ID=8.4 OD=22 		0-91610-708-0 04 1 0710- ●
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-1 01 1 0710- ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-369-0 01 1 0710- ●
16 BOOT; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0710-1010 ●
16 BOOT; CHANGE LEVER 1-33614-145-0 01 1 0710-1010 ●
18 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-435-2 01 1 0710- ●
18 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-401-0 01 1 0710- ●
22 COVER; DUST,CHANGE LEVER
FULLER M/T<X9B> 		1-33619-573-0 01 1 0710- ●
34 NUT
FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0710- ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER M/T<X9B> 		1-33619-467-0 01 1 0710-0802 ●
37 BRACKET; CHANGE LEVER SUPPORT
FULLER M/T<X9B> 		8-98100-876-1 01 1 0803- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-345-0 01 1 0710- ●
40 SEAL; BOOT HOLDER CHANGE LEVER
FULLER M/T<X9B> 		1-79996-345-0 01 1 0710- ●
42 PIN; SPRING,SELECT LEVER PIN
FULLER M/T<X9B> D=5 L=28 		8-94252-581-0 01 1 0710- ●
55 SEAT; RUBBER,SELECT SPRING
FULLER M/T<X9B> 		1-33619-429-0 01 1 0710-0802 ●
61 PIN; SELECT LEVER
FULLER M/T<X9B> 		1-33619-470-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
FULLER M/T<X9B> (A) 		1-33619-427-0 01 1 0710- ●
62 SEAT; BALL,CHANGE LEVER
FULLER M/T<X9B> (B) 		8-97011-900-0 01 1 0710- ●
103 BUSHING; RELAY LEVER
FULLER M/T<X9B> ID=14 OD=16 		8-94252-671-0 02 1 0710- ●
111 SPRING
FULLER M/T<X9B> 		1-09585-133-1 01 1 0710- ●
112 RUBBER; CUSHION
FULLER M/T<X9B> 		8-97091-426-0 04 1 0710-0810 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0710-0904 ●
252 BOLT; COVER,CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
252 BOLT; COVER,CHANGE LEVER
FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ●
264 PLATE; COVER
FULLER M/T<X9B> 		1-33619-469-0 01 1 0710- ●
277 LEVER; RELAY
FULLER M/T<X9B> 		1-33651-636-1 01 1 0710- ●
372 CONNECTOR; CHANGE LEVER
FULLER M/T<X9B> 		8-97500-148-0 04 1 0710-0804 ●
372 CONNECTOR; CHANGE LEVER
FULLER M/T<X9B> 		8-98114-396-0 04 1 0805- ●
422 BUSHING; CHANGE LEVER
FULLER M/T<X9B> 		8-97091-427-0 04 1 0710- ●
480 RUBBER; COVER
FULLER M/T<X9B> 		1-33619-554-0 01 1 0710-0810 ●
480 RUBBER; COVER
FULLER M/T<X9B> 		8-98119-365-0 01 1 0811- ●

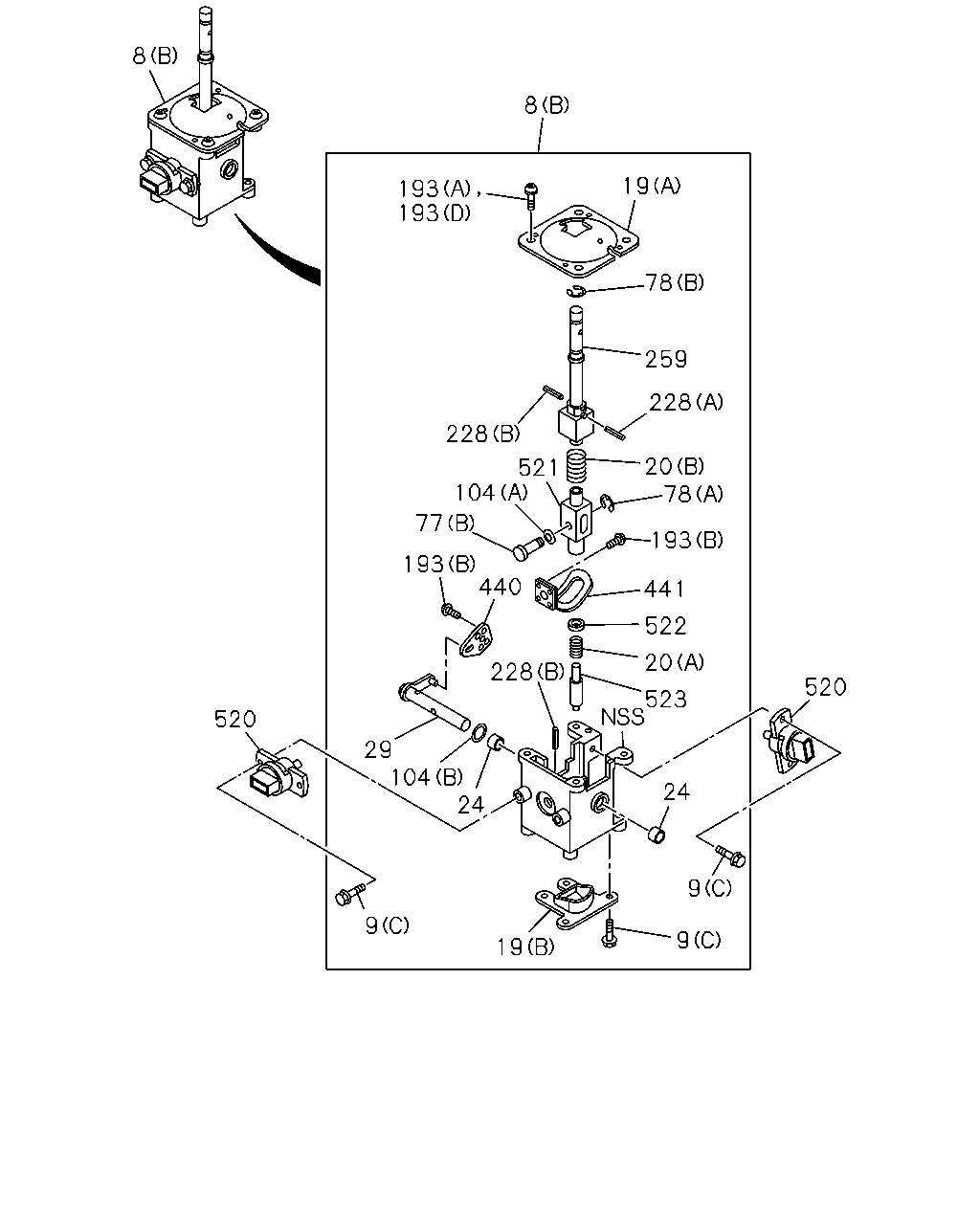

çizim 113853
8 8 19 193 193 78 259 228 228 20 78 521 104 77 193 193 440 441 522 20 228 520 523 520 29 104 24 24 9 9 9 19
BalonParca AdiParca NoAdetTipApplied Date A B
8 LEVER; CHANGE
FULLER M/T<X9B> (A) 		1-33613-349-0 01 1 0710- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
(B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(C) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
(C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
19 COVER; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-790-0 01 1 0710-1010 ●
19 COVER; CHANGE LEVER
(A) 		1-33619-790-0 01 1 0710-1010 ●
19 COVER; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-791-0 01 1 0710-1010 ●
19 COVER; CHANGE LEVER
(B) 		1-33619-791-0 01 1 0710-1010 ●
20 SPRING; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-786-0 01 1 0710-1010 ●
20 SPRING; CHANGE LEVER
(A) 		1-33619-786-0 01 1 0710-1010 ●
20 SPRING; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-787-0 01 1 0710-1010 ●
20 SPRING; CHANGE LEVER
(B) 		1-33619-787-0 01 1 0710-1010 ●
24 BUSHING; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-797-0 02 1 0710-1010 ●
24 BUSHING; CHANGE LEVER 1-33619-797-0 02 1 0710-1010 ●
29 SHAFT
SMOOTHER-G(C1W) 		1-33619-792-0 01 1 0710-1010 ●
29 SHAFT 1-33619-792-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
(A) 		1-33619-780-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
(B) 		1-33619-795-0 01 1 0710-1010 ●
78 RING; SNAP,CHANGE LEVER
SMOOTHER-G(C1W) (A) ID=4 		9-09185-404-0 01 1 0710-1010 ●
78 RING; SNAP,CHANGE LEVER
(A) ID=4 		9-09185-404-0 01 1 0710-1010 ●
78 RING; SNAP,CHANGE LEVER
SMOOTHER-G(C1W) (B) ID=9 		9-09185-409-0 01 1 0710-1010 ●
78 RING; SNAP,CHANGE LEVER
(B) ID=9 		9-09185-409-0 01 1 0710-1010 ●
104 WASHER; WAVED
SMOOTHER-G(C1W) (A) 		1-33619-788-0 01 1 0710-1010 ●
104 WASHER; WAVED
(A) 		1-33619-788-0 01 1 0710-1010 ●
104 WASHER; WAVED
SMOOTHER-G(C1W) (B) 		1-33619-789-0 01 1 0710-1010 ●
104 WASHER; WAVED
(B) 		1-33619-789-0 01 1 0710-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
(C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0710-1010 ●
193 SCREW; CHANGE LEVER
(B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0710-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0710-0911 ●
193 SCREW; CHANGE LEVER
(A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0710-0911 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
193 SCREW; CHANGE LEVER
(D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
228 PIN; SPR,CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-505-0 01 1 0710-1010 ●
228 PIN; SPR,CHANGE LEVER
(A) 		1-33619-505-0 01 1 0710-1010 ●
228 PIN; SPR,CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-796-0 02 1 0710-1010 ●
228 PIN; SPR,CHANGE LEVER
(B) 		1-33619-796-0 02 1 0710-1010 ●
259 LEVER; CHANGE,UPR
SMOOTHER-G(C1W) 		1-33619-782-0 01 1 0710-1010 ●
259 LEVER; CHANGE,UPR 1-33619-782-0 01 1 0710-1010 ●
440 LEVER; SHIFT
SMOOTHER-G(C1W) 		1-33619-794-0 01 1 0710-1010 ●
440 LEVER; SHIFT 1-33619-794-0 01 1 0710-1010 ●
441 LEVER; SELECT
SMOOTHER-G(C1W) 		1-33619-793-0 01 1 0710-1010 ●
441 LEVER; SELECT 1-33619-793-0 01 1 0710-1010 ●
520 SENSOR; CHANGE LEVER
SMOOTHER-G(C1W) 		1-81541-113-0 02 1 0710-1010 ●
520 SENSOR; CHANGE LEVER 1-81541-113-0 02 1 0710-1010 ●
521 LEVER; CHANGE,LOW
SMOOTHER-G(C1W) 		1-33619-783-0 01 1 0710-1010 ●
521 LEVER; CHANGE,LOW 1-33619-783-0 01 1 0710-1010 ●
522 GUIDE; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-784-0 01 1 0710-1010 ●
522 GUIDE; CHANGE LEVER 1-33619-784-0 01 1 0710-1010 ●
523 PLUNGER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33619-785-0 01 1 0710-1010 ●
523 PLUNGER; CHANGE LEVER 1-33619-785-0 01 1 0710-1010 ●

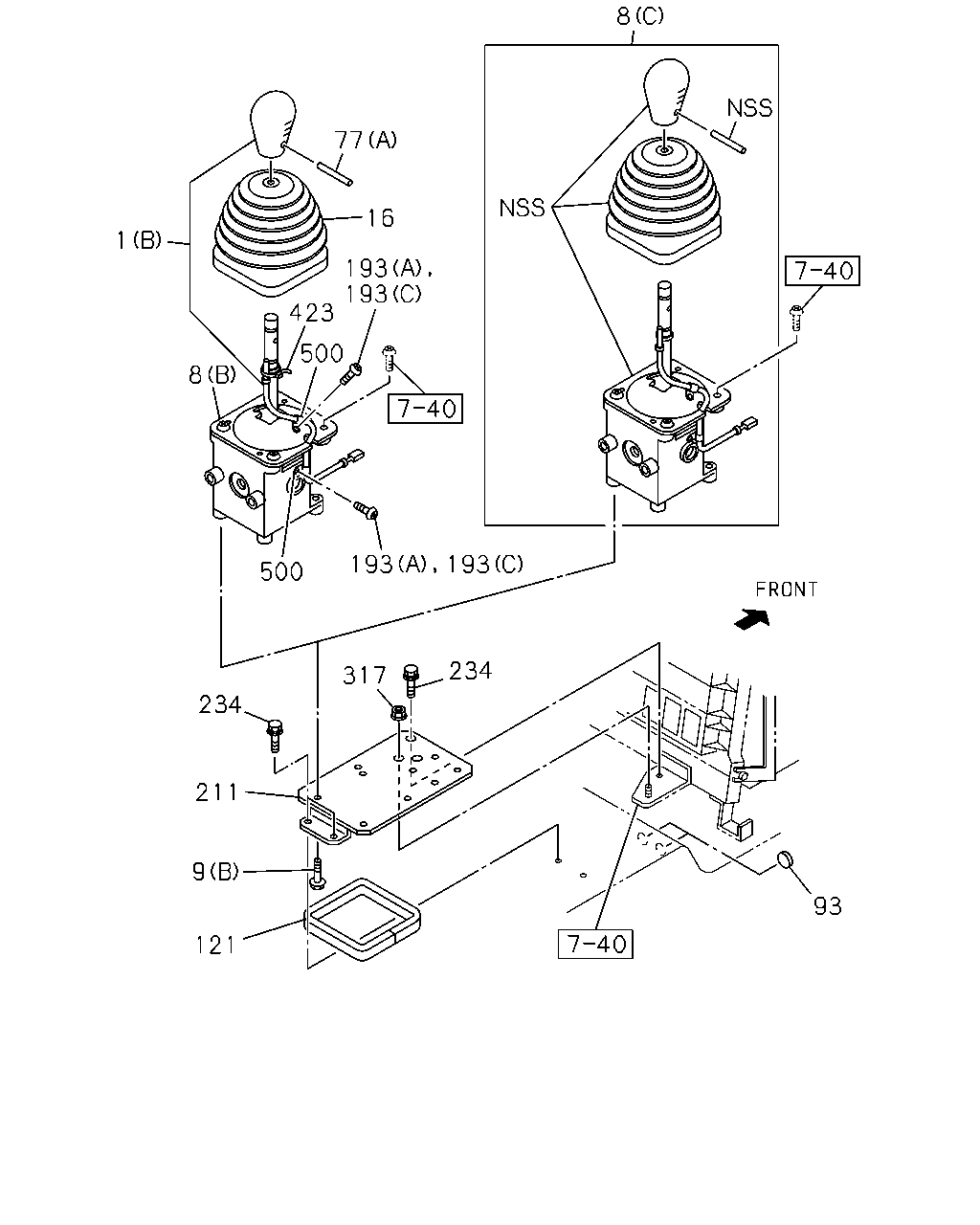

çizim 113969
8 77 16 1 193 193 423 500 8 193 193 500 234 317 234 211 9 93 121
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		1-33611-116-0 01 1 0710-0804 ●
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		8-98120-384-0 01 1 0805-1401 ●
1 KNOB; CHANGE LEVER
FULLER M/T<X9B> (A) 		8-98224-285-0 01 1 1402- ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33611-124-0 01 1 0710-0911 ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-124-0 01 1 0710-0911 ●
1 KNOB; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		8-98152-481-0 01 1 0912-1010 ●
1 KNOB; CHANGE LEVER
(B) 		8-98152-481-0 01 1 0912-1010 ●
8 LEVER; CHANGE
FULLER M/T<X9B> (A) 		1-33613-349-0 01 1 0710- ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
(B) 		1-33620-114-2 01 1 0710-1010 ●
8 LEVER; CHANGE
SMOOTHER-G(C1W) (C) 		8-98181-427-0 01 1 1011- ●
8 LEVER; CHANGE
(C) 		8-98181-427-0 01 1 1011- ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
(C) 		1-33619-798-0 08 1 0710-1010 ●
9 BOLT; CHANGE LEVER
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0710- ●
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ●
16 BOOT; CHANGE LEVER
FULLER M/T<X9B> 		1-79996-367-1 01 1 0710- ●
16 BOOT; CHANGE LEVER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-79996-369-0 01 1 0710- ●
16 BOOT; CHANGE LEVER
SMOOTHER-G(C1W) 		1-33614-145-0 01 1 0710-1010 ●
16 BOOT; CHANGE LEVER 1-33614-145-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (A) 		1-33619-780-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
(A) 		1-33619-780-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
SMOOTHER-G(C1W) (B) 		1-33619-795-0 01 1 0710-1010 ●
77 PIN; CHANGE LEVER
(B) 		1-33619-795-0 01 1 0710-1010 ●
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 02 1 0710-1009 ●
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 02 1 0710-1009 ●
93 SEAL; HOLE COVER,GEAR CONT
SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 04 1 1010- ●
93 SEAL; HOLE COVER,GEAR CONT
OD=25 BLACK 		1-76798-019-0 04 1 1010- ●
93 SEAL; HOLE COVER,GEAR CONT
EXC. SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 03 1 0710-1009 ●
93 SEAL; HOLE COVER,GEAR CONT
EXC. SMOOTHER-G(C1W) OD=25 BLACK 		1-76798-019-0 02 1 1010- ●
121 SEAL; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79997-354-0 01 1 0710- ●
121 SEAL; CHANGE LEVER 1-79997-354-0 01 1 0710- ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
(C) M5X12 W/LK WASHER 		0-36220-512-0 02 1 0912-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0710-1010 ●
193 SCREW; CHANGE LEVER
(B) M4X8 W/LK WASHER 		9-03910-408-0 04 1 0710-1010 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0710-0911 ●
193 SCREW; CHANGE LEVER
(A) M5X12 W/LK WASHER 		9-03910-512-0 06 1 0710-0911 ●
193 SCREW; CHANGE LEVER
SMOOTHER-G(C1W) (D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
193 SCREW; CHANGE LEVER
(D) M5X12 W/LK WASHER 		9-03910-512-0 04 1 0912-1010 ●
211 BRACKET; CHANGE LEVER
SMOOTHER-G(C1W) 		1-79907-115-1 01 1 0710- ●
211 BRACKET; CHANGE LEVER 1-79907-115-1 01 1 0710- ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904 ●
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904 ●
234 BOLT; BRKT
SMOOTHER-G(C1W) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
234 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ●
317 NUT; BRKT
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0710- ●
317 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710- ●
423 CLIP; BAND
SMOOTHER-G(C1W) 		1-33619-781-0 01 1 0710-0911 ●
423 CLIP; BAND 1-33619-781-0 01 1 0710-0911 ●
423 CLIP; BAND
SMOOTHER-G(C1W) 		8-97138-392-0 01 1 0912-1010 ●
423 CLIP; BAND 8-97138-392-0 01 1 0912-1010 ●
500 CLIP; HARNESS
SMOOTHER-G(C1W) ID=9 L=16 		9-09524-822-0 02 1 0710-1010 ●
500 CLIP; HARNESS
ID=9 L=16 		9-09524-822-0 02 1 0710-1010 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
