Sayfa 2-31 - Isuzu EPC

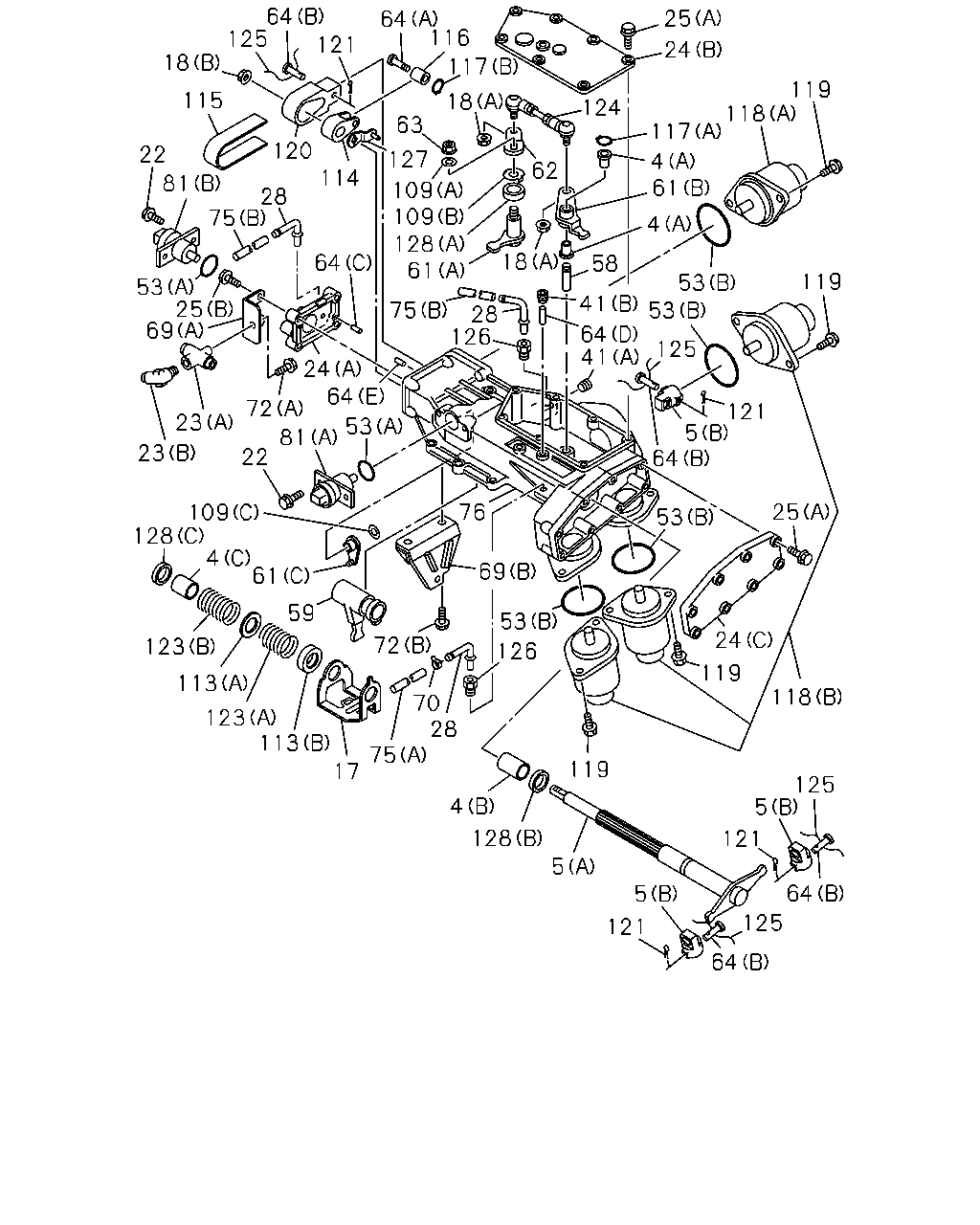

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#67114) — 156 parça

64 125 18 25 64 116 121 24 117 119 115 18 124 118 63 117 62 4 61 120 22 127 114 81 109 109 128 61 28 75 4 64 18 58 119 53 53 53 25 69 41 75 28 126 64 41 125 24 64 72 121 5 64 23 53 81 23 22 53 25 76 109 128 4 61 69 59 53 24 72 123 126 119 113 118 70 28 123 113 75 119 17 125 5 4 128 121 5 64 5 125 121 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-126-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-110-0	01	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT ASM PART: D = 8-98186-516-0, E = 8-98254-320-0	8-98186-070-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-942-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98147-533-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: E = 8-98254-320-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: E = 8-98254-320-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-404-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	8-98052-618-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-541-0	8-98148-111-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: C = 8-98163-036-0, D = 8-98186-516-0	8-98162-741-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT ASM PART: E = 8-98254-320-0	8-98254-315-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09747-005-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98070-040-1	1-09747-005-0	04	1	-
123	SPRING; SELECT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09580-593-0	01	1	-
123	SPRING; SELECT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09580-594-0	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-944-1	01	1	-
125	WIRE L=200 ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98070-040-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-647-0	01	1	-

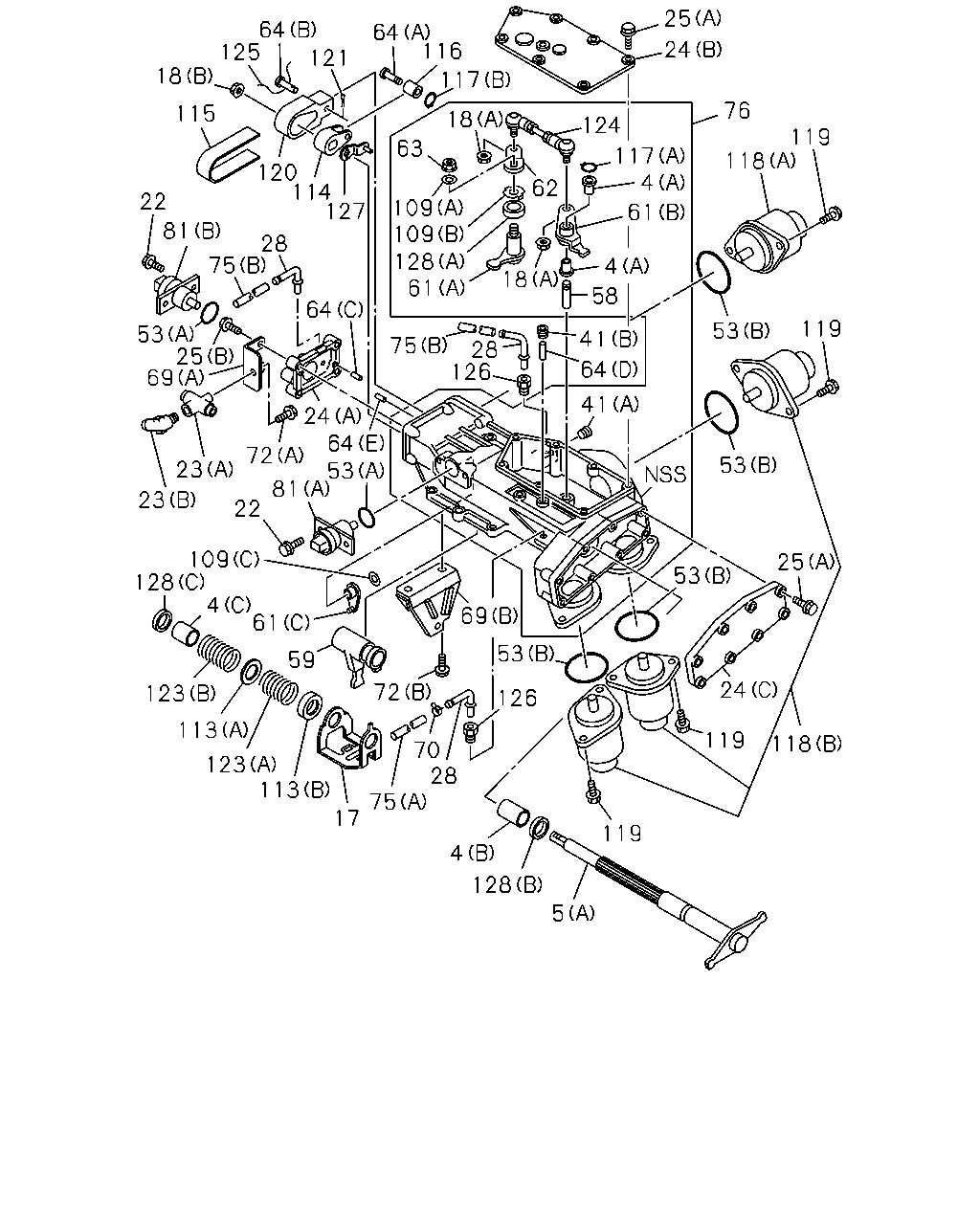

25 64 125 18 64 116 24 121 117 76 115 18 124 119 63 62 117 4 118 120 114 127 22 109 109 128 61 61 81 28 75 4 18 58 64 119 53 53 25 69 41 75 28 126 64 24 64 53 41 72 53 23 81 23 22 109 128 4 61 25 53 69 53 59 24 72 123 126 113 119 118 70 28 123 113 75 17 119 4 128 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-126-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-110-0	01	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT ASM PART: D = 8-98186-516-0, E = 8-98254-320-0	8-98186-070-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-942-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98070-040-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98147-533-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: E = 8-98254-320-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: E = 8-98254-320-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-404-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-040-1	8-98052-618-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-541-0	8-98148-111-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: C = 8-98163-036-0, D = 8-98186-516-0	8-98162-741-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT ASM PART: E = 8-98254-320-0	8-98254-315-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09747-005-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98070-040-1	1-09747-005-0	04	1	-
123	SPRING; SELECT (A) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09580-593-0	01	1	-
123	SPRING; SELECT (B) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09580-594-0	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33671-944-1	01	1	-
125	WIRE L=200 ASM PART: B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98070-040-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: A = 8-98070-040-1, B = 8-98147-541-0, C = 8-98163-036-0, D = 8-98186-516-0, E = 8-98254-320-0	1-09625-647-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
