Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30A - GEAR SHIFTER AND QUADRANT BOX
▶
2-30A — GEAR SHIFTER AND QUADRANT BOX
(#67112) — 185 parça
◀

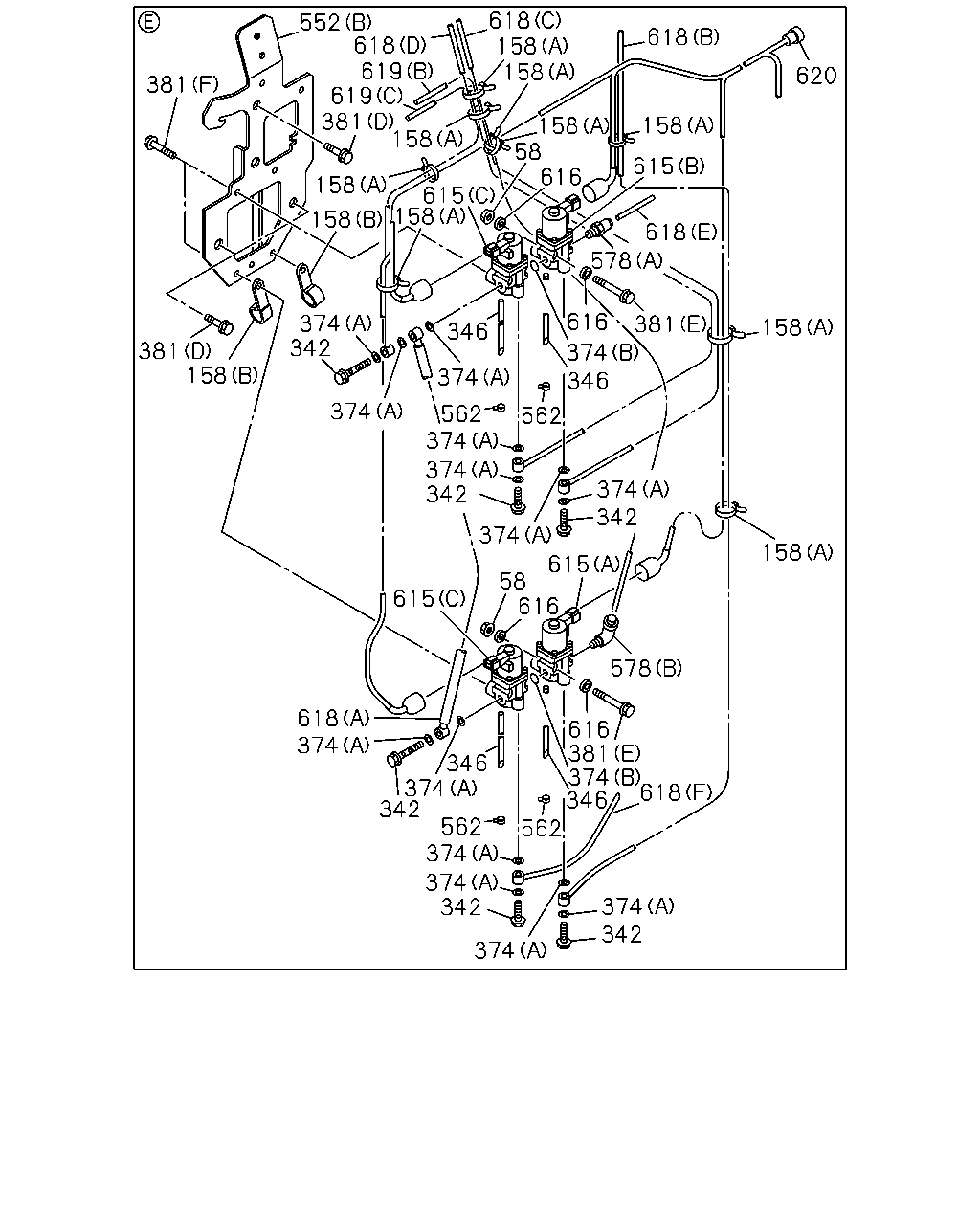

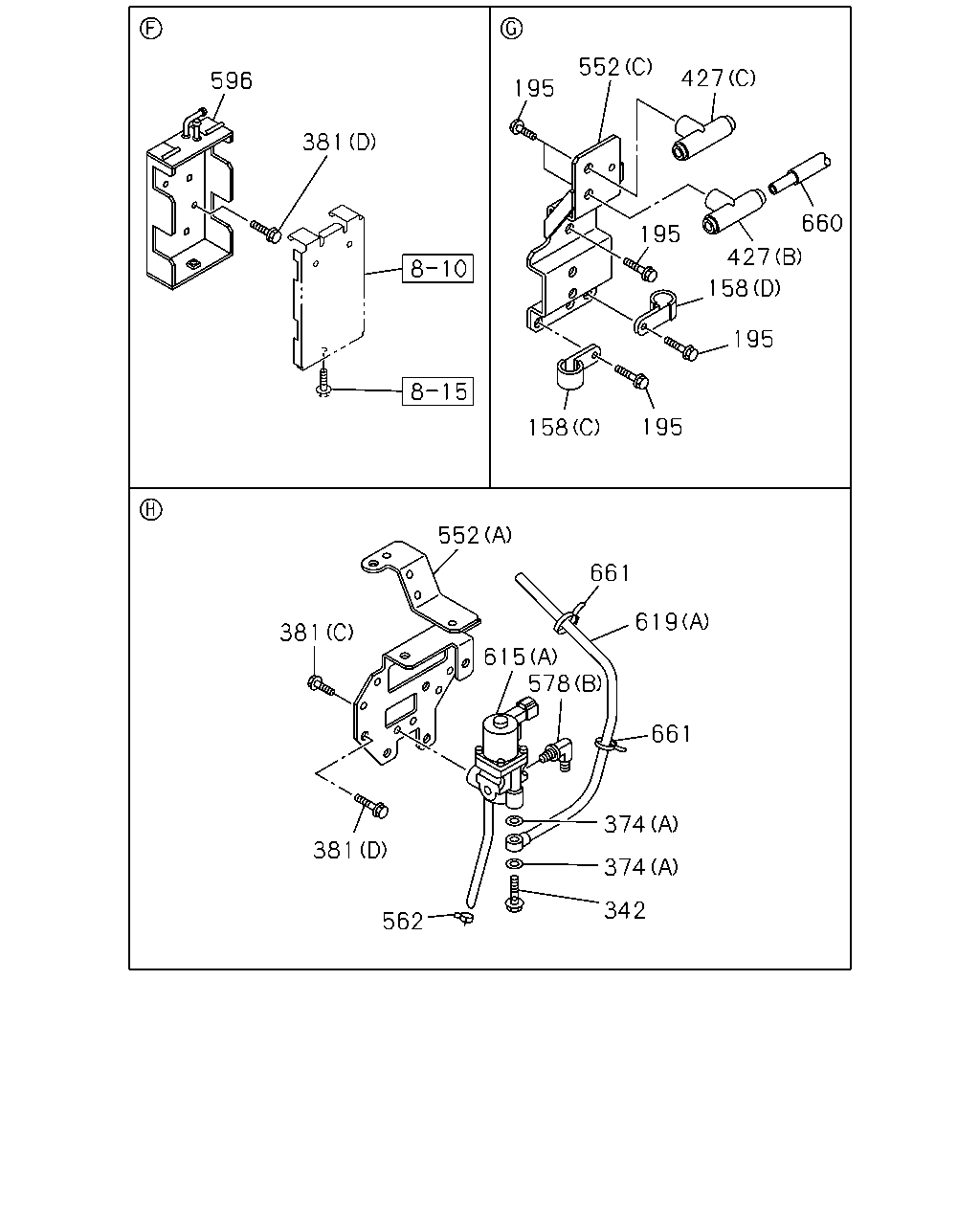

[230A] VALVE AND OTHER PARTS (41 parça)

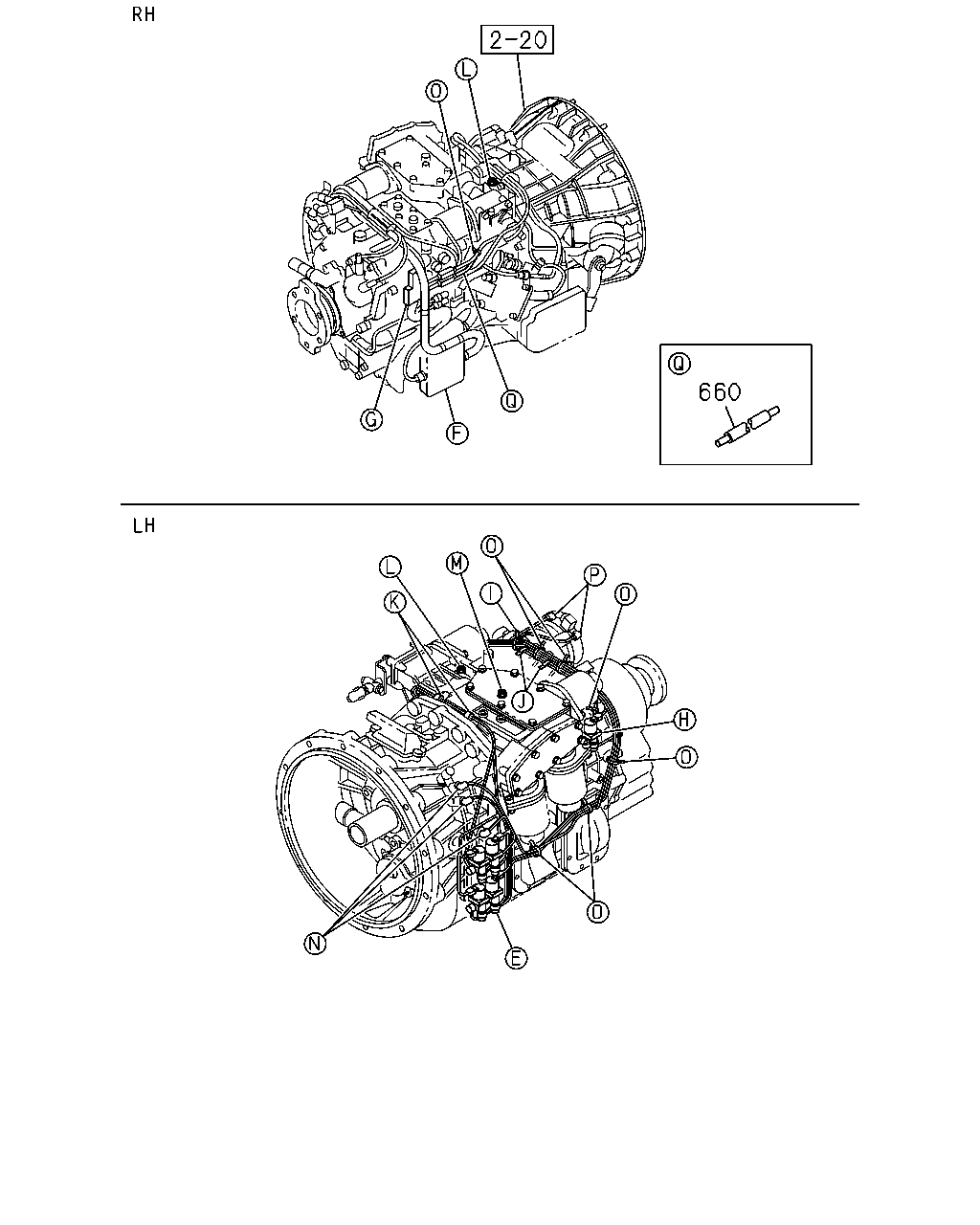

[230A] OTHER PARTS (26 parça)

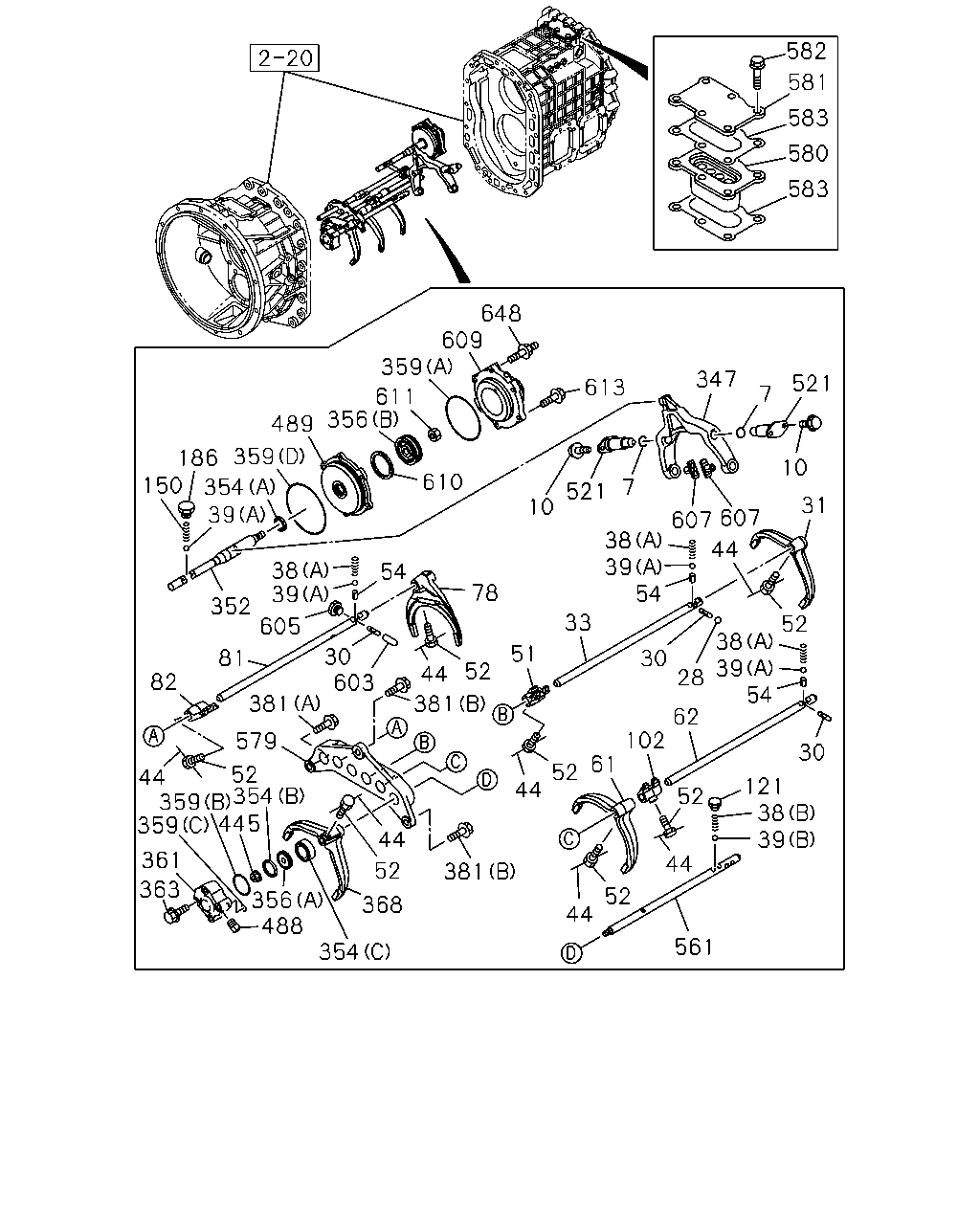

[230A] ROD AND ARM (63 parça)
[230A] VALVE (41 parça)
[230A] FIXING;OTHER PARTS (1 parça)

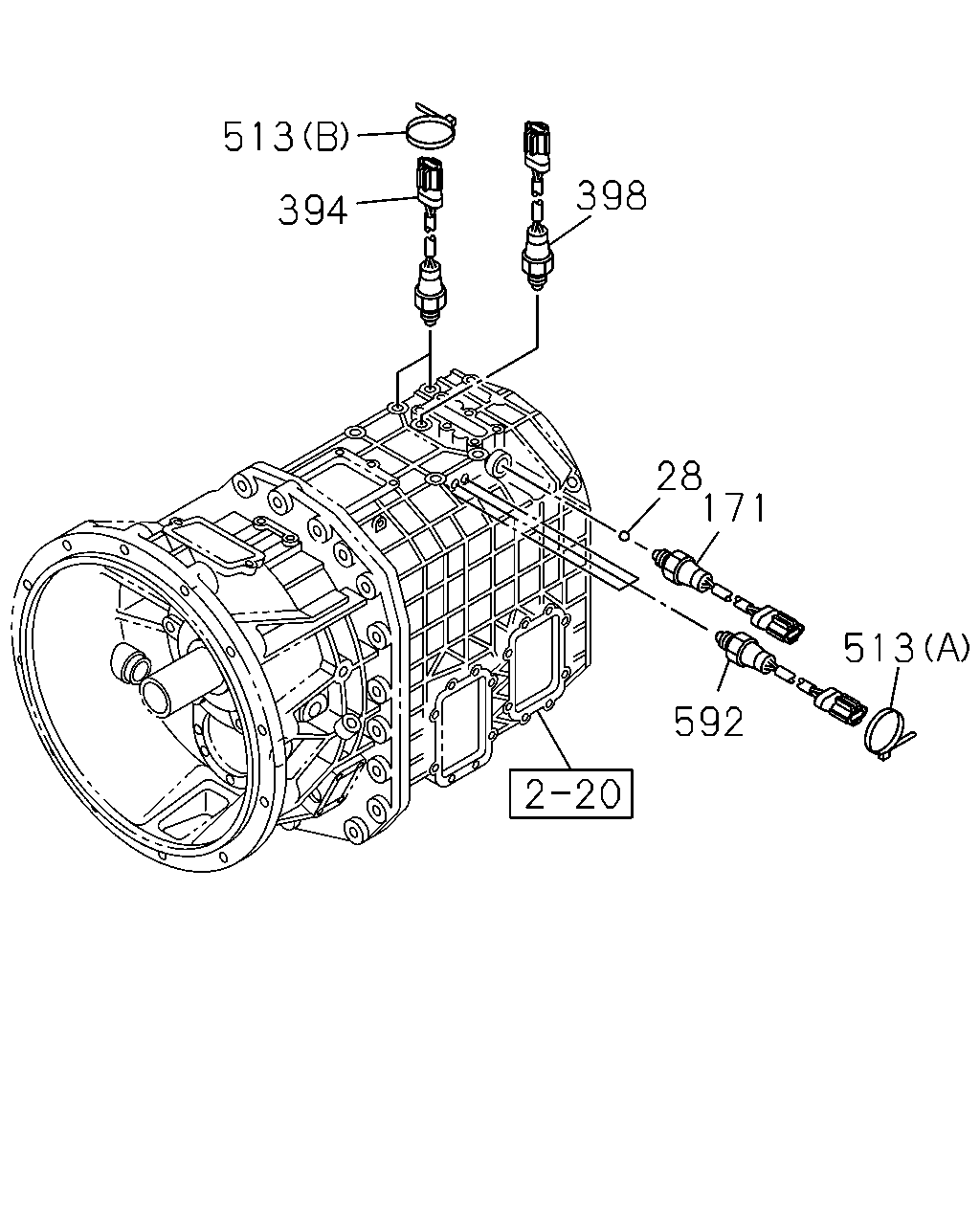

[230A] SWITCH AND CLIP (13 parça)
▶
552
427
596
195
381
660
195
427
158
195
195
158
552
661
619
381
615
578
661
374
381
374
342
562
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
0710-
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
0710-
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
0710-
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
10
1
0710-
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
0710-
195
BOLT
M8X16 FLANGE
0-28050-816-0
02
1
0710-
195
BOLT
M10X25 FLANGE
0-28751-025-0
03
1
0710-
342
BOLT
M12X41
1-09675-140-0
01
1
0710-
342
BOLT
M12X27 FLANGE
1-09675-160-0
06
1
0710-0805
342
BOLT
M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
06
1
0806-
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
1-09630-084-0
15
1
0710-1312
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
8-98251-344-0
15
1
1401-
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8
9-09565-117-0
02
1
0710-
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
0710-
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
0710-
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
0710-
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
11
1
0710-
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
0710-
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
0710-
427
CONNECTOR; NYLON TUBE
(A) L=27 DIN6 & R1/4 ELBOW
1-09660-707-1
01
1
0710-
427
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
01
1
0710-
427
CONNECTOR; NYLON TUBE
(C) 2WAY
1-09661-518-0
01
1
0710-
427
CONNECTOR; NYLON TUBE
(A) L=30
1-09661-770-0
02
1
0710-
552
BRACKET
(A)
1-47471-393-0
01
1
0710-
552
BRACKET
(B)
1-82569-397-1
01
1
0710-
552
BRACKET
(C)
1-82698-607-0
01
1
0710-
562
CLAMP; LOCKING
ID=7.8
8-94246-958-0
05
1
0710-
578
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09660-707-1
02
1
0710-
578
CONNECTOR
(A)
1-09661-134-0
01
1
0710-
578
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
02
1
0710-
596
BOX; CONNECTOR
8-98067-899-0
01
1
0710-1003
596
BOX; CONNECTOR
8-98160-716-1
01
1
1004-
615
VALVE; MAGNETIC
(C) M12
1-82560-342-0
02
1
0710-
615
VALVE; MAGNETIC
(B)
1-82560-344-0
01
1
0710-
615
VALVE; MAGNETIC
(A) M12 & PT3/8
1-82560-451-0
02
1
0710-
619
TUBE; NYLON
(B) L=430
1-09376-828-1
01
1
0710-1003
619
TUBE; NYLON
(B) L=480
8-98081-861-0
01
1
1004-
619
TUBE; NYLON
(C) L=420
1-09376-829-1
01
1
0710-
619
TUBE; NYLON
(A) L=690
1-09377-332-0
01
1
0710-
660
PROTECTOR; NYLON TUBE
1-09377-342-0
01
1
0710-
661
CLIP
L=150
1-82569-328-0
02
1
0710-
381
512
222
444
512
339
341
158
339
341
339
341
427
513
578
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
0710-
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
0710-
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
0710-
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
10
1
0710-
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
0710-
222
BRACKET; CLIP
1-82698-591-0
01
1
0710-
339
NUT; QUAD BOX
M10 FLANGE
0-91180-210-0
05
1
0710-
341
STUD; QUAD BOX
M10X35 L=50
0-44011-035-0
04
1
0710-
341
STUD; QUAD BOX
M10X81.5 L=96.5
8-98019-465-0
01
1
0710-
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
0710-
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
0710-
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
0710-
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
11
1
0710-
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
0710-
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
0710-
427
CONNECTOR; NYLON TUBE
(A) L=27 DIN6 & R1/4 ELBOW
1-09660-707-1
01
1
0710-
427
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
01
1
0710-
427
CONNECTOR; NYLON TUBE
(C) 2WAY
1-09661-518-0
01
1
0710-
427
CONNECTOR; NYLON TUBE
(A) L=30
1-09661-770-0
02
1
0710-
444
BOLT; CLIP
M10X25 FLANGE
0-28751-025-0
04
1
0710-
512
CLIP; PIPE
ID=13X2 L=25
9-09916-814-0
04
1
0710-
513
CLIP; BAND
(A) L=250
5-09707-030-1
10
1
0710-
513
CLIP; BAND
(B) L=140
5-09707-031-1
02
1
0710-
578
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09660-707-1
02
1
0710-
578
CONNECTOR
(A)
1-09661-134-0
01
1
0710-
578
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
02
1
0710-
582
581
583
580
583
648
609
359
347
521
613
7
611
356
489
359
186
150
10
610
354
39
7
521
31
10
607
607
38
39
54
44
38
39
54
78
352
33
52
38
39
54
605
51
30
603
81
30
52
44
28
82
381
381
62
102
579
30
61
52
44
52
354
359
121
38
39
44
52
44
361
44
52
381
363
488
52
368
44
561
354
356
359
445
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4
1-09623-057-0
02
1
0710-
10
BOLT; SPINDLE
M10X30 FLANGE
0-28751-030-0
04
1
0710-
28
BALL; INTER LK
9-00097-501-0
02
1
0710-
30
PIN; INTER LK
9-33534-003-0
03
1
0710-
31
ARM; SHIFT,LOW & 2ND
1-33511-587-0
01
1
0710-
33
ROD; SHIFT,LOW & 2ND
1-33531-458-0
01
1
0710-
38
SPRING; DETENT
(B)
1-09580-374-0
01
1
0710-
38
SPRING; DETENT
(A)
1-09580-379-0
03
1
0710-
39
BALL; DETENT
(A)
1-09843-012-0
04
1
0710-
39
BALL; DETENT
(B)
9-00097-013-0
01
1
0710-
44
WIRE; LK
L=200
9-08351-020-0
07
1
0710-
51
BLOCK; SHIFT,1ST & 2ND
1-33511-590-0
01
1
0710-
52
BOLT; SHIFT ARM
M12X20 W/HOLE
1-09052-038-0
07
1
0710-
54
PIN; SPR,SHIFT BLOCK
1-09748-014-0
03
1
0710-
61
ARM; SHIFT,3RD & 4TH
1-33511-586-0
01
1
0710-
62
ROD; SHIFT,3RD & 4TH
1-33531-459-0
01
1
0710-
78
ARM; SHIFT,REV
1-33511-589-0
01
1
0710-
81
ROD; SHIFT,REV BLOCK
1-33531-457-0
01
1
0710-
82
BLOCK; SHIFT,REV
1-33511-451-0
01
1
0710-
102
BLOCK; SHIFT,3RD & 4TH
8-98044-038-0
01
1
0710-
121
PLUG; DETENT SPR
M16X12
0-92002-416-0
01
1
0710-
150
SPRING; DETENT BALL
1-09580-379-0
01
1
0710-
186
PLUG; SHIFTER ROD
M16X12
0-92002-416-0
01
1
0710-
347
ARM; SHIFT,RANGE CHANGE
1-33511-585-0
01
1
0710-
352
ROD; SHIFT,RANGE CHANGE
1-33531-482-0
01
1
0710-
354
SEAL; AIR CYL
(A)
1-19387-056-0
01
1
0710-
354
SEAL; AIR CYL
(B)
1-33739-978-0
01
1
0710-
354
SEAL; AIR CYL
(C)
1-33739-981-0
01
1
0710-
356
PISTON; AIR CYL
(A)
1-33551-017-0
01
1
0710-
356
PISTON; AIR CYL
(B)
1-33551-025-0
01
1
0710-
359
GASKET; AIR CYL
(A) ID=124.6
1-09623-468-0
01
1
0710-
359
GASKET; AIR CYL
(B) ID=55.6
8-98075-598-0
01
1
0710-
359
GASKET; AIR CYL
(C) ID=6.8
9-09565-107-0
01
1
0710-
359
GASKET; AIR CYL
(D) ID=144.4
9-09920-735-0
01
1
0710-
361
CYLINDER; AIR,SHIFT
1-33561-019-0
01
1
0710-
363
BOLT; AIR CYL
M10X60 FLANGE
0-28151-060-0
04
1
0710-1003
363
BOLT; AIR CYL
M10X60 FLANGE
8-98169-763-0
04
1
1004-
368
ARM; SHIFT,SPLITTER GEAR
1-33511-588-0
01
1
0710-
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
0710-
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
0710-
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
0710-
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
11
1
0710-
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
0710-
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
0710-
445
NUT; SHIFT CYL
M12 LOCK NUT FLANGE
0-91380-012-0
01
1
0710-
488
PLUG; AIR CYL
9-09204-510-0
01
1
0710-
489
COVER; AIR CYL
1-33569-052-0
01
1
0710-
521
SPINDLE; 6TH
1-33519-131-0
02
1
0710-
561
ROD; SHIFT
1-33531-460-0
01
1
0710-
579
BLOCK; SHIFT,ROD GUIDE
1-33539-066-2
01
1
0710-
580
BLOCK; INTERLOCK
1-33539-064-1
01
1
0710-
581
COVER; BLOCK
1-33141-056-0
01
1
0710-
582
BOLT; SPRING GUIDE
M10X35 FLANGE
0-28151-035-0
06
1
0710-
583
GASKET; SPRING GUIDE
1-33142-047-0
02
1
0710-
603
ROD; INTER LK
L=49
1-33534-005-0
01
1
0710-
605
PLUG; INTER LK
M18X12
0-92002-418-0
01
1
0710-
607
PIECE; SHIFT
1-33518-010-0
02
1
0710-
609
BODY; AIR,CYL
1-33561-018-0
01
1
0710-
610
SEAL; PISTON
1-33738-054-0
01
1
0710-
611
NUT; SHAFT
8-97324-304-0
01
1
0710-
613
BOLT; AIR CYL
M10X45 FLANGE
0-28151-045-0
03
1
0710-
648
STUD; AIR CYL
M10X20,M10X45 L=75
1-09049-015-0
03
1
0710-0805
648
STUD; AIR CYL
M10X20,M10X45 L=75
8-98010-335-0
03
1
0806-
618
158
158
552
618
619
619
381
158
618
620
381
158
158
58
616
615
158
615
158
158
618
578
616
374
342
381
374
346
158
346
381
158
374
562
374
374
562
374
342
374
342
374
158
615
58
616
615
578
618
374
616
381
374
618
346
562
346
374
342
562
374
374
342
374
342
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
58
NUT
M6 FLANGE
0-91180-106-0
02
1
0710-
158
CLIP; HARNESS
(B) ID=19 L=60
0-95235-896-0
02
1
0710-
158
CLIP; HARNESS
(C) ID=19 L=25
1-09700-515-1
01
1
0710-
158
CLIP; HARNESS
(D) ID=28 L=30
1-09700-607-1
01
1
0710-
158
CLIP; HARNESS
(A) L=150
1-82569-328-0
10
1
0710-
158
CLIP; HARNESS
(E) L=36
8-94224-891-1
02
1
0710-
342
BOLT
M12X41
1-09675-140-0
01
1
0710-
342
BOLT
M12X27 FLANGE
1-09675-160-0
06
1
0710-0805
342
BOLT
M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
06
1
0806-
346
HOSE; AIR
ID=6 OD=9 L=150
1-33739-872-0
04
1
1004-
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
1-09630-084-0
15
1
0710-1312
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) ID=12.2
8-98251-344-0
15
1
1401-
374
GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) ID=16.8
9-09565-117-0
02
1
0710-
381
BOLT
(E) M6X50 FLANGE
0-28050-650-0
02
1
0710-
381
BOLT
(C) M8X16 FLANGE
0-28050-816-0
02
1
0710-
381
BOLT
(F) M8X20 FLANGE
0-28050-820-0
05
1
0710-
381
BOLT
(D) M10X25 FLANGE
0-28751-025-0
11
1
0710-
381
BOLT
(A) M10X35 FLANGE
0-28751-035-0
01
1
0710-
381
BOLT
(B) M10X34 FLANGE REAMER
1-09040-091-1
02
1
0710-
552
BRACKET
(A)
1-47471-393-0
01
1
0710-
552
BRACKET
(B)
1-82569-397-1
01
1
0710-
552
BRACKET
(C)
1-82698-607-0
01
1
0710-
562
CLAMP; LOCKING
ID=7.8
8-94246-958-0
05
1
0710-
578
CONNECTOR
(C) DIN6 & R1/4 ELBOW
1-09660-707-1
02
1
0710-
578
CONNECTOR
(A)
1-09661-134-0
01
1
0710-
578
CONNECTOR
(B) DIN6 & R3/8 ELBOW
1-09661-234-0
02
1
0710-
615
VALVE; MAGNETIC
(C) M12
1-82560-342-0
02
1
0710-
615
VALVE; MAGNETIC
(B)
1-82560-344-0
01
1
0710-
615
VALVE; MAGNETIC
(A) M12 & PT3/8
1-82560-451-0
02
1
0710-
616
COLLAR
1-82569-266-0
04
1
0710-
618
TUBE; NYLON
(A) L=140
1-09376-826-0
01
1
0710-
618
TUBE; NYLON
(B) L=550
1-09376-830-1
01
1
0710-
618
TUBE; NYLON
(C) L=1400
1-09377-321-0
01
1
0710-
618
TUBE; NYLON
(D) L=750
1-09377-322-0
01
1
0710-
618
TUBE; NYLON
(E) L=700
1-09377-323-0
01
1
0710-
618
TUBE; NYLON
(F) L=1500
1-09377-324-0
01
1
0710-
619
TUBE; NYLON
(B) L=430
1-09376-828-1
01
1
0710-1003
619
TUBE; NYLON
(B) L=480
8-98081-861-0
01
1
1004-
619
TUBE; NYLON
(C) L=420
1-09376-829-1
01
1
0710-
619
TUBE; NYLON
(A) L=690
1-09377-332-0
01
1
0710-
620
HARNESS
1-82677-897-1
01
1
0710-
660
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
660
PROTECTOR; NYLON TUBE
1-09377-342-0
01
1
0710-
513
394
398
28
171
513
592
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
28
BALL; INTER LK
9-00097-501-0
02
1
0710-
171
SWITCH; NEUTRAL
8-98072-777-0
01
1
0710-0801
171
SWITCH; NEUTRAL
8-98108-345-0
01
1
0802-1005
171
SWITCH; NEUTRAL
8-98166-989-0
01
1
1006-1109
171
SWITCH; NEUTRAL
8-97640-725-0
01
1
1110-
394
SWITCH; RANGE CHANGE
8-98042-854-0
02
1
0710-1209
394
SWITCH; RANGE CHANGE
8-98228-481-0
02
1
1210-
398
SWITCH; REV LAMP
8-98042-854-0
01
1
0710-1209
398
SWITCH; REV LAMP
8-98228-483-0
01
1
1210-
513
CLIP; BAND
(A) L=250
5-09707-030-1
10
1
0710-
513
CLIP; BAND
(B) L=140
5-09707-031-1
02
1
0710-
592
SWITCH; POSITION
8-98042-854-0
03
1
0710-1209
592
SWITCH; POSITION
8-98228-481-0
03
1
1210-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
