4-42 — POWER STEERING OIL PUMP (#6711) — 32 parça

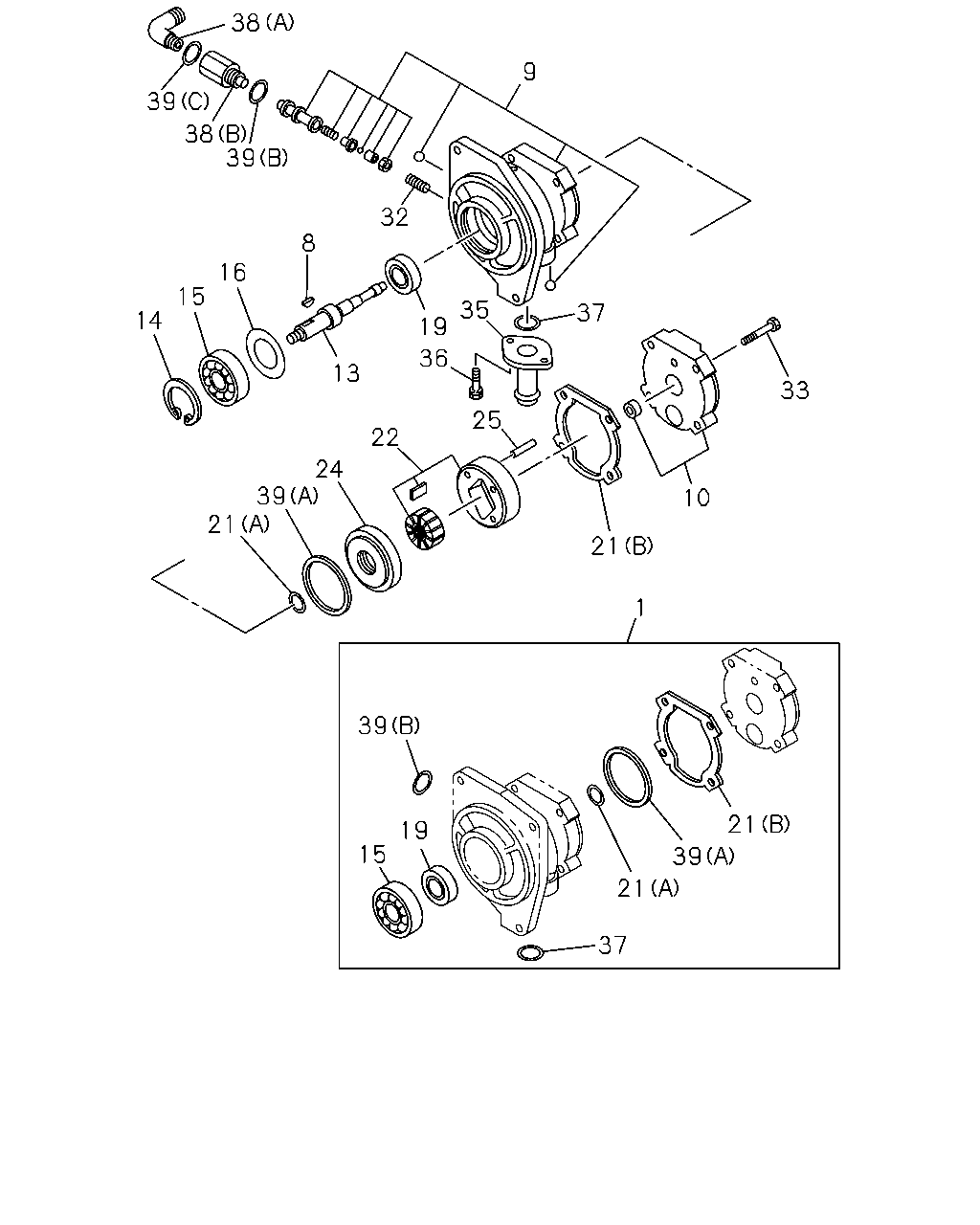

çizim 43222
38 9 39 38 39 32 8 16 15 35 37 14 19 36 13 33 25 22 24 39 21 10 21 1 39 21 19 15 39 21 37
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-530-0 		1-85574-042-0 01 1 -
1 REPAIR KIT; OIL PUMP
ASM PART: B = 1-19500-595-0 		1-85574-080-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		9-08055-413-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-530-0 		1-19511-143-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 1-19500-595-0 		1-19511-186-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-530-0 		1-19511-102-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 1-19500-595-0 		8-97182-108-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-530-0 		1-19521-030-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 1-19500-595-0 		1-19521-040-0 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-257-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-264-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-258-0 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-256-0 01 1 -
21 GASKET; FRT COVER TO BODY
(A) ASM PART: A = 1-19500-530-0 		8-94475-378-0 01 1 -
21 GASKET; FRT COVER TO BODY
(B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		8-94475-380-1 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: B = 1-19500-595-0 		8-97182-099-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-530-0 		1-19519-304-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: B = 1-19500-595-0 		1-19519-342-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-530-0 		1-19515-012-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: B = 1-19500-595-0 		8-97182-103-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-33739-345-0 02 1 -
32 SPRING; OIL PUMP
THA ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-48119-054-0 04 1 -
35 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		8-94395-492-0 01 1 -
36 BOLT; CONN,PIPE
THA ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		8-94461-139-1 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-33739-070-0 01 1 -
38 CONNECTOR; OIL PUMP
(A) ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-307-0 01 1 -
38 CONNECTOR; OIL PUMP
(B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-324-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-530-0 		1-19519-259-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		1-19519-308-0 01 1 -
39 GASKET; OIL PUMP
ASM PART: B = 1-19500-595-0 		8-94475-379-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-530-0, B = 1-19500-595-0 		9-48429-028-0 01 1 -
