2-07B — CLUTCH BOOSTER; MINIPACK (#67103) — 53 parça

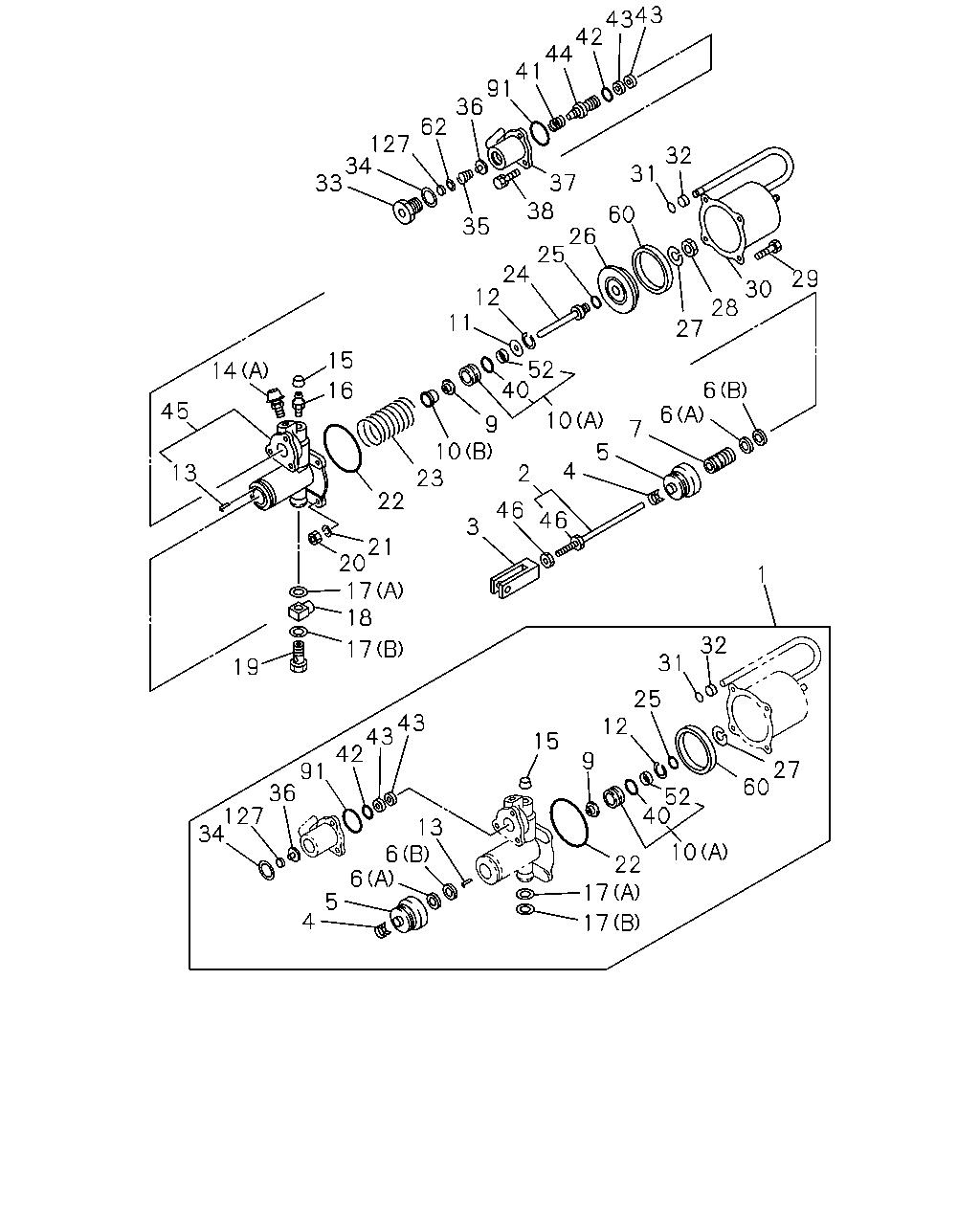

çizim 192850
33 34 127 62 36 91 41 44 42 43 43 35 38 37 32 31 60 26 25 24 12 11 29 30 28 27 15 16 14 45 13 52 40 9 6 6 7 10 5 4 2 10 23 22 46 46 3 21 20 17 18 17 19 34 127 36 91 42 43 43 1 32 31 25 12 9 15 13 6 6 5 4 27 60 52 40 10 22 17 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-551-0 01 1 0710- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-172-0 01 1 0710- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-187-0 01 1 0710- ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 0710- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 0710- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 0710- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 0710- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0710- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 0710- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 0710- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 0710- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 0710- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0710- ● ●
13 PIN; SPR 1-31829-109-0 01 1 0710- ● ●
14 COVER; EXH,CLU BOOSTER
(A) 		1-31829-365-0 01 1 0710- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 0710- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 0710- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 0710- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 0710- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 0710- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 0710- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 0710- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 0710- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 0710- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0710- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-334-0 01 1 0710- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 0710- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 0710- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 0710- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 0710- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 0710- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 0710- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 0710- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 0710- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 0710- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 0710- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 0710- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 0710- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-092-0 01 1 0710- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0710- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 0710- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 0710- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-123-0 01 1 0710- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-083-0 02 1 0710- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-030-0 01 1 0710- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-064-0 01 1 0710- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0710-1105 ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1106- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 0710- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 0710- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0710- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 0710- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0710- ● ●
