Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#67101) — 186 parça

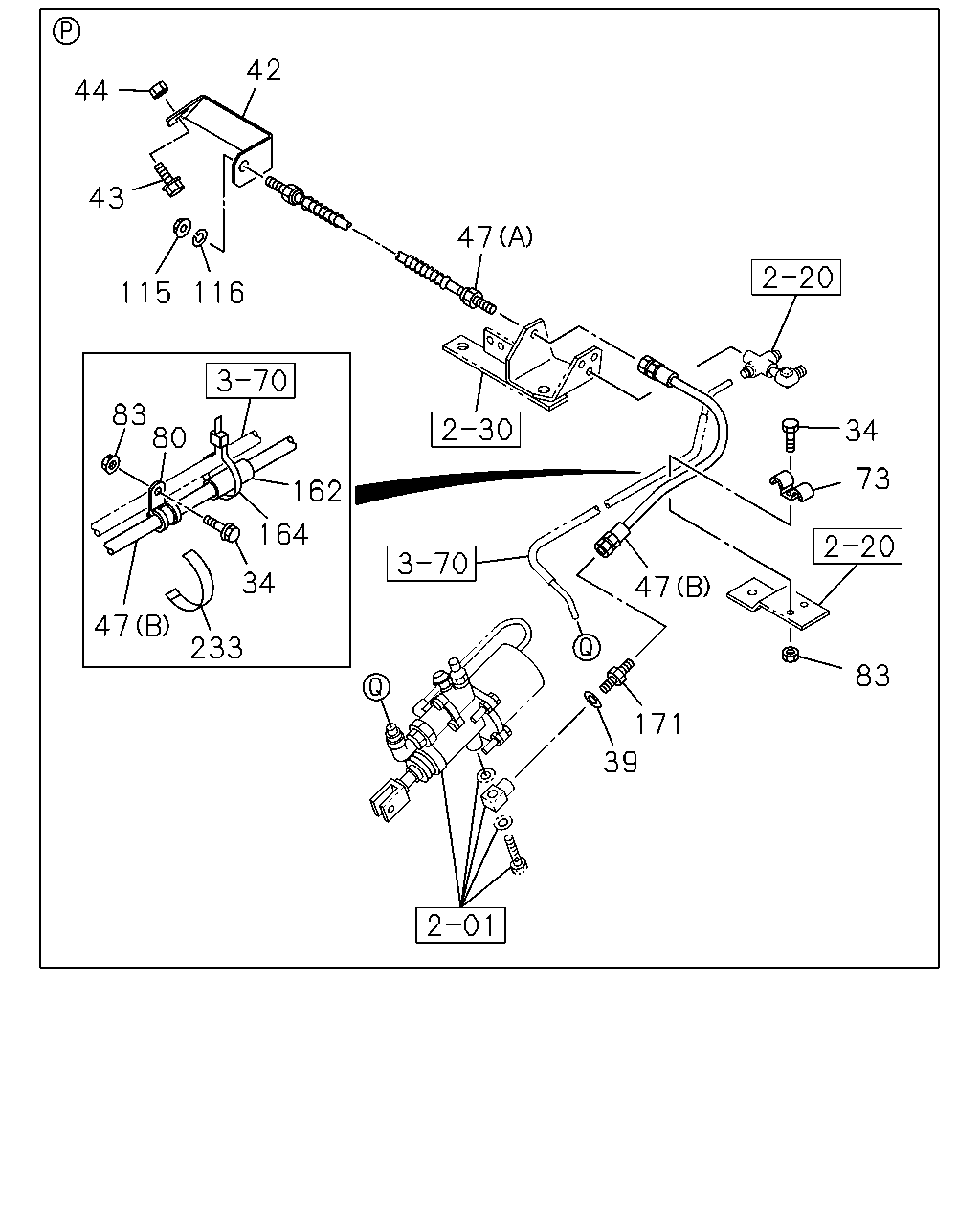

44 43 42 115 116 47 83 80 162 164 34 233 47 47 34 73 83 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0710-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W)	1-47471-359-0	01	1	0710-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	02	1	0710-	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT (C) L=650	1-09364-694-0	01	1	0710-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-	●
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0710-	●
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	0710-	●
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	0710-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-	●	●
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-	●
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	0710-	●
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	0710-	●
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	0710-	●

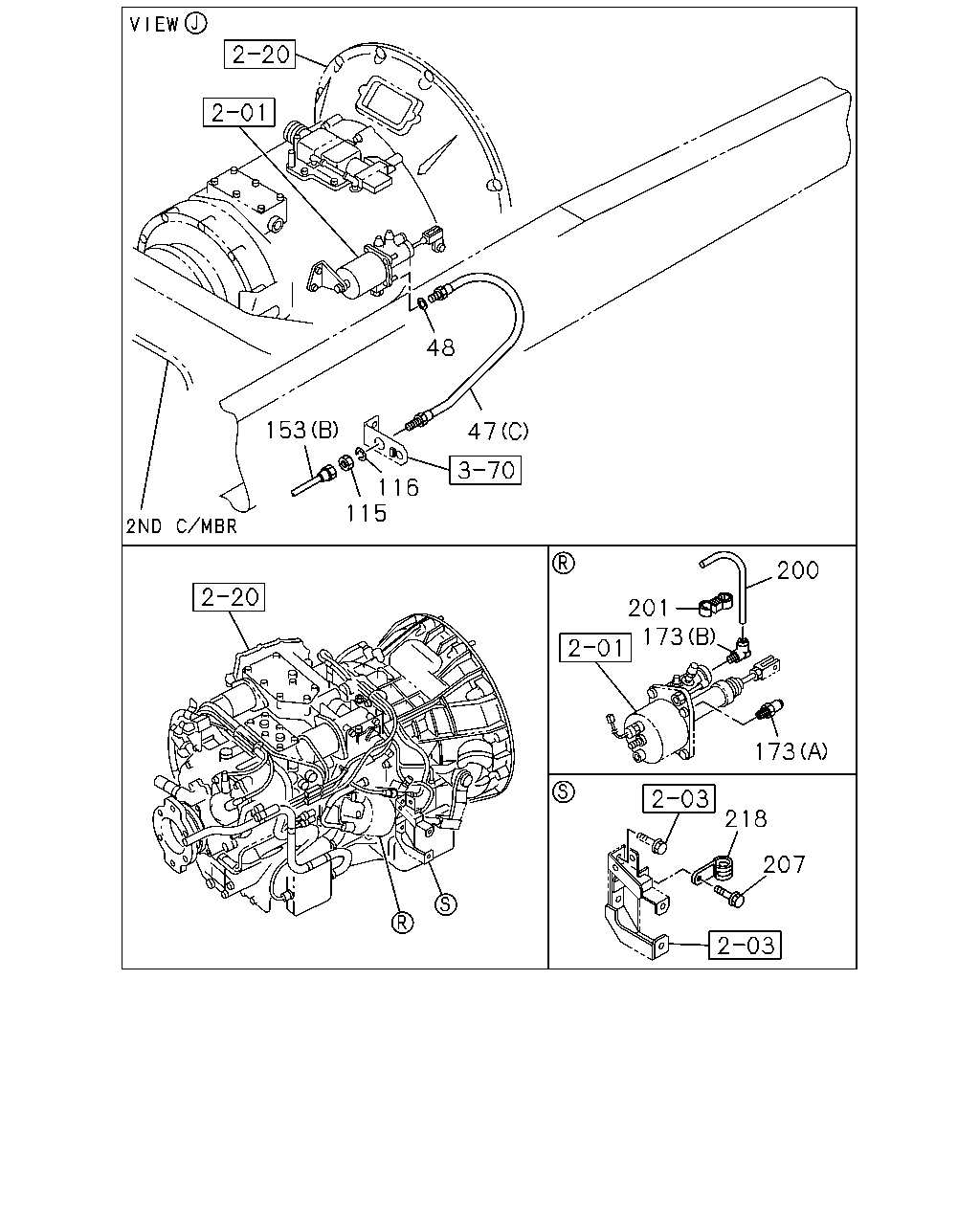

153 115 116 47 48 201 200 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT (C) L=650	1-09364-694-0	01	1	0710-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-	●
48	GASKET; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0710-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) (A) L=537	8-98085-164-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-		●
173	CONNECTOR MJX16P M/T(Y3Z) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0710-	●
173	CONNECTOR (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	0710-		●
173	CONNECTOR MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0710-	●
173	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0710-		●
200	TUBE; NYLON MJX16P M/T(Y3Z) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0710-	●
200	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	0710-		●
201	CLIP; NYLON TUBE MJX16P M/T(Y3Z) ID=6.35 & 12	1-09709-275-1	01	1	0710-	●
201	CLIP; NYLON TUBE ID=6.35 & 12	1-09709-275-1	01	1	0710-		●
207	BOLT; CLIP MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
207	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0710-		●
218	CLIP MJX16P M/T(Y3Z) ID=11 L=20	0-95235-035-0	01	1	0710-	●
218	CLIP ID=11 L=20	0-95235-035-0	01	1	0710-		●

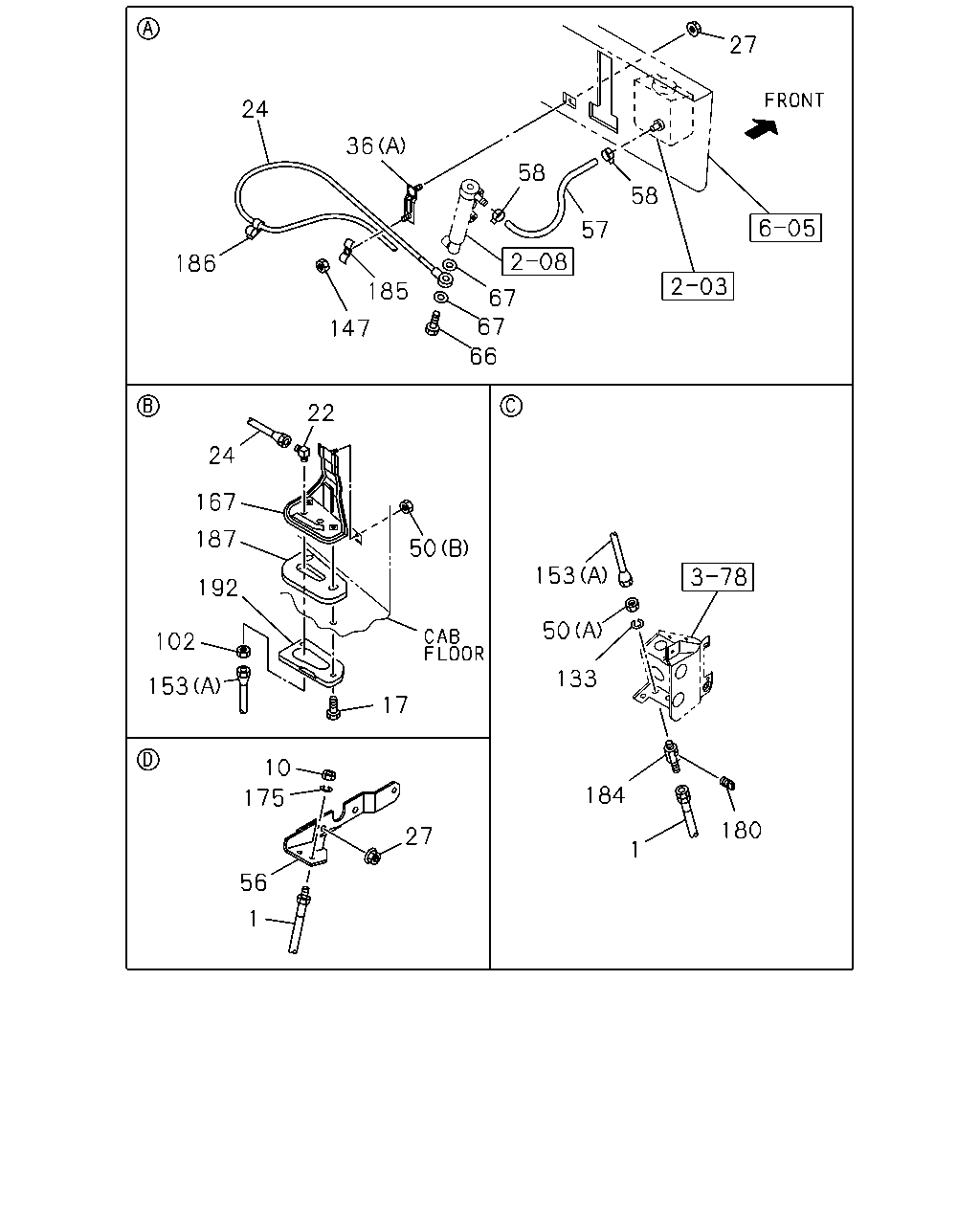

27 24 36 58 58 57 186 185 67 67 147 66 22 24 167 187 50 153 192 50 102 133 153 17 10 184 175 180 27 1 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0710-	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0710-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-	●	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-	●	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0710-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0710-0805	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0806-	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0710-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-	●	●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0710-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0710-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0710-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0710-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0710-	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0710-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0710-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) (A) L=537	8-98085-164-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0710-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0710-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0710-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0710-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	0710-	●	●
186	HOLDER; CLIP	8-94107-710-0	02	1	0710-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	0710-	●	●
192	PLATE	1-71117-221-0	01	1	0710-	●	●

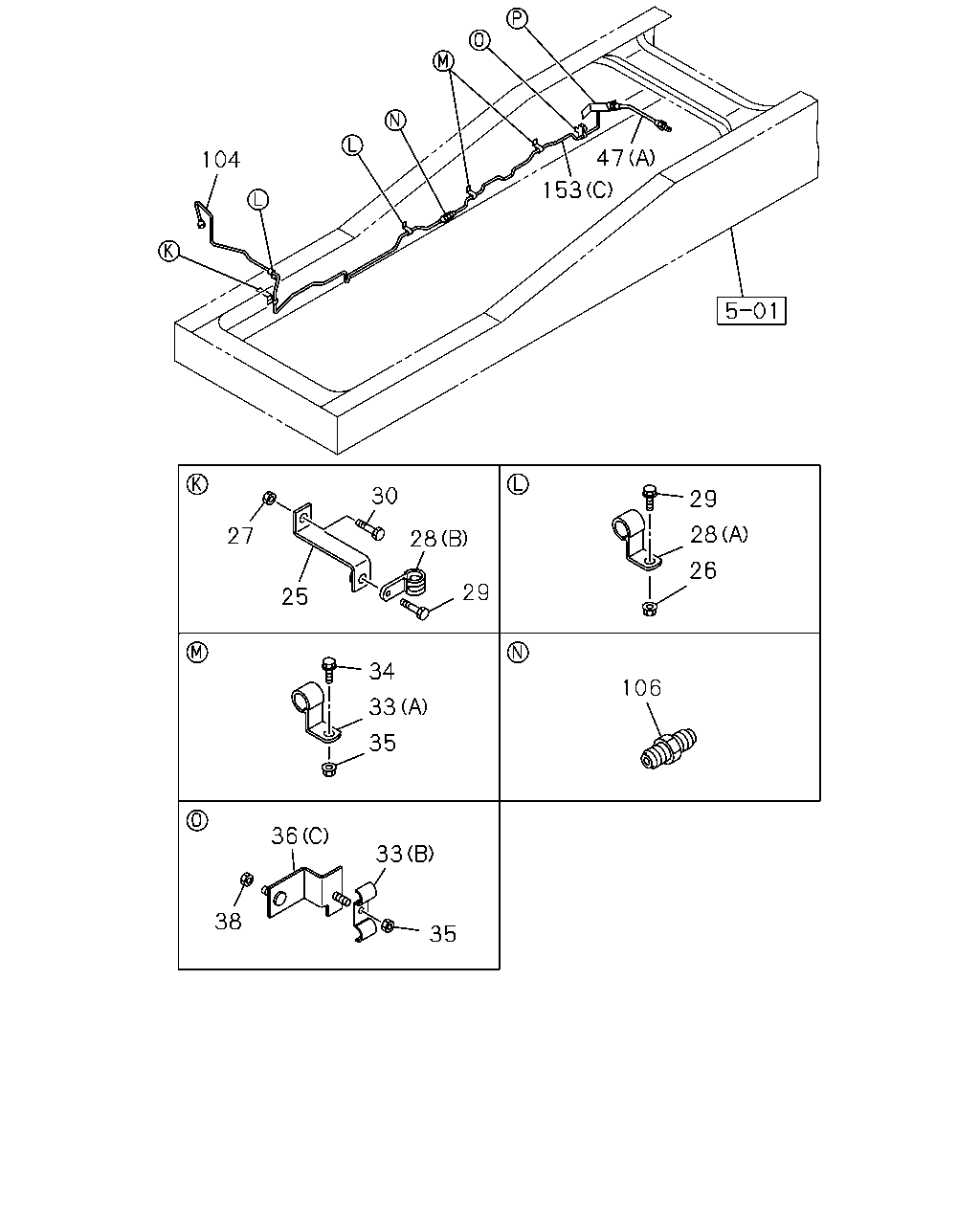

104 153 47 30 28 29 27 25 34 33 35 36 33 35 38 106 26 26 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0710-	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0710-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0710-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0710-	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0710-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0710-0805	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0806-	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-	●	●
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT (C) L=650	1-09364-694-0	01	1	0710-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) (A) L=537	8-98085-164-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-		●

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	0710-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0710-	●	●
56	BRACKET; FLEX HOSE	1-47478-300-1	01	1	0710-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) (A) L=537	8-98085-164-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-		●
167	BRACKET; UNION	1-71117-183-3	01	1	0710-	●	●

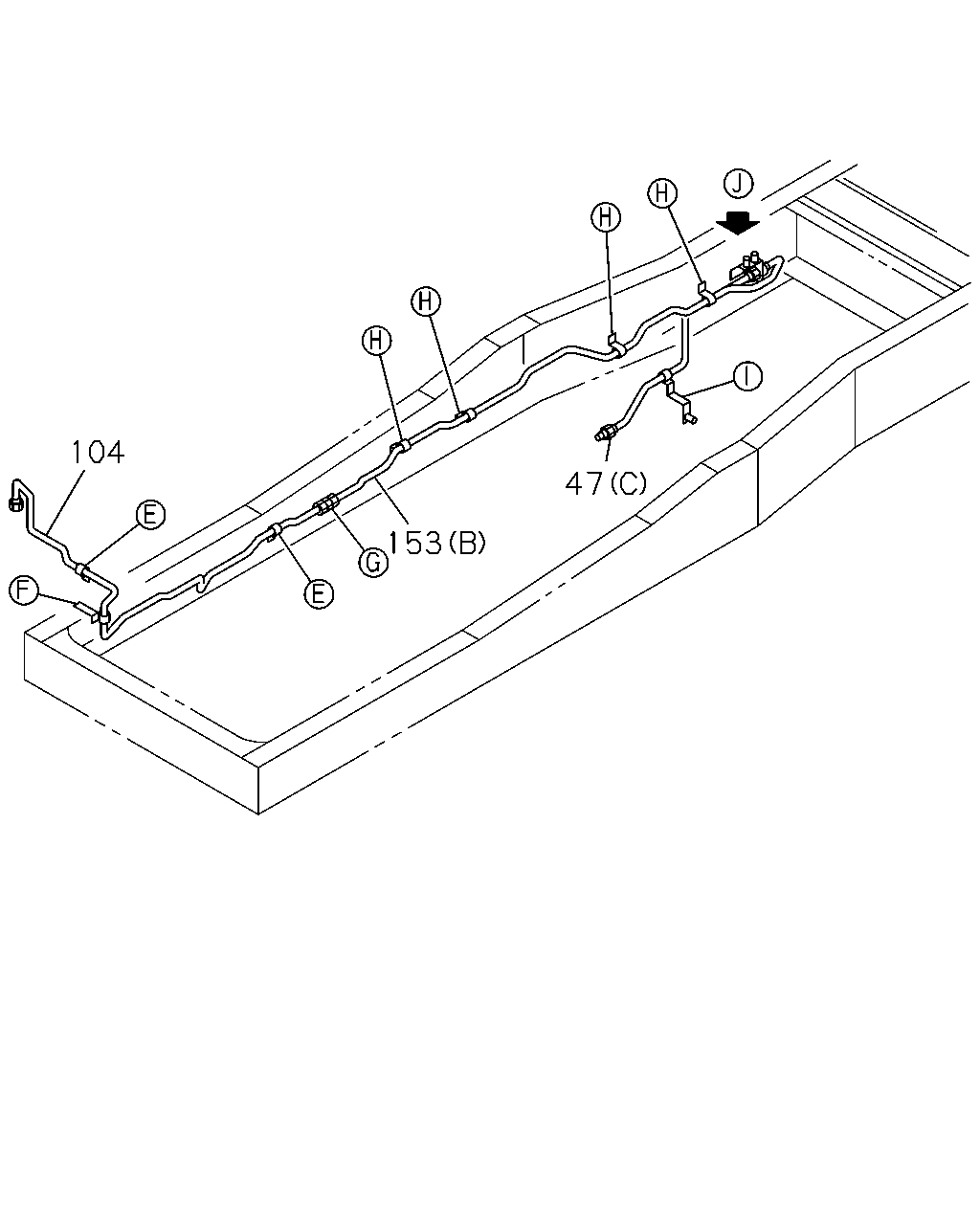

104 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	0710-	●
47	HOSE; FLEX,CLU CONT MJX16P M/T(Y3Z) (C) L=650	1-09364-694-0	01	1	0710-	●
47	HOSE; FLEX,CLU CONT (C) L=650	1-09364-694-0	01	1	0710-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) L=445	1-09364-478-0	01	1	0710-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0710-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1744 SERVICED BY L=1800	1-47428-768-0	01	1	0710-0805	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C) L=1731 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WF1 TC-C(1B8) (A) L=469	1-49162-810-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) (A) L=537	8-98085-164-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	0710-		●
153	PIPE ASM; CLU,UNION TO FLEX 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=2094 SERVICED BY L=2150	1-47428-770-0	01	1	0710-		●

29 28 26 27 30 28 25 29 106 117 4 36 37 34 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJX16P M/T(Y3Z) ID=16 H=25 L=25	1-09701-162-0	01	1	0710-	●
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	0710-		●
25	BRACKET; OIL PIPE	1-46147-101-0	01	1	0710-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0710-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	0710-	●	●
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
33	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0710-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0710-	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (B) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	0710-	●
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	0710-	●
34	BOLT; PIPE CLIP MJX16P M/T(Y3Z) M8X30 FLANGE	0-28650-830-0	04	1	0710-	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0710-		●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●
35	NUT; PIPE CLIP MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	04	1	0710-	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-		●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) M8 FLANGE	0-91180-108-0	03	1	0710-	●
36	BRACKET; CLIP MJX16P M/T(Y3Z) (B)	1-47475-689-0	01	1	0710-	●
36	BRACKET; CLIP (B)	1-47475-689-0	01	1	0710-		●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	1-47471-358-0	01	1	0710-0805	●
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO149 18(Y4C), TRANSMISSION-FULLER RTLO189 18(Y4W) (C)	8-98060-696-0	01	1	0806-	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0710-	●	●
37	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M10X16 FLANGE	0-28151-016-0	01	1	0710-	●
37	BOLT; CLIP BRKT M10X16 FLANGE	0-28151-016-0	01	1	0710-		●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0710-	●	●
117	BOLT; CLIP,FLEX HOSE MJX16P M/T(Y3Z) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
