◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#67100) — 110 parça

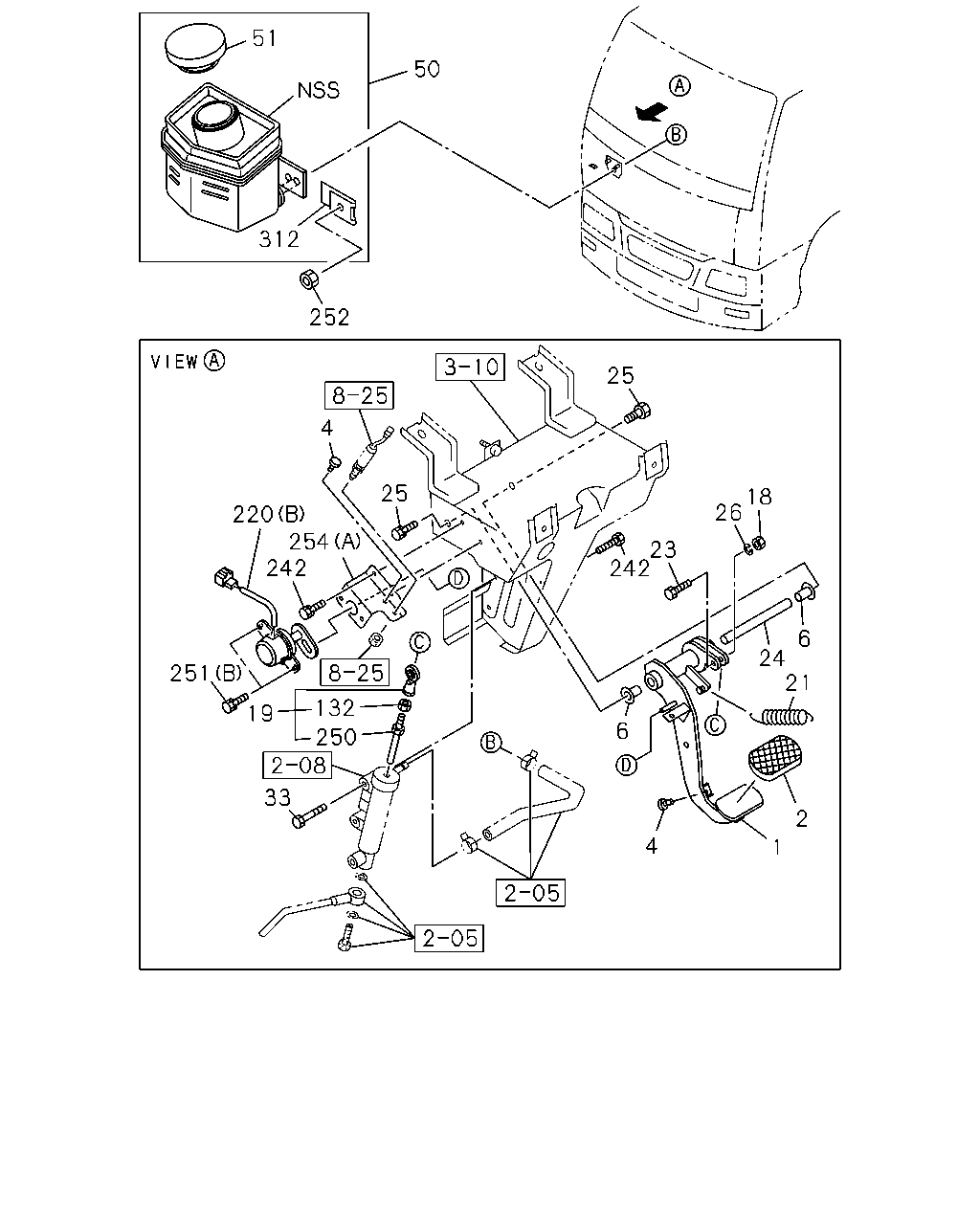

çizim 98573
51 50 312 252 25 220 254 242 25 18 26 23 242 6 24 21 2 1 6 4 33 250 132 19 251
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73907-474-1 01 1 0710-0711 ● ●
1 PEDAL; CLU 1-73907-474-1 01 1 0712- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0710-0711 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0712- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0710-0711 ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0712- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0710-0711 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0712- ● ●
18 NUT; PUSH ROD
6WF1 TC-C(1B8) M8 		9-09110-508-0 01 1 0712- ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0710-0711 ● ●
18 NUT; PUSH ROD
6WG1 TC-C(72L) M8 		0-91110-508-0 01 1 0712- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0710-0711 ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0712- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0710-0711 ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0712- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0710-0711 ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0712- ● ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0710-0711 ● ●
24 SHAFT; CLU PEDAL 1-73908-195-1 01 1 0712- ● ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0710-0711 ● ●
25 BOLT; PEDAL
M10X35 W/LK WASHER 		0-50051-035-0 02 1 0712- ● ●
26 WASHER; LK,PUSH ROD
6WF1 TC-C(1B8) ID=8.2 		9-09150-608-0 01 1 0712- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0710-0711 ● ●
26 WASHER; LK,PUSH ROD
6WG1 TC-C(72L) ID=8.2 		0-91510-608-0 01 1 0712- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0710- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0710- ● ●
132 NUT; LK,PUSH ROD
6WF1 TC-C(1B8) M8 		9-09110-408-0 01 1 0712- ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0710-0711 ● ●
132 NUT; LK,PUSH ROD
6WG1 TC-C(72L) M8 		0-91110-508-0 01 1 0712- ● ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
(B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710- ●
220 SENSOR; CLUTCH
(A) 		1-81541-121-0 01 1 0710- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0710-0711 ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 04 1 0712- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0710-0711 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0712- ● ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
(A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
(C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
251 BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0710- ● ●
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) (B) 		1-31349-072-1 01 1 0710- ●
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0710- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-0711 ● ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0712- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0710- ● ●

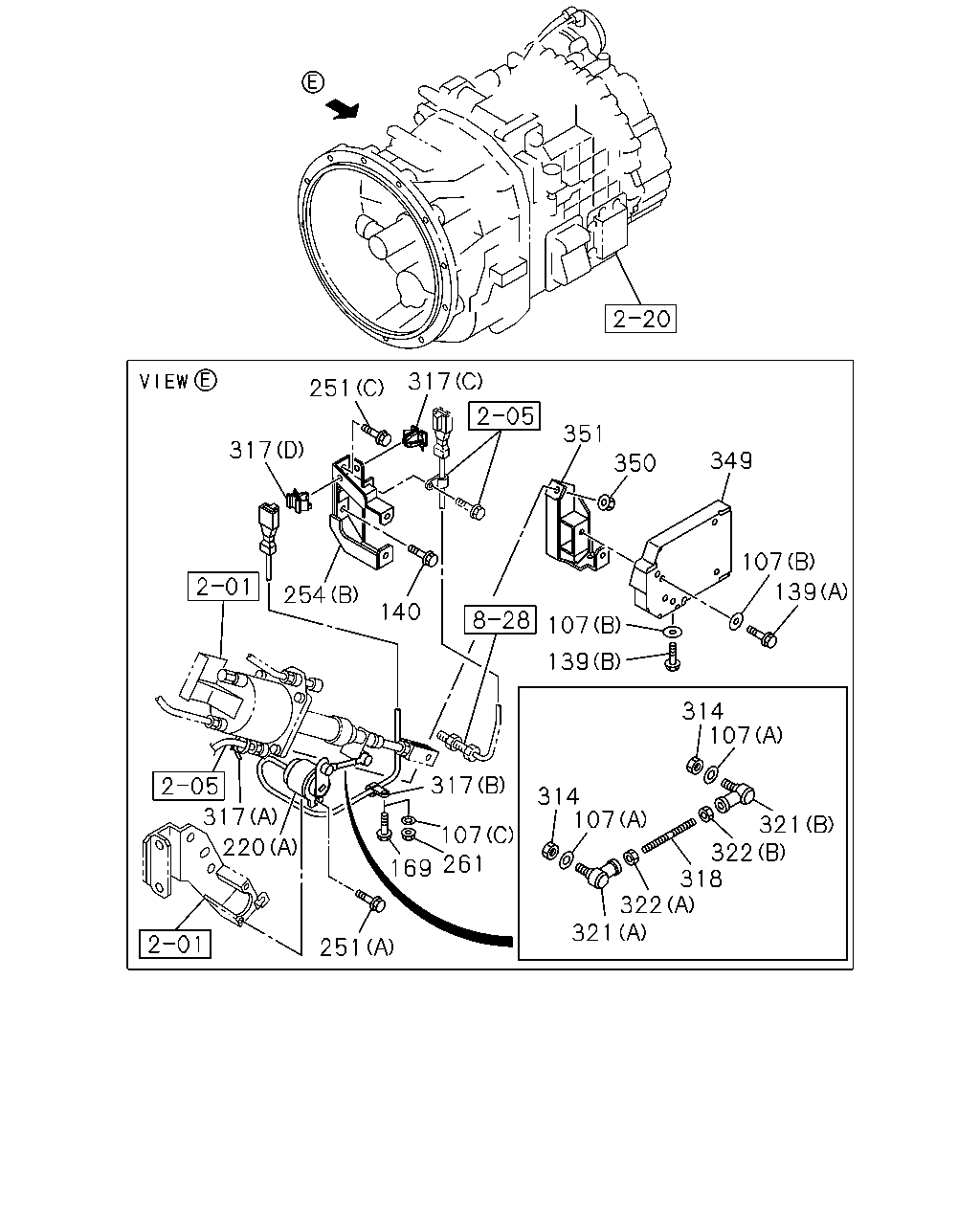

çizim 100957
251 317 317 254 140 351 350 349 107 139 107 139 314 107 321 322 318 322 321 107 314 317 107 261 169 251 220 317
BalonParca AdiParca NoAdetTipApplied Date A B
107 WASHER; PL
SMOOTHER-G(C1W) (C) ID=8.4 OD=16 		0-91610-508-0 01 1 0710- ●
107 WASHER; PL
(C) ID=8.4 OD=16 		0-91610-508-0 01 1 0710- ●
107 WASHER; PL
SMOOTHER-G(C1W) (B) ID=8.4 OD=22 		0-91610-708-0 06 1 0710- ●
107 WASHER; PL
(B) ID=8.4 OD=22 		0-91610-708-0 06 1 0710- ●
107 WASHER; PL
SMOOTHER-G(C1W) (A) ID=5.3 OD=16 		0-91614-705-0 02 1 0710- ●
107 WASHER; PL
(A) ID=5.3 OD=16 		0-91614-705-0 02 1 0710- ●
139 BOLT; COVER
SMOOTHER-G(C1W) (A) M8X16 FLANGE 		0-28050-816-0 05 1 0710- ●
139 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 05 1 0710- ●
139 BOLT; COVER
SMOOTHER-G(C1W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
139 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ●
140 BOLT; BRKT
MJX16P M/T(Y3Z) M10X30 FLANGE 		0-28751-030-0 01 1 0710- ●
140 BOLT; BRKT
M10X30 FLANGE 		0-28751-030-0 01 1 0710- ●
169 BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-97320-627-0 01 1 0710-0805 ●
169 BOLT; CLIP
M8X15,M8X17 L=40 		8-97320-627-0 01 1 0710-0805 ●
169 BOLT; CLIP
SMOOTHER-G(C1W) M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806- ●
169 BOLT; CLIP
M8X15,M8X17 L=40 		8-98009-913-0 01 1 0806- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
(B) 		1-80250-014-0 01 1 0710- ●
220 SENSOR; CLUTCH
SMOOTHER-G(C1W) (A) 		1-81541-121-0 01 1 0710- ●
220 SENSOR; CLUTCH
(A) 		1-81541-121-0 01 1 0710- ●
251 BOLT; SENSOR
MJX16P M/T(Y3Z) (A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
(A) M10X25 FLANGE 		0-28751-025-0 01 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
(C) M6X16 FLANGE 		0-28650-616-0 02 1 0710- ●
251 BOLT; SENSOR
SMOOTHER-G(C1W) (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
251 BOLT; SENSOR
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710- ●
254 BRACKET; CLU SENSOR
MJX16P M/T(Y3Z) (B) 		1-31349-072-1 01 1 0710- ●
254 BRACKET; CLU SENSOR
(B) 		1-31349-072-1 01 1 0710- ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0710-0711 ● ●
254 BRACKET; CLU SENSOR
(A) 		1-73998-979-5 01 1 0712- ● ●
261 NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-208-0 01 1 0710-0811 ●
261 NUT; CLIP
M8 FLANGE 		0-91180-208-0 01 1 0710-0811 ●
261 NUT; CLIP
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
261 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
314 NUT; ROD
SMOOTHER-G(C1W) M5 		0-91110-505-0 02 1 0710- ●
314 NUT; ROD
M5 		0-91110-505-0 02 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (B) ID=11 L=32 		0-95235-065-0 01 1 0710- ●
317 CLIP; CABLE
(B) ID=11 L=32 		0-95235-065-0 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (A) L=180 		1-09707-162-1 01 1 0710- ●
317 CLIP; CABLE
(A) L=180 		1-09707-162-1 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (C) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
317 CLIP; CABLE
(C) OD=9 H=6 		1-09709-178-0 01 1 0710- ●
317 CLIP; CABLE
SMOOTHER-G(C1W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710- ●
317 CLIP; CABLE
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710- ●
318 ROD; CLU
SMOOTHER-G(C1W) 		0-84100-506-0 01 1 0710- ●
318 ROD; CLU 0-84100-506-0 01 1 0710- ●
321 END; ROD
SMOOTHER-G(C1W) (A) 		1-09760-103-2 01 1 0710- ●
321 END; ROD
(A) 		1-09760-103-2 01 1 0710- ●
321 END; ROD
SMOOTHER-G(C1W) (B) 		1-09760-104-2 01 1 0710- ●
321 END; ROD
(B) 		1-09760-104-2 01 1 0710- ●
322 NUT; ROD END
SMOOTHER-G(C1W) (A) M5 		0-91110-505-0 01 1 0710- ●
322 NUT; ROD END
(A) M5 		0-91110-505-0 01 1 0710- ●
322 NUT; ROD END
SMOOTHER-G(C1W) (B) M5 LH THREAD 		9-09840-277-0 01 1 0710- ●
322 NUT; ROD END
(B) M5 LH THREAD 		9-09840-277-0 01 1 0710- ●
349 COVER; SENSOR
SMOOTHER-G(C1W) 		1-31349-075-0 01 1 0710- ●
349 COVER; SENSOR 1-31349-075-0 01 1 0710- ●
350 NUT; COVER
SMOOTHER-G(C1W) M10 FLANGE 		0-91180-210-0 01 1 0710- ●
350 NUT; COVER
M10 FLANGE 		0-91180-210-0 01 1 0710- ●
351 BRACKET; COVER
SMOOTHER-G(C1W) 		1-31349-079-0 01 1 0710- ●
351 BRACKET; COVER 1-31349-079-0 01 1 0710- ●
