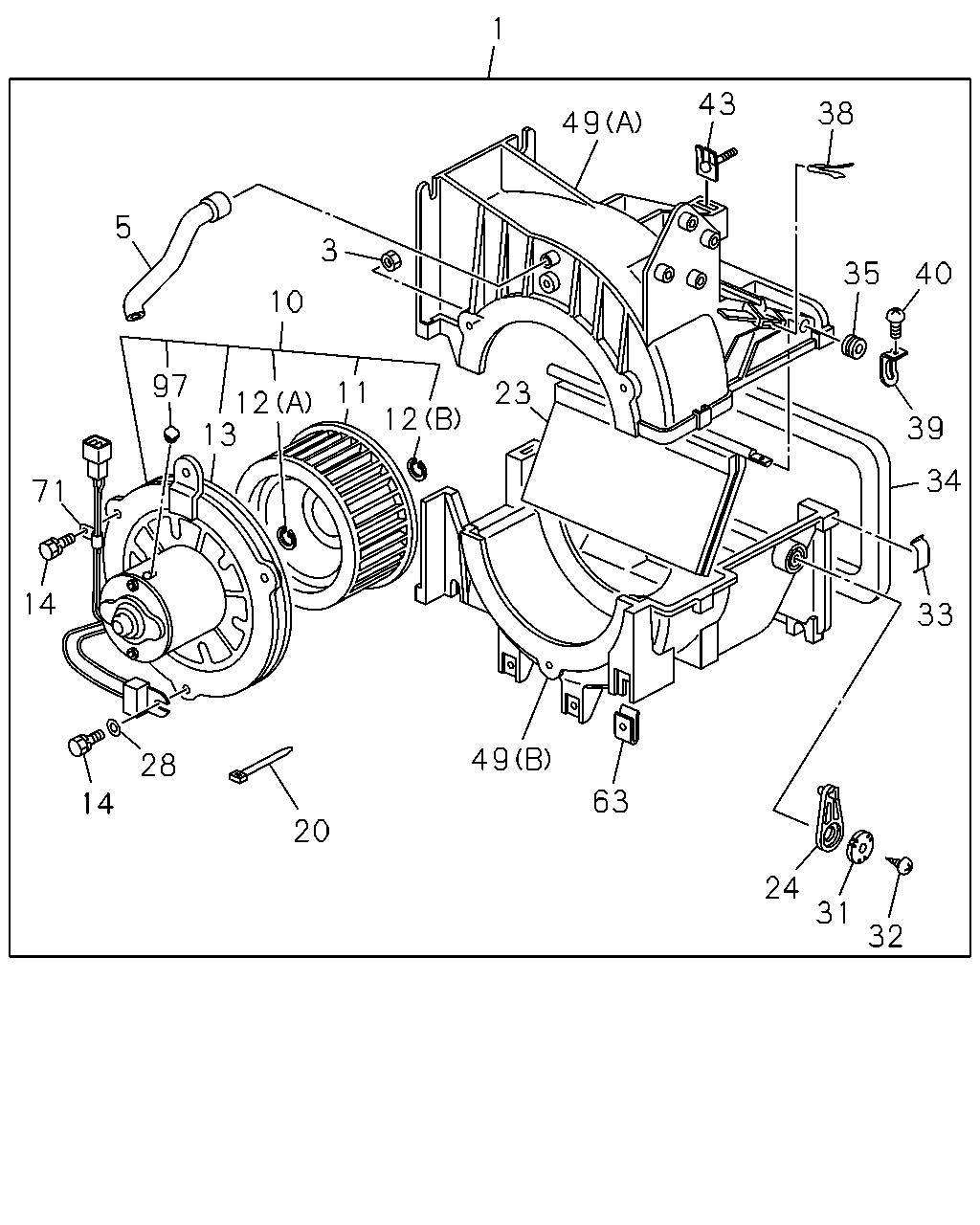

8-73 — BLOWER UNIT (#671) — 31 parça

1 49 43 38 35 40 39 34 33 24 31 32 63 49 20 28 14 14 71 97 13 12 12 23 11 10 3 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-048-3	01	1	9202-	●	●
3	NUT; CASE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94233-154-0	04	1	9202-	●	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83563-109-0	01	1	9202-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83561-060-1	01	1	9202-	●	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-082-0	01	1	9202-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	5-83569-088-0	01	1	9202-	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-94243-962-0	01	1	9202-	●	●
13	LINING; BLOWER UNIT AIR CON MANUAL CONTROL(C60)	8-94243-963-0	01	1	9202-	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-94233-165-0	01	1	9202-	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X25	5-15729-279-0	04	1	9202-	●	●
20	BAND; CLIP,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-263-0	01	1	9202-	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-192-1	01	1	9202-	●	●
24	LEVER; CASE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-189-0	01	1	9202-	●	●
28	WASHER; PL,FAN MOTOR AIR CON MANUAL CONTROL(C60)	1-83539-045-0	01	1	9202-	●	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=5.3 OD=12	9-09160-605-0	01	1	9202-	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-095-0	01	1	9202-	●	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16	8-94248-820-0	01	1	9202-	●	●
33	CLIP; BLOWER UNIT AIR CON MANUAL CONTROL(C60)	8-94315-776-0	06	1	9202-9301	●	●
33	CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	06	1	9202-9301	●	●
33	CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-148-0	06	1	9302-	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-286-0	01	1	9202-	●	●
35	BUSHING; LEVER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83576-028-0	01	1	9202-	●	●
38	CLIP; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-149-0	01	1	9202-	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83564-190-0	01	1	9202-	●	●
40	SCREW; LEVER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	5-83571-160-0	01	1	9202-	●	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-175-0	03	1	9202-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83563-107-0	01	1	9202-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83563-108-0	01	1	9202-	●	●
63	NUT; CLIP,CASE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09466-001-0	03	1	9202-	●	●
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83574-080-0	01	1	9202-	●	●
97	PLUG; FAN MOTOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-248-0	01	1	9202-	●	●
