1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#67096) — 8 parça

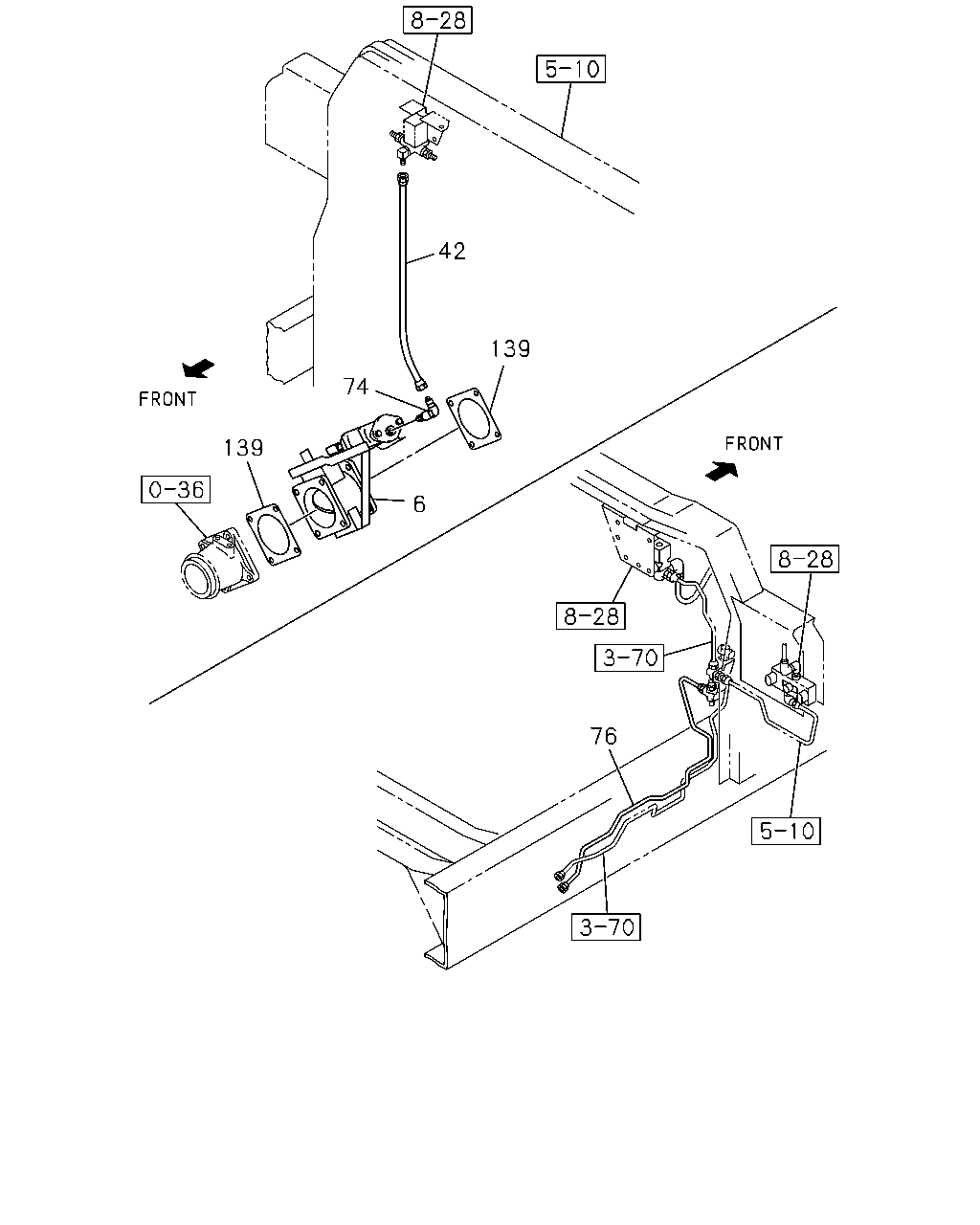

çizim 192846
42 139 74 139 6 76
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98024-270-3 01 1 0710- ● ●
42 HOSE; FLEX,EXH BRK
L=470 		1-09363-714-0 01 1 0710- ●
42 HOSE; FLEX,EXH BRK
L=360 		1-09363-637-0 01 1 0710- ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710- ● ●
76 PIPE ASM; AIR UNION TO UNION
L=587 SERVICED BY L=600 		1-47428-809-0 01 1 0710- ●
76 PIPE ASM; AIR UNION TO UNION
CYZ SHORT CHASSIS(CY***C) L=587 SERVICED BY L=600 		1-47428-809-0 01 1 0710- ●
76 PIPE ASM; AIR UNION TO UNION
CYZ LONG CHASSIS(CY***F) L=808 SERVICED BY L=900 		1-47428-813-0 01 1 0710- ●
139 GASKET; EXH BRK VLV
ID=100 		1-14145-175-0 02 1 0710- ● ●
