1-50 — EXHAUST PIPE AND SILENCER (#67095) — 66 parça

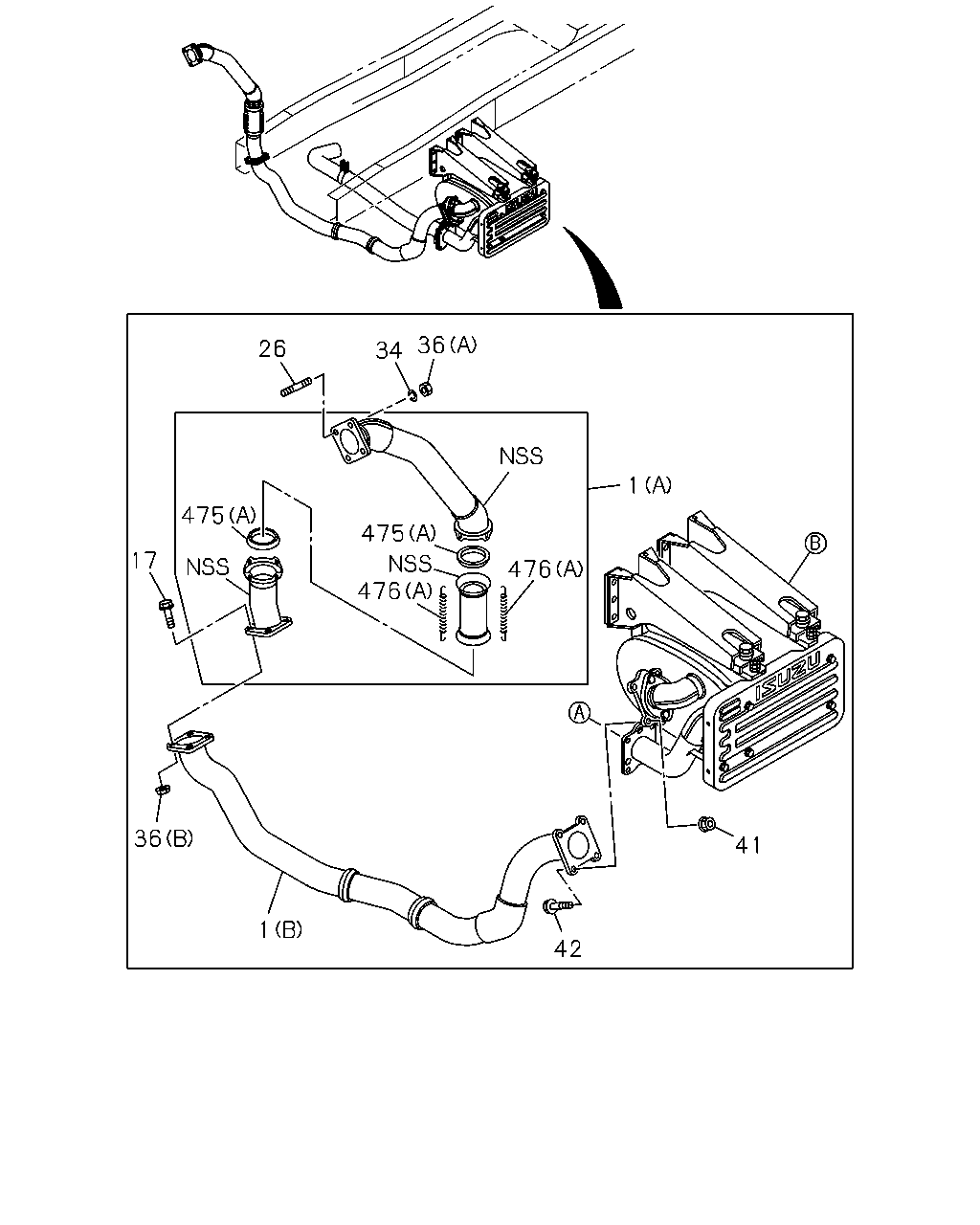

26 34 36 1 475 17 475 476 476 36 1 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH 6WF1 TC-C(1B8) (A)	1-22124-033-0	01	1	0710-	●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0710-	●	●
1	PIPE; EXH 6WG1 TC-C(72L) (A)	1-22124-034-0	01	1	0710-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0710-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0710-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0710-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0710-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0710-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0710-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0710-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0710-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0710-	●	●

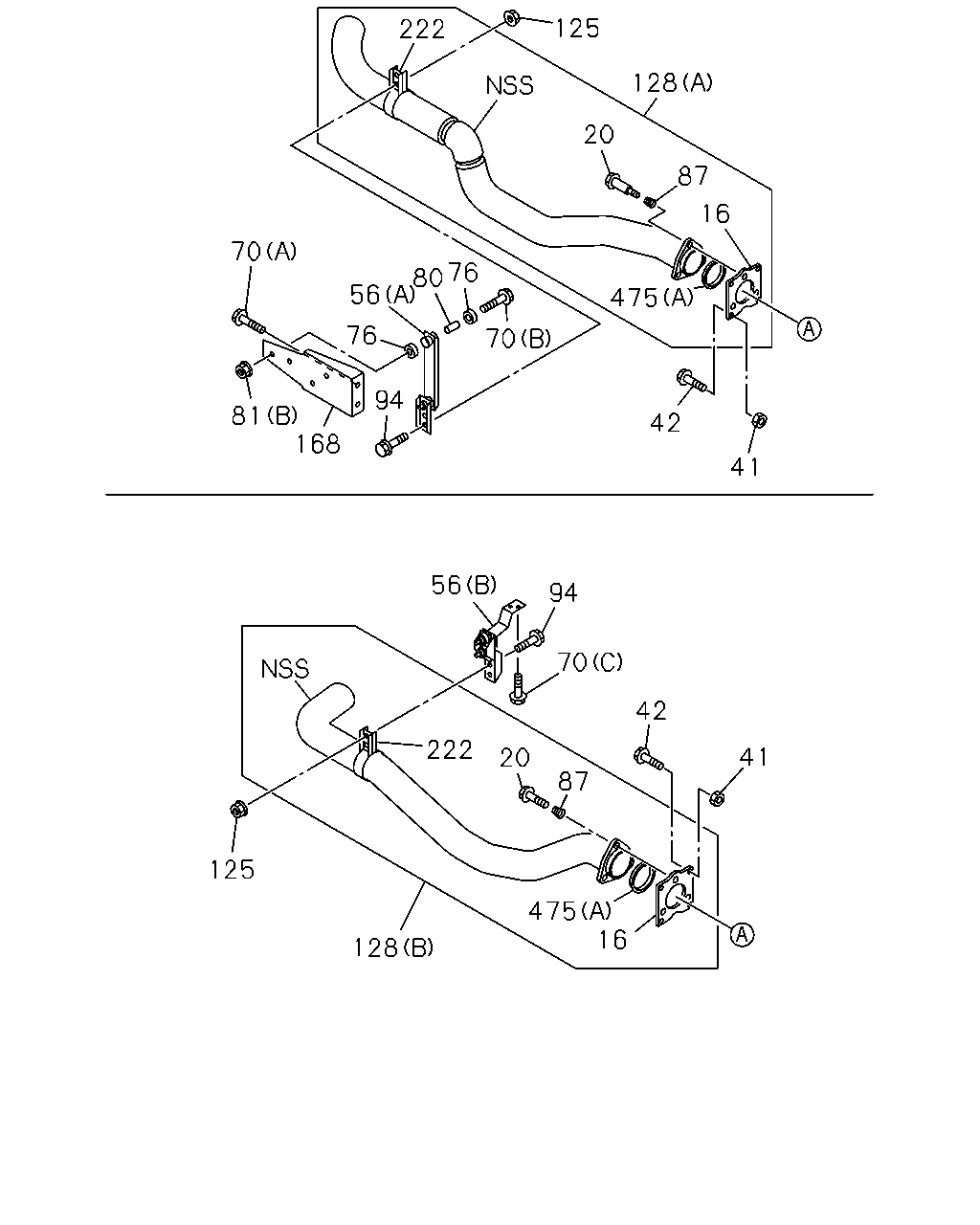

222 125 128 70 20 87 16 475 42 41 56 80 76 76 70 94 81 168 56 94 70 42 41 222 20 87 125 128 475 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	FLANGE; EXH PIPE	1-22115-229-0	01	1	0710-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0710-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	03	1	0710-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0710-	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0710-	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22151-976-2	01	1	0710-	●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-074-1	01	1	0710-		●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0710-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0710-		●
76	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	0710-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0710-		●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0710-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-		●
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	0710-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	0710-	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
128	PIPE; EXH,RR (B)	1-22126-557-1	01	1	0710-	●
128	PIPE; EXH,RR (A)	1-22126-542-1	01	1	0710-		●
168	BRACKET; EXH PIPE,FRT	1-22134-126-0	01	1	0710-		●
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0710-	●	●

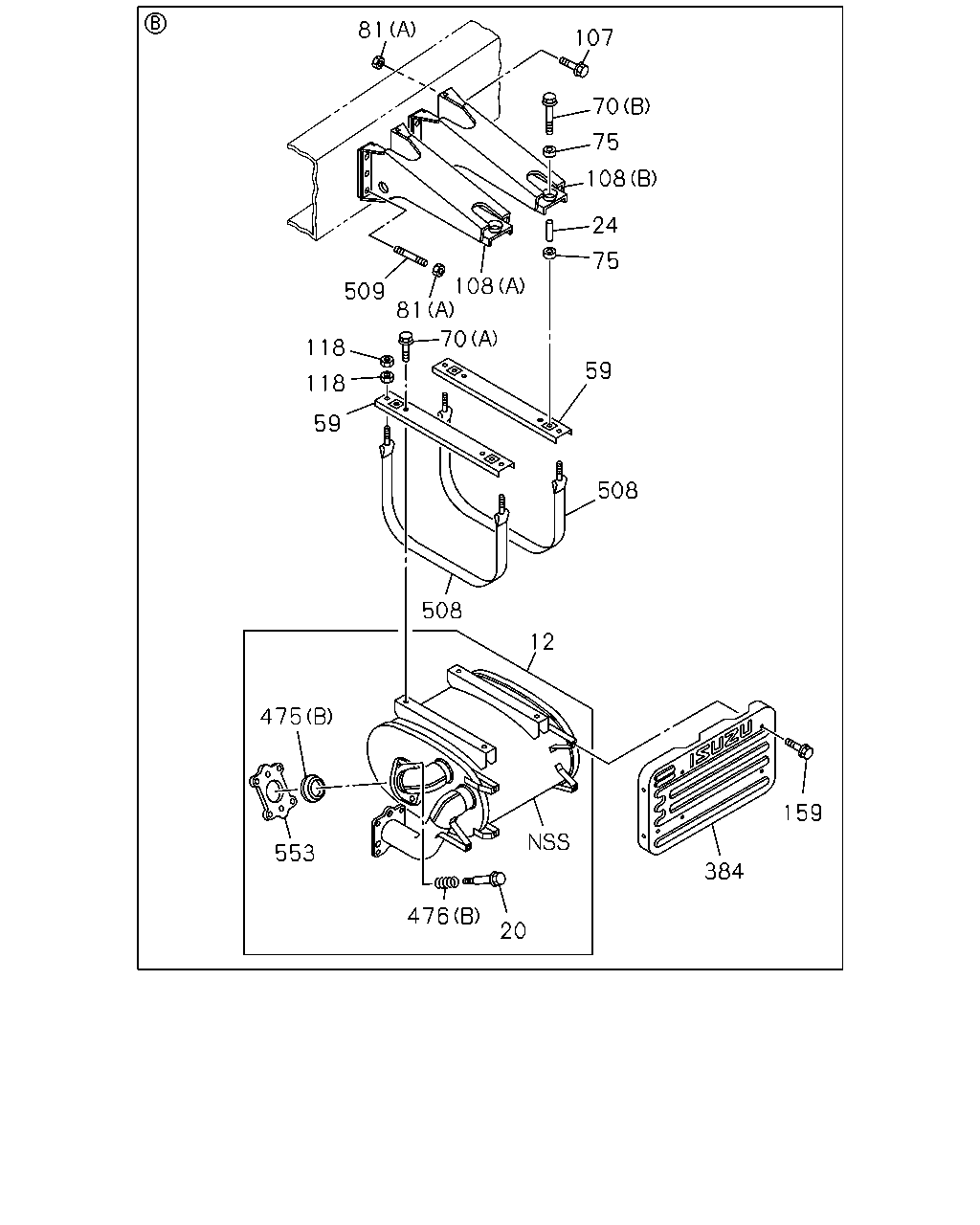

81 107 70 75 108 24 75 108 509 81 118 118 59 70 59 508 508 12 475 553 476 20 384 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH 6WF1 TC-C(1B8)	1-22141-129-2	01	1	0710-	●
12	SILENCER ASM; EXH 6WG1 TC-C(72L)	1-22141-192-1	01	1	0710-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0710-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	03	1	0710-	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0710-	●	●
59	BRACKET; EXH SILENCER,FRT	1-22134-147-1	02	1	0710-	●	●
70	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	04	1	0710-	●	●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	04	1	0710-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0710-		●
70	BOLT; BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0710-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0710-	●	●
81	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	12	1	0710-	●	●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-		●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0710-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-162-0	01	1	0710-	●	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-163-0	01	1	0710-	●	●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0710-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0710-	●	●
384	PROTECTOR; HEAT SILENCER MTG	1-22119-556-0	01	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0710-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-1	01	1	0710-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0710-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0710-	●	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0710-	●	●
509	STUD; BRKT M12X40 L=56	1-09300-123-0	06	1	0710-	●	●
553	FLANGE; SILENCER	1-22115-217-0	01	1	0710-	●	●
