1-40 — FUEL TANK (#67092) — 107 parça

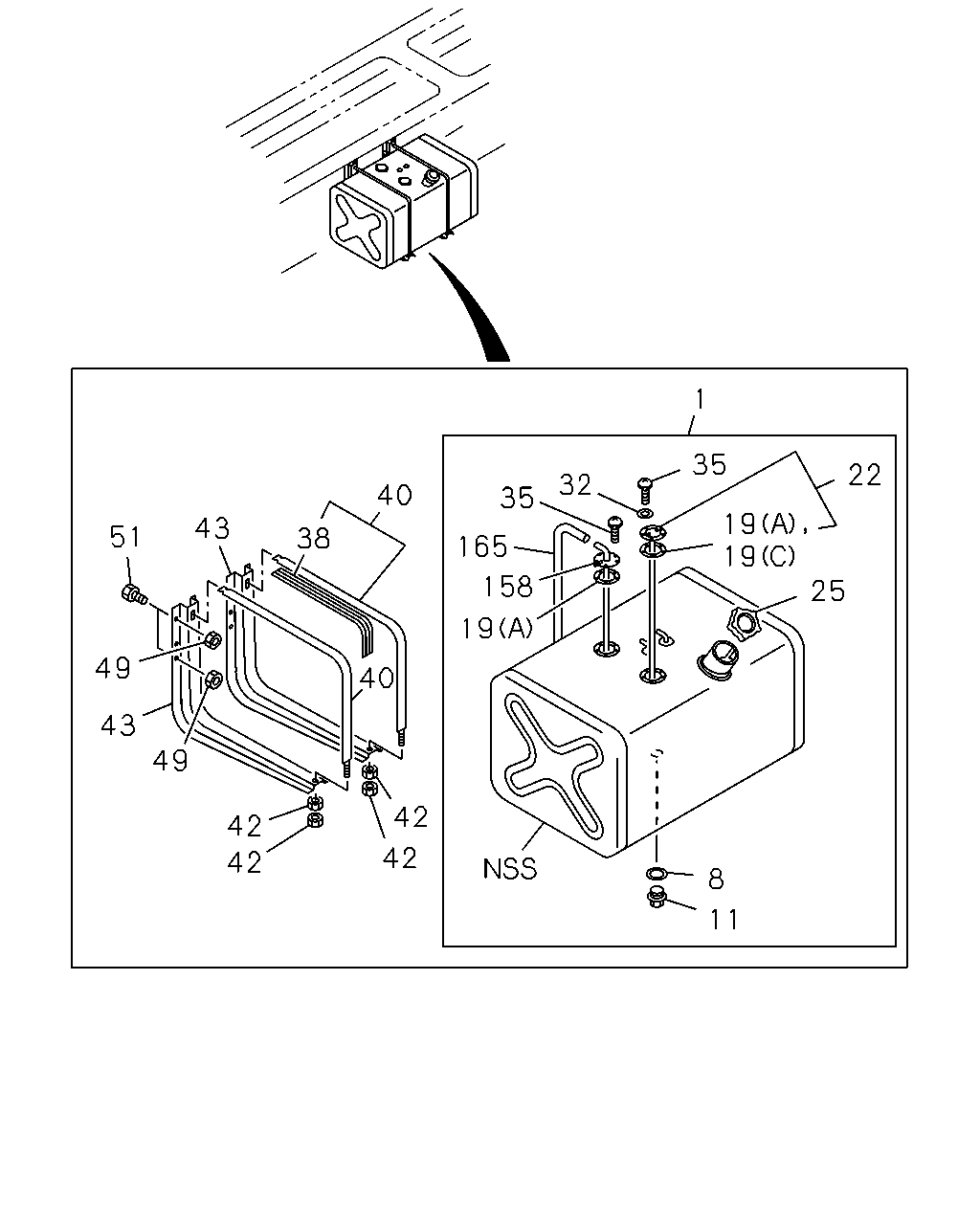

1 35 32 35 165 158 19 11 8 25 19 19 22 42 42 40 40 38 43 51 49 43 49 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-173-1	01	1	0710-0810	●
1	TANK; FUEL 1050X680X625 400L	1-87411-173-1	01	1	0710-0810		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	0811-1109	●
1	TANK; FUEL 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	1-22401-150-4	01	1	0710-0810	●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	8-98248-751-0	01	1	1309-	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L<RF5>	1-22416-006-0	01	1	0710-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	0710-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (C) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (A)	1-22459-001-1	02	1	0710-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (B) ID=58	1-83149-005-0	01	1	0710-1210	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0710-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (B) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT (B) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-146-0	01	1	0710-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0710-1210	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0710-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	8-98115-780-0	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK	8-98115-780-0	01	1	0811-1109	●	●
25	CAP; FILLER,FUEL TANK	8-98182-306-0	01	1	1110-	●	●
25	CAP; FILLER,FUEL TANK	1-22440-063-1	01	1	0710-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-063-1	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK	1-22440-063-1	01	1	0811-0811		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 300L<RF5> ID=5.1	0-91510-505-0	01	1	0710-1308	●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M5X12 W/LK WASHER	0-36220-512-0	10	1	0710-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0710-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	0710-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0710-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	8-97620-945-0	02	1	0710-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0710-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0710-		●
49	NUT; BRKT FUEL TANK 300L<RF5> M12	0-91110-512-0	12	1	0710-	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	08	1	0710-	●
49	NUT; BRKT M12	0-91110-512-0	08	1	0710-		●
51	BOLT; BRKT TO FRAME FUEL TANK 300L<RF5> M12X45 FLANGE	0-28051-245-0	12	1	0710-	●
158	VALVE; ROLL OVER & FLOAT FUEL TANK 300L<RF5>	1-22452-002-0	01	1	0710-	●
165	HOSE; ROLL OVER & FLOAT VLV TO FUEL TA FUEL TANK 300L<RF5>	1-09366-262-0	01	1	0710-	●

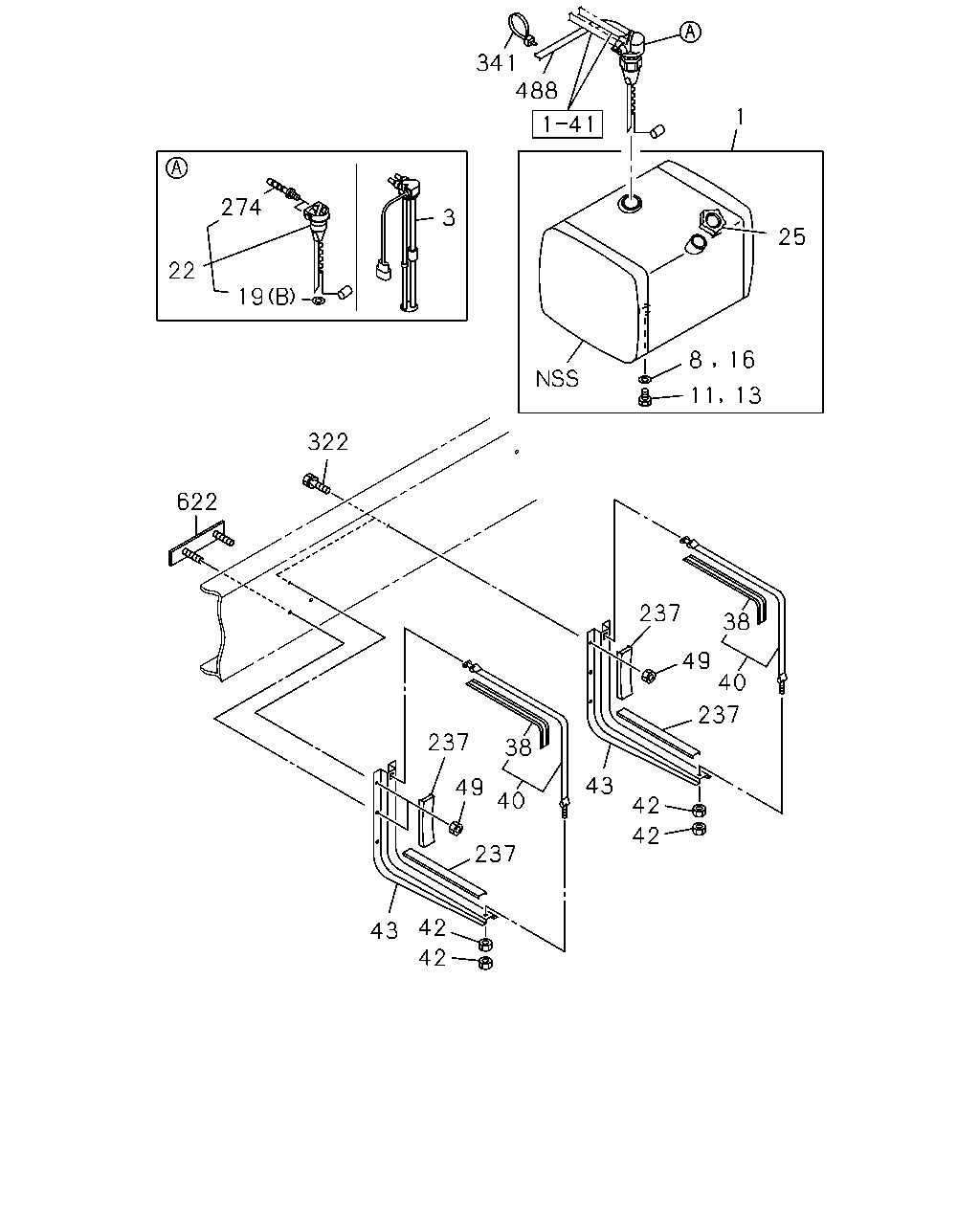

341 488 1 25 16 8 11 13 3 19 274 22 322 622 237 38 49 40 237 43 42 42 42 42 43 237 40 49 237 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-173-1	01	1	0710-0810	●
1	TANK; FUEL 1050X680X625 400L	1-87411-173-1	01	1	0710-0810		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	0811-1109	●
1	TANK; FUEL 1050X680X625 400L	1-87411-699-1	01	1	0811-1109		●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1110-		●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	1-22401-150-4	01	1	0710-0810	●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	8-98115-603-1	01	1	0811-1308	●
1	TANK; FUEL FUEL TANK 300L<RF5> 790X730X635 300L	8-98248-751-0	01	1	1309-	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1211-	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 300L<RF5>	1-22416-006-0	01	1	0710-	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	1211-	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1211-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 300L<RF5> M36	1-09604-052-0	01	1	0710-	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 400L<SDH> M18X12	0-92002-418-0	01	1	0710-1210	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	0710-1210		●
16	GASKET; PLUG FUEL TANK 400L<SDH> ID=18.2 T=1.6	8-98030-453-0	01	1	0710-1210	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	0710-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (C) ID=45 OD=67	1-83149-003-0	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (A)	1-22459-001-1	02	1	0710-1308	●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5> (A)	1-22459-001-1	01	1	1309-	●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (B) ID=58	1-83149-005-0	01	1	0710-1210	●
19	GASKET; FUEL TANK UNIT (B) ID=58	1-83149-005-0	01	1	0710-1210		●
19	GASKET; FUEL TANK UNIT FUEL TANK 400L<SDH> (B) ID=54.5	8-98299-580-0	01	1	1211-	●
19	GASKET; FUEL TANK UNIT (B) ID=54.5	8-98299-580-0	01	1	1211-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-146-0	01	1	0710-1308	●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	8-98232-859-0	01	1	1309-	●
22	UNIT; FUEL TANK FUEL TANK 400L<SDH>	1-83141-132-0	01	1	0710-1210	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0710-1210		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5>	8-98115-780-0	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK	8-98115-780-0	01	1	0811-1109	●	●
25	CAP; FILLER,FUEL TANK	8-98182-306-0	01	1	1110-	●	●
25	CAP; FILLER,FUEL TANK	1-22440-063-1	01	1	0710-0810	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH>	1-22440-063-1	01	1	0811-0811	●
25	CAP; FILLER,FUEL TANK	1-22440-063-1	01	1	0811-0811		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0710-	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	0710-1110	●	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0710-	●	●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5>	8-97620-945-0	02	1	0710-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	0710-	●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0710-		●
49	NUT; BRKT FUEL TANK 300L<RF5> M12	0-91110-512-0	12	1	0710-	●
49	NUT; BRKT FUEL TANK 400L<SDH> M12	0-91110-512-0	08	1	0710-	●
49	NUT; BRKT M12	0-91110-512-0	08	1	0710-		●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	0710-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0710-		●
274	CONNECTOR; ELBOW,FUEL TANK PIPE FUEL TANK 400L<SDH>	1-83149-006-0	02	1	0710-1210	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0710-1210		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	0710-	●
322	BOLT; BRKT FIX M12X40 FLANGE	0-28051-240-0	10	1	0710-		●
341	CLIP; BAND,RUBBER HOSE FUEL TANK 400L<SDH> L=350	1-09707-183-0	02	1	0812-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	0812-		●
488	HOSE; RUBBER FUEL TANK 400L<SDH>	8-98134-939-0	01	1	0812-	●
488	HOSE; RUBBER	8-98134-939-0	01	1	0812-		●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	0710-	●
622	STUD; BRACKET	1-53461-534-0	01	1	0710-		●
