4-36 — POWER STEERING CONTROL; ENGINE SIDE (#6709) — 10 parça

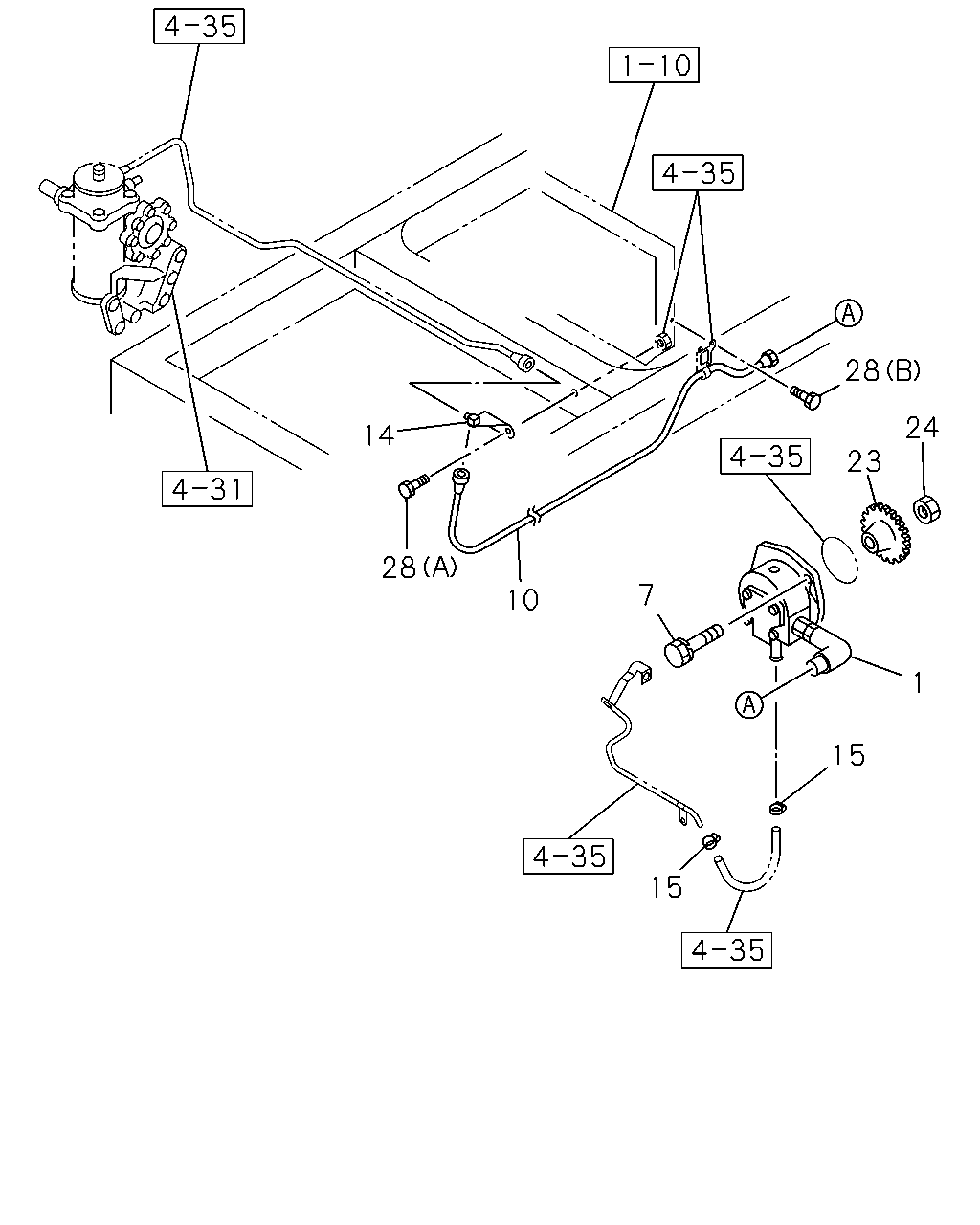

çizim 42727
28 24 14 23 28 7 10 1 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-530-0 01 1 0011-0202 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-595-0 01 1 0203- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE THA 		8-94399-863-1 02 1 0011- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=840 		1-09364-978-2 01 1 0011- ● ●
14 UNION; FLEX HOSE,P/S 1-47470-463-1 01 1 0011- ● ●
15 CLIP; OIL PIPE SUCTION
ID=32 THA 		1-09704-085-0 02 1 0011- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0011- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91150-114-0 01 1 0011- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0011- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0011- ● ●
