Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#67082) — 254 parça

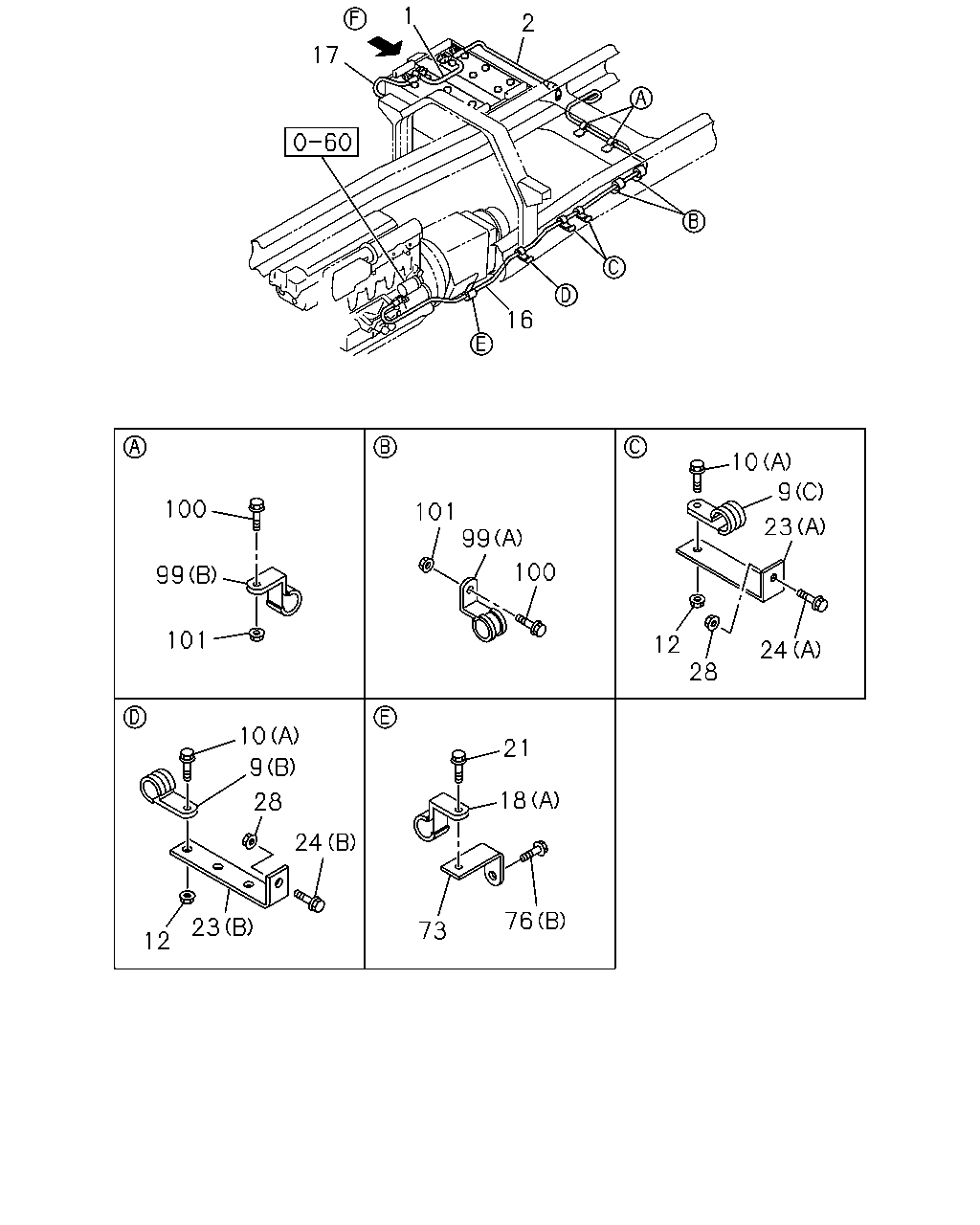

1 2 17 16 10 9 100 101 99 23 100 99 101 12 28 24 10 21 9 18 28 24 76 23 73 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	0710-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0710-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=18 L=28	1-09701-067-0	02	1	0807-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0807-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0710-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	0-95235-836-0	01	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-	●
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0710-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-0806	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	01	1	0807-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=19 L=28	0-95235-856-0	01	1	0710-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=18 L=28 H=30	1-09701-110-0	03	1	0710-	●	●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-0806	●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0807-	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-		●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	03	1	0710-0806	●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0807-	●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0710-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-		●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	07	1	0710-	●	●
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) L=5110	1-82652-937-0	01	1	0710-	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-	●	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
18	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (B) ID=21 L=24	8-94176-807-1	01	1	0710-	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0710-		●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) M8X16 FLANGE	0-28050-816-0	01	1	0710-	●
21	BOLT; CLIP CABLE 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> (H)	1-47479-779-0	01	1	0801-	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (B) L=120 H=35	1-82698-088-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (A) L=95	1-82699-085-0	02	1	0710-0806	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (A) L=95	1-82699-085-0	01	1	0807-	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (E) L=40	1-47478-410-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=40	1-47478-410-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (D) L=95	1-82698-557-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (D) L=95	1-82698-557-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (F)	1-82698-574-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-574-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (C)	1-82698-575-1	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82698-575-1	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (G)	1-82698-589-0	01	1	0710-	●	●
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-0806	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0806	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0806		●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0712	●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0712		●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0801-	●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	03	1	0710-0806	●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0807-	●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
73	BRACKET; BATTERY CABLE 6WF1 TC-C(1B8)	1-82699-104-0	01	1	0710-	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0710-	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (B) M10 FLANGE	0-91180-210-0	01	1	0710-	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0710-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91180-108-0	03	1	0710-		●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0710-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=25 H=50	1-09701-096-0	02	1	0710-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-	●	●

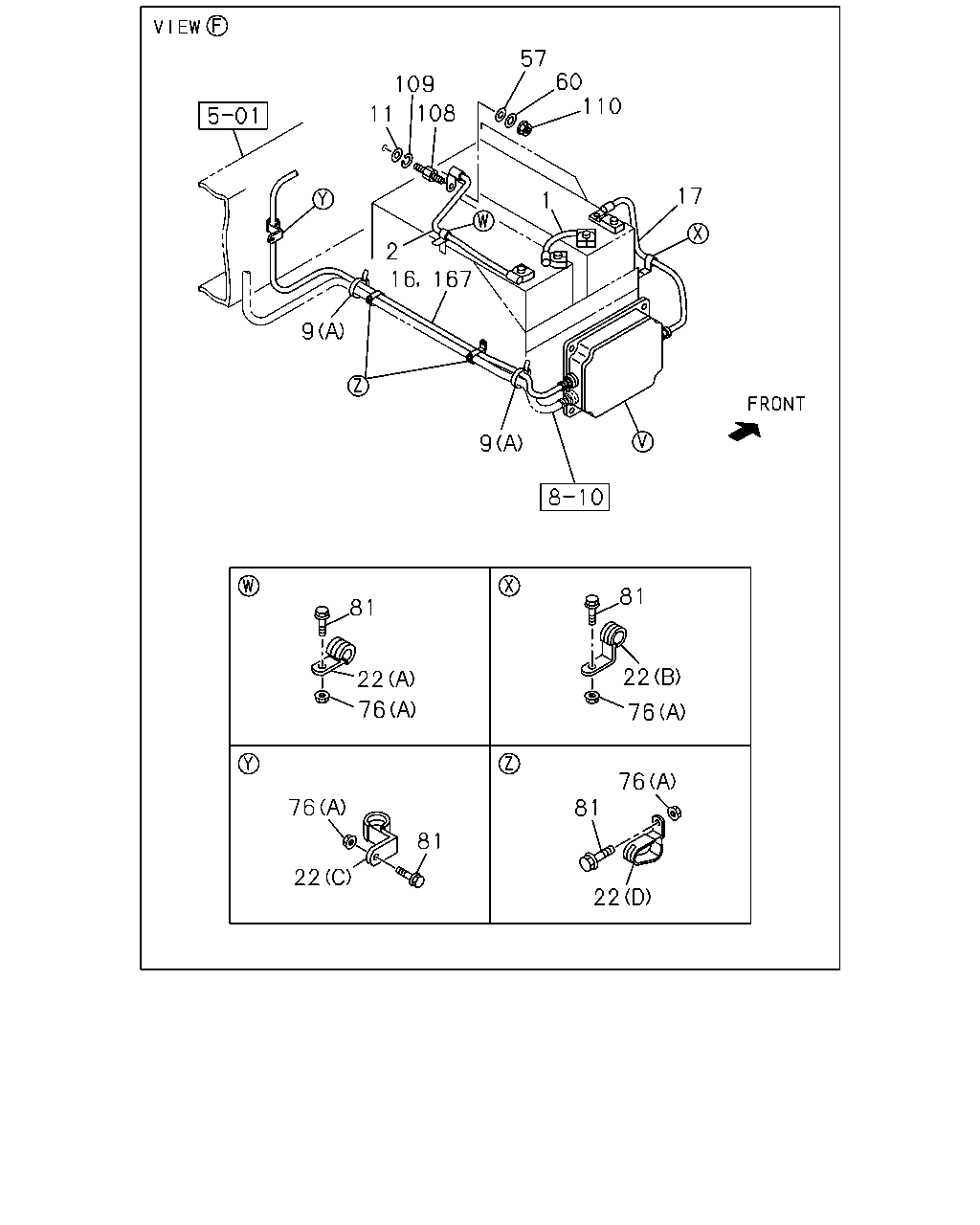

57 60 110 109 108 11 17 1 2 16 167 9 9 81 81 22 22 76 76 76 76 81 81 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	0710-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0710-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=18 L=28	1-09701-067-0	02	1	0807-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0807-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0710-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	0-95235-836-0	01	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-	●
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0710-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-0806	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	01	1	0807-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=19 L=28	0-95235-856-0	01	1	0710-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=18 L=28 H=30	1-09701-110-0	03	1	0710-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0710-	●	●
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) L=5110	1-82652-937-0	01	1	0710-	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-	●	●
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	07	1	0710-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-		●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	04	1	0710-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0710-	●	●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0710-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-	●	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0710-	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (B) M10 FLANGE	0-91180-210-0	01	1	0710-	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0710-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91180-108-0	03	1	0710-		●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	09	1	0710-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	06	1	0710-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	0710-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0710-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0710-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0710-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0710-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0710-		●

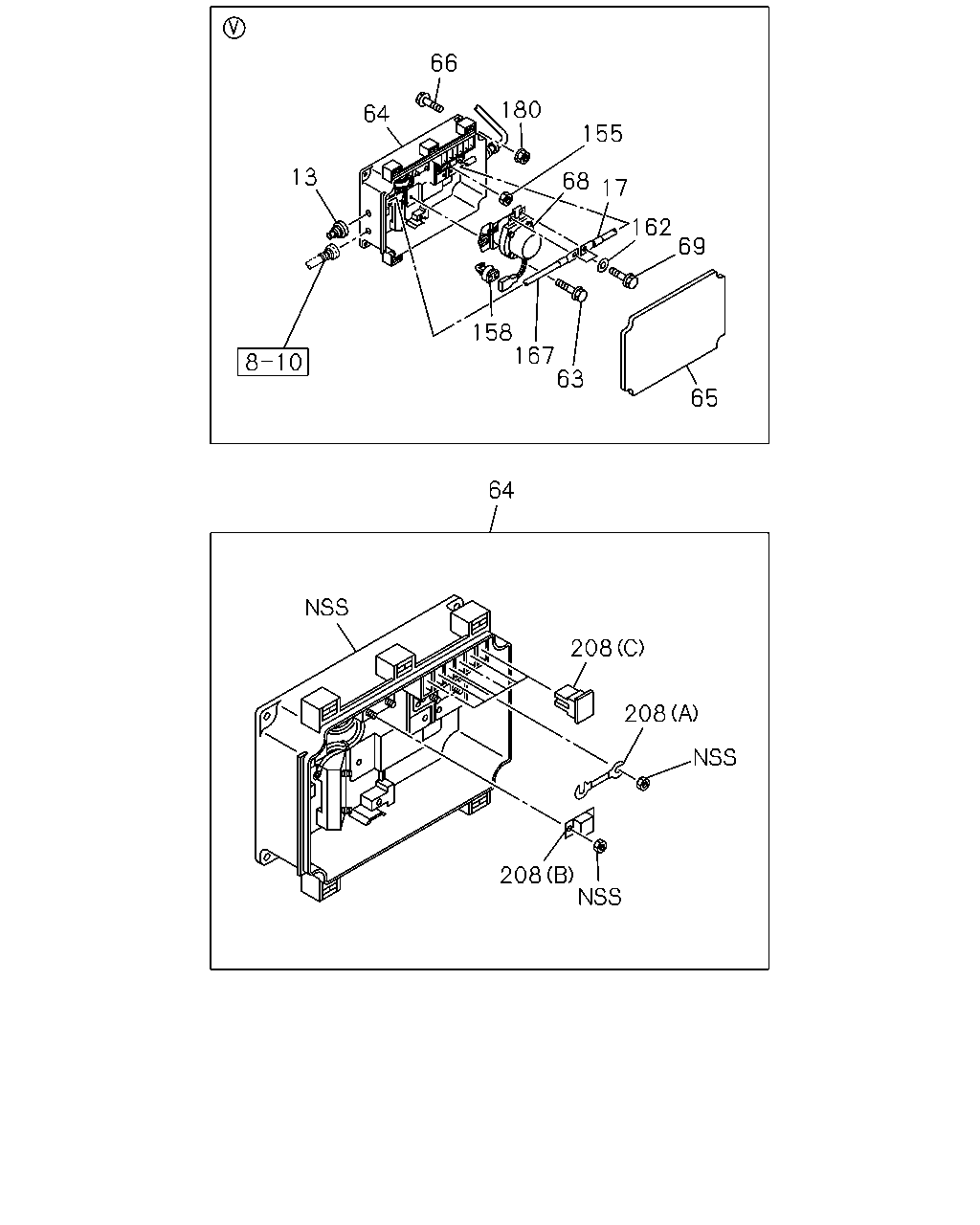

66 180 64 155 13 68 17 162 69 158 167 63 65 64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0710-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0710-	●	●
64	BOX; BATTERY RELAY 6WF1 TC-C(1B8)	1-82510-648-0	01	1	0710-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0710-	●
64	BOX; BATTERY RELAY 6WG1 TC-C(72L) SMOOTHER-G(C1W)	1-82510-650-0	01	1	0710-	●
64	BOX; BATTERY RELAY	1-82510-650-0	01	1	0710-		●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0710-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0710-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0710-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	01	1	0710-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0710-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0710-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0710-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
208	FUSE 6WF1 TC-C(1B8) (C) 40A GREEN	8-94468-662-0	05	1	0710-	●
208	FUSE 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (C) 40A GREEN	8-94468-662-0	05	1	0710-	●
208	FUSE 6WG1 TC-C(72L) SMOOTHER-G(C1W) (C) 40A GREEN	8-94468-662-0	06	1	0710-	●
208	FUSE (C) 40A GREEN	8-94468-662-0	06	1	0710-		●
208	FUSE (B) 80A	1-82516-031-0	01	1	0710-	●	●
208	FUSE (A) 100A	1-82516-032-0	01	1	0710-	●	●

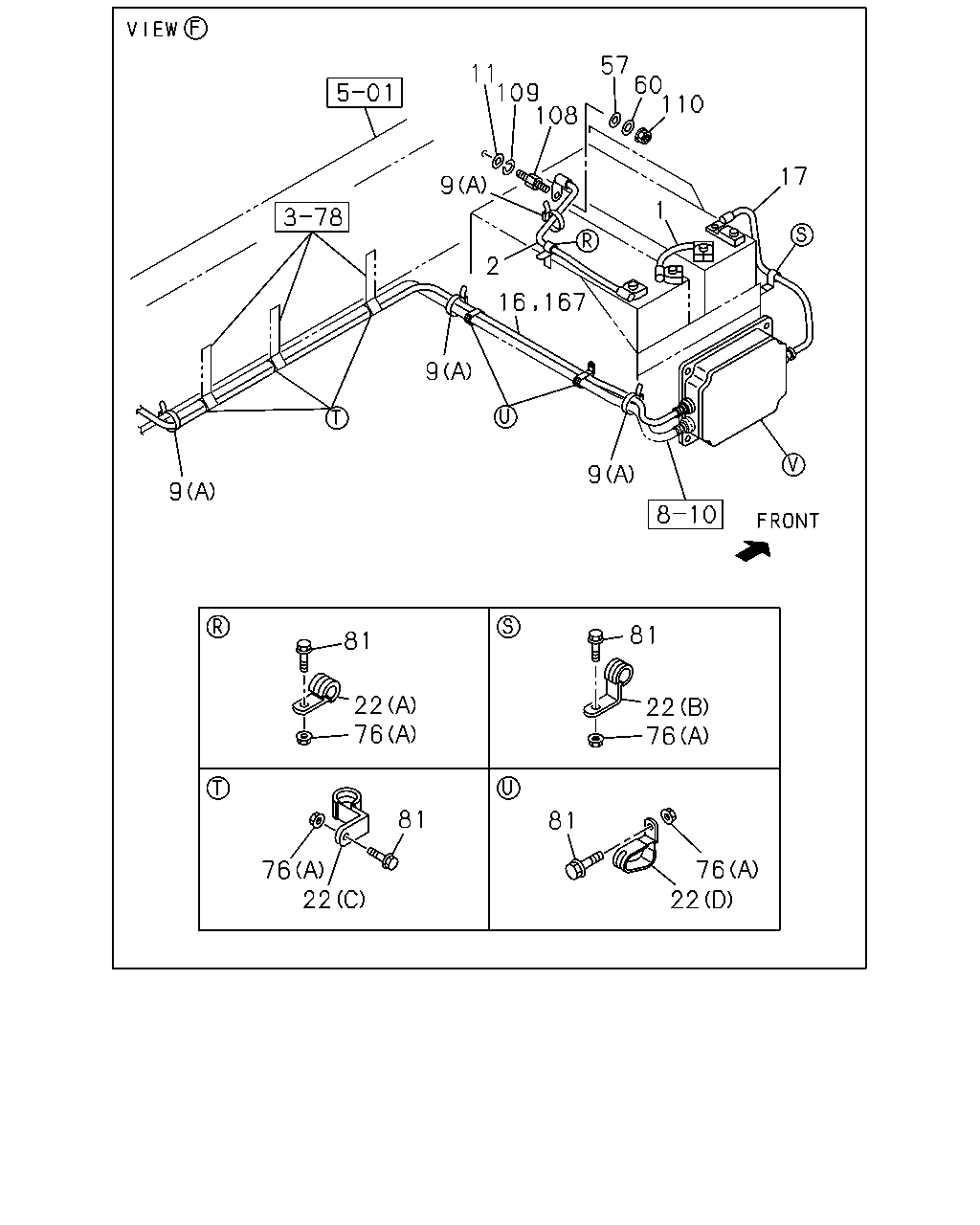

57 60 110 11 109 108 17 9 1 2 9 9 9 81 81 22 76 22 76 81 81 76 22 76 22 16 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	0710-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0710-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=18 L=28	1-09701-067-0	02	1	0807-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0807-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0710-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	0-95235-836-0	01	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-	●
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0710-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-0806	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	01	1	0807-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=19 L=28	0-95235-856-0	01	1	0710-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=18 L=28 H=30	1-09701-110-0	03	1	0710-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0710-	●	●
16	CABLE; STARTER TO RELAY 6WF1 TC-C(1B8) L=5110	1-82652-937-0	01	1	0710-	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-	●	●
22	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=20 H=23 L=27	1-09700-861-0	07	1	0710-	●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-	●
22	CLIP; BATTERY CABLE (D) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0710-		●
22	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=20 H=23 L=27	1-09700-861-0	04	1	0710-	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0710-	●	●
22	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0710-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-	●	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	07	1	0710-	●
76	NUT; BATTERY CABLE 6WF1 TC-C(1B8) (B) M10 FLANGE	0-91180-210-0	01	1	0710-	●
76	NUT; BATTERY CABLE 6WG1 TC-C(72L) (A) M8 FLANGE	0-91180-108-0	05	1	0710-	●
76	NUT; BATTERY CABLE (A) M8 FLANGE	0-91180-108-0	03	1	0710-		●
81	BOLT; BATTERY CABLE 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	09	1	0710-	●
81	BOLT; BATTERY CABLE 6WG1 TC-C(72L) M8X25 FLANGE	0-28650-825-0	06	1	0710-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	0710-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0710-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0710-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0710-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0710-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0710-		●

33 1 2 20 17 167 77 60 100 99 101 10 10 23 101 99 24 12 100 9 28 12 9 23 10 10 10 10 24 24 9 28 9 28 9 28 23 23 23 28 12 12 9 12 12 10 28 23 61 9 28 75 18 9 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	0710-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0710-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=18 L=28	1-09701-067-0	02	1	0807-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0807-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) L=350	1-09707-183-0	03	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	03	1	0710-		●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (B) ID=19 L=20	0-95235-836-0	01	1	0710-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
9	CLIP; BATTERY CABLE (E) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-	●
9	CLIP; BATTERY CABLE (F) ID=21 L=30 H=40	1-09700-991-1	01	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (D) ID=21 L=24	8-94176-807-1	02	1	0710-	●
9	CLIP; BATTERY CABLE (D) ID=21 L=24	8-94176-807-1	02	1	0710-		●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (A) L=350	1-09707-183-0	05	1	0710-	●
9	CLIP; BATTERY CABLE (C) ID=18 L=28	1-09701-067-0	02	1	0710-0806	●	●
9	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (C) ID=18 L=28	1-09701-067-0	01	1	0807-	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (C) ID=19 L=28	0-95235-856-0	01	1	0710-	●	●
9	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (G) ID=18 L=28 H=30	1-09701-110-0	03	1	0710-	●	●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-0806	●
10	BOLT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28650-820-0	02	1	0807-	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●
10	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-		●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
10	BOLT; BATTERY CABLE CLIP 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	03	1	0710-0806	●
12	NUT; BATTERY CABLE CLIP 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0807-	●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0710-	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-		●
12	NUT; BATTERY CABLE CLIP 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	07	1	0710-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0710-	●	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
18	CLIP; BATTERY CABLE 6WF1 TC-C(1B8) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●
18	CLIP; BATTERY CABLE 6WG1 TC-C(72L) (B) ID=21 L=24	8-94176-807-1	01	1	0710-	●
18	CLIP; BATTERY CABLE (B) ID=21 L=24	8-94176-807-1	01	1	0710-		●
20	NUT; STARTER CABLE 6WG1 TC-C(72L) M10	8-98011-328-0	01	1	0710-	●	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> (H)	1-47479-779-0	01	1	0801-	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (B) L=120 H=35	1-82698-088-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (A) L=95	1-82699-085-0	02	1	0710-0806	●
23	BRACKET; CABLE CLIP TO FRAME 6WF1 TC-C(1B8) (A) L=95	1-82699-085-0	01	1	0807-	●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (E) L=40	1-47478-410-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (E) L=40	1-47478-410-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (D) L=95	1-82698-557-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (D) L=95	1-82698-557-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (F)	1-82698-574-0	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (F)	1-82698-574-0	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (C)	1-82698-575-1	01	1	0710-	●
23	BRACKET; CABLE CLIP TO FRAME (C)	1-82698-575-1	01	1	0710-		●
23	BRACKET; CABLE CLIP TO FRAME 6WG1 TC-C(72L) (G)	1-82698-589-0	01	1	0710-	●	●
24	BOLT; BRKT TO FRAME 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-0806	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0806	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0806		●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0712	●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0712		●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
24	BOLT; BRKT TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0801-	●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	03	1	0710-0806	●
28	NUT; BRKT TO FRAME 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0807-	●
28	NUT; BRKT TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
33	CAP; INSULATOR 6WG1 TC-C(72L)	8-97181-965-0	01	1	0710-	●
33	CAP; INSULATOR	8-97181-965-0	01	1	0710-		●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0710-	●	●
61	BRACKET; BATTERY CABLE 6WG1 TC-C(72L)	1-82698-587-0	01	1	0710-	●	●
75	BOLT; BRKT 6WG1 TC-C(72L) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
77	WASHER; LK,STARTER CABLE 6WG1 TC-C(72L) ID=10.2	0-91510-610-0	01	1	0710-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	0710-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=25 H=50	1-09701-096-0	02	1	0710-	●	●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
167	CABLE; BATTERY RELAY TO STARTER 6WG1 TC-C(72L) L=5540	1-82653-005-0	01	1	0710-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
