1 |

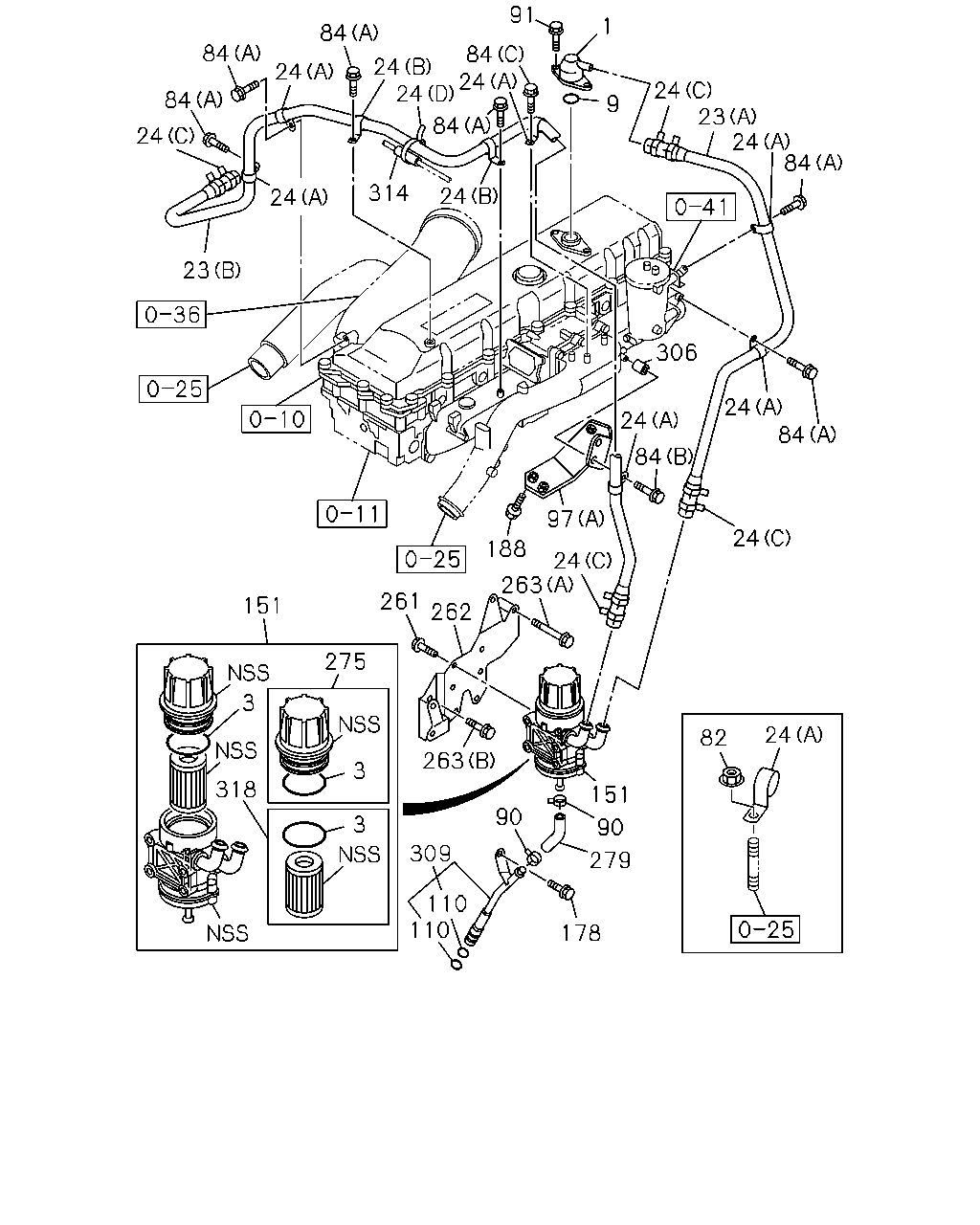

BREATHER; AIR
|
1-11740-181-1 |
01 |
1 |
0710- |
● |
● |
| |
3 |
GASKET; BODY TO CAP
|
8-97385-921-0 |
01 |
1 |
0710- |
|
● |
| |
9 |
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=59.6
|
1-09623-565-0 |
01 |
1 |
0710- |
● |
● |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(B)
|
8-97603-636-3 |
01 |
1 |
0710-1208 |
|
● |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(B)
|
8-98225-540-0 |
01 |
1 |
1209- |
|
● |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(A)
|
8-97607-591-2 |
01 |
1 |
0710-1208 |
|
● |
| |
23 |
HOSE; RUBBER,VENTILATOR PIPE
(A)
|
8-98225-541-0 |
01 |
1 |
1209- |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(A)
ID=31 L=30
|
1-09700-969-0 |
07 |
1 |
0710-1208 |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(A)
ID=29 L=30
|
8-98225-679-0 |
09 |
1 |
1209- |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(B)
ID=31 H=30 L=35
|
1-09700-994-0 |
02 |
1 |
0710-1208 |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(C)
ID=28.5
|
1-09707-150-0 |
04 |
1 |
0710- |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(D)
L=250
|
5-09707-030-1 |
02 |
1 |
0710-1205 |
|
● |
| |
24 |
CLIP; RUBBER HOSE,VENTILATOR
(D)
L=250
|
8-98216-430-0 |
02 |
1 |
1206- |
|
● |
| |
82 |
NUT; CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1209- |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(A)
M8X25 FLANGE
|
0-28050-825-0 |
01 |
1 |
0808- |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(C)
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
0710- |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(A)
M8X16 FLANGE
|
0-28050-816-0 |
07 |
1 |
0710-0807 |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(A)
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
0808-1208 |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(A)
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
1209- |
|
● |
| |
84 |
BOLT; PIPE CLIP,VENTILATOR
(B)
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0710- |
|
● |
| |
90 |
CLIP; RUBBER HOSE
ID=14
|
1-09704-102-0 |
02 |
1 |
0710- |
|
● |
| |
91 |
BOLT; AIR BREATHER
M10X20 FLANGE
|
0-28151-020-0 |
02 |
1 |
0710- |
● |
● |
| |
97 |
BRACKET; HOSE
(B)
|
8-97629-739-0 |
01 |
1 |
0808- |
● |
|
| |
97 |
BRACKET; HOSE
(A)
|
1-15419-726-0 |
01 |
1 |
0710- |
● |
● |
| |
110 |
GASKET; PIPE
ID=11
|
1-09623-469-0 |
02 |
1 |
0710- |
|
● |
| |
151 |
SEPARATOR; OIL,PCV
|
8-97604-118-0 |
01 |
1 |
0710- |
|
● |
| |
178 |
BOLT; PIPE
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0710- |
|
● |
| |
188 |
BOLT; BRKT
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0710- |
● |
● |
| |
261 |
BOLT; SEPARETOR
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
0710- |
|
● |
| |
262 |
BRACKET; OIL SEPARETOR
|
1-13345-220-1 |
01 |
1 |
0710- |
● |
● |
| |
263 |
BOLT; BRKT,OIL SEPARETOR
(A)
M10X90 FLANGE
|
0-28151-090-0 |
01 |
1 |
0710- |
● |
● |
| |
263 |
BOLT; BRKT,OIL SEPARETOR
(B)
M14X25 FLANGE
|
0-28951-425-0 |
02 |
1 |
0710- |
● |
● |
| |
275 |
CAP; PCV
|
8-97385-918-0 |
01 |
1 |
0710- |
|
● |
| |
279 |
HOSE; RUBBER,OIL DRAIN
L=90
SERVICED BY L=1000
|
0-02759-100-0 |
01 |
1 |
0710- |
|
● |
| |
306 |
SPACER; CLIP
|
8-98143-884-0 |
01 |
1 |
1209- |
|
● |
| |
306 |
SPACER; CLIP
|
1-11349-149-0 |
01 |
1 |
0710- |
|
● |
| |
309 |
PIPE ASM; OIL SEPARATOR
|
1-13314-045-1 |
01 |
1 |
0710- |
|
● |
| |
314 |
COVER; RUBBER
ID=10 OD=14 L=30
|
9-09956-682-0 |
02 |
1 |
0710- |
|
● |
| |
318 |
ELEMENT KIT; PCV
|
8-97385-919-0 |
01 |
1 |
0710- |
|
● |
