◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#6706) — 29 parça

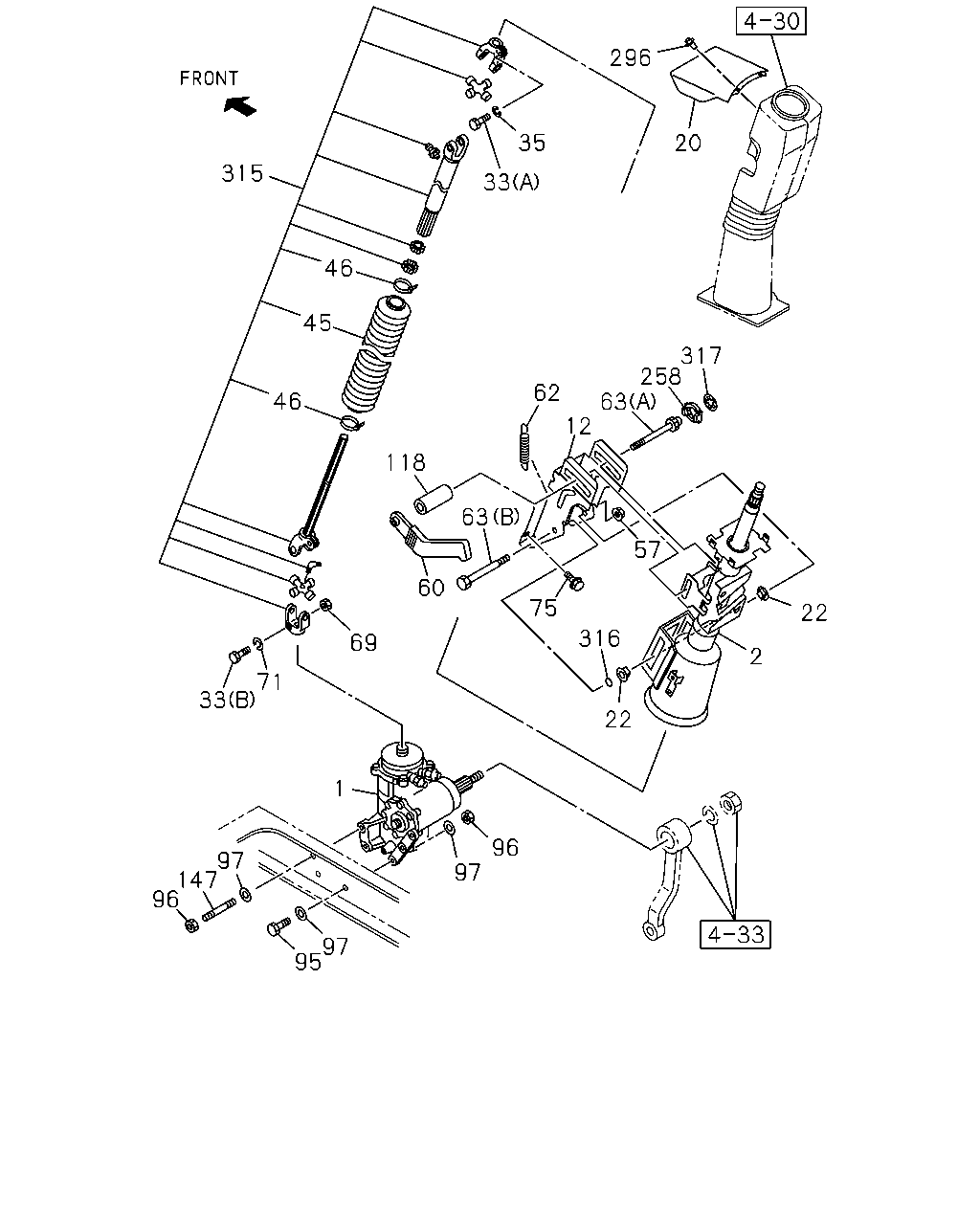

çizim 42805
296 35 20 315 33 46 45 317 258 63 12 62 46 118 63 57 60 75 22 316 69 2 71 33 22 1 96 97 147 96 97 97 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-834-2 01 1 0011- ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 0011- ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0011- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0011- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0011- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0011- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0011- ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0011- ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0011- ● ●
46 CLIP; BOOT 1-44139-156-0 02 1 0011- ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0011- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0011- ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 0011-0111 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0011- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0011- ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0011- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0011- ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0011- ● ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 0011- ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 0011- ● ●
97 WASHER; PL,STRG UNIT
ID=15 THA 		9-09651-069-0 11 1 0011- ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0011- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 0011- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0011- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0011- ● ●
315 JOINT; SPLINE 1-44135-341-0 01 1 0011- ● ●
316 RING 1-44227-152-0 01 1 0011- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 0011- ● ●
