Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#67058) — 49 parça
Tümü
A - 6WF1 TC-C
B - 6WG1 TC-C
◀
[013A] LEVEL GAUGE (23 parça)

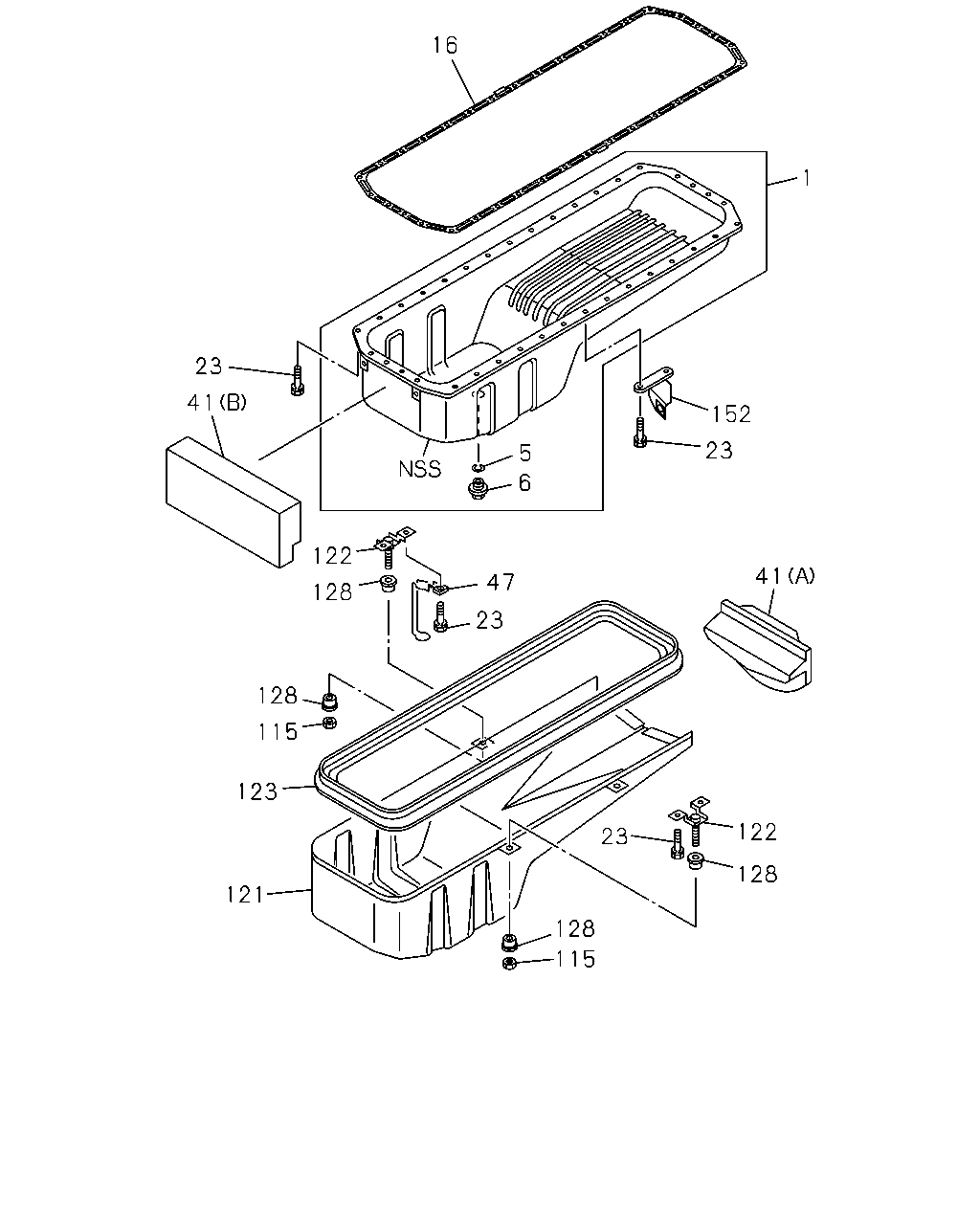

[013A] OIL PAN (26 parça)
▶
225
256
193
192
193
270
203
256
216
12
10
44
193
192
193
49
2
8
10
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GAUGE; OIL LEVEL
1-11760-405-0
01
1
0710-1305
●
2
GAUGE; OIL LEVEL
1-11760-427-0
01
1
1306-
●
2
GAUGE; OIL LEVEL
1-11760-442-0
01
1
0710-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-604-2
01
1
0710-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-608-0
01
1
0710-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-97607-366-0
01
1
0710-
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97616-230-0
01
1
0710-
●
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
0710-
●
●
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28151-020-0
02
1
0710-
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
02
1
0710-
●
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
0710-
●
●
44
PLUG
M22X41
1-09604-098-0
01
1
0710-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
0710-
●
192
HOSE; GUIDE TUBE
L=620 L=430
0-02361-300-0
01
1
0710-
●
●
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28
0-95235-856-0
01
1
0710-
●
●
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21
1-09700-972-1
01
1
0710-
●
●
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0710-
●
●
203
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
●
●
216
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0710-
●
●
225
WASHER; PL
ID=8.4 OD=22
0-91610-708-0
01
1
0710-
●
●
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47471-382-0
01
1
0710-
●
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47479-855-0
01
1
0710-
●
16
1
23
41
152
23
5
6
122
41
47
128
23
128
115
123
122
23
128
121
128
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
1-11360-912-0
01
1
0710-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0710-
●
●
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
0710-
●
●
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0710-
●
●
23
BOLT; OIL PAN
M10X30 FLANGE
0-28151-030-0
02
1
1001-
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0710-0906
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50651-028-0
36
1
0907-0909
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
36
1
0910-0912
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
34
1
1001-
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
28
1
0710-0906
●
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50651-028-0
28
1
0907-0909
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
28
1
0910-0912
●
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
26
1
1001-
●
23
BOLT; OIL PAN
M10X32 W/LK&PL WASHER
0-50151-032-0
08
1
0710-0906
●
23
BOLT; OIL PAN
M10X32 W/LK&PL WASHER
0-50651-032-0
08
1
0907-0909
●
23
BOLT; OIL PAN
M10X30 FLANGE
0-28151-030-0
08
1
0910-0912
●
23
BOLT; OIL PAN
M10X30 FLANGE
0-28151-030-0
10
1
1001-
●
41
RUBBER; SPACE
(B)
1-19389-209-0
01
1
0710-
●
●
41
RUBBER; SPACE
(A)
1-19389-327-0
01
1
0710-
●
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0710-
●
115
NUT; OIL PAN COVER
M8 FLANGE
0-91180-108-0
04
1
0710-
●
121
COVER; OIL PAN
1-19381-453-4
01
1
0710-
●
122
BRACKET; OIL PAN COVER
1-19386-033-0
04
1
0710-
●
123
RUBBER; SEAL OIL
1-19387-058-1
01
1
0710-
●
128
RUBBER; MTG,OIL PAN
1-09337-024-0
08
1
0710-
●
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0710-
●
●
