◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11111 - CYZ NZ EURO3/JAPAN NEW SHORT TERM 2004 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#67054) — 24 parça

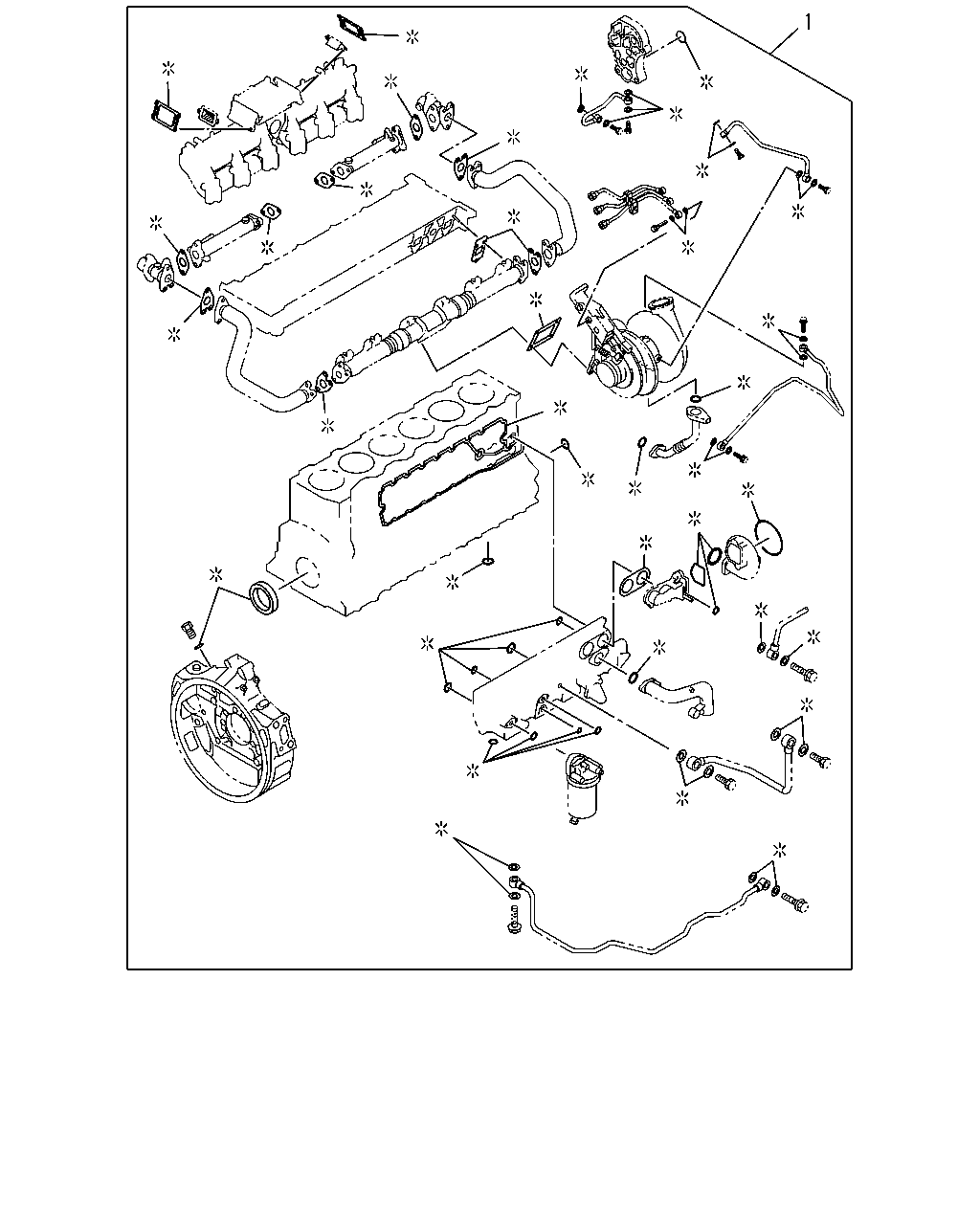

çizim 14986
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0710-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0710-0804 ●
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401- ●

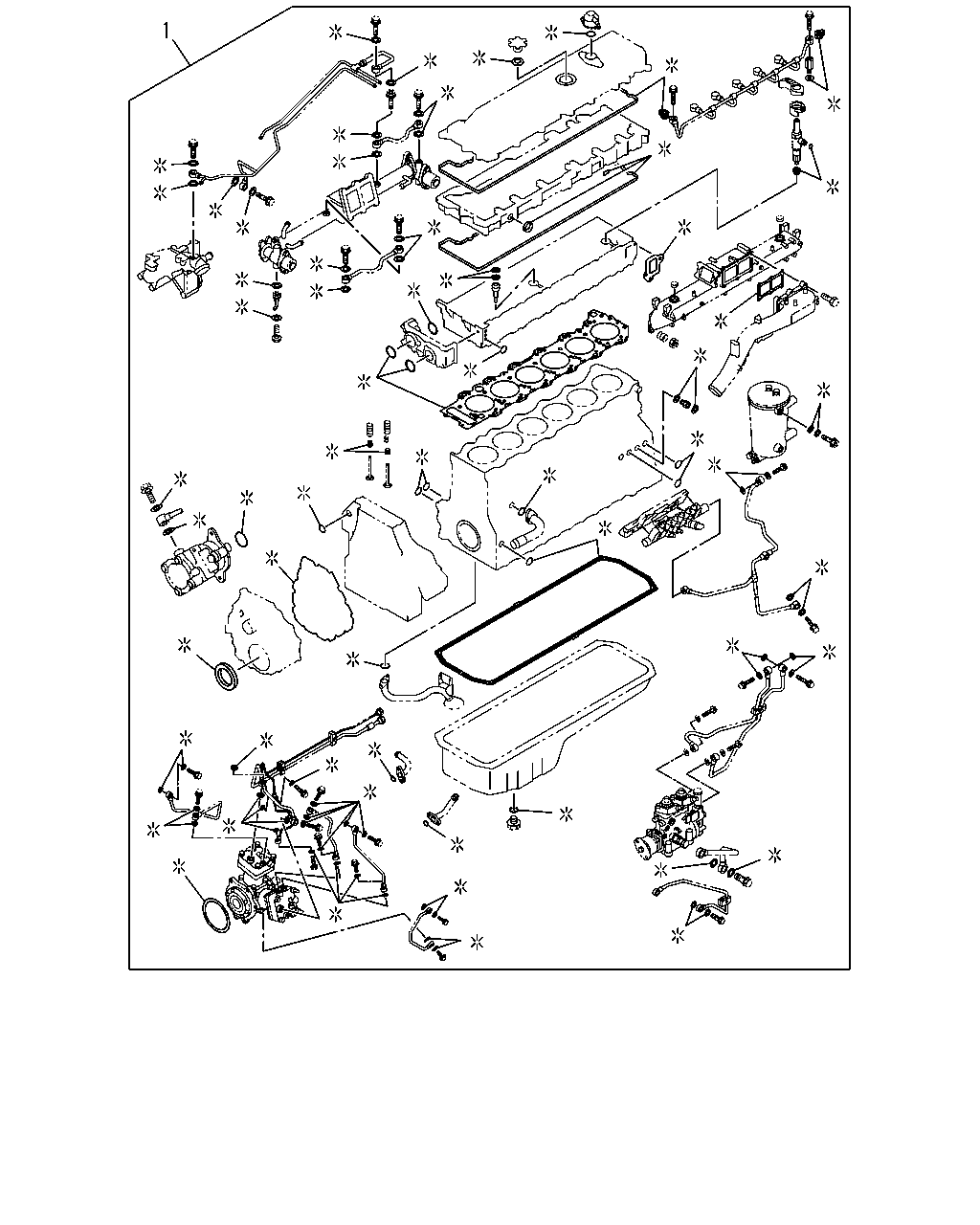

çizim 192816
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GASKET SET; ENG OVERHAUL 1-87813-230-5 01 1 0710-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-811-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-657-0 01 1 1401- ●
1 GASKET SET; ENG OVERHAUL 1-87813-223-0 01 1 0710-0804 ●
1 GASKET SET; ENG OVERHAUL 1-87813-400-2 01 1 0805-1001 ●
1 GASKET SET; ENG OVERHAUL 1-87813-592-3 01 1 1002-1111 ●
1 GASKET SET; ENG OVERHAUL 1-87813-924-0 01 1 1112-1312 ●
1 GASKET SET; ENG OVERHAUL 1-87814-659-0 01 1 1401- ●

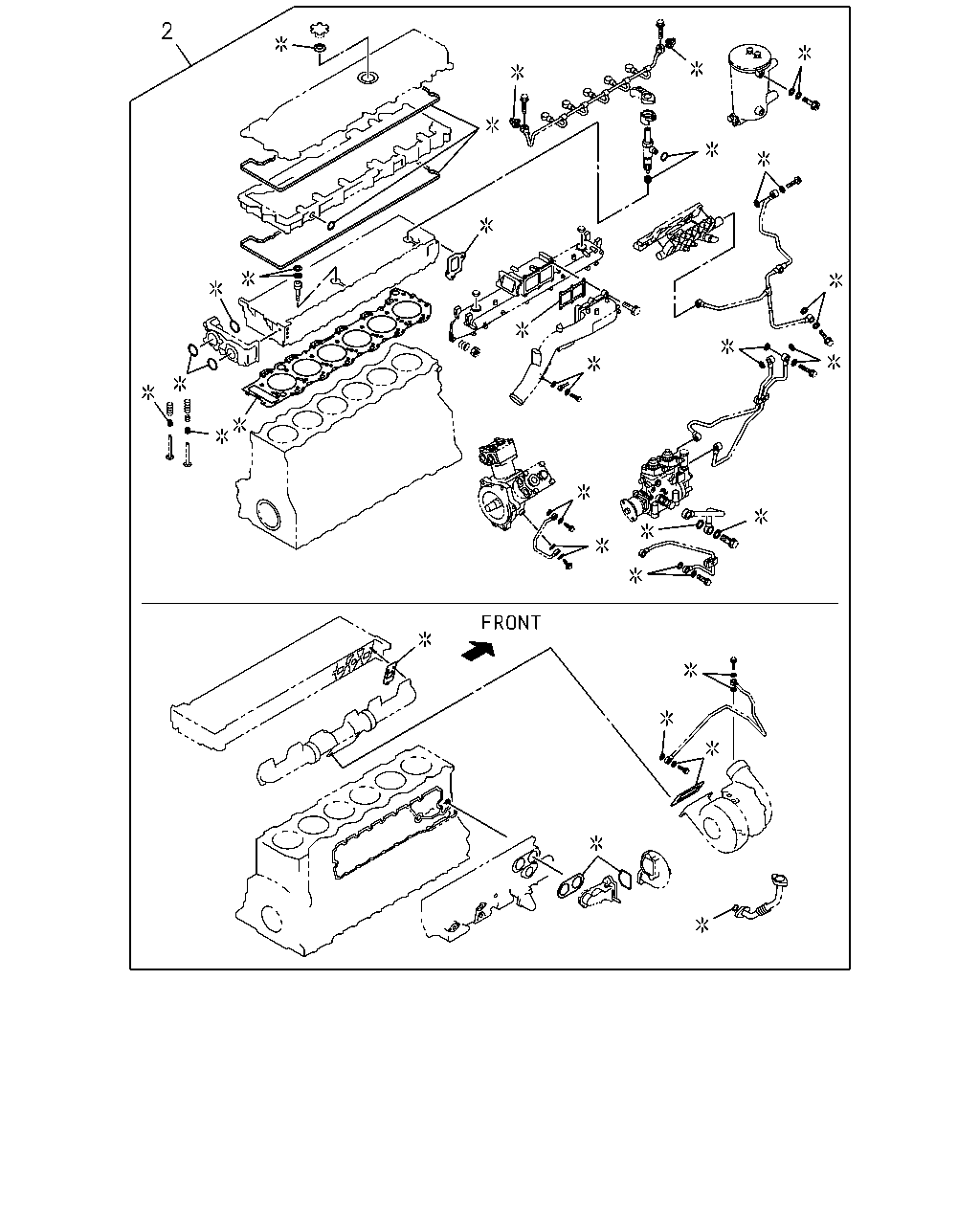

çizim 192825
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET SET; ENG HD OVERHAUL 1-87813-192-4 01 1 0710-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-812-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-658-0 01 1 1401- ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-194-0 01 1 0710-0804 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-401-2 01 1 0805-1001 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-593-2 01 1 1002-1111 ●
2 GASKET SET; ENG HD OVERHAUL 1-87813-933-0 01 1 1112-1312 ●
2 GASKET SET; ENG HD OVERHAUL 1-87814-660-0 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
