9-01 — TOOLS (#67052) — 100 parça

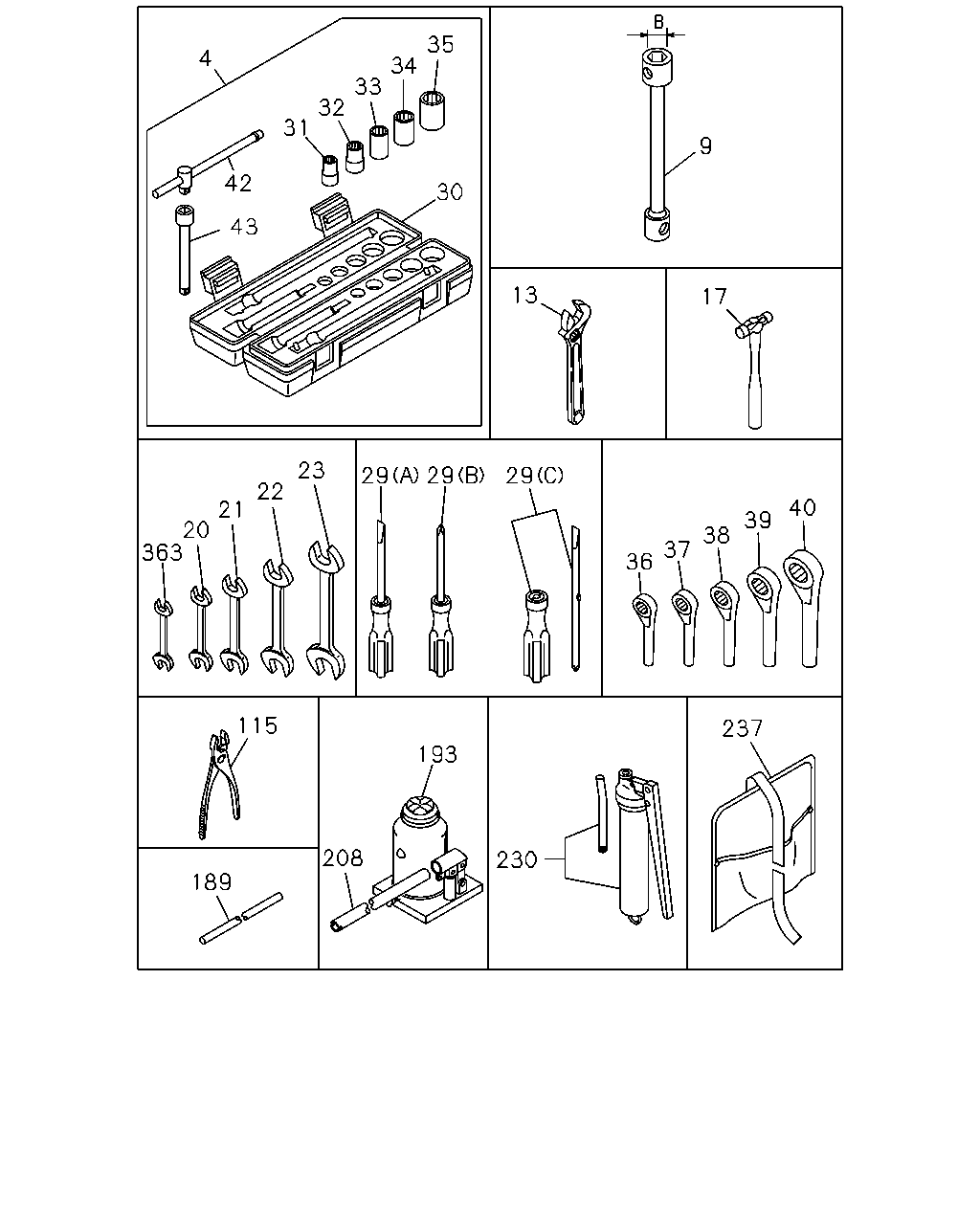

çizim 14361
4 42 31 32 33 34 35 30 43 9 13 17 363 20 21 22 23 29 29 36 37 38 39 40 237 230 193 115 189 208 29
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 0710-
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0710-1601
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		8-98316-700-0 01 1 1602-
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0710-0907
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0710-
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0710-
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0710-
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0710-
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0710-
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0710-
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0710-
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 0710-
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 0710-
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 0710-
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 0710-
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 0710-
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 0710-
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 0710-
36 WRENCH; 24 9-85111-377-0 01 1 0710-
37 WRENCH; 27 9-85111-375-0 01 1 0710-
38 WRENCH; 32 9-85111-358-0 01 1 0710-
39 WRENCH; 36 9-85111-374-0 01 1 0710-
40 WRENCH; 41 9-85111-356-0 01 1 0710-
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 0710-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-501-0 01 1 0710-
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0710-1410
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411-
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0710-
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 0710-
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		1-85515-009-0 01 1 0710-1107
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0710-
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0710-
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 0710-

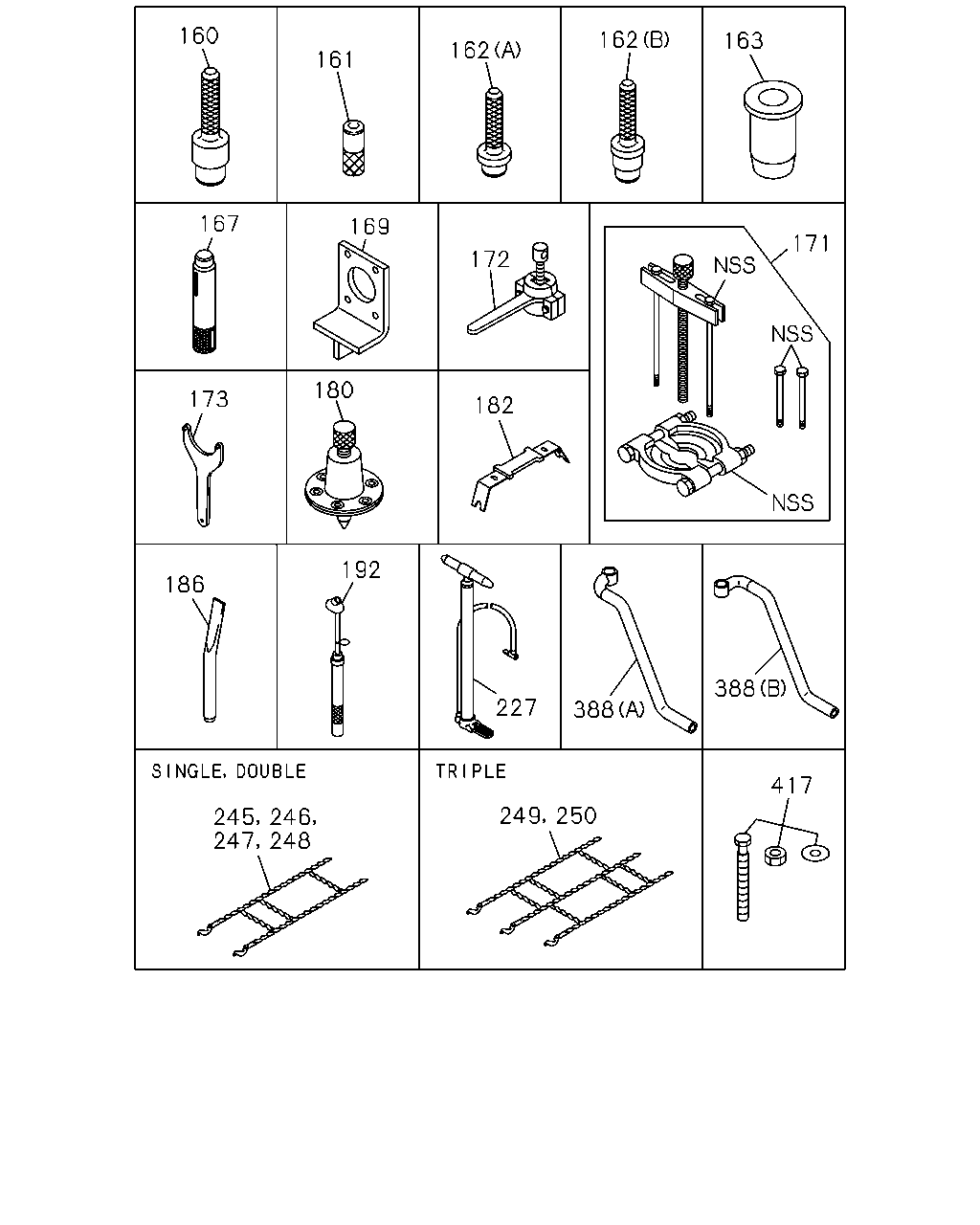

çizim 14426
160 161 162 162 163 167 169 172 171 173 180 182 186 192 227 388 388 245 246 247 248 249 250 417
BalonParca AdiParca NoAdetTipApplied Date
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0710-
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0710-
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0710-
163 TOOL; SETTING
MJX16P M/T(Y3Z) L=195 		1-85221-162-1 01 1 0710-
167 ALIGNER; CLU PILOT
MJX16P M/T(Y3Z) L=300 OD=52.5 		1-85253-025-0 01 1 0710-
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0710-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0710-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0710-
173 WRENCH; COUPLING DRIVER 9-85111-944-0 01 1 0710-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0710-
182 REMOVER ASM 1-85239-008-0 01 1 0710-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0710-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0710-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0710-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0710-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0710-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0710-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0710-
çizim 14550
125 126 108 12 141 124 127 128 130 129 135 146 145 143 151 144 152 153 156 158 154
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0710-1501
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0710-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0710-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0710-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0710-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0710-0808
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0710-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0710-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0710-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0710-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0710-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0710-
145 REPLACER ASM; BUSHING 1-85230-008-0 02 1 0710-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0710-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0710-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0710-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0710-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0710-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0710-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0710-

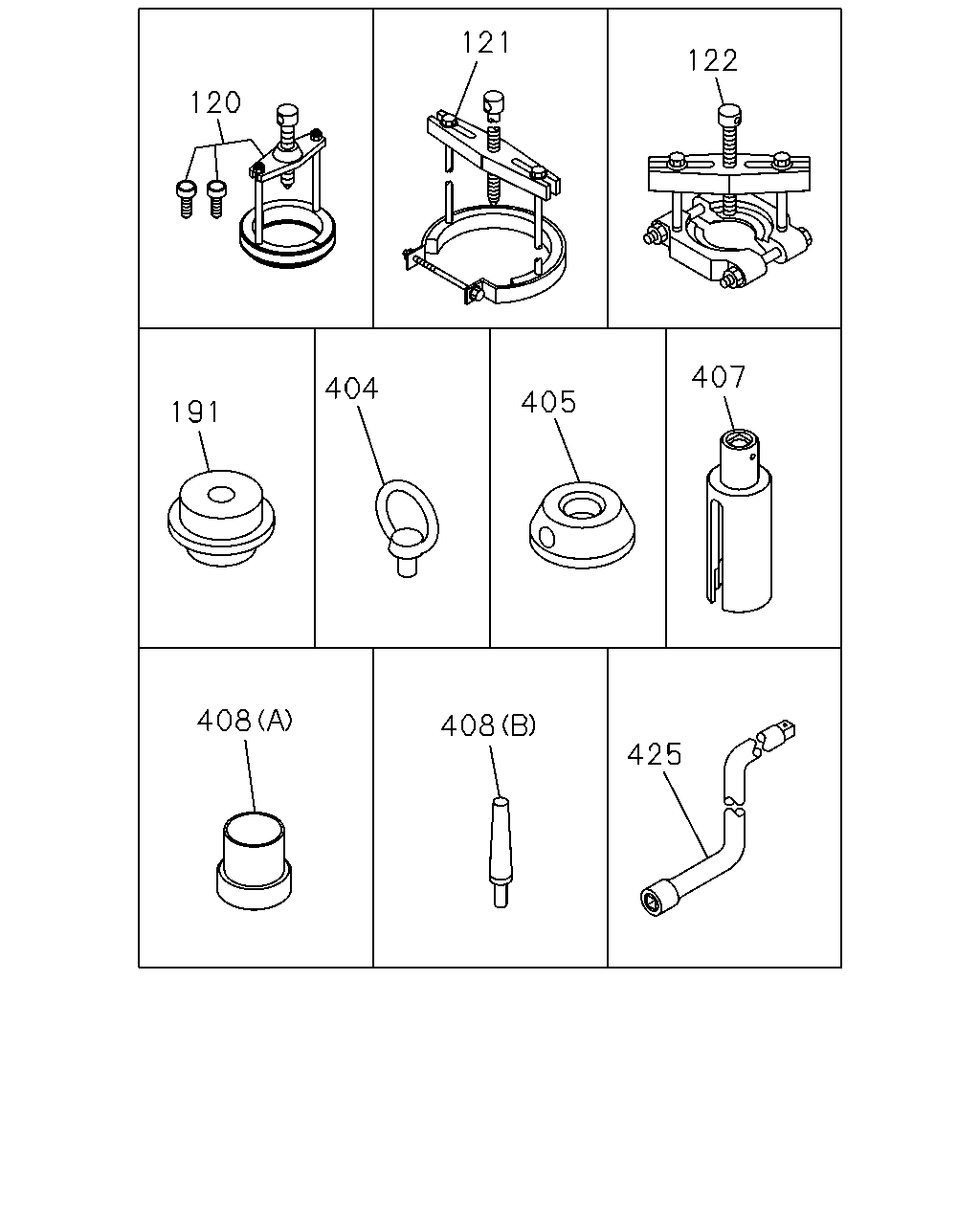

çizim 192717
120 121 122 191 404 405 407 408 408 425
BalonParca AdiParca NoAdetTipApplied Date
120 PULLER ASM; MAIN REAR BRG
MJX16P M/T(Y3Z) L=285 		9-85210-184-0 01 1 0710-
121 PULLER ASM; COUNTER REAR
MJX16P M/T(Y3Z) 		1-85210-069-0 01 1 0710-
122 PULLER ASM; COUNTER FRT
MJX16P M/T(Y3Z) 		9-85210-195-0 01 1 0710-
191 ADAPTER 1-85216-009-0 01 1 0710-
404 TOOL; SETTING,MAIN COUNTER
MJX16P M/T(Y3Z) 		1-85221-262-0 02 1 0710-
405 GUIDE; COUNTER
MJX16P M/T(Y3Z) 		1-85221-264-0 01 1 0710-
407 SOCKET; SW
MJX16P M/T(Y3Z) 		1-85221-267-1 01 1 0710-
408 TOOL; SETTING,SHIFT ASSISTER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-85221-268-0 01 1 0710-
408 TOOL; SETTING,SHIFT ASSISTER
MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-85221-269-0 01 1 0710-
425 EXTENSION; T/M
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=500 		8-98300-004-0 01 1 1602-
425 EXTENSION; T/M
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550 		1-85221-321-0 01 1 0710-1601
425 EXTENSION; T/M
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=550 		8-98300-006-0 01 1 1602-
