◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#67044) — 158 parça

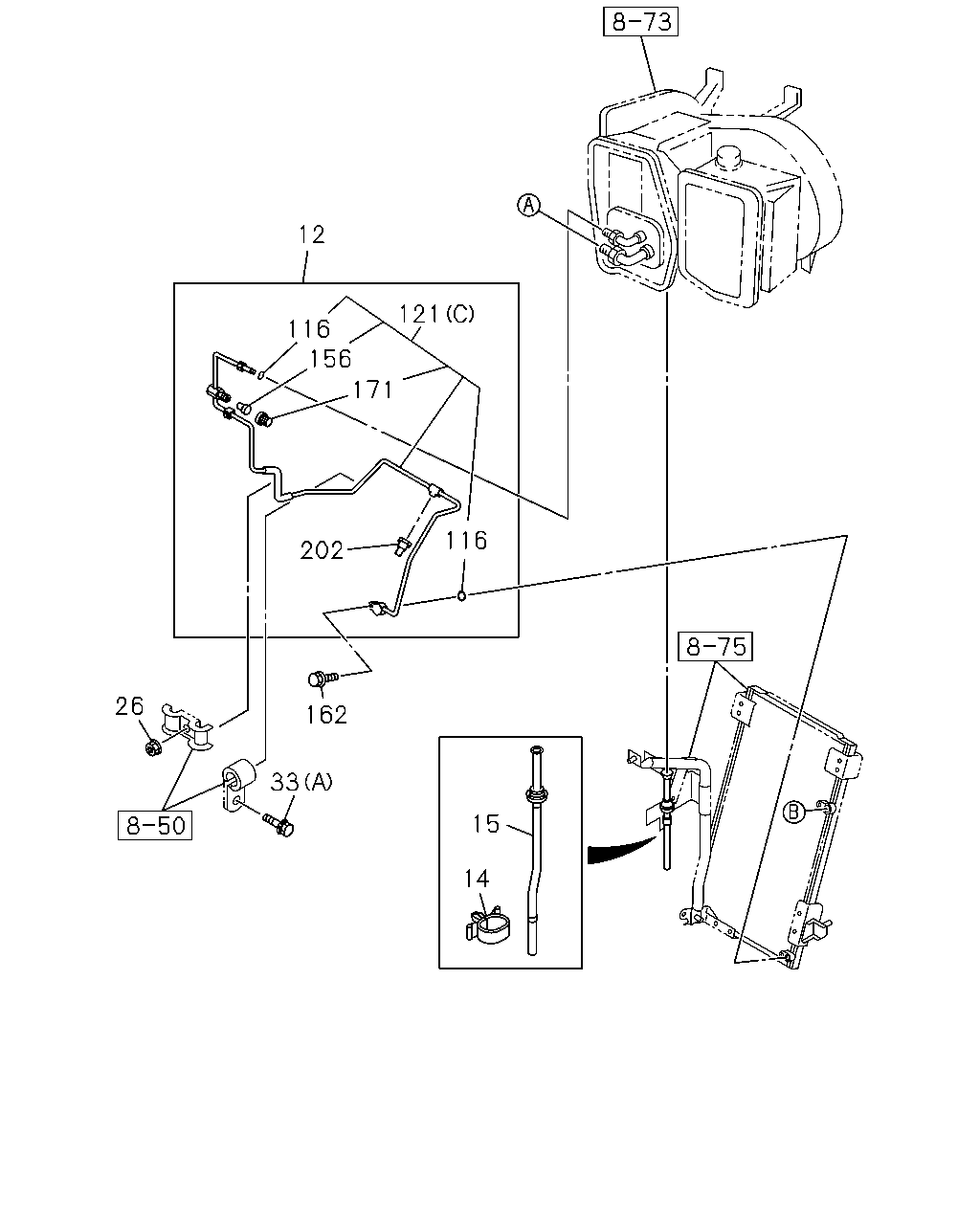

çizim 141019
12 121 116 156 171 116 202 26 162 33 15 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83567-877-1 01 1 0710-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		8-94410-200-0 01 1 0710-
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-635-0 01 1 0710-
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0710-
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 0710-
33 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1210-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=7.4 		8-97095-906-0 02 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (A) 		1-83577-115-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) 		1-83577-116-0 01 1 1210-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83572-953-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (B) 		1-83572-954-0 01 1 1210-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0710-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0710-
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0710-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0710-
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK H 		8-97095-911-0 01 1 0710-
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83564-392-1 01 1 0710-

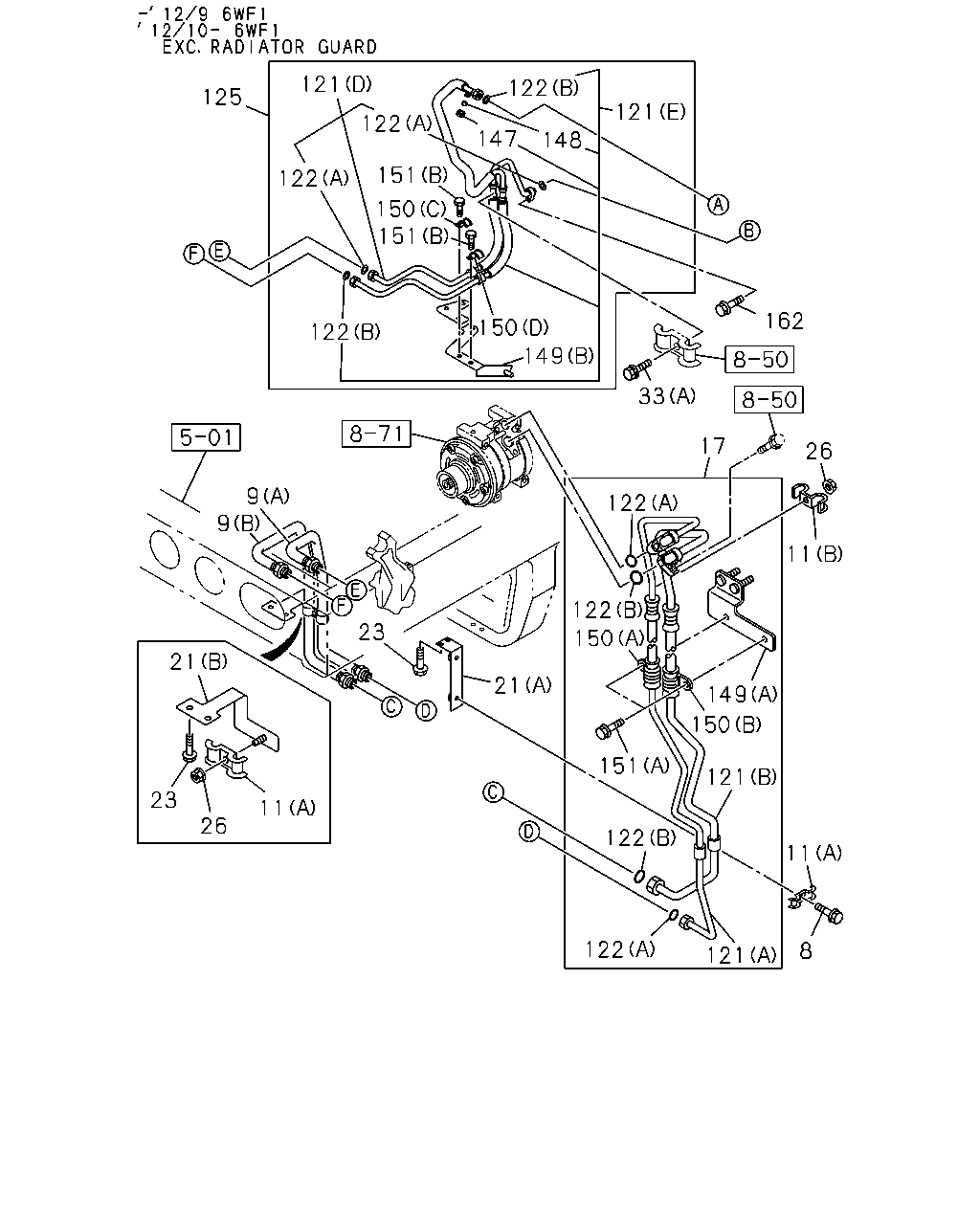

çizim 192714
121 11 8 122 122 151 149 150 121 150 11 122 122 17 26 162 33 21 23 9 9 21 23 26 122 11 150 121 122 147 148 151 150 151 122 121 122 125 149
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28650-820-0 02 1 1210-
8 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28650-820-0 02 1 0710-1209
8 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28650-820-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (C) 		8-97642-456-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (D) 		8-97642-457-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0710-1209
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83567-841-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0710-1209
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (B) 		1-83567-842-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0710-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0710-
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) ID=20 & 20 		1-83574-195-1 02 1 1210-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0710-
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20 		1-83574-195-1 02 1 0710-1209
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (A) ID=20 & 20 		1-83574-195-1 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> 		1-83577-114-0 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0710-1209
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> 		1-83572-928-2 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0710-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. MJX M/T<Y9N> (B) 		1-83573-202-0 01 1 0710-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-249-0 01 1 0710-1209
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83573-249-0 01 1 1210-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) MJX M/T<Y9N> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0710-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0710-1209
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (C) 		1-83573-297-0 01 1 1210-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 1210-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0710-1209
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0710-1209
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 04 1 1210-
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0710-
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 0710-
33 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1210-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (A) 		1-83577-115-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) 		1-83577-116-0 01 1 1210-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83572-953-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (B) 		1-83572-954-0 01 1 1210-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0710-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0710-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-026-1 01 1 0710-
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK L 		8-97095-910-0 01 1 0710-
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0710-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0710-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-262-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-263-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0710-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0710-

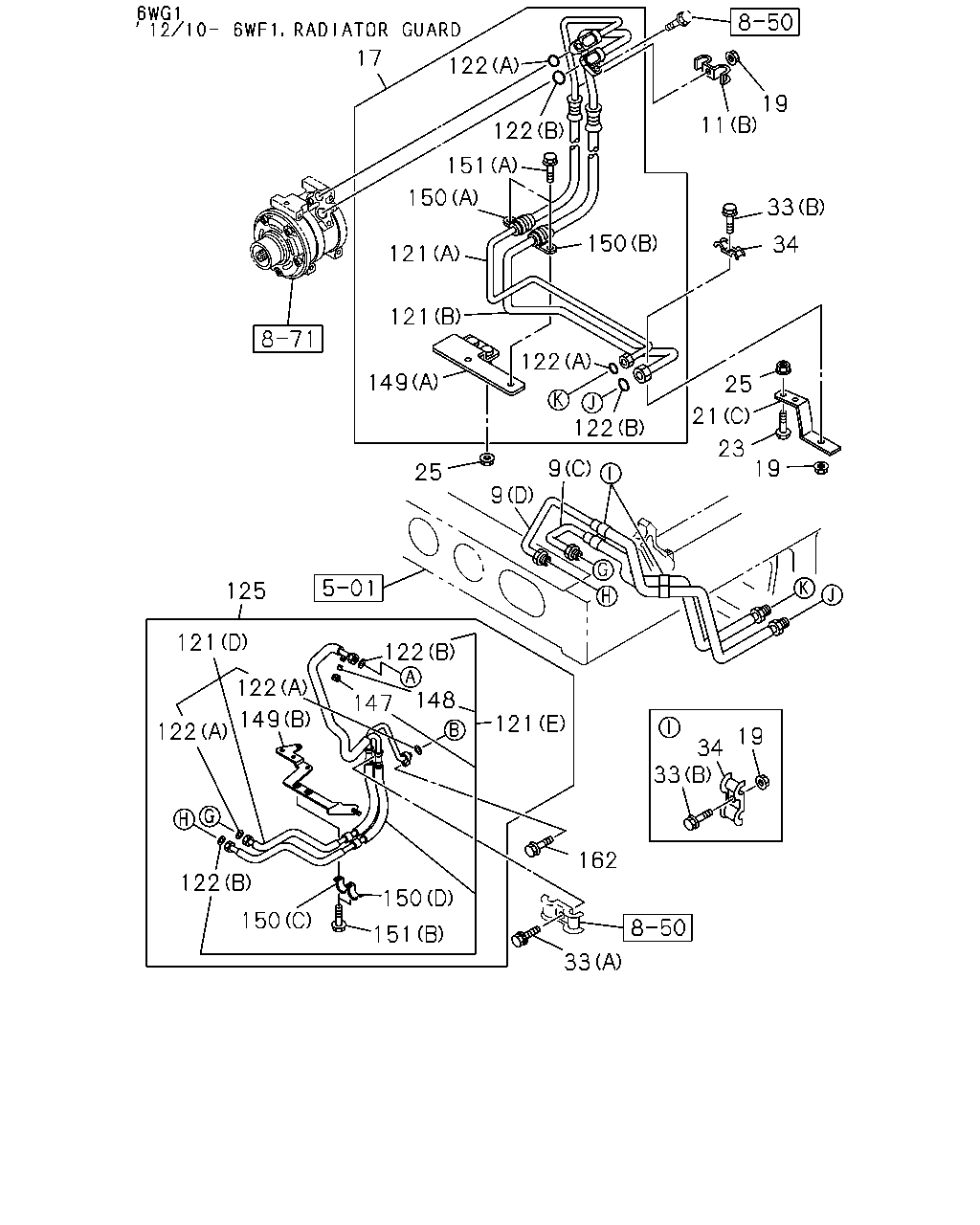

çizim 192720
17 122 122 151 150 121 121 149 150 122 122 11 19 33 34 25 21 23 19 9 25 9 19 34 33 162 33 125 121 122 148 121 122 149 122 122 150 150 151 147
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (C) 		8-97642-456-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (D) 		8-97642-457-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83567-841-0 01 1 0710-1209
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83567-841-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83567-842-0 01 1 0710-1209
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (B) 		1-83567-842-0 01 1 1210-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83567-888-0 01 1 0710-
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83567-889-1 01 1 0710-
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) ID=20 & 20 		1-83574-195-1 02 1 1210-
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0710-
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20 		1-83574-195-1 02 1 0710-1209
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (A) ID=20 & 20 		1-83574-195-1 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> 		1-83577-114-0 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83572-928-2 01 1 0710-1209
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> 		1-83572-928-2 01 1 1210-
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-062-1 01 1 0710-
19 NUT; CLIP FIX
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8 FLANGE 		0-91180-108-0 01 1 1210-
19 NUT; CLIP FIX
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0710-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. MJX M/T<Y9N> (B) 		1-83573-202-0 01 1 0710-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-249-0 01 1 0710-1209
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83573-249-0 01 1 1210-
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) MJX M/T<Y9N> AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-282-1 01 1 0710-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 0710-1209
21 BRACKET; COOLER HOSE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (C) 		1-83573-297-0 01 1 1210-
21 BRACKET; COOLER HOSE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83573-297-0 01 1 1210-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 04 1 0710-1209
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 02 1 1210-
23 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE 		0-28050-820-0 02 1 0710-1209
23 BOLT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> M8X20 FLANGE 		0-28050-820-0 04 1 1210-
25 NUT; BRKT
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> M8 FLANGE 		0-91180-108-0 01 1 1210-
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 1210-
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 03 1 0710-1209
25 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 02 1 1210-
33 BOLT; CLIP
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1210-
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
33 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
34 CLIP; COOLER PIPE
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> ID=20 & 20 		1-83574-195-1 01 1 1210-
34 CLIP; COOLER PIPE
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 & 20 		1-83574-195-1 03 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (A) 		1-83577-115-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) RADIATOR GUARD<WV1> (B) 		1-83577-116-0 01 1 1210-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83577-054-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83577-055-0 01 1 0710-
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E) 		1-83577-086-0 01 1 0710-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83572-953-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (A) 		1-83572-953-0 01 1 1210-
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83572-954-0 01 1 0710-1209
121 HOSE; COOLER
6WF1 TC-C(1B8) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) EXC. RADIATOR GUARD<WV1> (B) 		1-83572-954-0 01 1 1210-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83577-070-0 01 1 0710-
121 HOSE; COOLER
6WG1 TC-C(72L),6WG1 TC-S(97L) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83577-071-0 01 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0710-
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5 		8-97095-908-0 02 1 0710-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83577-026-1 01 1 0710-
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK L 		8-97095-910-0 01 1 0710-
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-97095-909-0 01 1 0710-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83573-255-0 01 1 0710-
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83573-265-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83574-249-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-83574-262-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) 		1-83574-263-0 01 1 0710-
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83574-264-0 01 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83539-336-0 02 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83578-098-0 02 1 0710-
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE 		0-28050-625-0 02 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
