8-45 — HEATER PIPING (#67042) — 38 parça

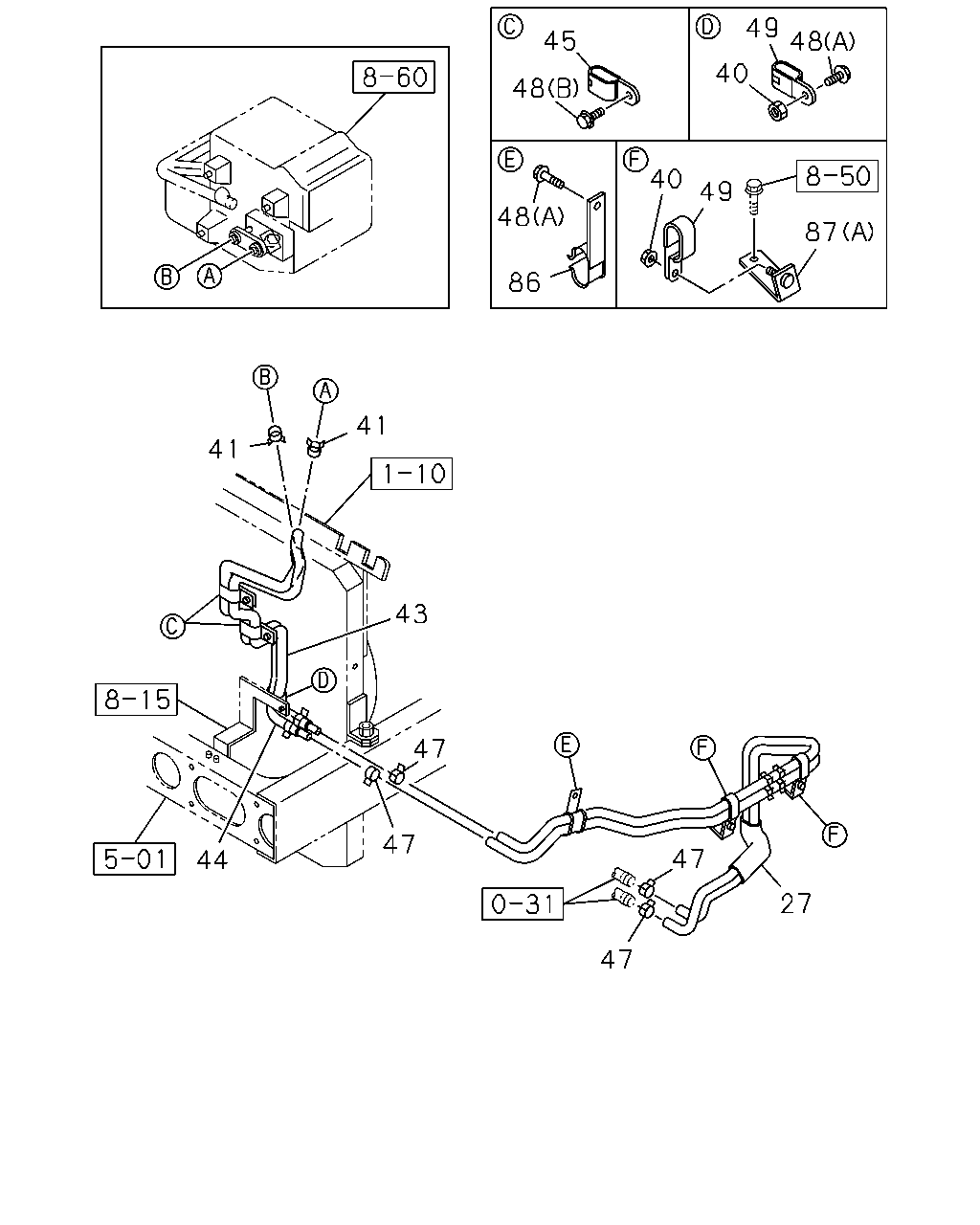

45 48 49 48 40 40 49 87 48 86 41 41 43 47 47 44 47 27 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0710-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-839-1	01	1	0710-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0710-
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0710-
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-828-1	01	1	0710-
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0710-
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-826-1	01	1	0710-
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0710-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0710-
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0710-
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-
48	BOLT; CLIP FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0710-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0710-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0710-
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0710-

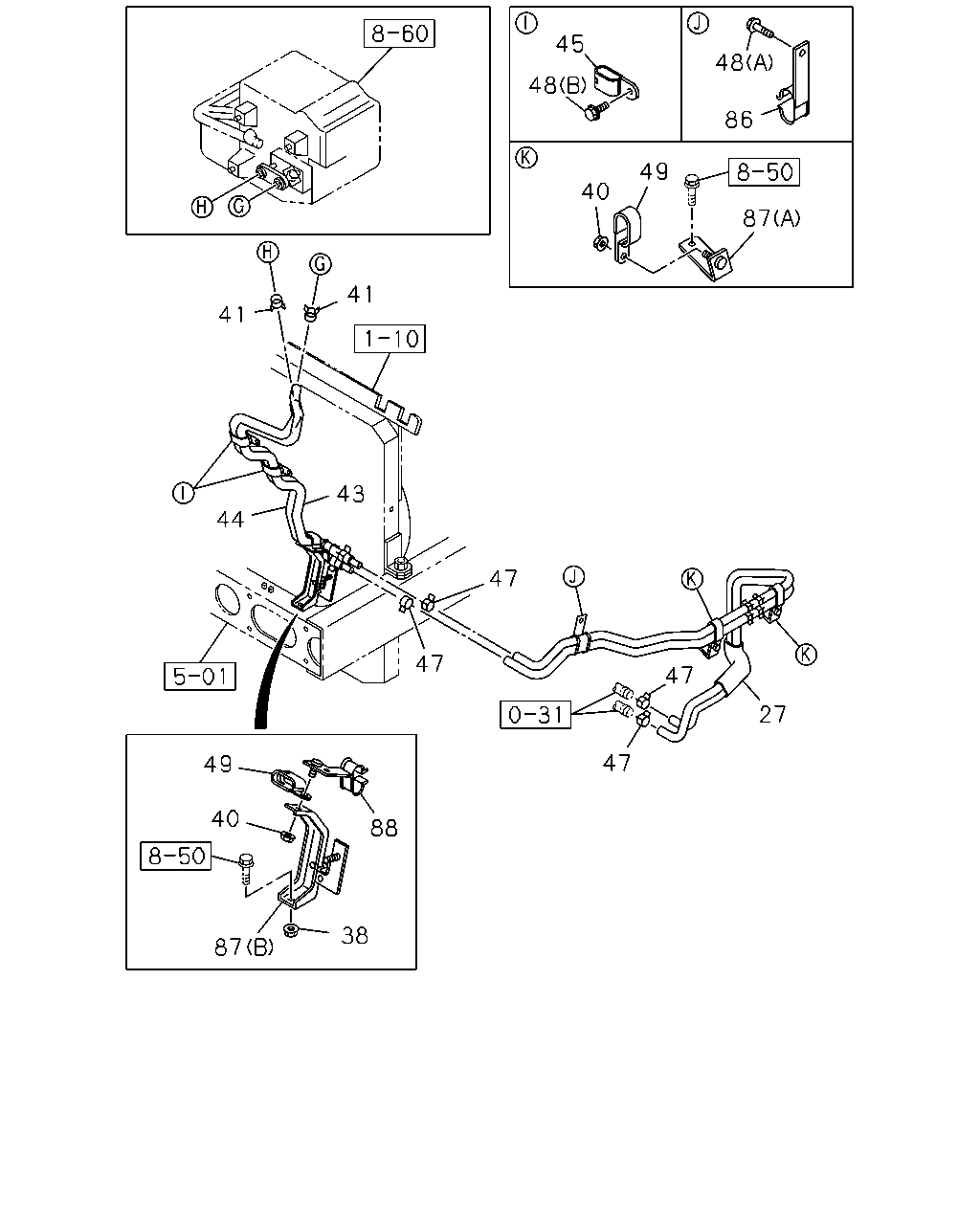

45 48 48 86 49 40 87 41 41 43 44 47 47 47 27 47 49 88 40 38 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WF1 TC-C(1B8)	1-83565-802-3	01	1	0710-
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-839-1	01	1	0710-
38	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0710-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0710-
43	HOSE; WATER,OUTLET,HTR 6WF1 TC-C(1B8)	1-83565-570-3	01	1	0710-
43	HOSE; WATER,OUTLET,HTR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-828-1	01	1	0710-
44	HOSE; WATER,HTR,INL 6WF1 TC-C(1B8)	1-83565-569-4	01	1	0710-
44	HOSE; WATER,HTR,INL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83565-826-1	01	1	0710-
45	CLIP; WATER PIPE	1-09701-238-0	02	1	0710-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0710-
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-
48	BOLT; CLIP FIX (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0710-
48	BOLT; CLIP FIX 6WF1 TC-C(1B8) (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-
48	BOLT; CLIP FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0710-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0710-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	02	1	0710-
87	BRACKET; HTR HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-83573-316-0	01	1	0710-
88	STAY; WATER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83573-291-1	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
