Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#67040) — 433 parça

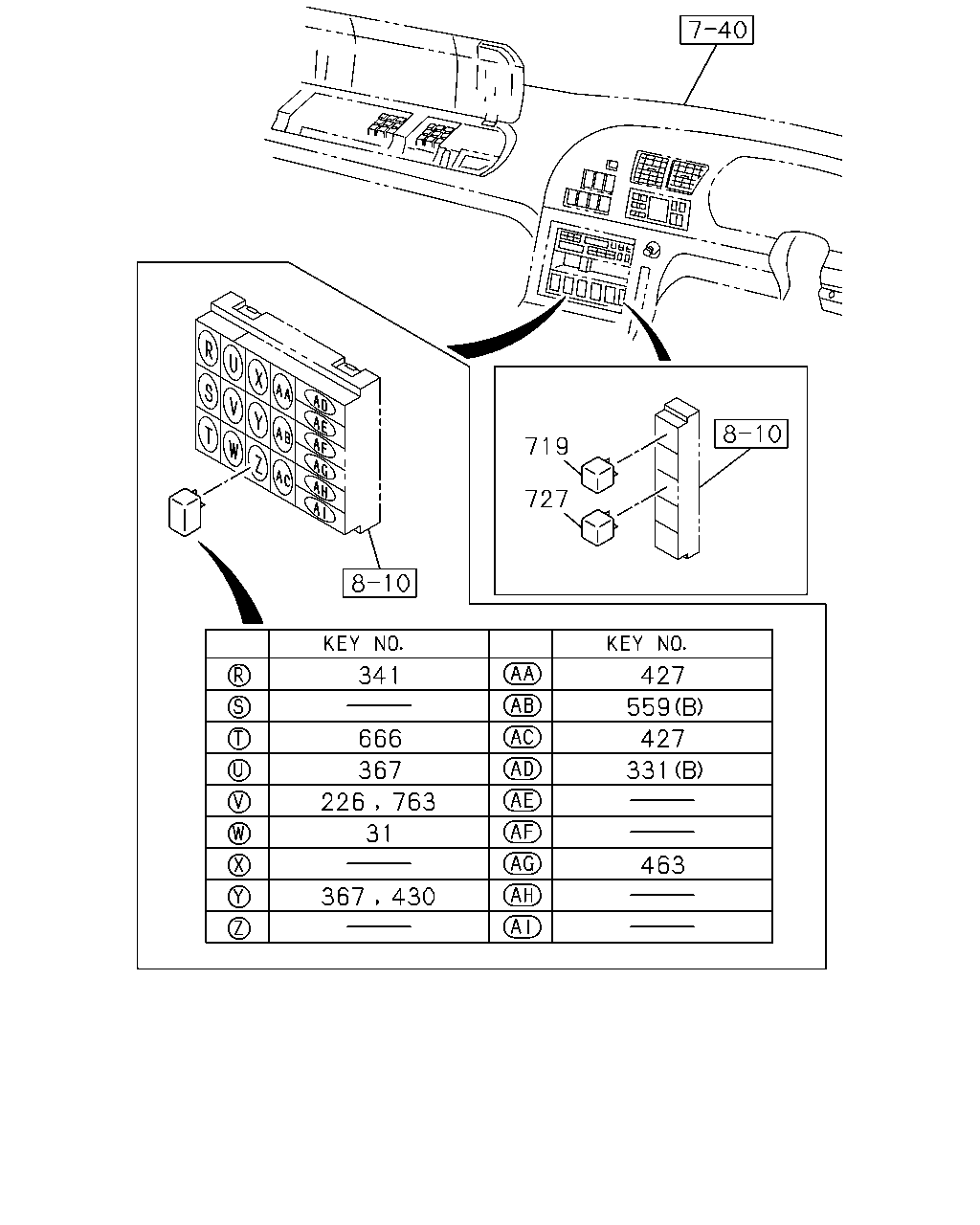

719 727 341 427 559 666 427 367 331 226 763 31 463 367 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
226	RELAY; EXH BRK 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
427	RELAY; RETARDER 6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0710-
430	RELAY; RANGE 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
463	RELAY; ABS SIGNAL 6WF1 TC-C(1B8) 24V 10A PANASONIC	8-97173-035-1	01	1	0712-
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
666	RELAY; STARTER MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
719	RELAY; EMERGENCY,GEAR SHIFT UNIT 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
727	RELAY; START CUT 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
763	RELAY; EGRTTERY 6WG1 TC-C(72L),6WG1 TC-S(97L) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-

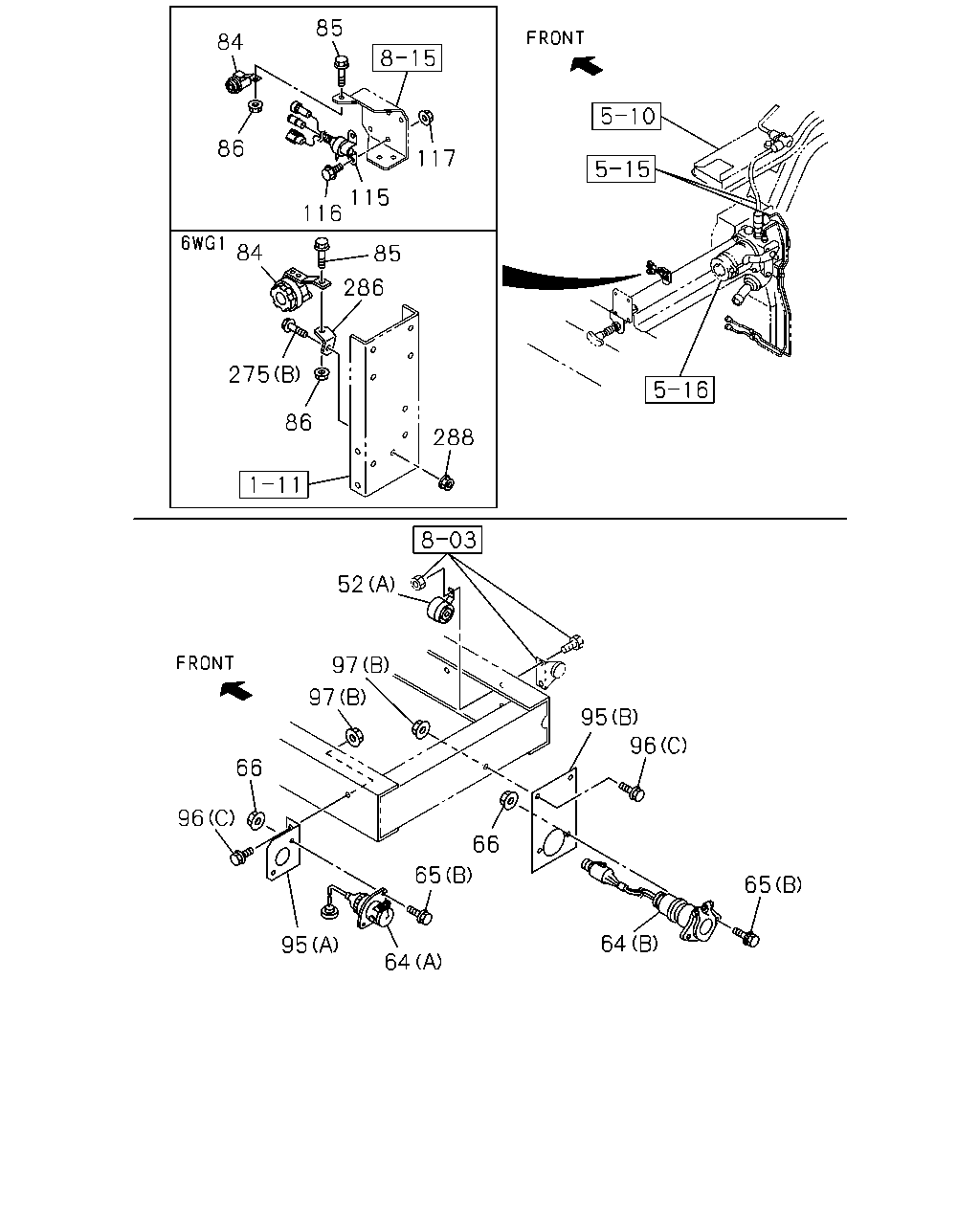

84 85 86 116 115 117 85 84 275 286 86 288 52 97 97 66 96 95 64 65 65 64 65 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0710-
52	BUZZER; BACK 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0710-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> (B) 7P	1-82523-014-0	01	1	0710-
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> (A) L=860	1-82699-449-2	01	1	0710-1008
64	SOCKET; TRAILER FULL TRACTOR TRUCK<RD6> (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
66	NUT; SOCKET FIX FULL TRACTOR TRUCK<RD6> M8 FLANGE	0-91180-108-0	04	1	0710-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0710-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0710-
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6> (B)	1-82699-387-0	01	1	0710-
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6> (A)	1-82699-979-0	01	1	0710-1008
95	BRACKET; SOCKET,TRAILER FULL TRACTOR TRUCK<RD6> (A)	8-97985-137-0	01	1	1009-
96	BOLT; BRKT FIX EXC. CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	05	1	1111-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-1110
96	BOLT; BRKT FIX CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-
97	NUT; BRKT FIX EXC. CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	05	1	1111-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0710-1110
97	NUT; BRKT FIX CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	01	1	1111-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0710-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (B) M8 FLANGE	0-91180-108-0	04	1	0710-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0710-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0710-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
286	BRACKET 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82699-199-0	01	1	0710-
288	NUT; BRKT FIX 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	01	1	0710-

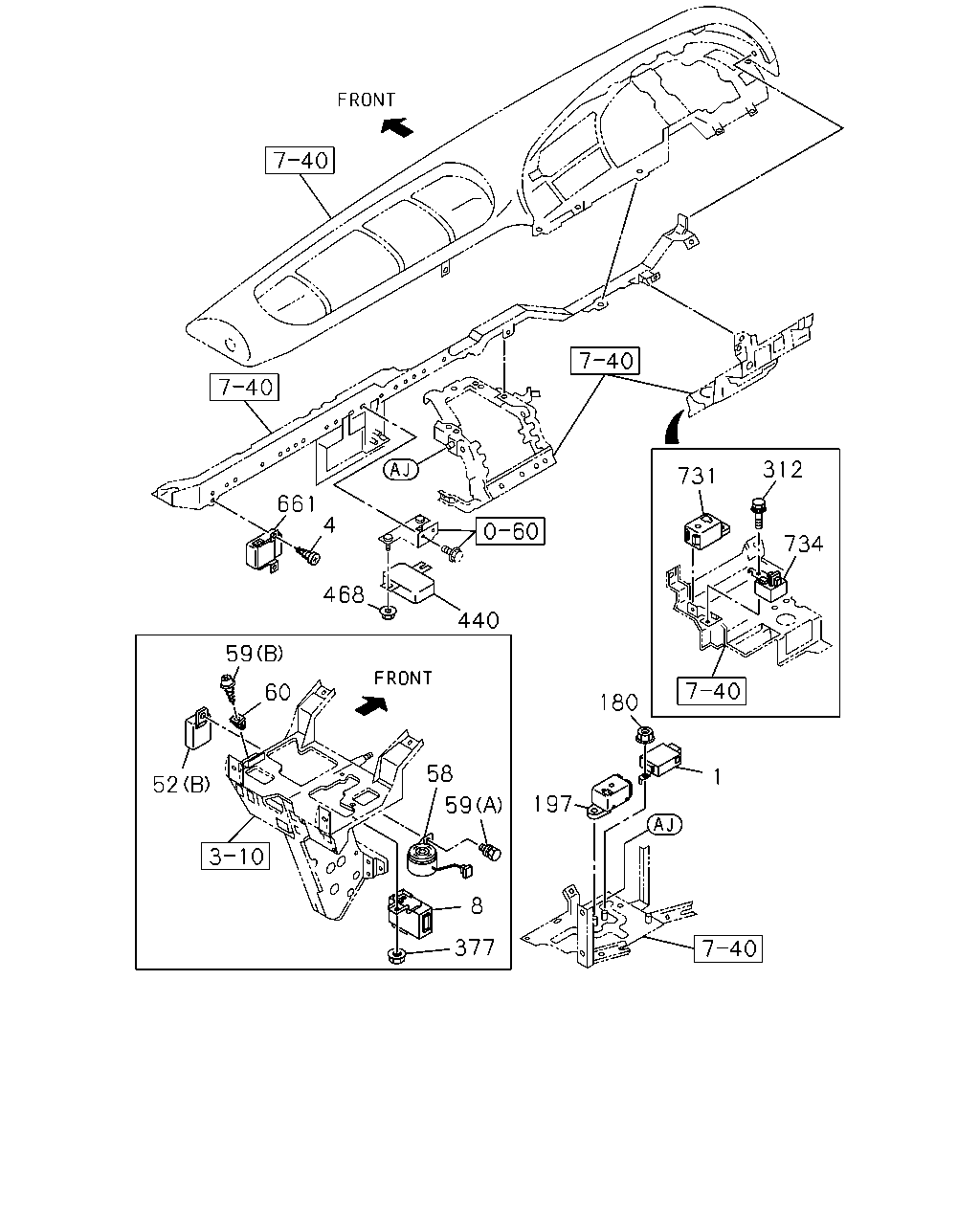

661 468 440 731 312 734 180 59 60 58 59 197 8 377 52 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-062-1	01	1	0710-
1	UNIT; FLASHER EXC. FULL TRACTOR TRUCK<RD6>	1-83470-068-1	01	1	0710-
4	SCREW; FLASHER UNIT FULL TRACTOR TRUCK<RD6> M5X14	8-94279-325-0	01	1	0710-
8	RELAY; WIPER AIR BAG<TFQ>	1-83316-002-4	01	1	0710-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> (A) METRO DENSO	8-98069-861-0	01	1	0710-
52	BUZZER; BACK 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B)	1-83460-040-0	01	1	0710-
58	BUZZER; AIR PRESSURE WARNING 6WF1 TC-C(1B8) METRO DENSO	8-98069-859-0	01	1	0710-
59	SCREW; BUZZER 6WF1 TC-C(1B8) (A) M5X14	8-94279-325-0	01	1	0710-
59	SCREW; BUZZER 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (B) M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0710-
60	GROMMET; SCREW,BUZZER 6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) D=8.6X7.7 L=7.5	8-94279-078-0	01	1	0710-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0710-
197	BUZZER; WARNING,AIR HEAT OIL BRK 6WF1 TC-C(1B8)	1-83460-051-1	01	1	0710-
312	BOLT; BUZZER 6WG1 TC-C(72L),6WG1 TC-S(97L) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0710-
377	NUT; RELAY AIR BAG<TFQ> M6 FLANGE	0-91180-106-0	01	1	0710-
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-
440	MODULE; INFORMATION,ABS FULL TRACTOR TRUCK<RD6>	1-81510-701-0	01	1	0710-
468	NUT; MODULE FULL TRACTOR TRUCK<RD6> M6 FLANGE	0-91180-106-0	02	1	0710-
661	CONTROL UNIT; FLASHER FULL TRACTOR TRUCK<RD6>	1-83470-066-1	01	1	0710-
731	ALARM; INFORMATION 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0710-
734	ALARM; MULTI 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-83460-106-0	01	1	0710-

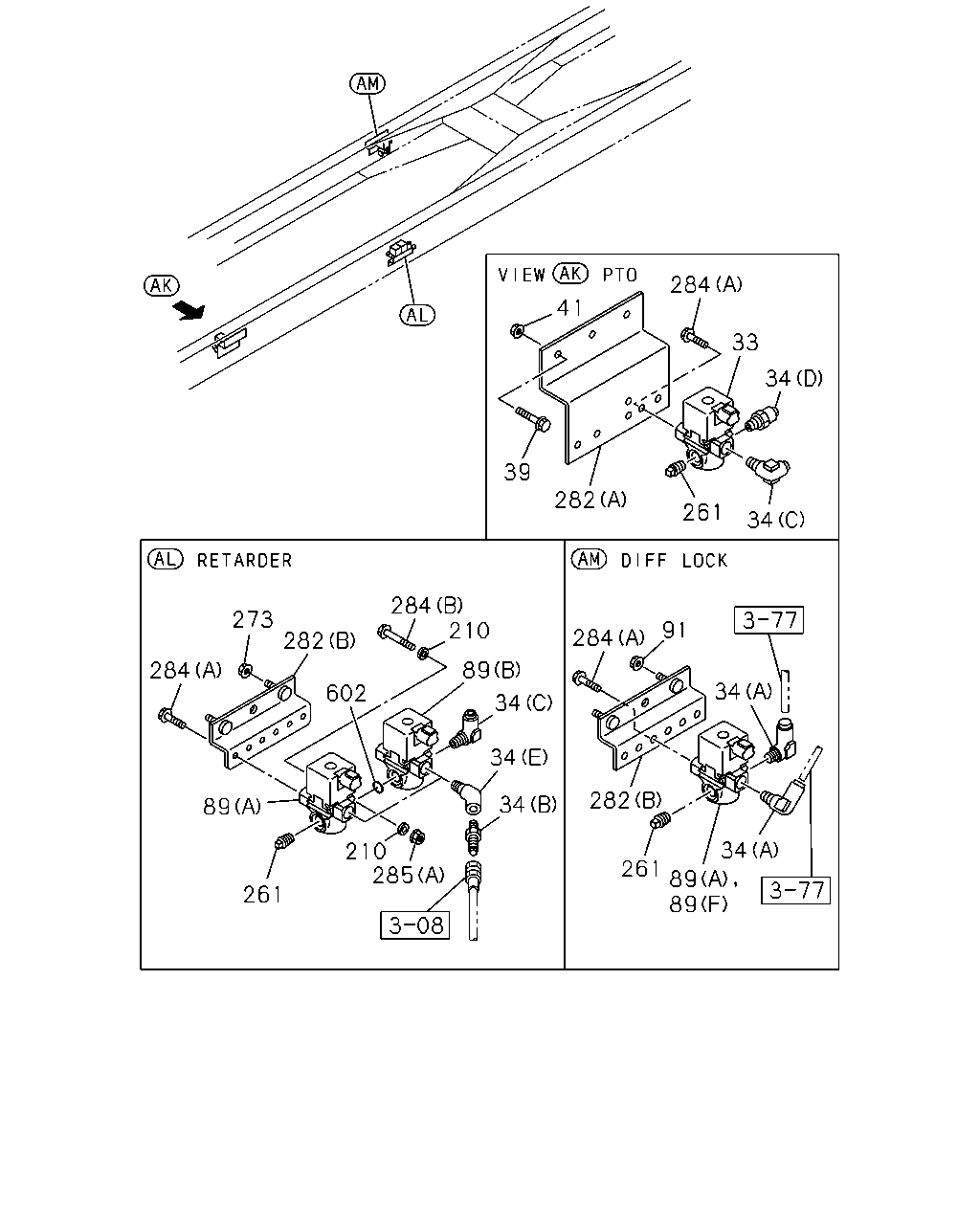

41 284 33 34 34 261 282 39 273 282 284 210 284 602 89 34 89 34 34 210 261 285 91 284 34 282 34 261 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV EXC. CHEAPER CAB(WY1) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	04	1	0710-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0710-
89	VALVE; MAG,DIFF LOCK (F) ANODIZING	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-094-2	01	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (C)	1-82564-407-1	01	1	0710-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT EXC. CHEAPER CAB(WY1)	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0710-1110
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0710-1110
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0710-1110
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV EXC. CHEAPER CAB(WY1) PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) CHEAPER CAB(WY1) PT1/4	9-99204-513-0	01	1	1111-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0710-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-1110
282	BRACKET; MAG VLV EXC. CHEAPER CAB(WY1) (C)	1-82569-290-0	01	1	1111-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0710-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV EXC. CHEAPER CAB(WY1) (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV EXC. CHEAPER CAB(WY1) (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV EXC. CHEAPER CAB(WY1) ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0710-

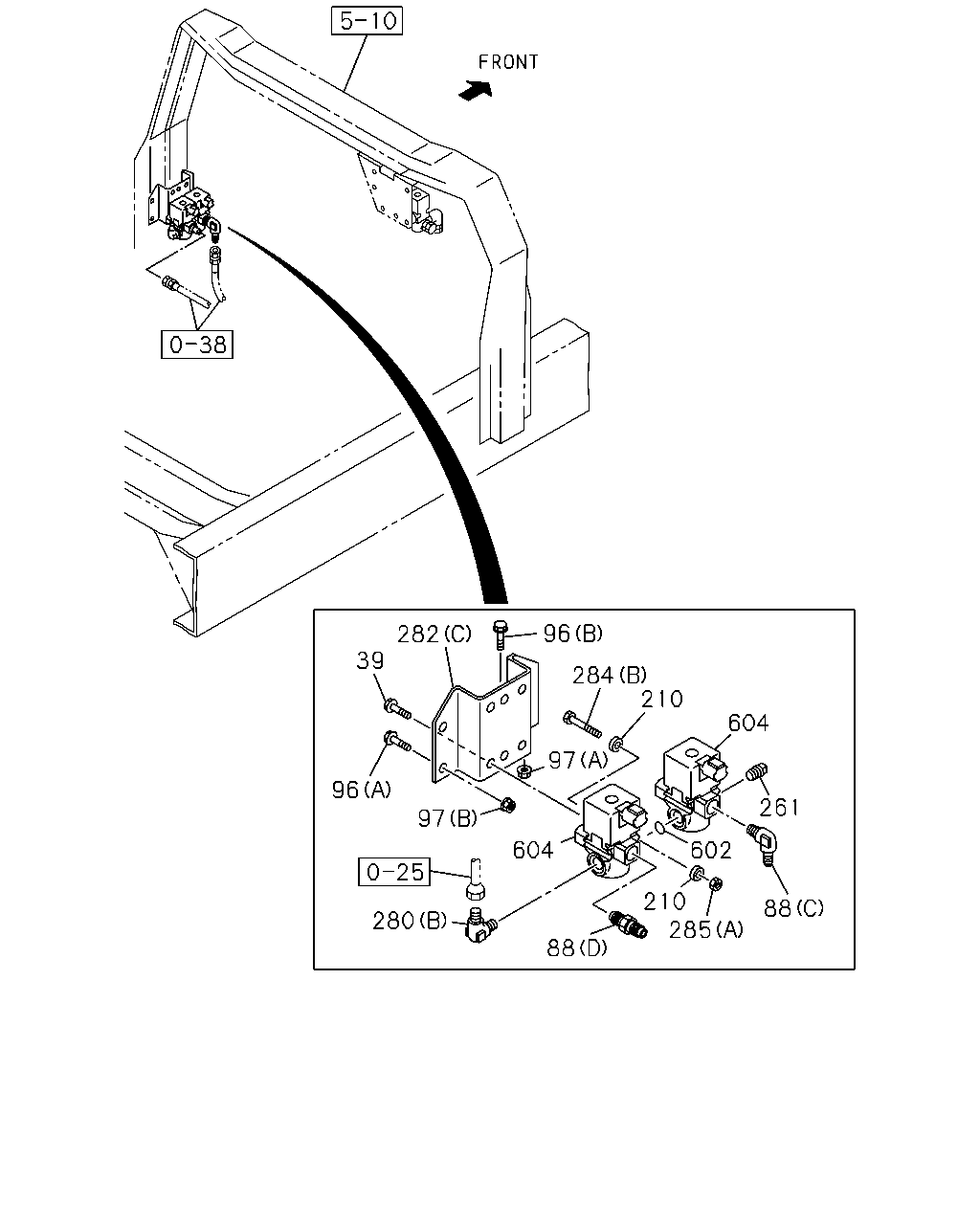

282 96 284 210 604 261 97 97 96 39 604 602 210 88 285 88 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV EXC. CHEAPER CAB(WY1) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	04	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	0710-

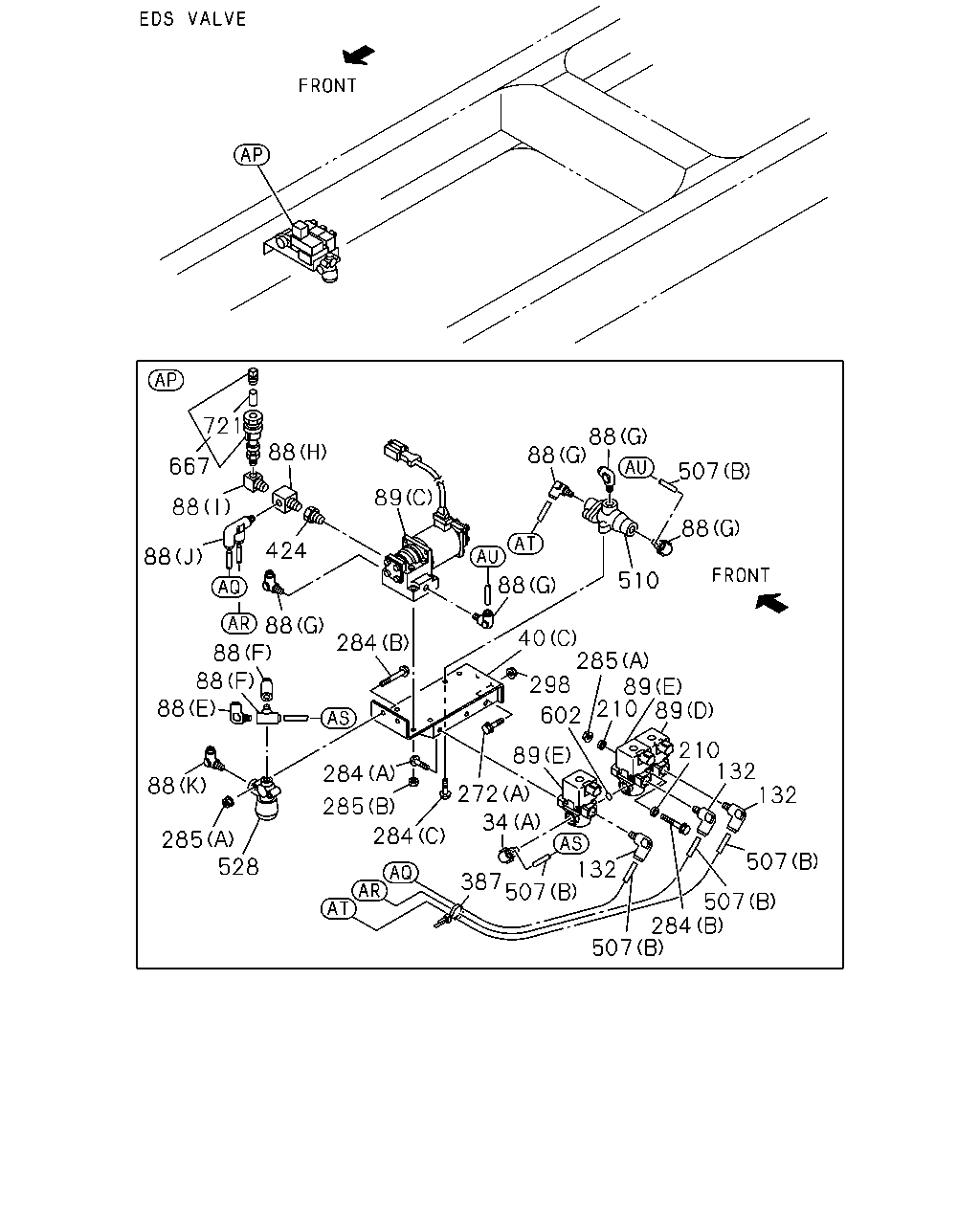

88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
96	BOLT; BRKT FIX EXC. CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	05	1	1111-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-1110
96	BOLT; BRKT FIX CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-
97	NUT; BRKT FIX EXC. CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	05	1	1111-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0710-1110
97	NUT; BRKT FIX CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	01	1	1111-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0710-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (B) M8 FLANGE	0-91180-108-0	04	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT EXC. CHEAPER CAB(WY1)	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0710-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0710-1110
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0710-1110
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0710-1110
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV EXC. CHEAPER CAB(WY1) PT1/4	9-99204-513-0	01	1	1111-
261	PLUG; MAG VLV 6WF1 TC-C(1B8) CHEAPER CAB(WY1) PT1/4	9-99204-513-0	01	1	1111-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
280	CONNECTOR; IN,MAG VLV EXC. CHEAPER CAB(WY1) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-1110
282	BRACKET; MAG VLV EXC. CHEAPER CAB(WY1) (C)	1-82569-290-0	01	1	1111-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0710-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV EXC. CHEAPER CAB(WY1) (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV EXC. CHEAPER CAB(WY1) (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV EXC. CHEAPER CAB(WY1) ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0710-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0710-1110
604	VALVE; MAG,ENG CONT EXC. CHEAPER CAB(WY1)	1-82563-871-2	02	1	1111-
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0710-
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82563-871-2	04	1	0710-

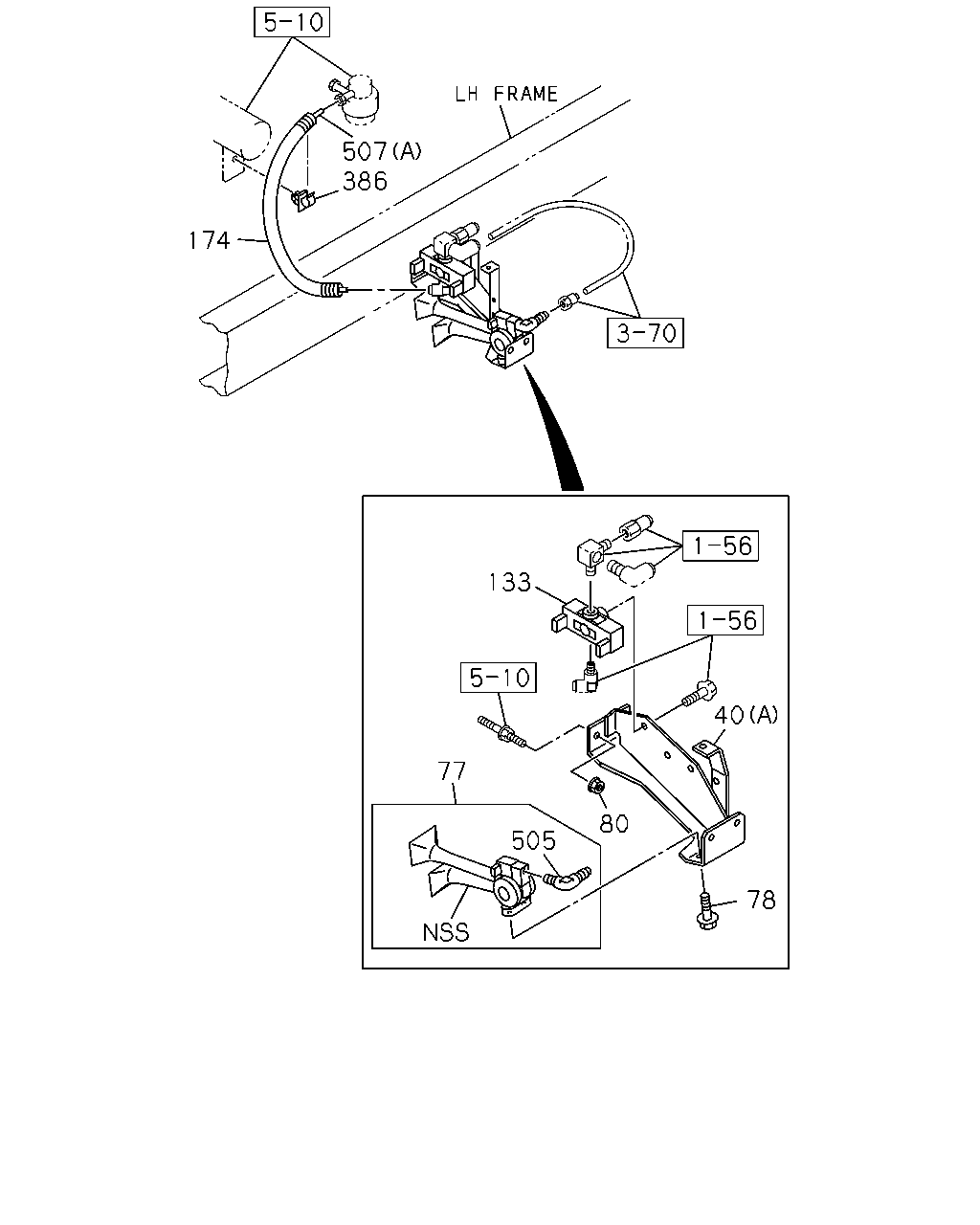

507 386 174 133 40 78 80 77 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (C)	1-82569-420-0	01	1	0710-
77	HORN ASM	1-83430-041-2	01	1	0710-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0710-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0710-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0710-
174	COVER L=800	1-83129-031-1	01	1	0710-
386	CLIP; HARNESS ID=9.5	5-09709-020-0	01	1	0710-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-
507	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-

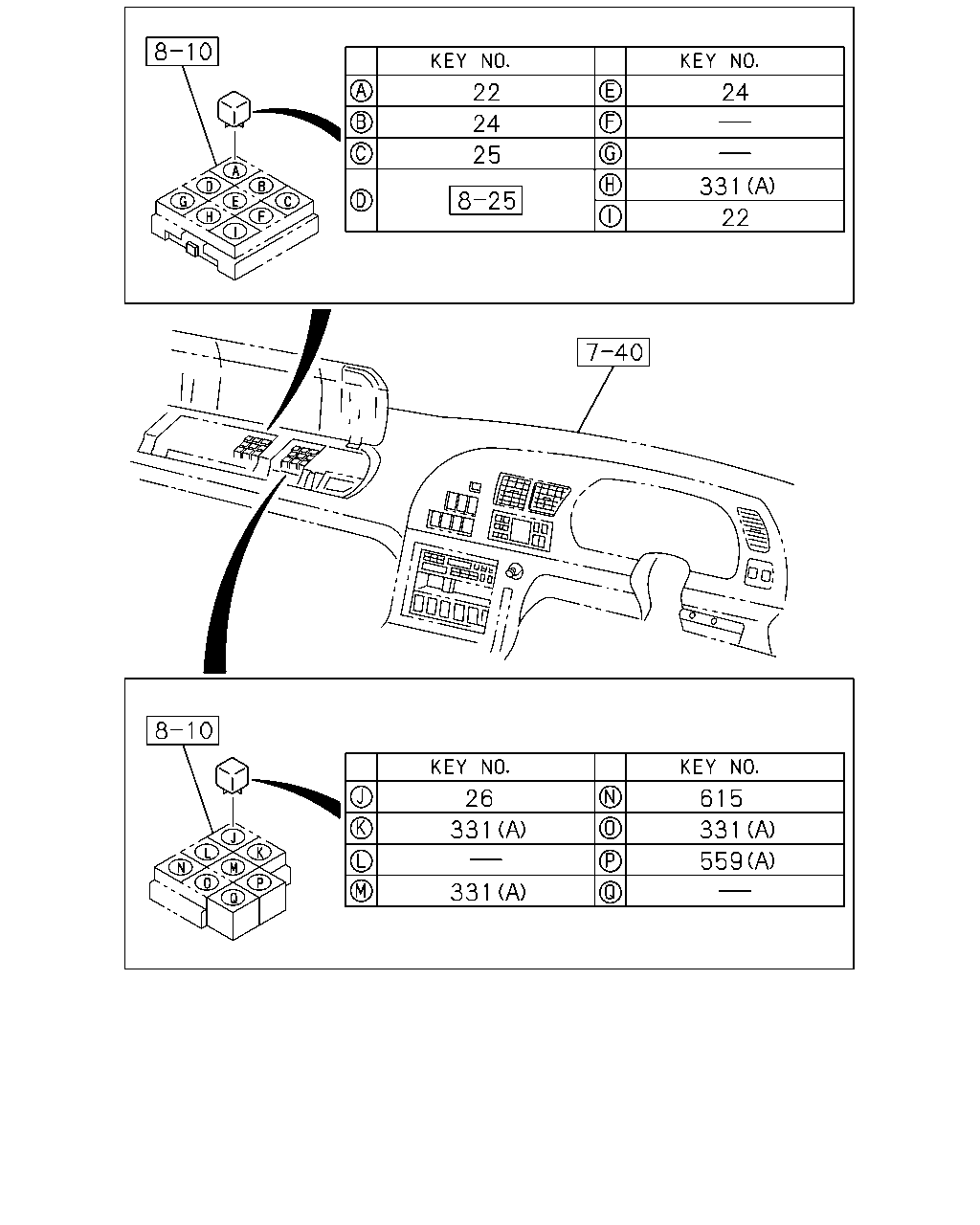

22 24 24 25 22 26 331 331 615 331 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
22	RELAY; STOP LAMP EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0710-
331	RELAY; A/C 6WF1 TC-C(1B8) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-
559	RELAY; MAG VLV MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-
615	RELAY; TRAILER FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-

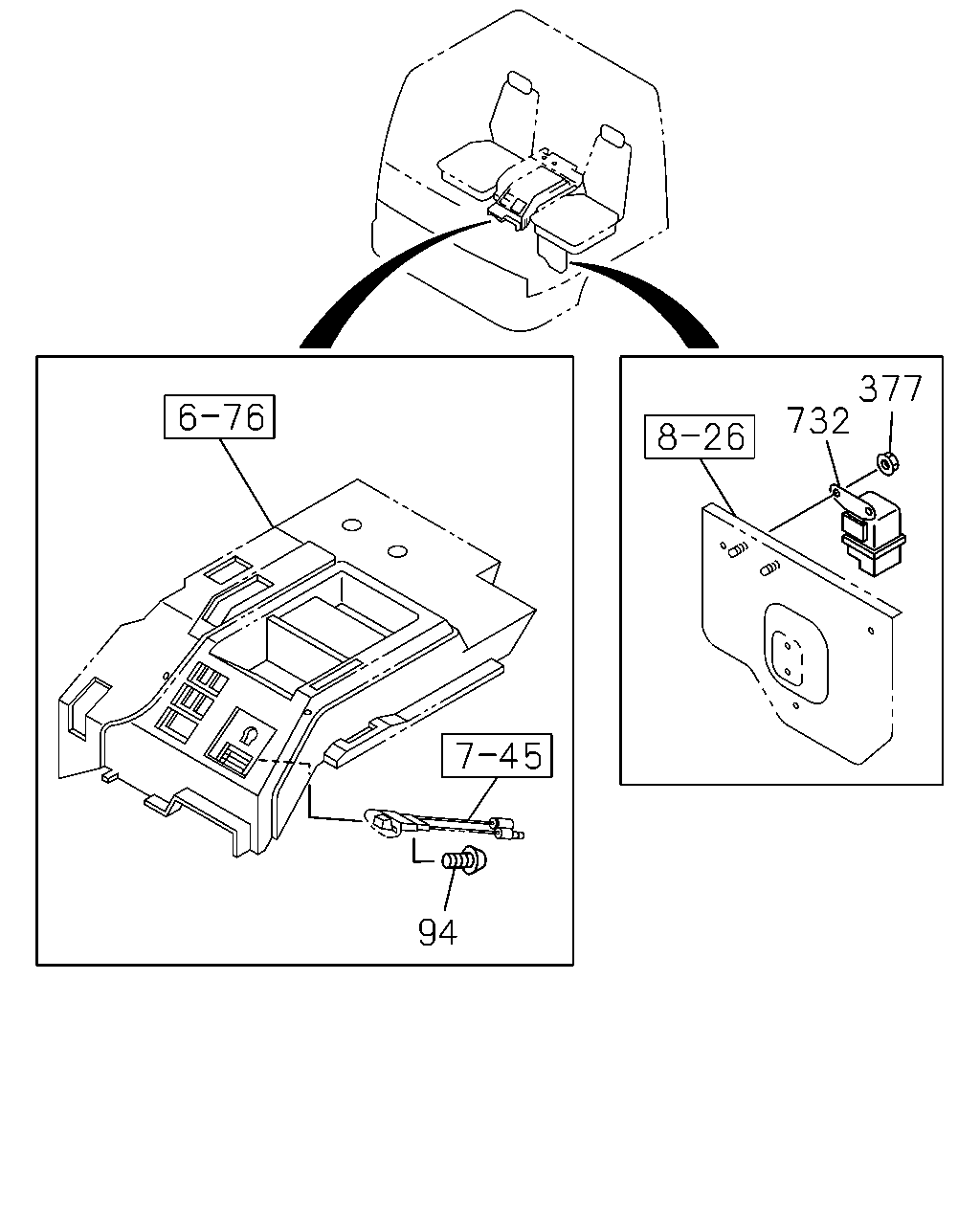

732 377 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0710-
377	NUT; RELAY AIR BAG<TFQ> M6 FLANGE	0-91180-106-0	01	1	0710-
377	NUT; RELAY 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0710-
732	RELAY; EDS 6WG1 TC-C(72L),6WG1 TC-S(97L) MJX M/T<Y9N> SMOOTHER-G(C1W)	1-82550-337-1	01	1	0710-

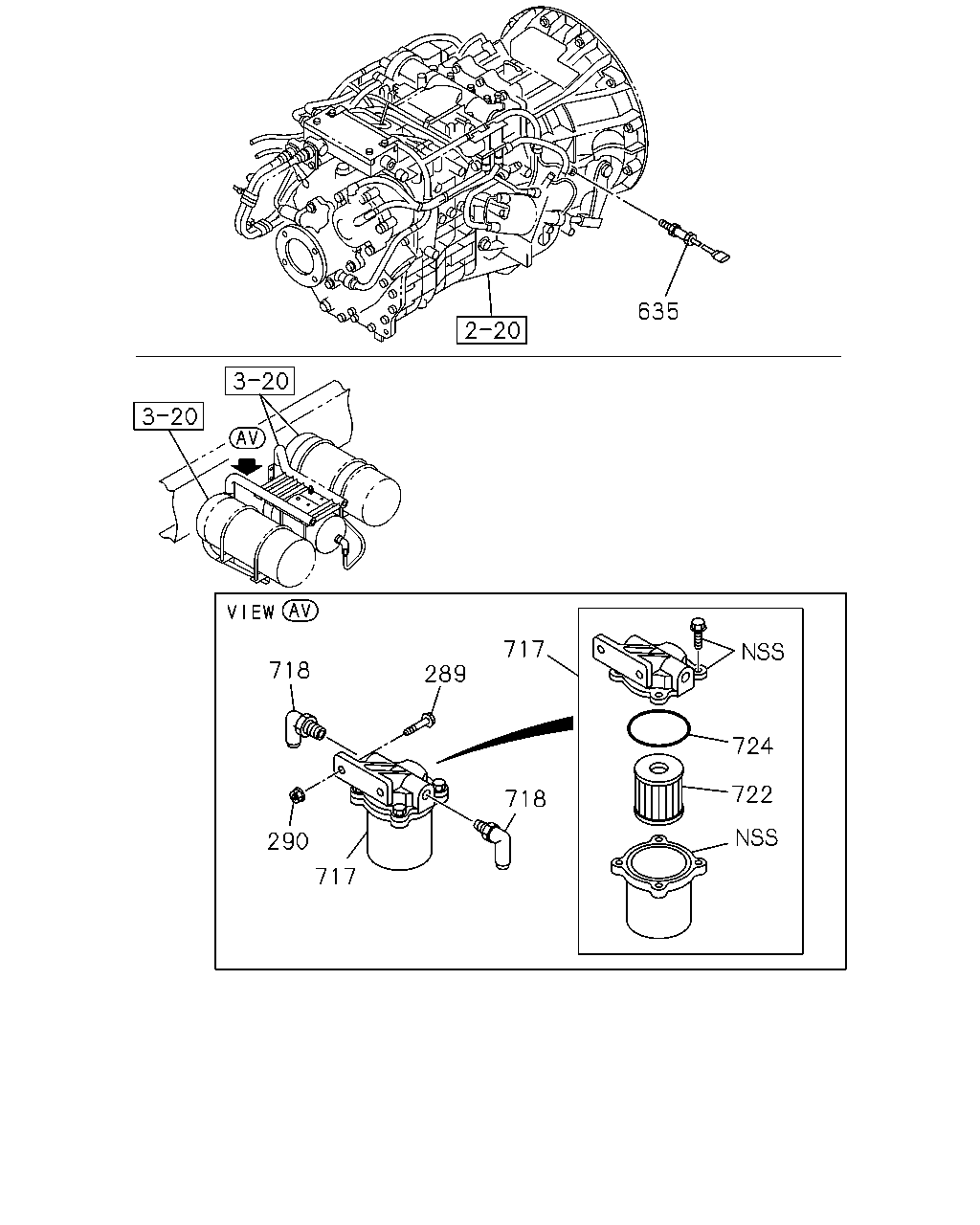

635 718 289 718 290 717 717 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT MJX16P M/T(Y3Z) M8X35 FLANGE	0-28650-835-0	02	1	0710-
290	NUT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0710-
635	SENSOR; PICK UP,INPUT SHAFT MJX16P M/T(Y3Z)	1-81510-736-1	01	1	0710-
717	FILTER; MAG VLV MJX16P M/T(Y3Z)	8-98092-703-0	01	1	0710-
718	CONNECTOR; FILTER MJX16P M/T(Y3Z) DIN8 & M16 ELBOW	1-09661-531-0	02	1	0710-
722	ELEMENT; AIR FILTER MJX16P M/T(Y3Z)	1-33779-040-0	01	1	0710-
724	GASKET; AIR FILTER MJX16P M/T(Y3Z)	5-09623-075-0	01	1	0710-

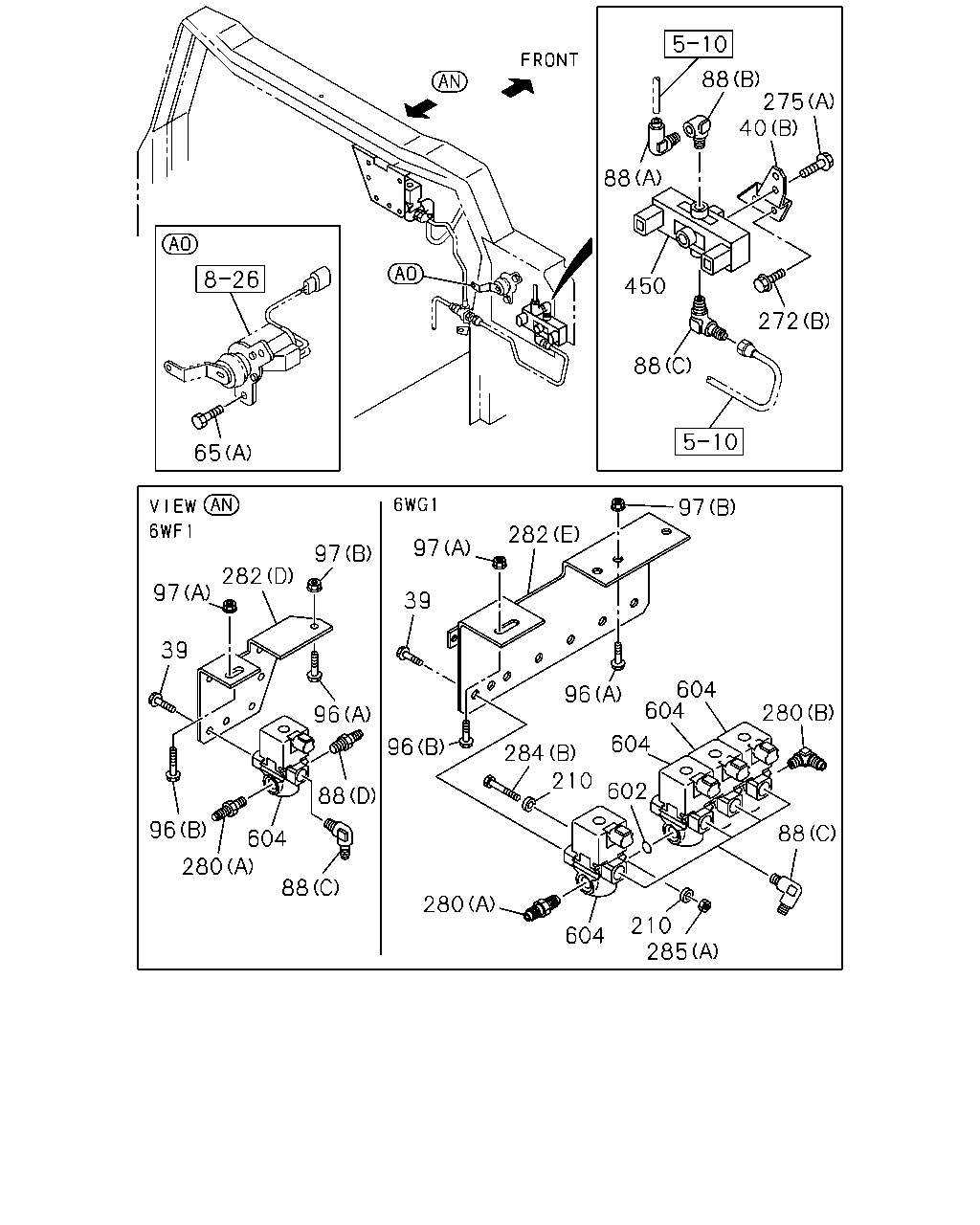

65 88 275 40 88 450 272 88 97 282 97 39 96 88 604 96 280 88 97 282 97 96 284 604 604 604 96 39 280 88 210 285 604 280 602 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	0710-1110
39	BOLT; BRKT,MAG VLV EXC. CHEAPER CAB(WY1) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WF1 TC-C(1B8) M8X20 FLANGE	0-28650-820-0	02	1	1111-
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) M8X20 FLANGE	0-28650-820-0	04	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (C)	1-82569-420-0	01	1	0710-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
65	BOLT; SOCKET FIX FULL TRACTOR TRUCK<RD6> (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
96	BOLT; BRKT FIX EXC. CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	05	1	1111-
96	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-1110
96	BOLT; BRKT FIX CHEAPER CAB(WY1) (A) M8X20 FLANGE	0-28650-820-0	01	1	1111-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
96	BOLT; BRKT FIX FULL TRACTOR TRUCK<RD6> (C) M8X25 FLANGE	0-28650-825-0	04	1	0710-
97	NUT; BRKT FIX EXC. CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	05	1	1111-
97	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	05	1	0710-1110
97	NUT; BRKT FIX CHEAPER CAB(WY1) (B) M8 FLANGE	0-91180-108-0	01	1	1111-
97	NUT; BRKT FIX (A) M10 FLANGE	0-91180-210-0	01	1	0710-
97	NUT; BRKT FIX FULL TRACTOR TRUCK<RD6> (B) M8 FLANGE	0-91180-108-0	04	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT EXC. CHEAPER CAB(WY1)	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0710-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0710-
275	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
280	CONNECTOR; IN,MAG VLV EXC. CHEAPER CAB(WY1) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
282	BRACKET; MAG VLV (C)	1-82569-290-0	01	1	0710-1110
282	BRACKET; MAG VLV EXC. CHEAPER CAB(WY1) (C)	1-82569-290-0	01	1	1111-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0710-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0710-
282	BRACKET; MAG VLV 6WF1 TC-C(1B8) (D)	1-82569-277-2	01	1	0710-
282	BRACKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (E)	1-82569-298-0	01	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV EXC. CHEAPER CAB(WY1) (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV EXC. CHEAPER CAB(WY1) (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-
450	VALVE; MAG	1-53458-378-2	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV EXC. CHEAPER CAB(WY1) ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0710-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0710-1110
604	VALVE; MAG,ENG CONT EXC. CHEAPER CAB(WY1)	1-82563-871-2	02	1	1111-
604	VALVE; MAG,ENG CONT 6WF1 TC-C(1B8)	1-82563-871-2	01	1	0710-
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82563-871-2	04	1	0710-

721 88 667 88 88 424 89 88 88 507 88 510 88 40 285 298 89 602 210 210 132 132 507 507 284 507 507 132 387 34 272 89 284 285 284 284 88 88 88 88 88 285 528 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0710-
34	CONNECTOR; MAG VLV,INL PORT MJX16P M/T(Y3Z) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0710-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0710-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0710-
40	BRACKET; MAG VLV MJX16P M/T(Y3Z) (C)	1-82569-420-0	01	1	0710-
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0710-1110
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) EXC. CHEAPER CAB(WY1) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1111-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-1110
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV EXC. CHEAPER CAB(WY1) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV 6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1111-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (F)	1-09661-065-0	02	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (K) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0710-
88	CONNECTOR; MAG VLV MJX16P M/T(Y3Z) (H) PT3/8 3WAY	1-09661-300-0	01	1	0710-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0710-
89	VALVE; MAG,DIFF LOCK (F) ANODIZING	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0710-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (D)	1-82564-094-2	01	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (E)	1-82564-095-1	02	1	0710-
89	VALVE; MAG,DIFF LOCK MJX16P M/T(Y3Z) (C)	1-82564-407-1	01	1	0710-
132	CONNECTOR; OUTLET,MAG VLV MJX16P M/T(Y3Z) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0710-1110
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT EXC. CHEAPER CAB(WY1)	1-82569-266-0	02	1	1111-
210	WASHER; PL,BRKT MJX16P M/T(Y3Z)	1-82569-266-0	04	1	0710-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	06	1	0710-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
272	BOLT; MAG VLV MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0710-1110
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV EXC. CHEAPER CAB(WY1) (B) M6X50 FLANGE	0-28050-650-0	01	1	1111-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (B) M6X50 FLANGE	0-28050-650-0	04	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (C) M8X14 FLANGE	0-28080-814-0	02	1	0710-
284	BOLT; MAG VLV MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	03	1	0710-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0710-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0710-1110
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV EXC. CHEAPER CAB(WY1) (A) M6 FLANGE	0-91180-106-0	01	1	1111-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (B) M5	0-91110-505-0	03	1	0710-
285	NUT; MAG VLV MJX16P M/T(Y3Z) (A) M6 FLANGE	0-91180-106-0	04	1	0710-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	03	1	0710-
298	NUT; MAG VLV MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0710-
387	CLIP; BAND MJX16P M/T(Y3Z) L=350	1-09707-183-0	01	1	0710-
424	ADAPTER MJX16P M/T(Y3Z) PT3/8	1-09664-210-0	01	1	0710-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0710-
507	TUBE; NYLON MJX16P M/T(Y3Z) (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0710-
510	VALVE; CHECK MJX16P M/T(Y3Z)	1-48410-531-1	01	1	0710-
528	VALVE; PRESSURE REDUCING MJX16P M/T(Y3Z)	1-48410-744-0	01	1	0710-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0710-1110
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV EXC. CHEAPER CAB(WY1) ID=16.8	9-09565-117-0	01	1	1111-
602	GASKET; MAG VLV MJX16P M/T(Y3Z) ID=16.8	9-09565-117-0	02	1	0710-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	03	1	0710-
667	LUBRICATION MJX16P M/T(Y3Z)	8-98063-001-0	01	1	0710-
721	ELEMENT; LUBRICATION MJX16P M/T(Y3Z)	1-33779-028-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
