◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#6704) — 79 parça

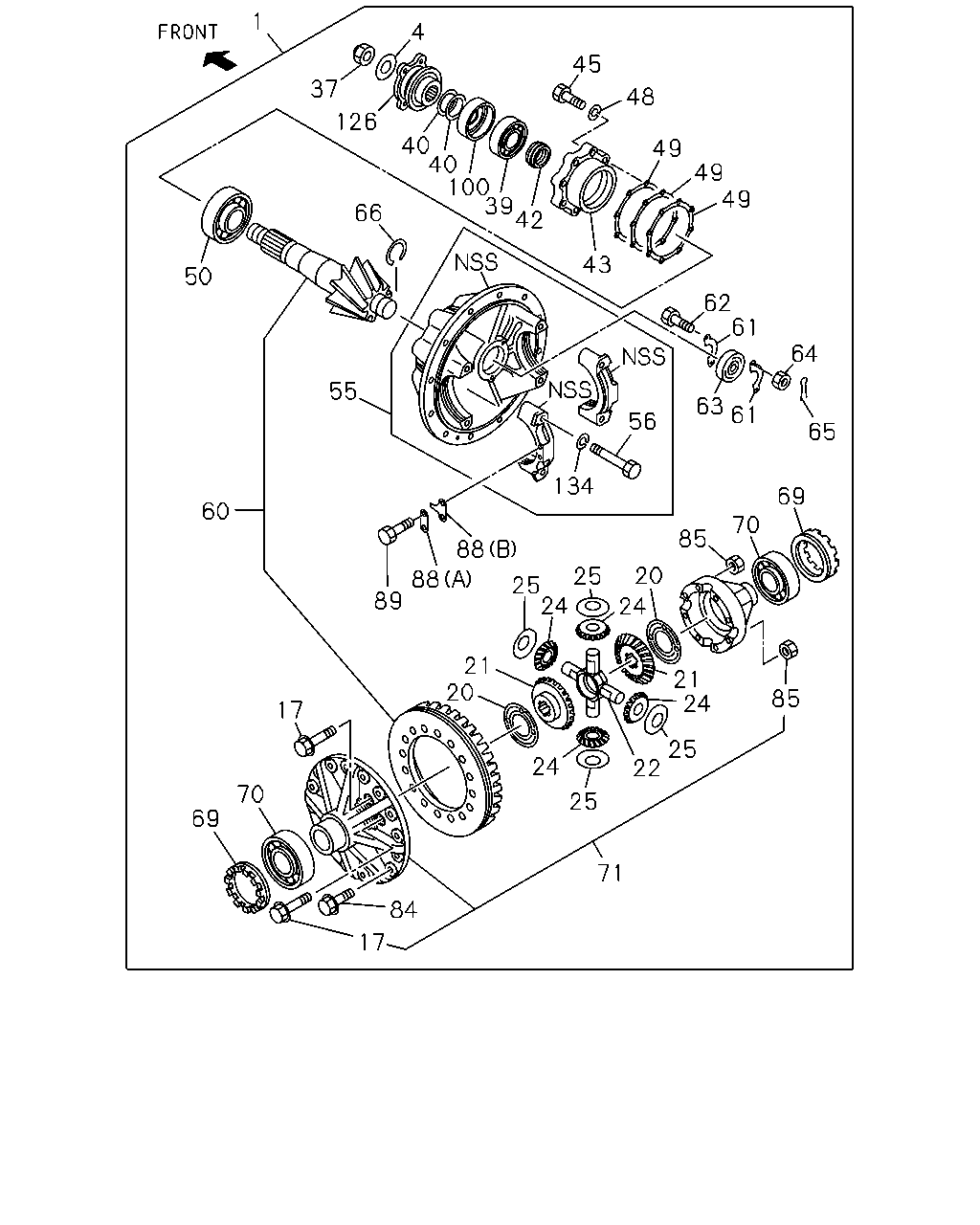

çizim 7728
1 4 45 37 48 126 40 40 100 39 42 49 49 49 66 43 50 62 61 64 55 63 61 56 65 134 69 60 70 85 88 20 25 88 89 25 24 24 21 20 21 24 85 17 25 22 24 70 25 69 71 84 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-306-0 01 1 0011- ●
1 DRIVE ASM; FINAL,RR
43/9 		1-41001-351-0 01 1 0011- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		1-09623-475-0 01 1 0011-0208 ● ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0209- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 0011- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 0011- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-075-0 02 1 0011-0407 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-127-0 02 1 0408- ● ●
22 PIN; CROSS,DIFF PINION
OD=30 		1-41521-014-1 01 1 0011-0408 ● ●
22 PIN; CROSS,DIFF PINION 1-41521-061-0 01 1 0409- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-010-2 04 1 0011-0407 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-041-0 04 1 0408- ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 0011- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 0011- ● ●
39 BEARING; FINAL PINION
KOYO 		1-09812-218-0 01 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 0011- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 0011- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 0011- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 0011- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 0011- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 0011- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 0011- ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 0011- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0011- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		9-09150-514-0 08 1 0011- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 0011- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 0011- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 0011- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 0011- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0011- ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 0011- ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 0011- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-279-3 01 1 0011- ●
60 GEAR SET; FINAL DRIVE,RR
43/9 		1-41210-342-3 01 1 0011- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0011- ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0011- ● ●
63 BEARING; PINION PILOT
KOYO 		1-09810-229-2 01 1 0011- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0011- ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 0011- ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0011- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0011- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0011- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0011- ● ●
70 BEARING; DIFF CAGE
ID=80 OD=140 T=35.3 NACHI 		1-09812-144-0 02 1 0011- ● ●
70 BEARING; DIFF CAGE
KOYO ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0011- ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0011- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0011- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0011- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0011- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 0011- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 0011- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 0011- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0011- ● ●
126 COUPLING; DRIVING PINION 1-37245-215-3 01 1 0011-0208 ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0209- ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		9-09150-518-0 04 1 0011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
