8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#67039) — 10 parça

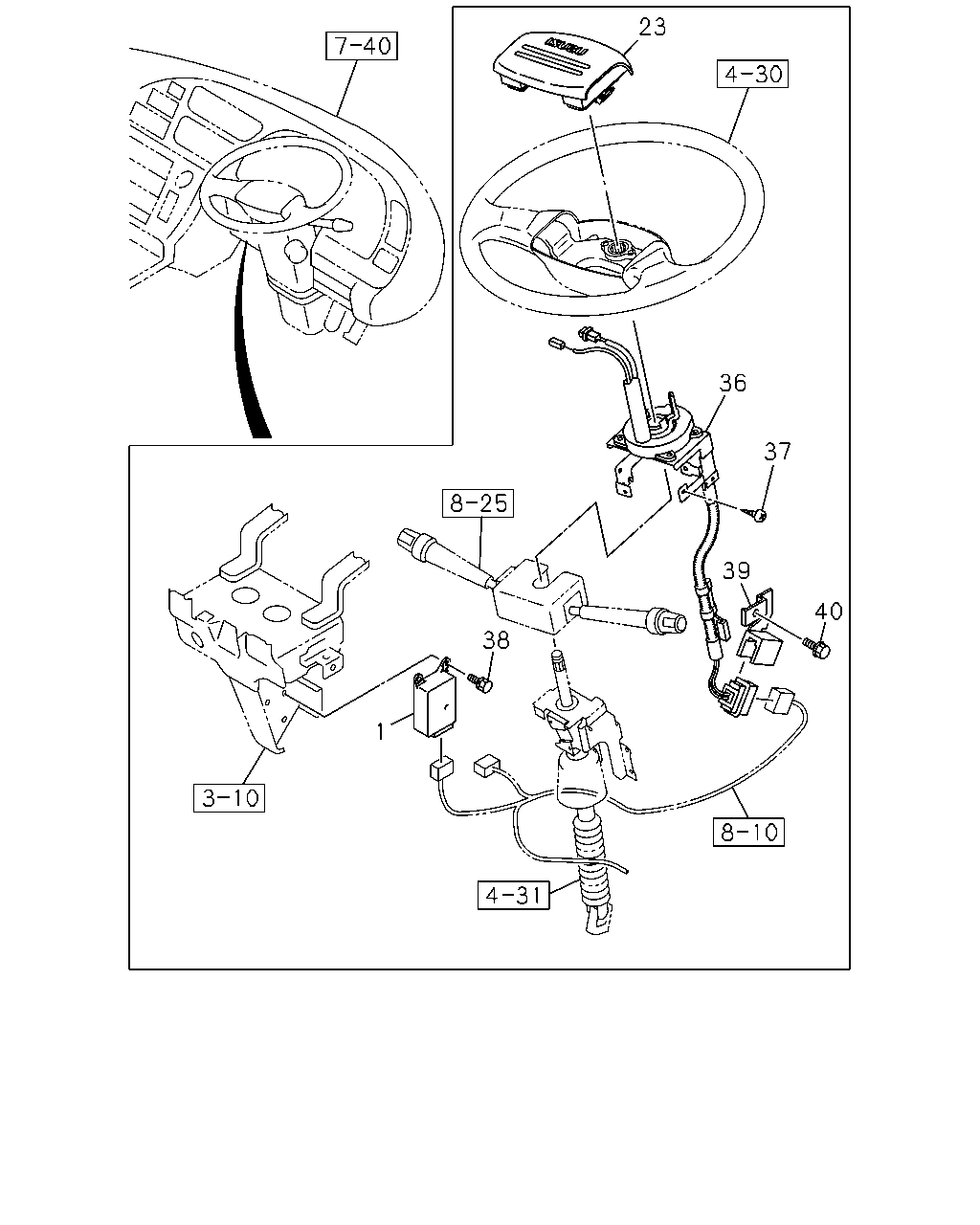

çizim 144121
23 36 37 39 40 38 1
BalonParca AdiParca NoAdetTipApplied Date
1 CONTROL UNIT; SIR 1-80190-131-1 01 1 0710-1109
1 CONTROL UNIT; SIR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-80190-131-1 01 1 1110-
23 AIR BAG UNIT 1-75630-003-6 01 1 0710-1109
23 AIR BAG UNIT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-75630-003-6 01 1 1110-
36 COIL; SRS
AIR BAG<TFQ> 		8-97622-684-1 01 1 0710-
37 SCREW; BRKT
AIR BAG<TFQ> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0710-
38 BOLT; CONT UNIT
M6X18 W/PL WASHER 		8-97105-796-1 03 1 0710-1109
38 BOLT; CONT UNIT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) M6X18 W/PL WASHER 		8-97105-796-1 03 1 1110-
39 HOLDER; CONNECTOR
AIR BAG<TFQ> 		1-82699-955-1 01 1 0710-
40 BOLT; BRKT
AIR BAG<TFQ> M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0710-
