◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#67038) — 89 parça

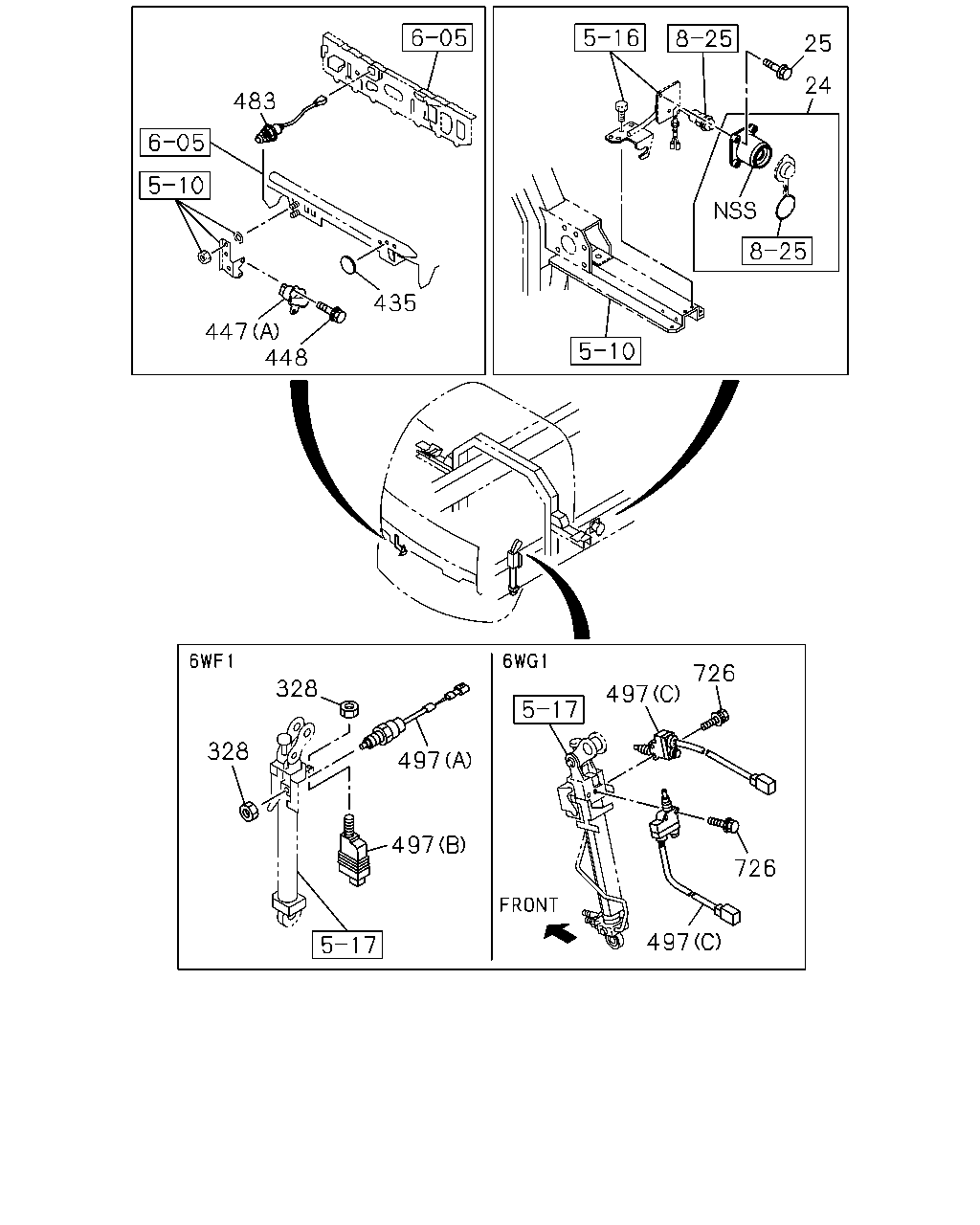

çizim 138130
483 447 435 448 25 24 328 328 497 497 497 726 726 497
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT
6WF1 TC-C(1B8) 		1-82389-007-1 01 1 0710-
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
328 NUT
6WF1 TC-C(1B8) M16 		0-91111-516-0 02 1 0710-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
483 SWITCH 1-82440-118-0 01 1 0710-
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (A) STAMP NC 		1-82380-125-1 01 1 0710-
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (B) 		1-82380-128-1 01 1 0710-
497 SWITCH; CAB TILT
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) STAMP NO 		1-82380-172-1 02 1 0710-
726 BOLT; SW,CAB TILT
6WG1 TC-C(72L),6WG1 TC-S(97L) M6X25 FLANGE 		0-28050-625-0 04 1 0710-

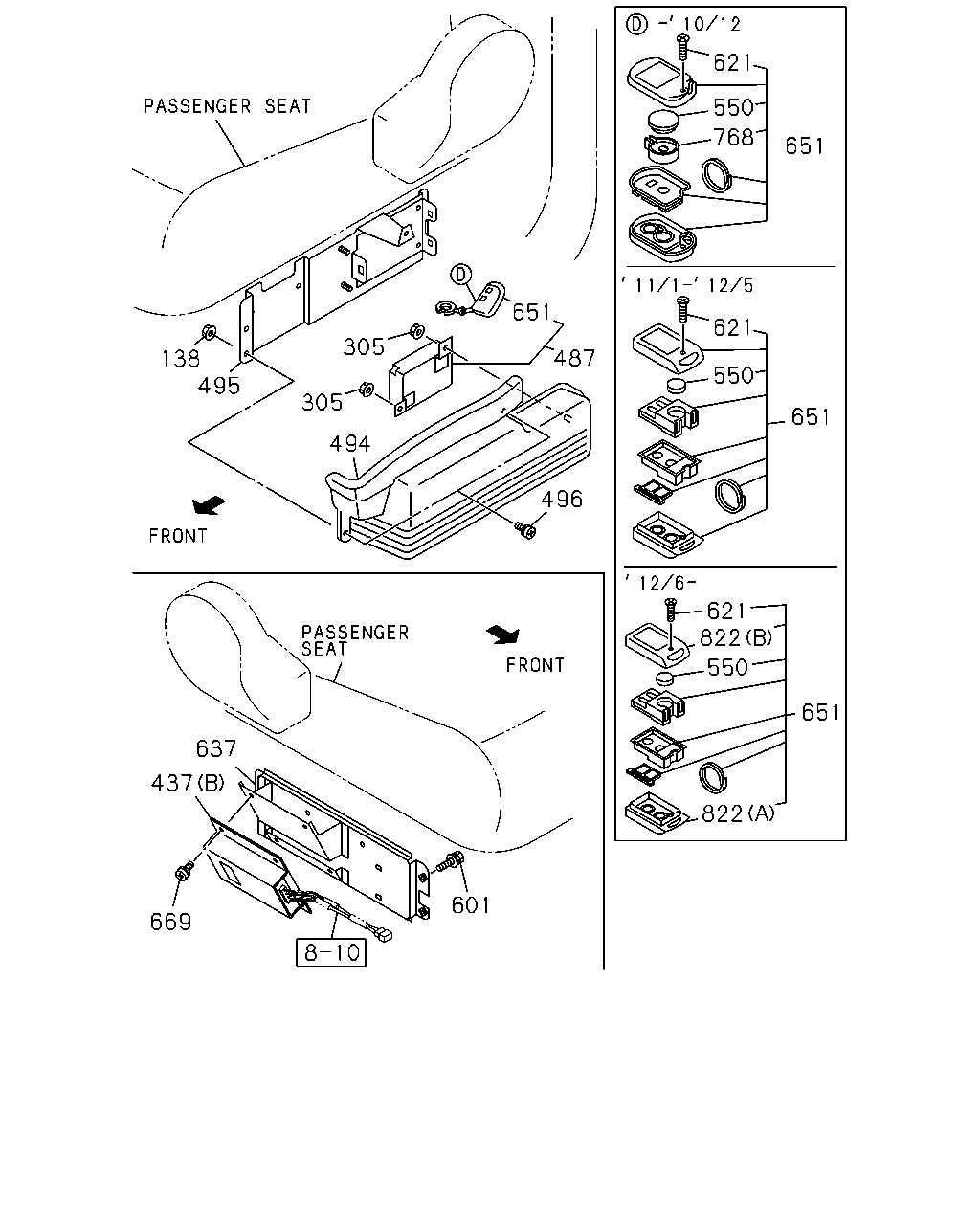

çizim 138184
651 305 305 138 495 494 496 487 637 437 669 601 822 651 550 822 621 651 550 621 651 768 550 621
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0811-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO 		8-97359-129-0 01 1 0710-
437 CONVERTER; DC
(B) METRO DENSO 		8-98046-423-0 01 1 0710-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98050-457-1 01 1 0710-1012
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98181-808-0 01 1 1101-1205
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-230-0 01 1 1206-
494 COVER; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-725-0 01 1 0710-
495 BRACKET; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		8-97589-728-0 01 1 0710-
496 SCREW; COVER
REMOTE CONT DOOR LOCK<SLG> M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710-
550 BATTERY; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> 		8-98078-061-0 01 1 0710-
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710-
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98078-067-0 01 1 0710-1205
621 SCREW
REMOTE CONT DOOR LOCK<SLG> M2X5 		8-98218-239-0 01 1 1206-
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98048-459-1 01 1 0710-1012
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98180-751-0 01 1 1101-1205
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		8-98218-236-0 01 1 1206-
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710-
768 HOLDER; BATTERY
REMOTE CONT DOOR LOCK<SLG> 		8-98078-063-0 01 1 0710-1012
822 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> (A) 		8-98218-240-0 01 1 1206-
822 COVER; TRANSMITTER
REMOTE CONT DOOR LOCK<SLG> (B) 		8-98218-243-0 01 1 1206-

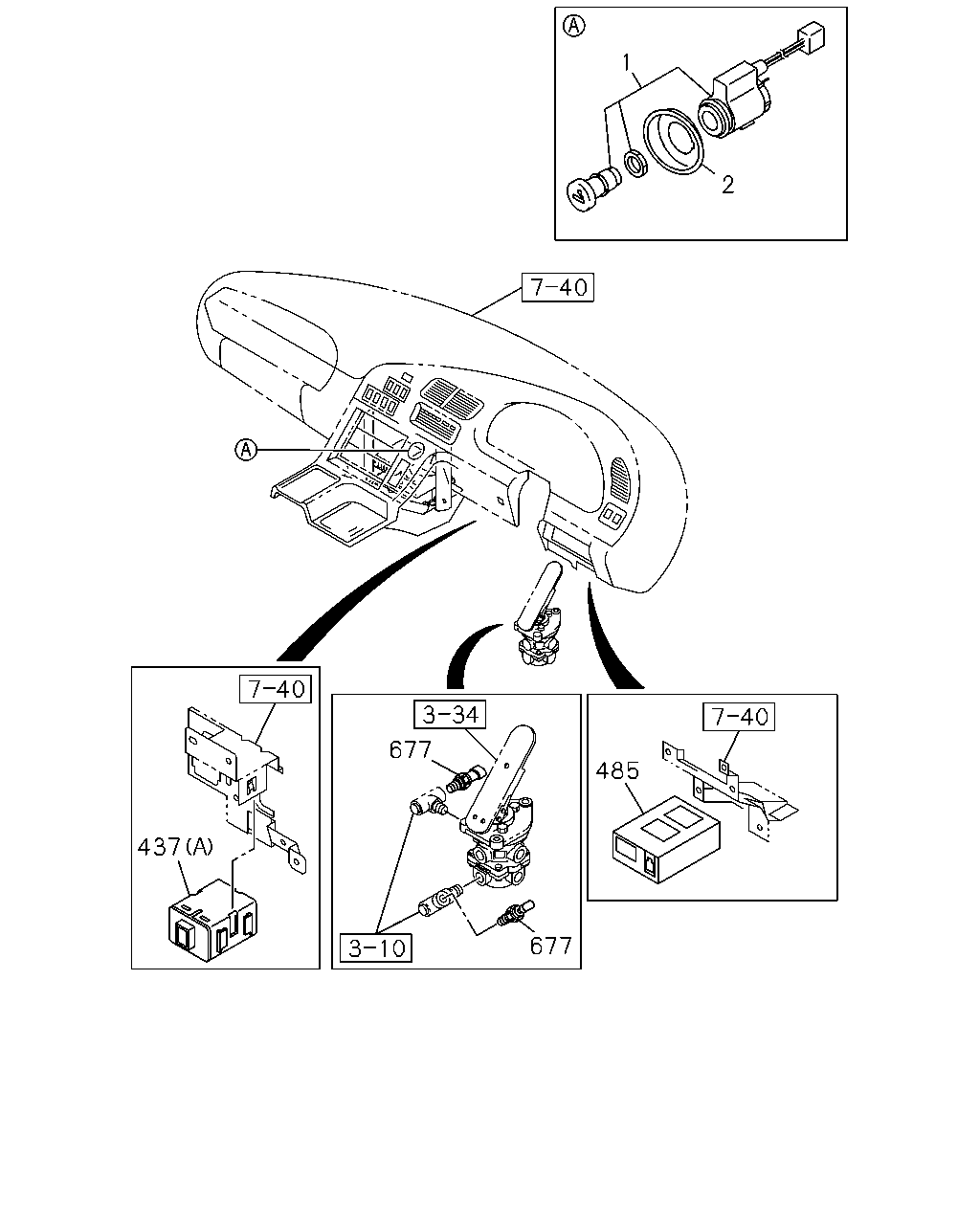

çizim 138280
1 2 677 485 437 677
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) KOITO 		8-97359-129-0 01 1 0710-
437 CONVERTER; DC
(B) METRO DENSO 		8-98046-423-0 01 1 0710-
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0710-
677 SENSOR; AIR METER
6WG1 TC-C(72L),6WG1 TC-S(97L) THREAD R1/4 		1-80220-023-1 02 1 0710-

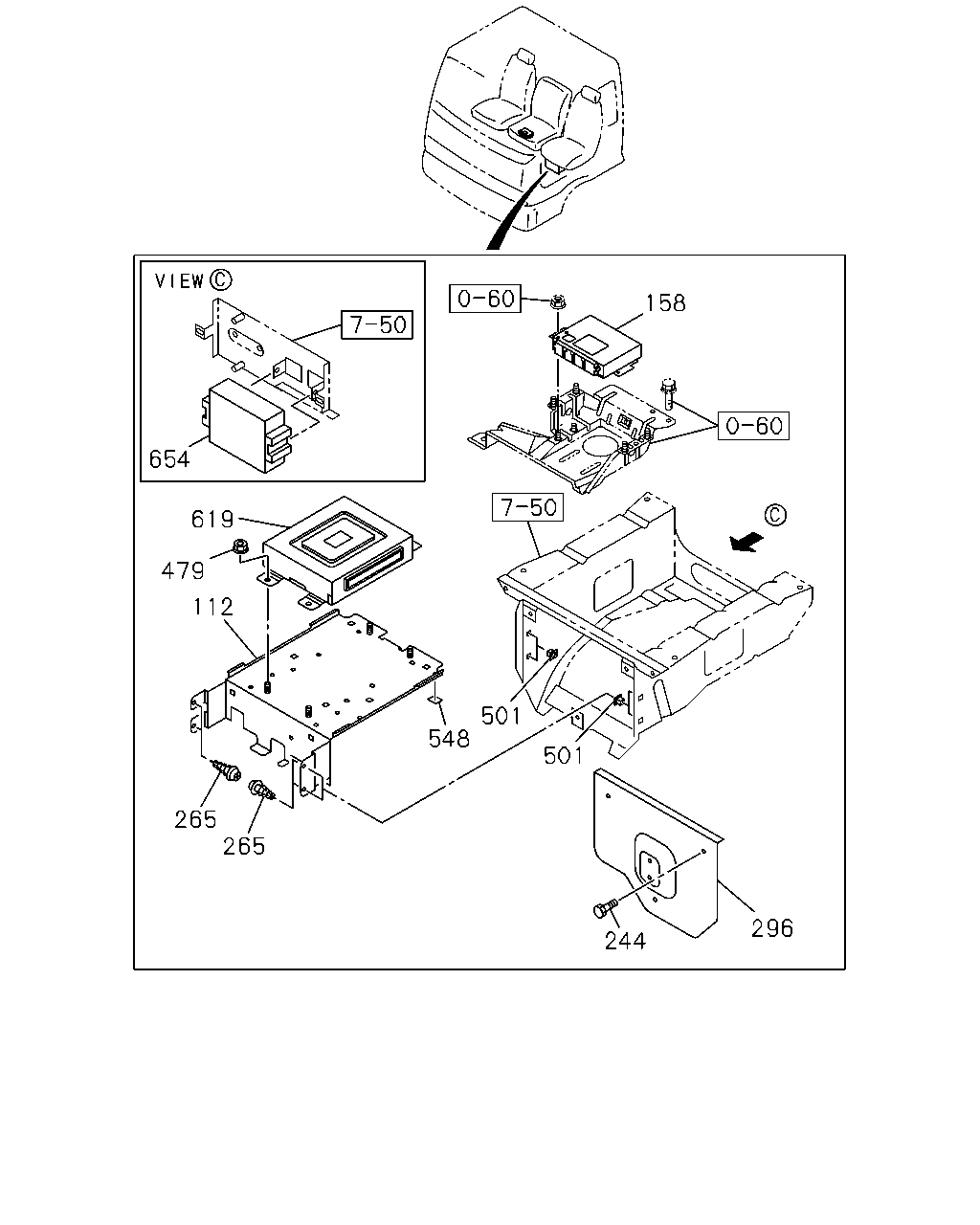

çizim 138487
158 619 479 112 265 265 548 501 501 244 296 654
BalonParca AdiParca NoAdetTipApplied Date
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		8-97589-714-2 01 1 0710-
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		1-80119-261-0 01 1 0712-1201
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X) 		8-98170-648-0 01 1 1202-
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		1-80119-229-2 01 1 0710-1201
158 CONTROLLER; ABS
TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) 		8-98170-647-0 01 1 1202-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710-
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0710-
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710-
479 NUT; CONTROLLER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0710-
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0710-
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-1 03 1 0710-0908
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306-
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98078-916-0 01 1 0710-0804
619 CONTROL UNIT; T/M
6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98109-797-0 01 1 0805-
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98078-917-0 01 1 0710-0804
619 CONTROL UNIT; T/M
6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		8-98109-798-0 01 1 0805-
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L),6WG1 TC-S(97L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0710-
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0710-
çizim 138535
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0810-0810
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0811-
305 NUT; CONT UNIT
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> M6 FLANGE 		0-91180-106-0 02 1 0811-
380 SEAL
450X350 		1-76770-008-0 01 1 0710-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710-
657 CONTROL UNIT; MIMAMORI
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. FULLER M/T<X9B> 		1-80190-179-0 01 1 0710-

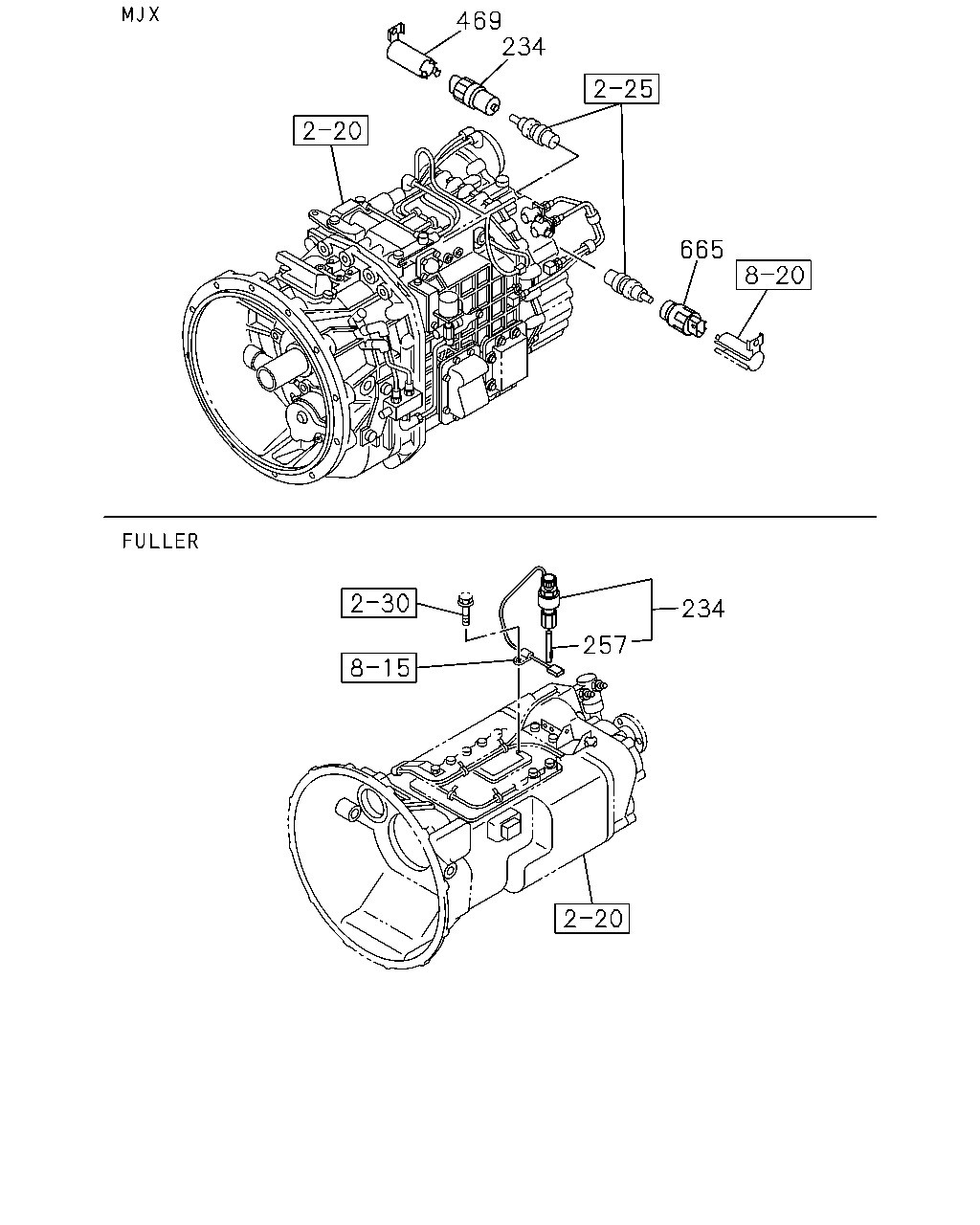

çizim 143991
469 234 665 234 257
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0710-
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		1-80240-029-0 01 1 0710-1301
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		8-98234-167-0 01 1 1302-
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0710-
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-97168-308-0 01 1 0710-0808
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98119-901-0 01 1 0809-
665 SENSOR; SPEED
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0710-

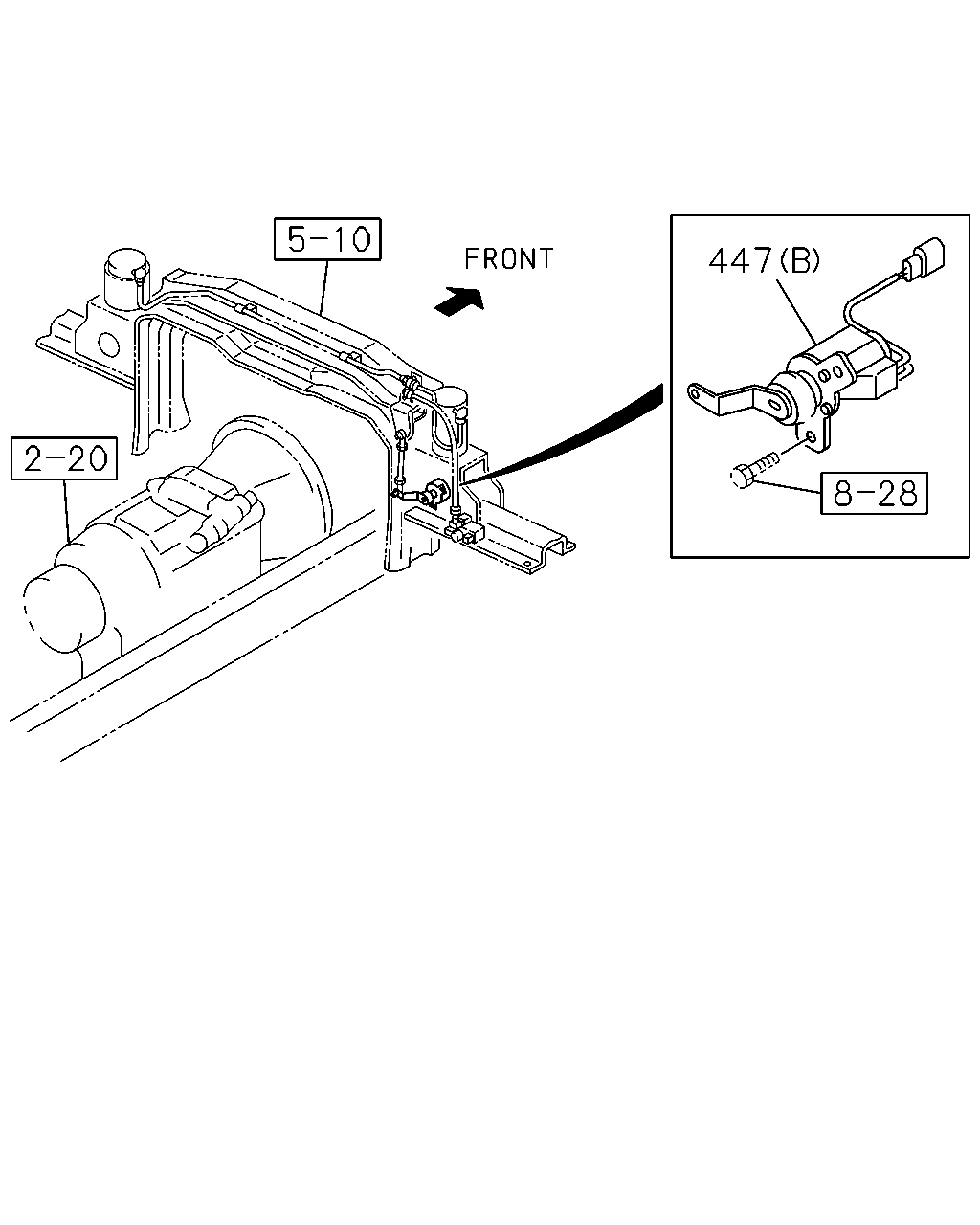

çizim 192612
447
BalonParca AdiParca NoAdetTipApplied Date
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-

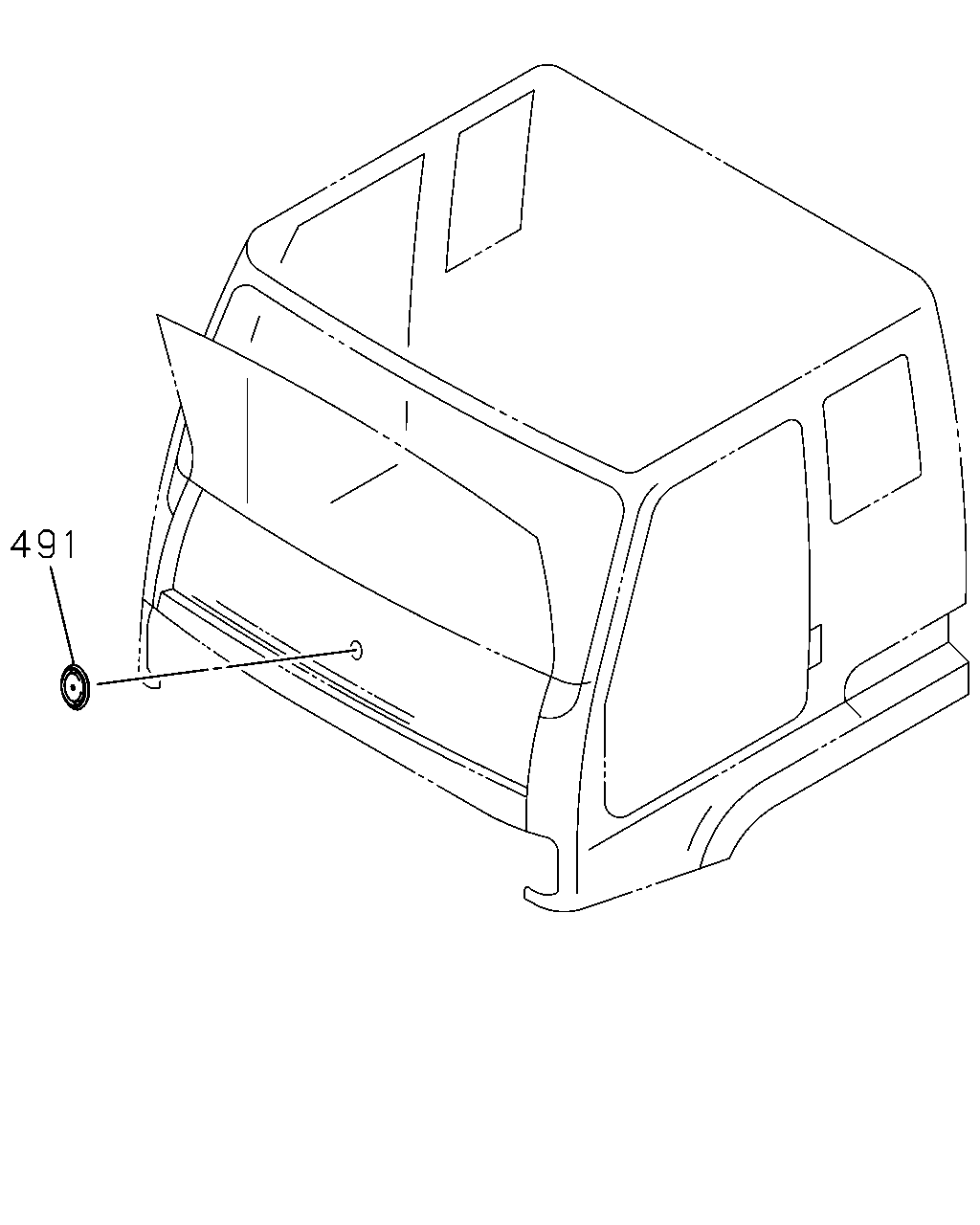

çizim 192718
491
BalonParca AdiParca NoAdetTipApplied Date
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710-
