◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#67036) — 139 parça

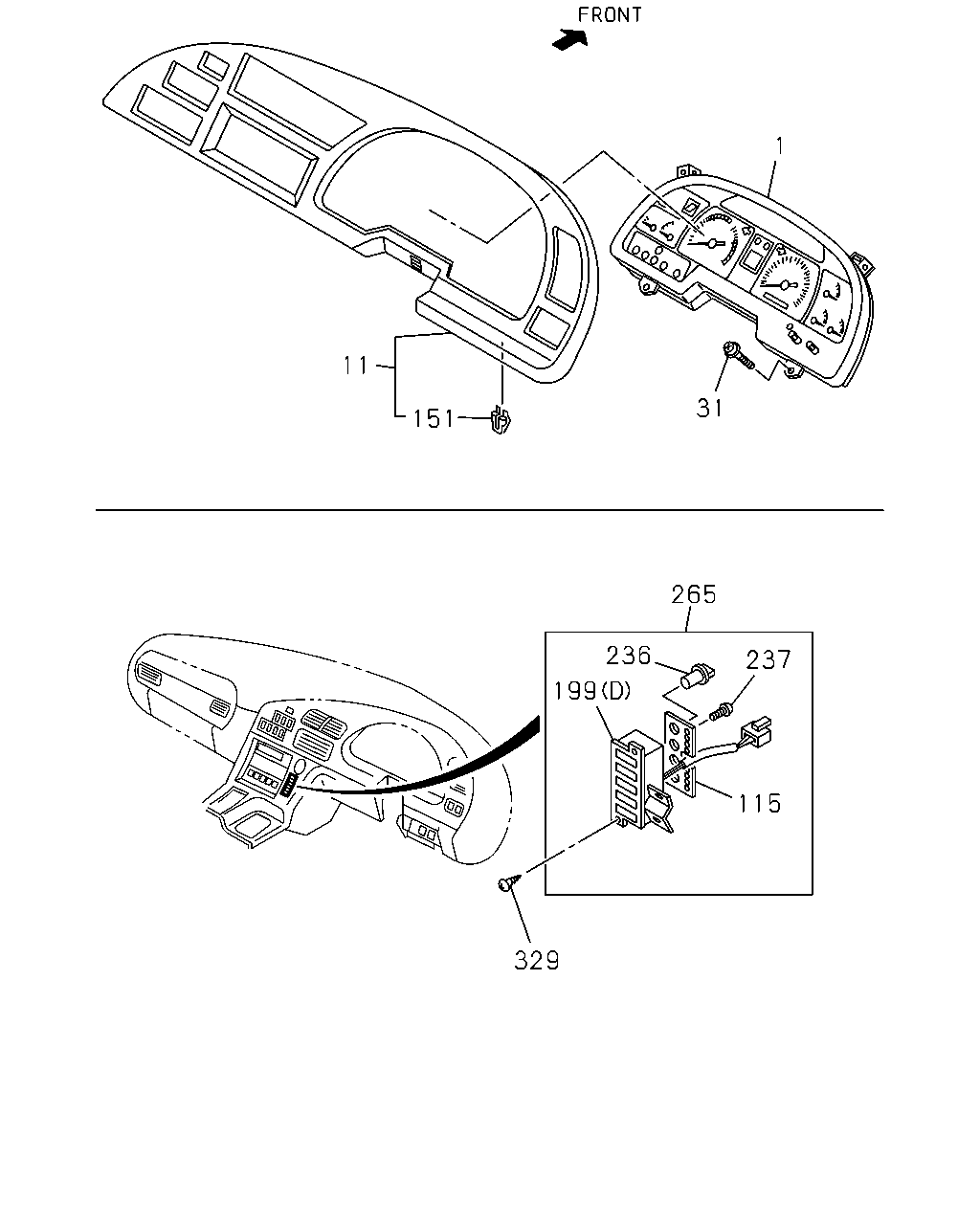

çizim 137277
1 31 11 151 265 237 236 199 115 329
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0710-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-97638-830-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-98118-161-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-97638-829-1 01 1 1108-
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0710-
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0710-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0710-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0710-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-83119-944-1 01 1 0710-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0710-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0710-
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0710-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0710-

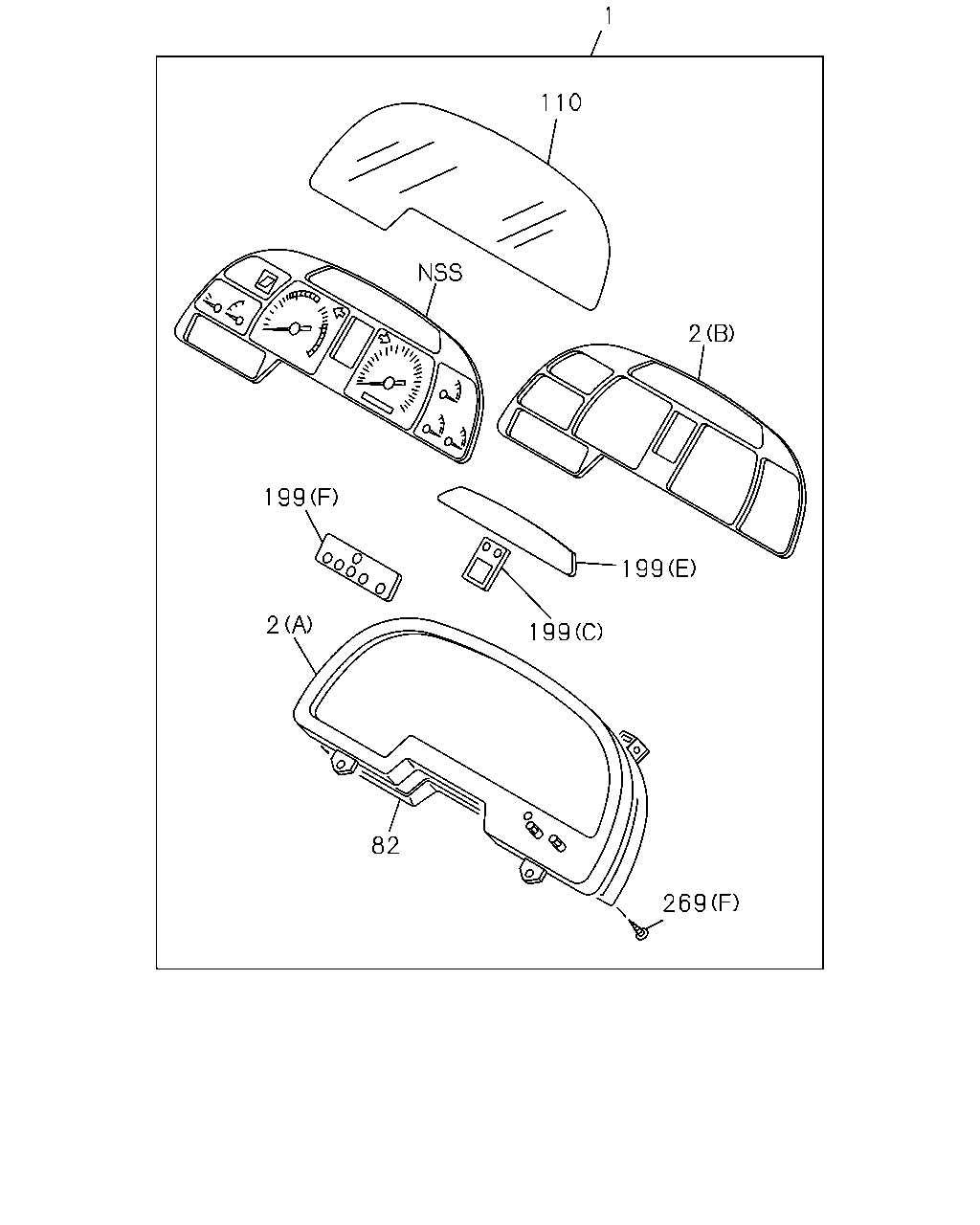

çizim 137809
1 110 2 199 199 199 2 82 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0710-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-97638-830-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-98118-161-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-97638-829-1 01 1 1108-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0710-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-83119-885-0 01 1 0710-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-83119-887-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83119-892-0 01 1 0710-
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0710-
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83119-886-0 01 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-83119-944-1 01 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0710-
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-893-0 09 1 0710-
çizim 137900
1 31 11 151 265 236 237 199 115 329
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0710-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-97638-830-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-98118-161-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-97638-829-1 01 1 1108-
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0710-
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0710-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0710-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0710-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-83119-944-1 01 1 0710-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0710-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0710-
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0710-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0710-

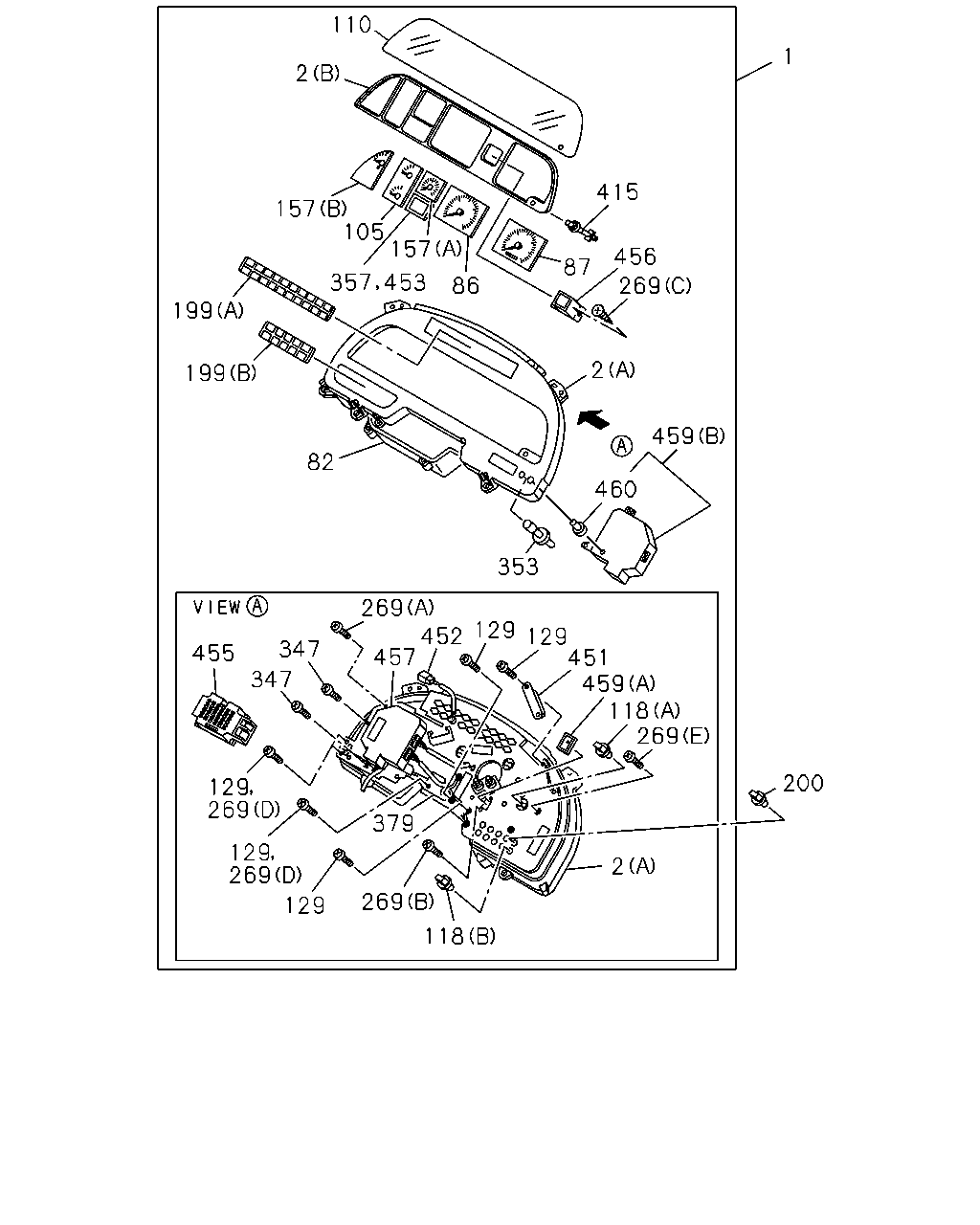

çizim 192615
110 1 2 415 456 269 2 459 460 353 82 199 199 357 453 86 157 105 157 455 347 269 457 452 129 129 451 459 118 269 200 2 118 269 379 129 269 129 269 129 87 347
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0710-
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0710-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) 		8-97638-830-1 01 1 1108-
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		1-83116-409-2 01 1 0710-0802
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-98118-161-1 01 1 0803-1107
1 METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) 		8-97638-829-1 01 1 1108-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0710-
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0710-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-83119-885-0 01 1 0710-
2 PANEL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-83119-887-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0710-
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83119-892-0 01 1 0710-
86 TACHOMETER; CLUSTER METER
6WF1 TC-C(1B8) 		1-83120-900-0 01 1 0710-
87 SPEEDOMETER
6WF1 TC-C(1B8) 		1-83120-903-0 01 1 0710-
105 GAUGE; THERMO & FUEL,CLUSTER METER
6WF1 TC-C(1B8) 		1-83180-281-0 01 1 0710-
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0710-
110 GLASS; CLUSTER METER
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-83119-886-0 01 1 0710-
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0710-
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0710-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 04 1 0710-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> M3 TAPPING 		1-83119-657-0 04 1 0710-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0710-
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (A) 		1-83150-270-0 01 1 0710-
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (B) 		1-83150-273-0 01 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0710-
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-83119-944-1 01 1 0710-
200 BULB; WARNING LAMP
6WF1 TC-C(1B8) 24V 1.8W BROWN SOCKET 		1-82194-062-0 02 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0710-
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0710-
269 SCREW; METER CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 		1-83119-893-0 09 1 0710-
347 SCREW; CONTROL UNIT
6WF1 TC-C(1B8) M3 TAPPING 		1-83119-052-0 03 1 0710-
353 KNOB; RHEOSTAT
6WF1 TC-C(1B8) 		1-83119-730-0 01 1 0710-
357 INDICATOR; ZF T/M
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-494-0 01 1 0710-
379 CIRCUIT; DROP
6WF1 TC-C(1B8) 		1-83189-391-0 01 1 0710-
415 KNOB; TRIP,METER
6WF1 TC-C(1B8) 		1-83119-729-0 01 1 0710-
451 DROPER; METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0710-
452 LAMP ASM; CLUSTER METER
6WF1 TC-C(1B8) 		1-82194-088-0 01 1 0710-
453 INDICATOR; ECOGIT
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0710-
455 MODULE ASM; METER
6WF1 TC-C(1B8) 		1-83189-419-0 01 1 0710-
456 WARNING ASM; MULTI
6WF1 TC-C(1B8) 		1-83119-734-0 01 1 0710-
457 CONTROLLER ASM; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-817-0 01 1 0710-
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (B) 		1-83119-820-1 01 1 0710-
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (A) 		1-83119-925-0 01 1 0710-
460 SWITCH; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-736-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
