◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#67035) — 20 parça

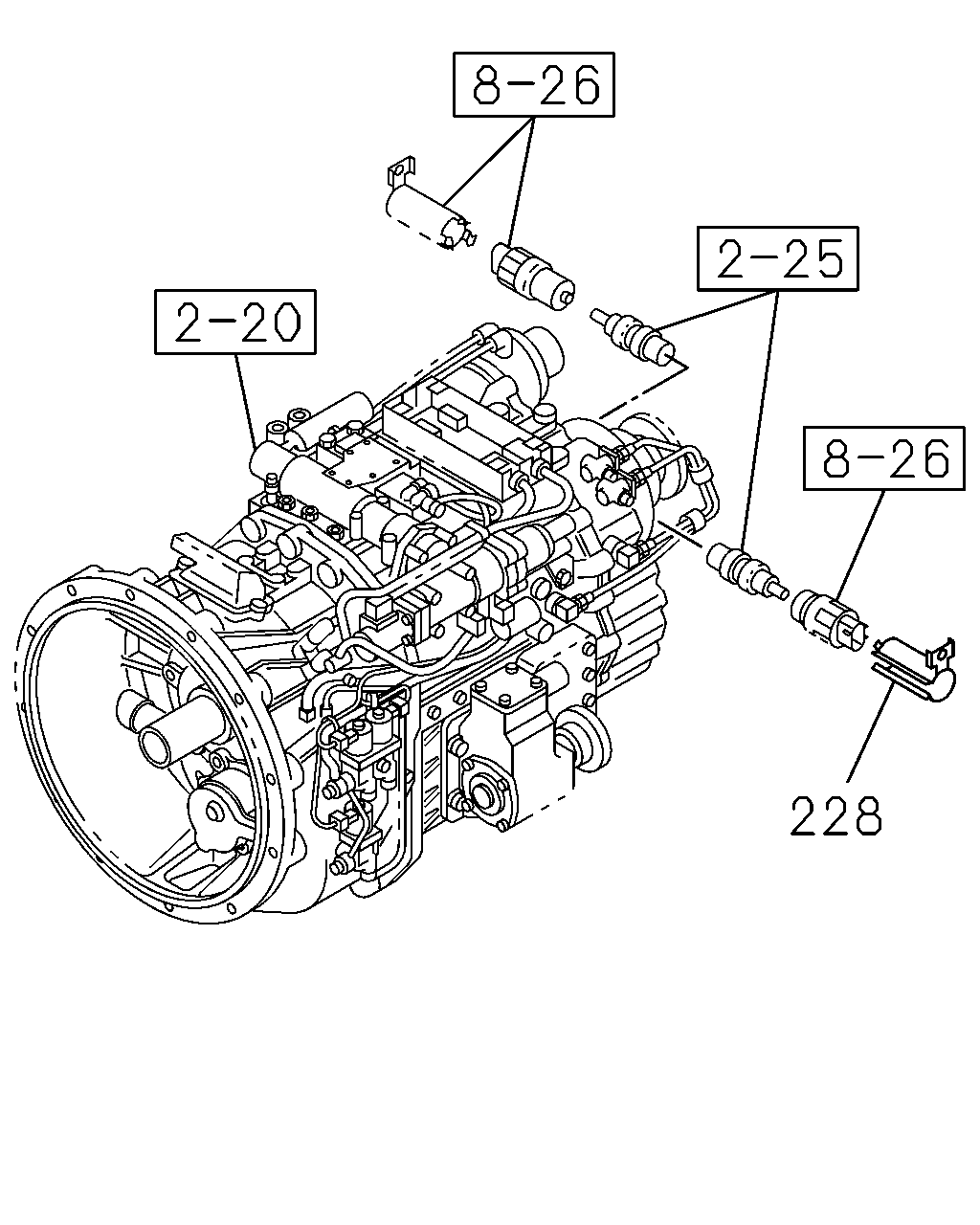

çizim 137990
228
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0710-0801
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> 		8-97168-308-0 01 1 0802-0808
228 PROTECTOR; SENSOR
EXC. FULLER M/T<X9B> 		8-98119-901-0 01 1 0809-

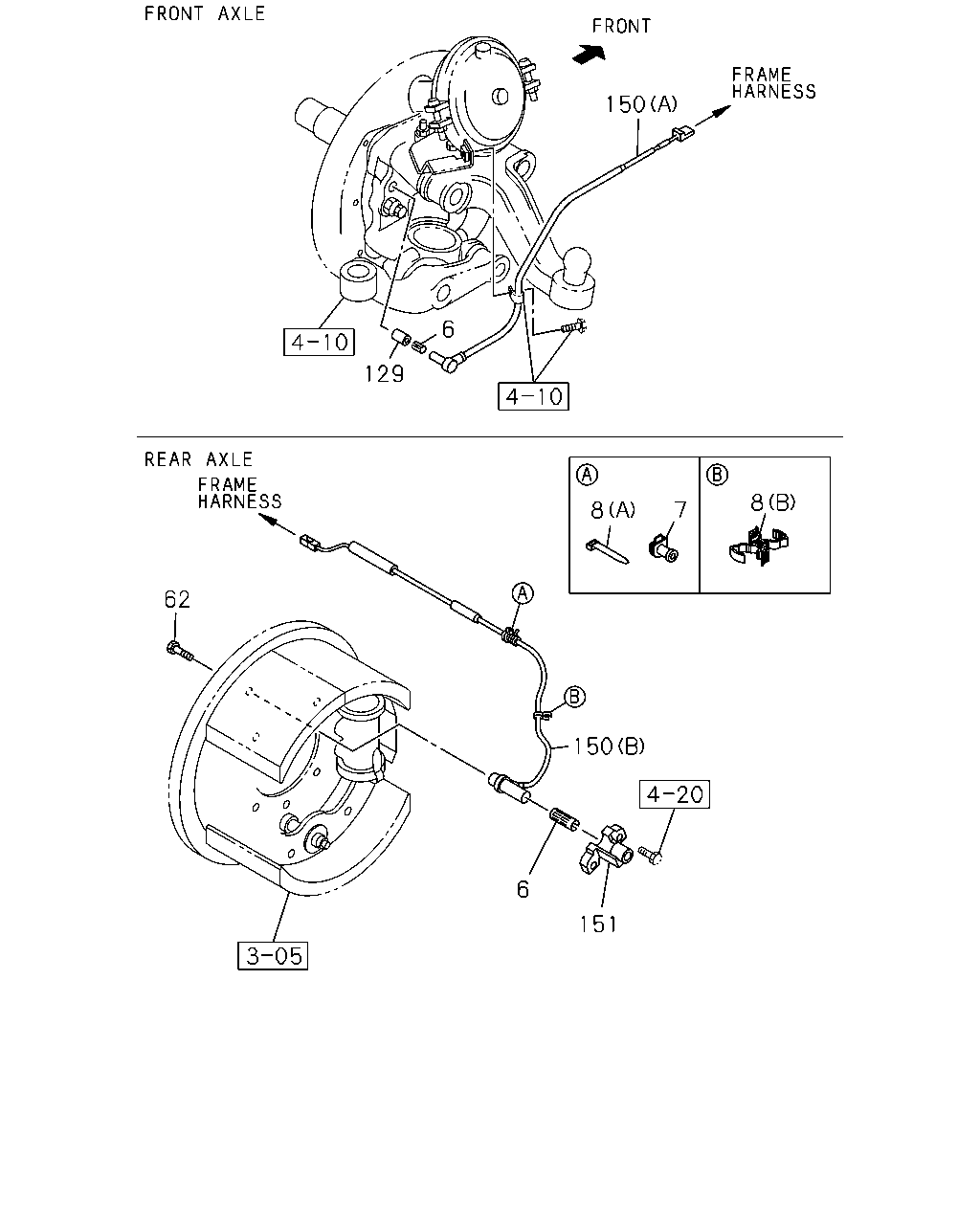

çizim 192609
150 129 6 150 6 151 62 8 8 7
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-
7 GROMMET; SPD SENSOR
ID=8 		1-82699-740-1 01 1 0710-
8 CLIP; HARNESS
(B) ID=6-10 & 6-10 		1-09709-192-1 01 1 0710-
8 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0710-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0710-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 02 1 0710-
129 COLLAR 1-83129-471-0 02 1 0710-
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0710-
150 SENSOR; SPEED,ABS
(A) 		1-83127-853-3 02 1 0710-
150 SENSOR; SPEED,ABS
(B) 		1-83127-857-3 01 1 0710-
150 SENSOR; SPEED,ABS
(B) 		1-83127-932-2 01 1 0710-
151 BRACKET; SPD SENSOR 1-83129-405-0 01 1 0710-1504
151 BRACKET; SPD SENSOR 8-98299-398-0 01 1 1505-
151 BRACKET; SPD SENSOR 1-83129-406-0 01 1 0710-1504
151 BRACKET; SPD SENSOR 8-98299-399-0 01 1 1505-
