◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#67034) — 630 parça

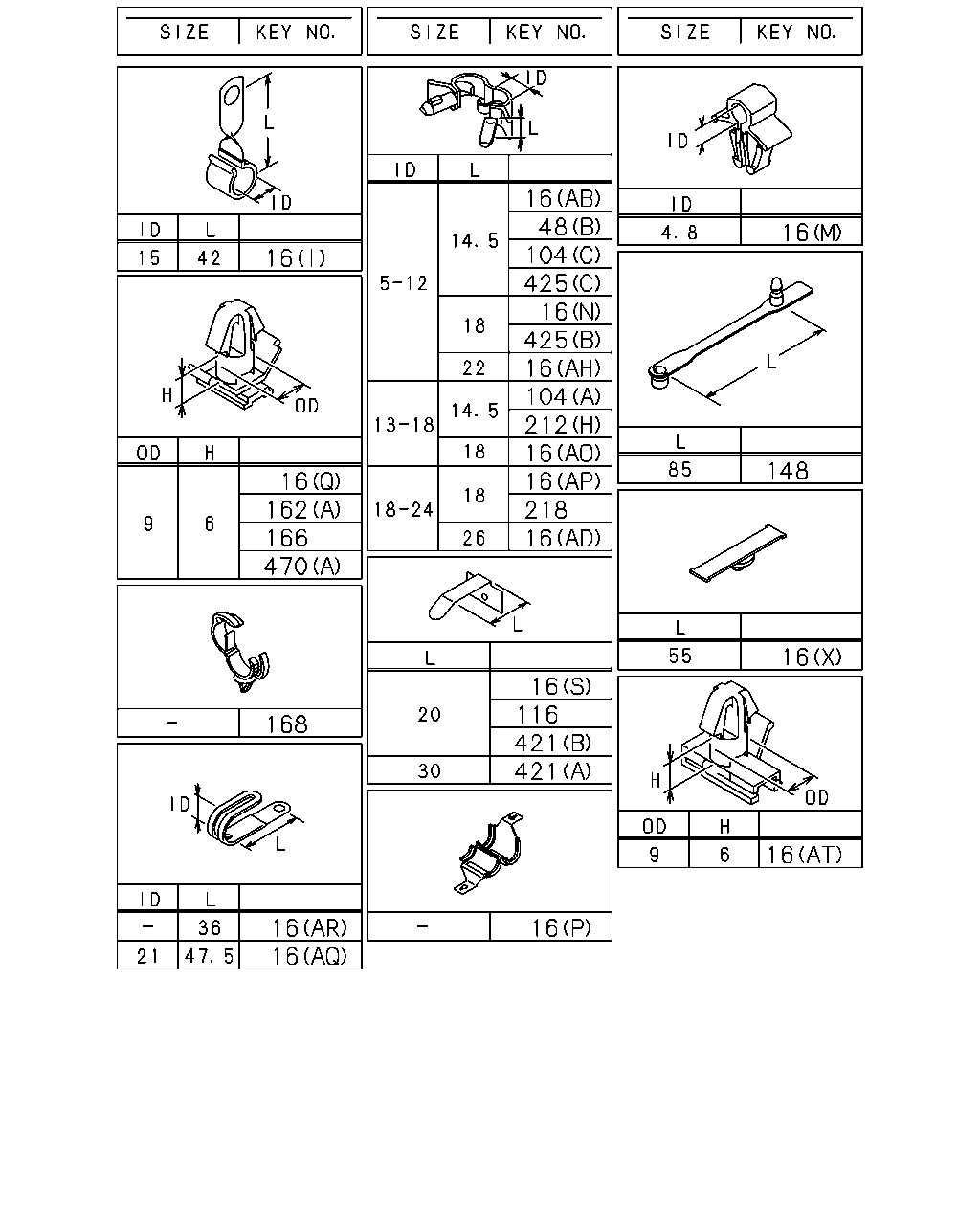

çizim 136711
16 16 162 166 470 168 16 16 16 48 104 425 16 425 16 104 212 16 16 218 16 16 116 421 421 16 16 148 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1111-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 02 1 1111-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 02 1 1111-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 08 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0710-0806
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0807-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0710-0904
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0710-0904
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0710-
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0710-1002
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 04 1 1003-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0710-
16 CLIP; HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0710-1110
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (B) OD=7 H=1.2 		8-94364-750-0 02 1 1111-
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 03 1 1111-
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 04 1 1111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0710-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=19 L=20 		0-95235-832-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0710-1406
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 04 1 1407-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0710-0806
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (R) ID=15 & 15 		1-09709-282-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0710-1406
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0710-1406
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 04 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0806
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AN) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 11 1 0806-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (C) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (D) L=250 		5-09707-030-1 02 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (B) L=140 		5-09707-031-1 02 1 0710-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0710-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0710-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0710-
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0710-
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0710-
166 CLIP; HARNESS CLU SW
EXC. SMOOTHER-G(C1W) OD=9 H=6 		1-09709-178-0 01 1 0710-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0710-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-
218 CLIP; BAND,RR COMB
ID=18-24 L=18 		1-09709-294-0 04 1 0710-
421 CLIP; FLOOR HARNESS
SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE 		1-09987-265-0 05 1 0710-
421 CLIP; FLOOR HARNESS
EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0710-
425 CLIP; MODULATOR
(A) L=350 		1-09707-183-0 01 1 0710-
425 CLIP; MODULATOR
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-
çizim 137096
5 224 1 1 224 1 530 530 178 178 178 178 292 292 178 503
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(C) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0710-
1 SLEEVE; RUBBER
6WF1 TC-C(1B8) (C) ID=23 OD=27 L=40 		1-09337-015-0 01 1 0710-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0710-
1 SLEEVE; RUBBER
(A) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 0710-
1 SLEEVE; RUBBER
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=23 OD=27 L=40 		1-09337-015-0 02 1 0710-
5 GUIDE; HARNESS
6WF1 TC-C(1B8) L=360 		1-82699-476-1 01 1 0710-
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0710-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 02 1 0710-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0710-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0710-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-
178 GROMMET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) 		1-82698-551-0 01 1 0710-
224 SLEEVE; RUBBER,HARNESS
(A) ID=6 L=30 		5-09360-352-0 01 1 0710-0904
224 SLEEVE; RUBBER,HARNESS
6WF1 TC-C(1B8) (A) ID=6 L=30 		5-09360-352-0 01 1 0905-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50 		1-09337-023-0 01 1 0710-
292 CAP; RUBBER
EURO2 SPECIFICATION<THN> (B) 		1-82691-239-0 02 1 1111-
292 CAP; RUBBER
(A) 		1-82690-667-0 01 1 0710-
292 CAP; RUBBER
6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 		1-82690-667-0 01 1 0710-
503 CONNECTOR 1-82690-666-0 01 1 0710-
503 CONNECTOR
EXC. SMOOTHER-G(C1W) 		1-82690-666-0 01 1 0710-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 16 1 0710-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 0710-1110
530 SEAL; HARNESS
EXC. CHEAPER CAB(WY1) (A) 100X40 		1-72498-022-1 02 1 1111-
530 SEAL; HARNESS
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
530 SEAL; HARNESS
LOW ROOF<6XQ> (A) 100X40 		1-72498-022-1 01 1 0710-

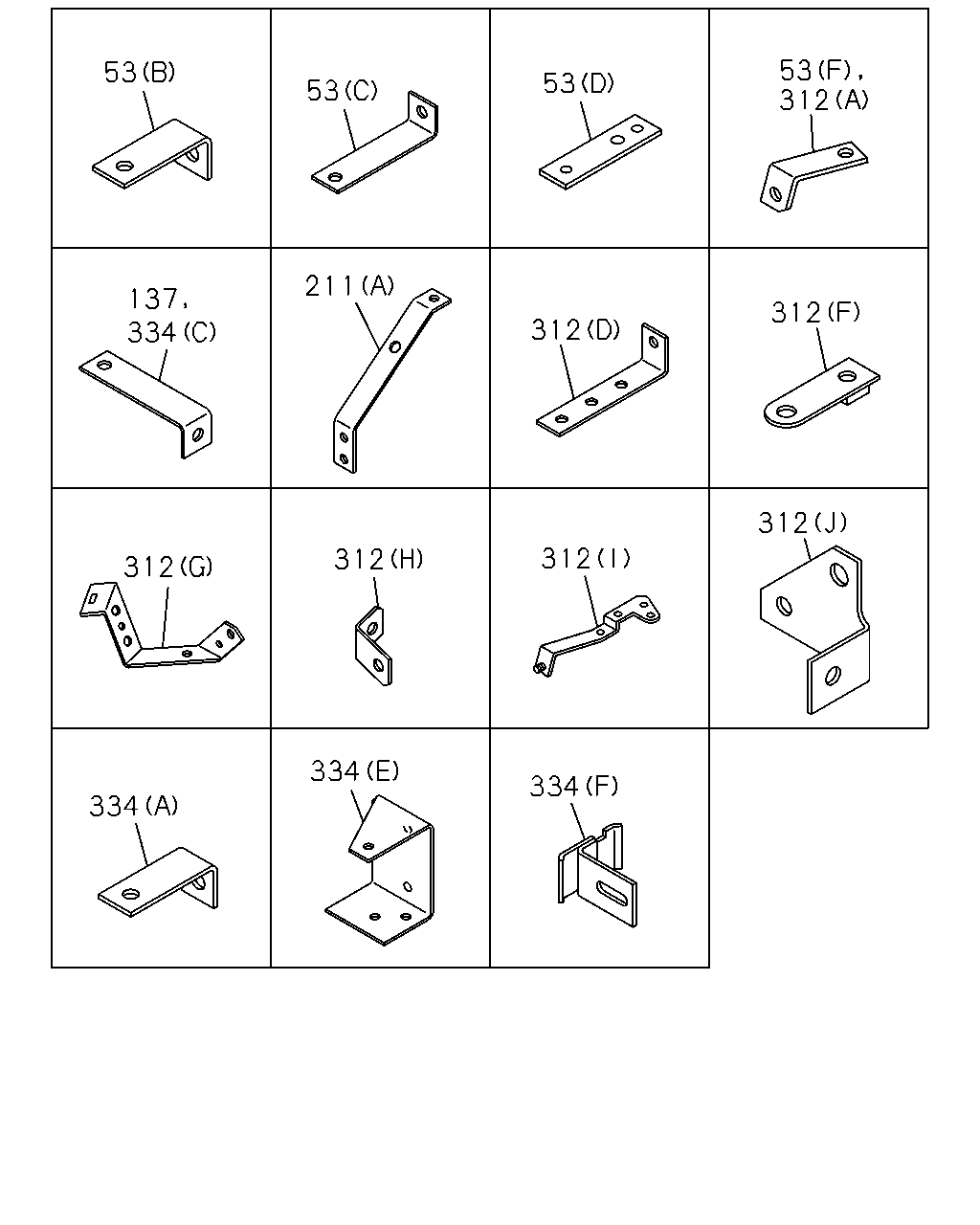

çizim 137696
334 334 334 312 312 312 312 312 312 211 137 334 53 53 53 53 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0710-
53 BRACKET; HARNESS
(D) L=130 		1-47478-959-0 02 1 0710-1110
53 BRACKET; HARNESS
EXC. CHEAPER CAB(WY1) (D) L=130 		1-47478-959-0 02 1 1111-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0710-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0710-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0710-
53 BRACKET; HARNESS
(J) 		1-82698-382-0 01 1 0710-
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0710-0803
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (F) 		1-82698-440-0 01 1 0804-
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-469-0 02 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-83129-472-1 01 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		8-97610-991-0 01 1 0710-
137 BRACKET; HARNESS CLAMP
L=175 H=30 		1-47479-386-1 01 1 0710-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0710-
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) (B) 		1-82698-588-0 02 1 0710-
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82698-588-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0710-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0710-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0710-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (F) 		1-82699-182-0 01 1 0710-
312 BRACKET; CLIP HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=120 H=35 		1-82698-088-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0710-
334 BRACKET
(F) 		1-47479-693-0 01 1 1407-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0710-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0710-
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-543-0 01 1 0710-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0710-
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0710-
çizim 137779
119 255 524 219 294 340 515 515 423 82
BalonParca AdiParca NoAdetTipApplied Date
82 WASHER; PL BRKT,HARNESS
ID=10.5 OD=22 		0-91614-610-0 02 1 0710-1110
82 WASHER; PL BRKT,HARNESS
EXC. CHEAPER CAB(WY1) ID=10.5 OD=22 		0-91614-610-0 02 1 1111-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0710-
219 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 02 1 0710-
219 NUT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 03 1 0710-
219 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 04 1 0710-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74365-620-0 02 1 0710-0904
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1407-
294 NUT
M8 FLANGE 		0-91180-108-0 11 1 0710-1406
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1407-
294 NUT
TRANSMISSION CONTROL LINK TYPE(B2A) M8 FLANGE 		0-91180-108-0 01 1 0710-
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 06 1 0710-
294 NUT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0710-
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0710-
294 NUT
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 05 1 0710-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0710-
340 NUT; HARNESS CAB TO FRAME
6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE 		0-91180-108-0 01 1 0710-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0710-
423 WASHER; HARNESS,EARTH
EXC. SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 03 1 0710-
423 WASHER; HARNESS,EARTH
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=8.4 		1-09503-264-0 04 1 0710-
515 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-1110
515 NUT; BRKT
EXC. CHEAPER CAB(WY1) (A) M10 FLANGE 		0-91180-210-0 02 1 1111-
515 NUT; BRKT
6WF1 TC-C(1B8) (B) M8 FLANGE 		0-91180-108-0 04 1 0710-
515 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8 FLANGE 		0-91180-108-0 03 1 0710-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0710-

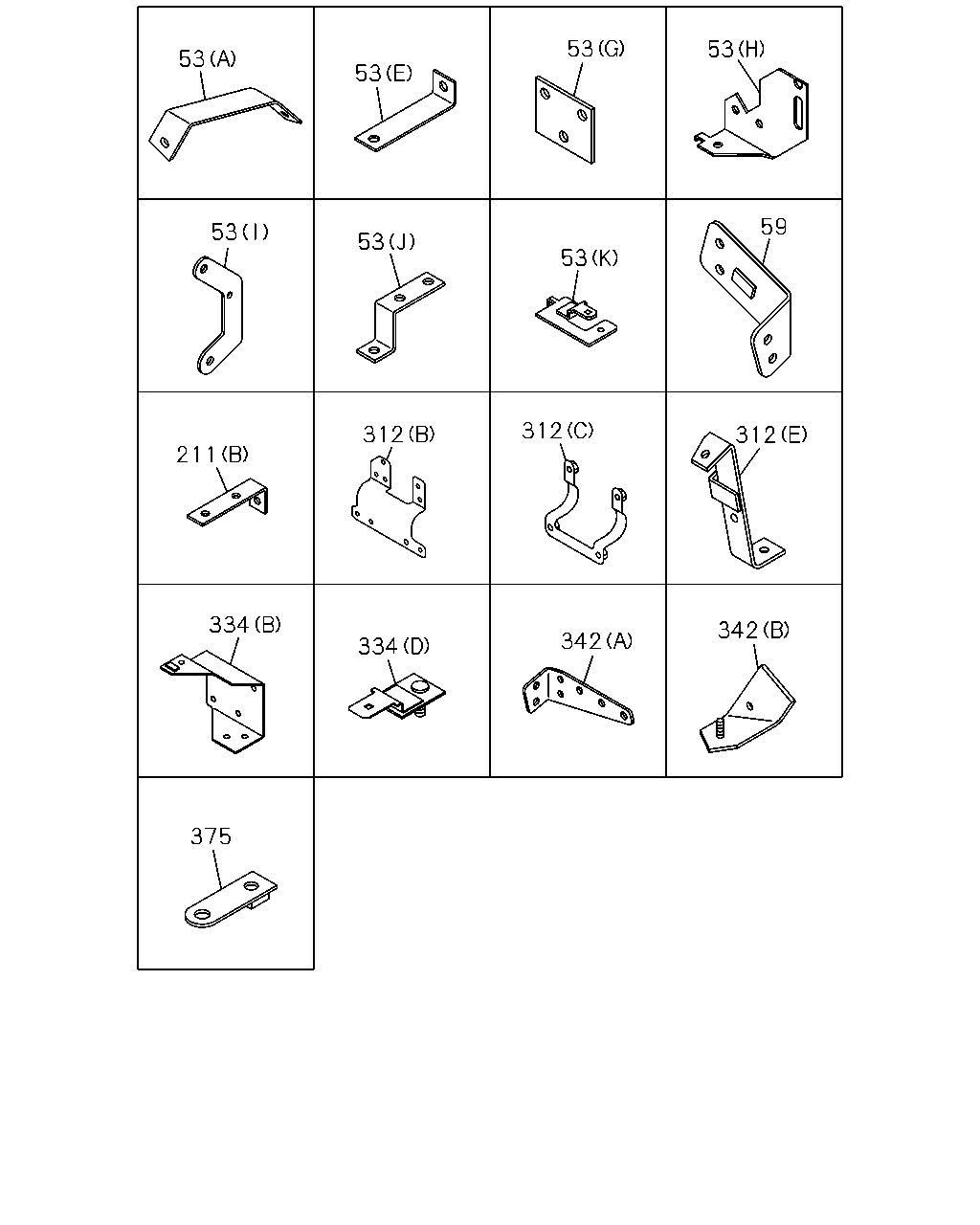

çizim 137885
53 53 53 53 59 53 53 53 211 312 312 312 334 334 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0710-
53 BRACKET; HARNESS
(D) L=130 		1-47478-959-0 02 1 0710-1110
53 BRACKET; HARNESS
EXC. CHEAPER CAB(WY1) (D) L=130 		1-47478-959-0 02 1 1111-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 02 1 0710-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 02 1 0710-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0710-
53 BRACKET; HARNESS
(J) 		1-82698-382-0 01 1 0710-
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0710-0803
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (F) 		1-82698-440-0 01 1 0804-
53 BRACKET; HARNESS
6WF1 TC-C(1B8) (G) 		1-82698-469-0 02 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (K) 		1-82698-495-2 01 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) 		1-83129-472-1 01 1 0710-
53 BRACKET; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		8-97610-991-0 01 1 0710-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0710-
211 BRACKET; AXLE HARNESS
(A) 		1-47479-430-0 02 1 0710-
211 BRACKET; AXLE HARNESS
6WF1 TC-C(1B8) (B) 		1-82698-588-0 02 1 0710-
211 BRACKET; AXLE HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-82698-588-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-474-1 01 1 0710-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-476-0 01 1 0710-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0710-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I) 		1-82698-443-0 01 1 0710-
312 BRACKET; CLIP HARNESS
MJX16P M/T(Y3Z) (F) 		1-82699-182-0 01 1 0710-
312 BRACKET; CLIP HARNESS
TRANSMISSION CONTROL LINK TYPE(B2A) (D) L=120 H=35 		1-82698-088-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WF1 TC-C(1B8) (A) 		1-82698-440-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 		1-82698-556-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) 		1-82699-199-0 01 1 0710-
312 BRACKET; CLIP HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) 		1-82698-570-0 01 1 0710-
334 BRACKET
(F) 		1-47479-693-0 01 1 1407-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0710-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0710-
334 BRACKET
SMOOTHER-G(C1W) (D) 		1-82698-543-0 01 1 0710-
334 BRACKET
6WF1 TC-C(1B8) (B) 		1-53458-362-0 01 1 0710-
334 BRACKET
6WG1 TC-C(72L),6WG1 TC-S(97L) (E) 		1-53457-153-2 01 1 0710-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0710-
342 BRACKET; HARNESS CAB MTG
EXC. FULLER M/T<X9B> (B) 		1-47479-974-0 01 1 0710-0906
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0710-

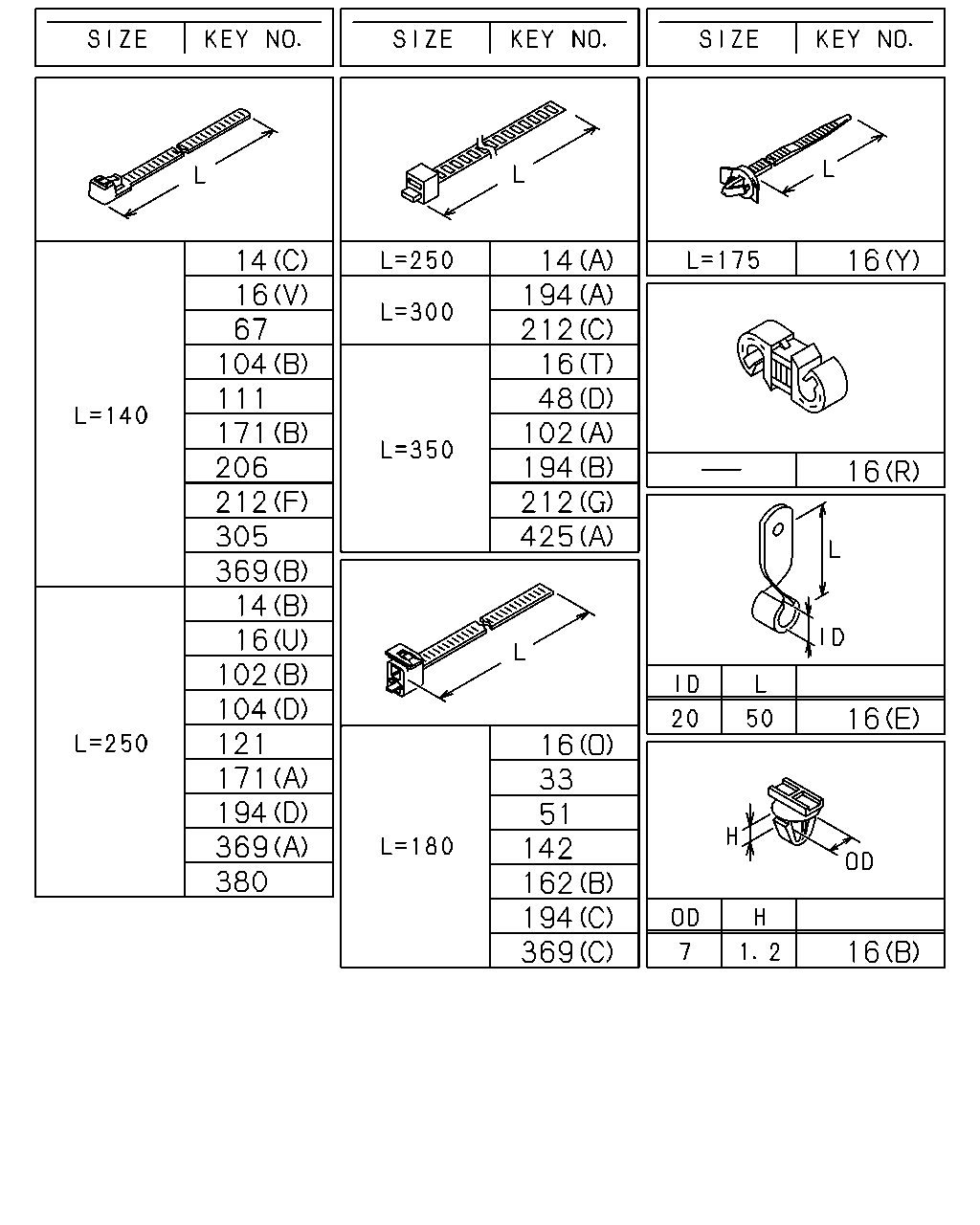

çizim 192605
14 16 67 104 111 171 206 212 305 369 14 16 102 104 121 171 194 369 380 16 14 194 212 16 48 102 194 212 425 16 16 16 33 51 142 162 194 369 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0710-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0710-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 0710-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1111-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 02 1 1111-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 02 1 1111-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 08 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0710-0806
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0807-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0710-0904
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-

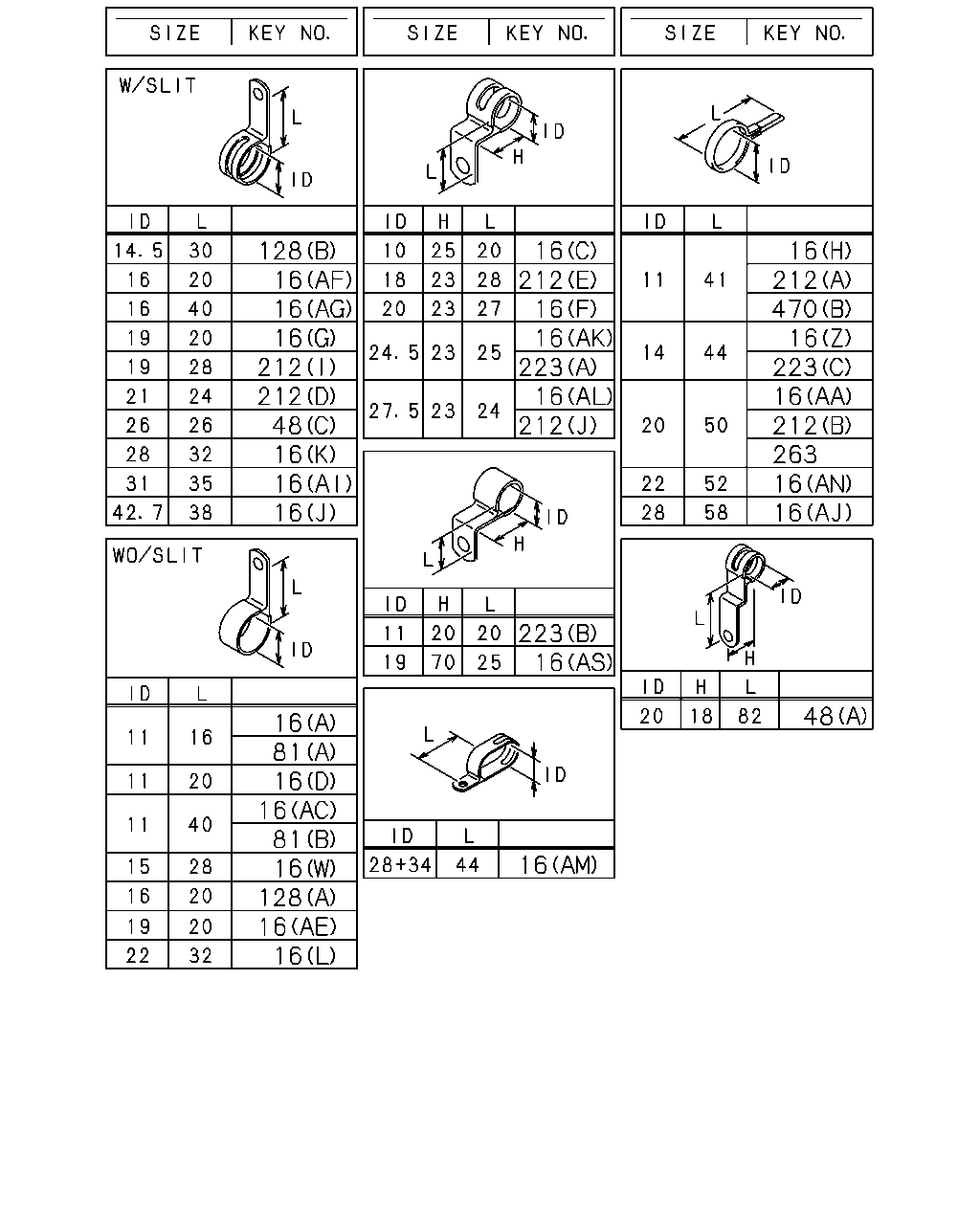

16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0710-0904
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0710-
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0710-1002
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 04 1 1003-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0710-
16 CLIP; HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0710-1110
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (B) OD=7 H=1.2 		8-94364-750-0 02 1 1111-
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 03 1 1111-
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 04 1 1111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0710-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=19 L=20 		0-95235-832-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0710-1406
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 04 1 1407-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0710-0806
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (R) ID=15 & 15 		1-09709-282-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0710-1406
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0710-1406
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 04 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0806
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AN) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0710-
33 CLIP; HARNESS,VLV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=180 		1-09707-162-1 01 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 11 1 0806-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
51 CLIP; COOLER CMPR
L=180 		1-09707-162-1 01 1 0710-
67 CLIP; BAND,HARNESS,CLU SW
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140 		5-09707-031-1 01 1 0710-
102 CLIP; BAND
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 01 1 0710-1002
102 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1003-
102 CLIP; BAND
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) L=250 		5-09707-030-1 01 1 1003-
102 CLIP; BAND
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 0710-
102 CLIP; BAND
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=350 		1-09707-183-0 02 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (C) ID=5-12 L=14.5 		1-09987-221-0 04 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (D) L=250 		5-09707-030-1 02 1 0710-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> (B) L=140 		5-09707-031-1 02 1 0710-
111 CLIP; STOP LAMP SW HARNESS
L=140 		5-09707-031-1 01 1 0710-
121 CLIP; FACIA HARNESS
L=250 		5-09707-030-1 02 1 0710-1110
121 CLIP; FACIA HARNESS
EXC. CHEAPER CAB(WY1) L=250 		5-09707-030-1 02 1 1111-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0710-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 01 1 1208-
162 CLIP; SW HARNESS
6WF1 TC-C(1B8) (B) L=180 		1-09707-162-1 01 1 0710-
162 CLIP; SW HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) OD=9 H=6 		1-09709-178-0 01 1 0710-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 07 1 0710-
171 CLIP; STARTER HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0710-
171 CLIP; STARTER HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) L=250 		5-09707-030-1 03 1 0710-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0710-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0710-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0710-1002
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1003-1112
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 1201-1202
194 CLIP; BAND
(B) L=350 		1-09707-183-0 04 1 1203-
194 CLIP; BAND
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250 		5-09707-030-1 06 1 0710-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0710-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-
305 CLIP; ENG HARNESS
6WF1 TC-C(1B8) L=140 		5-09707-031-1 01 1 0710-
305 CLIP; ENG HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) L=140 		5-09707-031-1 03 1 0710-
369 CLIP; BAND EDS HARNESS
EURO2 SPECIFICATION<THN> (A) L=250 		5-09707-030-1 01 1 1111-
369 CLIP; BAND EDS HARNESS
(C) L=180 		1-09707-162-1 01 1 0907-
369 CLIP; BAND EDS HARNESS
(A) L=250 		5-09707-030-1 04 1 0710-
369 CLIP; BAND EDS HARNESS
6WF1 TC-C(1B8) (A) L=250 		5-09707-030-1 02 1 0710-
369 CLIP; BAND EDS HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=140 		5-09707-031-1 01 1 0710-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0710-
425 CLIP; MODULATOR
(A) L=350 		1-09707-183-0 01 1 0710-
425 CLIP; MODULATOR
(B) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
425 CLIP; MODULATOR
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-
çizim 192608
128 16 16 16 212 212 48 16 16 16 16 81 16 16 81 16 128 16 16 16 212 16 16 223 16 212 223 16 16 16 212 470 16 223 16 212 263 16 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1111-1208
16 CLIP; HARNESS
6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 02 1 1111-
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 02 1 1111-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 08 1 0710-
16 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0710-0806
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0807-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0710-0904
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0710-1002
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(W) ID=15 L=28 		1-09701-216-0 01 1 0710-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0710-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0710-0904
16 CLIP; HARNESS
(P) W/SPONGE RUBBER 		1-09709-150-0 01 1 0710-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 05 1 0710-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0710-
16 CLIP; HARNESS
(AH) ID=5-12 L=22 		1-09709-288-0 02 1 0710-
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 03 1 0710-1002
16 CLIP; HARNESS
(AO) ID=13-18 L=18 		1-09709-291-0 04 1 1003-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0906
16 CLIP; HARNESS
SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0710-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (V) L=140 		5-09707-031-1 01 1 0710-
16 CLIP; HARNESS
(AT) OD=9 H=6 		8-97368-793-0 01 1 0710-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0710-
16 CLIP; HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0710-1110
16 CLIP; HARNESS
EXC. CHEAPER CAB(WY1) (B) OD=7 H=1.2 		8-94364-750-0 02 1 1111-
16 CLIP; HARNESS
(X) L=55 		8-94432-655-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (X) L=55 		8-94432-655-0 03 1 1111-
16 CLIP; HARNESS
(Y) L=175 		8-97110-167-0 02 1 0710-1110
16 CLIP; HARNESS
CHEAPER CAB(WY1) (Y) L=175 		8-97110-167-0 04 1 1111-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AF) ID=16 L=20 		0-95235-535-0 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AG) ID=16 L=40 		0-95235-576-0 01 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (Q) OD=9 H=6 		1-09709-178-0 02 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (L) ID=22 L=32 		1-09700-126-1 01 1 0710-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-50A 1.2KW(SLX) (E) ID=20 L=50 		1-09700-679-1 01 1 0710-
16 CLIP; HARNESS
HIGH ROOF<S2F> (S) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-0711
16 CLIP; HARNESS
MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0712-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 07 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AP) ID=18-24 L=18 		1-09709-294-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0710-1208
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AC) ID=11 L=40 		0-95235-075-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (AF) ID=16 L=20 		0-95235-535-0 01 1 0710-
16 CLIP; HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (Q) OD=9 H=6 		1-09709-178-0 04 1 0710-
16 CLIP; HARNESS
EXC. SMOOTHER-G(C1W) (AI) ID=31 L=35 		1-09700-329-1 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AE) ID=19 L=20 		0-95235-832-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AJ) ID=28 L=58 		1-09700-400-0 03 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (J) ID=42.7 L=38 		1-09701-313-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (O) L=180 		1-09707-162-1 05 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Q) OD=9 H=6 		1-09709-178-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 05 1 0710-1406
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AP) ID=18-24 L=18 		1-09709-294-0 04 1 1407-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
FULLER M/T<X9B> (U) L=250 		5-09707-030-1 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AQ) ID=21 L=47.5 		8-94178-108-0 02 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25 		8-97360-209-0 01 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 02 1 0710-0806
16 CLIP; HARNESS
6WF1 TC-C(1B8) (Z) ID=14 L=44 		9-09917-427-0 01 1 0807-
16 CLIP; HARNESS
6WF1 TC-C(1B8) (AA) ID=20 L=50 		9-09917-430-0 08 1 0710-
16 CLIP; HARNESS
6WF1 TC-C(1B8) FULLER M/T<X9B> (R) ID=15 & 15 		1-09709-282-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (G) ID=19 L=20 		0-95235-836-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AJ) ID=28 L=58 		1-09700-400-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=11 L=41 		1-09700-403-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AL) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 0710-1406
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (T) L=350 		1-09707-183-0 01 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 05 1 0710-1406
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AD) ID=18-24 L=26 		1-09709-296-0 04 1 1407-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0906
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AB) ID=5-12 L=14.5 		1-09987-221-0 02 1 0907-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AQ) ID=21 L=47.5 		8-94178-108-0 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AR) L=36 		8-94224-891-1 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 02 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AT) OD=9 H=6 		8-97368-793-0 03 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 03 1 0710-0806
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (Z) ID=14 L=44 		9-09917-427-0 02 1 0807-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (AA) ID=20 L=50 		9-09917-430-0 07 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44 		1-09701-311-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 04 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (AN) ID=22 L=52 		9-09917-431-0 01 1 0710-
16 CLIP; HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (O) L=180 		1-09707-162-1 03 1 0710-
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0710-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0710-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 09 1 0710-0805
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 11 1 0806-
48 CLIP; FRAME HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16 		0-95235-025-0 01 1 0710-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=40 		0-95235-075-0 01 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0710-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0710-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0710-
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 02 1 0710-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0710-0904
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (F) L=140 		5-09707-031-1 01 1 0905-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (E) ID=18 H=23 L=28 		1-09700-860-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (G) L=350 		1-09707-183-0 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (D) ID=21 L=24 		8-94176-807-1 01 1 0710-
212 CLIP; HORN HARNESS
6WF1 TC-C(1B8) (B) ID=20 L=50 		9-09917-430-0 02 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (I) ID=19 L=28 		0-95235-856-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0710-
212 CLIP; HORN HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (E) ID=18 H=23 L=28 		1-09700-860-0 03 1 0710-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0710-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 03 1 0710-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0710-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0710-
çizim 192610
38 150 150 242 150 38 38 38 528 313 64 38 480 242 38 64 313 139 313 86 139 242 38 516 139 239 38 358 88 358 239 38 358 88 133 242
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 06 1 0907-
38 BOLT; CLIP,HARNESS
(H) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0906
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 05 1 0907-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 05 1 0710-0906
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 05 1 0710-0906
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0710-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B> (C) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
38 BOLT; CLIP,HARNESS
MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (E) M10X20 FLANGE 		0-28751-020-0 01 1 0710-
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0710-1201
38 BOLT; CLIP,HARNESS
EXC. SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
38 BOLT; CLIP,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28050-820-0 03 1 0710-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0710-
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-1201
38 BOLT; CLIP,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (I) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711
64 SCREW; CLIP
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE 		0-28751-020-0 01 1 0710-
86 BOLT; CLIP BRKT
TRANSMISSION CONTROL LINK TYPE(B2A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
86 BOLT; CLIP BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 03 1 0710-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0710-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0710-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 05 1 0710-
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
139 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
139 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X30 FLANGE 		0-28650-830-0 06 1 0710-
139 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-
150 BOLT; CLIP
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X16 FLANGE 		0-28050-816-0 03 1 1209-
150 BOLT; CLIP
6WF1 TC-C(1B8) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) GENERATOR NIKKO 24V-50A 1.2KW(SLX) CLUTCH-15.5" TWIN PLATE SPICER(TEY) EURO2 SPECIFICATION<THN> FULLER M/T<X9B> (C) M8X16 FLANGE 		0-28050-816-0 01 1 1111-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0710-
150 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-1208
150 BOLT; CLIP
6WF1 TC-C(1B8) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE 		0-28050-810-0 01 1 0710-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0710-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1407-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
242 BOLT; BRKT,HARNESS
6WF1 TC-C(1B8) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
242 BOLT; BRKT,HARNESS
6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X18 FLANGE 		0-28080-818-0 01 1 0710-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 11 1 0710-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-
313 BOLT; BRKT
6WF1 TC-C(1B8) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-
313 BOLT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1201
358 BOLT; EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
528 BOLT; CONNECTOR
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE 		0-28050-812-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
