Sayfa 8-10 - Isuzu EPC

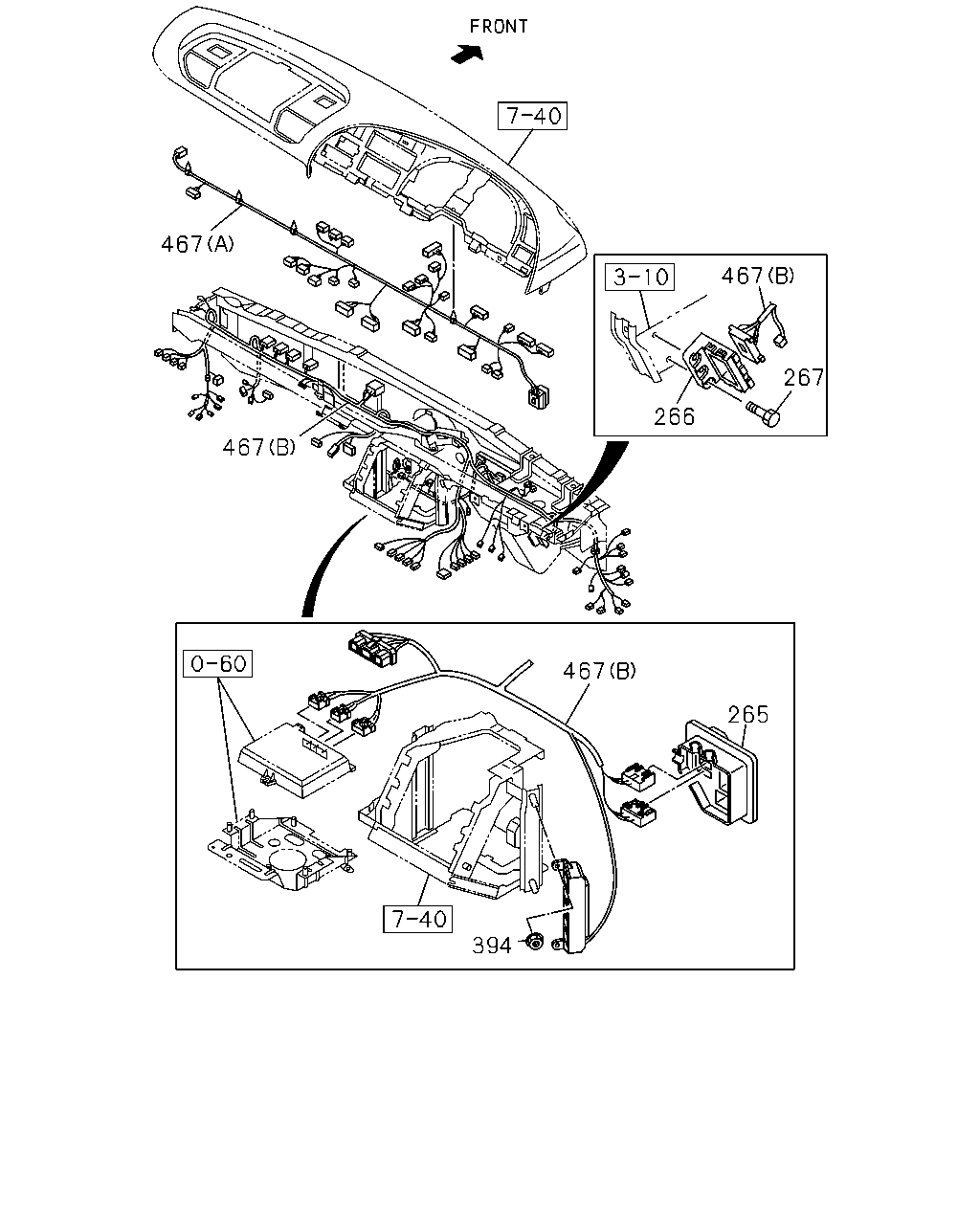

8-10 — WIRING HARNESS AND FUSE (#67033) — 270 parça

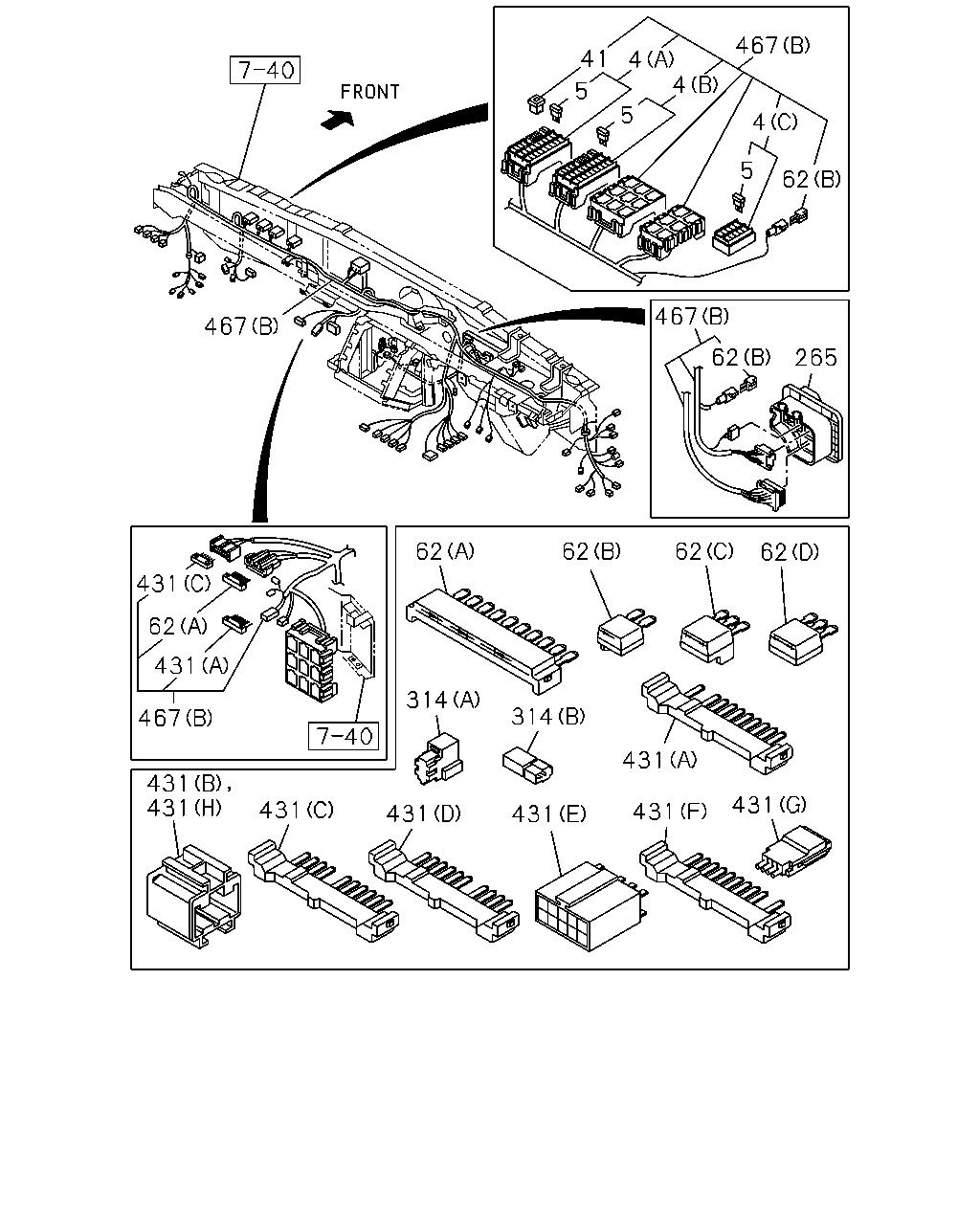

41 4 4 467 4 62 5 5 5 467 467 62 265 62 62 62 62 314 314 431 431 431 431 431 431 431 431 467 431 62 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 7.5AX23 10AX4	1-82510-479-0	01	1	0710-1110
4	BOX ASM; FUSE,HARNESS 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (A) 7.5AX23 10AX4	1-82510-479-0	01	1	1111-
4	BOX ASM; FUSE,HARNESS 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (A) 7.5AX23 10AX4	1-82510-479-0	01	1	1111-
4	BOX ASM; FUSE,HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 7.5AX22 10AX4	1-82510-455-0	01	1	0710-
4	BOX ASM; FUSE,HARNESS (B) 15AX25 25AX2	1-82510-602-0	01	1	0710-
4	BOX ASM; FUSE,HARNESS (C) 15AX3	1-82510-638-0	01	1	0710-
5	FUSE; FACIA HARNESS 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) 7.5A BROWN	8-94159-007-0	23	1	1111-
5	FUSE; FACIA HARNESS 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> 7.5A BROWN	8-94159-007-0	23	1	1111-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	04	1	1111-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	28	1	1111-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	1111-
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	AR	1	0710-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	AR	1	0710-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	AR	1	0710-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	AR	1	0710-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0710-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	0710-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	AR	1	0710-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	0710-
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	AR	1	0710-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0710-
314	RESISTOR; HARNESS 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) BLUE	1-82691-204-0	02	1	0710-1110
314	RESISTOR; HARNESS 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (A) BLUE	1-82691-204-0	02	1	1111-
314	RESISTOR; HARNESS 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (A) BLUE	1-82691-204-0	02	1	1111-
314	RESISTOR; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) RESISTANCE NO.5 2K OHM	1-81515-025-0	01	1	0710-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (H) 3P & 3P	1-82698-170-0	04	1	0710-1110
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (H) 3P & 3P	1-82698-170-0	04	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (H) 3P & 3P	1-82698-170-0	04	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (C) 10P BLUE	1-82699-598-0	09	1	0710-1110
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (C) 10P BLUE	1-82699-598-0	09	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (C) 10P BLUE	1-82699-598-0	09	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (D) 10P GREEN	1-82699-599-0	04	1	0710-1110
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (D) 10P GREEN	1-82699-599-0	04	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (D) 10P GREEN	1-82699-599-0	04	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A) 10P BROWN	1-82699-601-0	13	1	0710-1110
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (A) 10P BROWN	1-82699-601-0	13	1	1111-
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (A) 10P BROWN	1-82699-601-0	13	1	1111-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 6P	1-82691-206-0	01	1	0710-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (F) 10P GREEN	1-82698-579-0	03	1	0710-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) 10P BLUE	1-82699-598-0	13	1	0710-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) 10P GREEN	1-82699-599-0	03	1	0710-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 10P BROWN	1-82699-601-0	08	1	0710-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	01	1	0710-
431	CONNECTOR; JOINT 6WG1 TC-C(72L),6WG1 TC-S(97L) (G) 4P	8-97376-776-0	13	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (B)	8-97642-244-0	01	1	1111-
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B)	8-97622-964-1	01	1	0710-1110
467	HARNESS; FACIA 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (B)	8-97622-964-1	01	1	1111-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97618-829-2	01	1	0710-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97622-965-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97634-129-0	01	1	0908-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97622-967-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97634-131-0	01	1	0908-

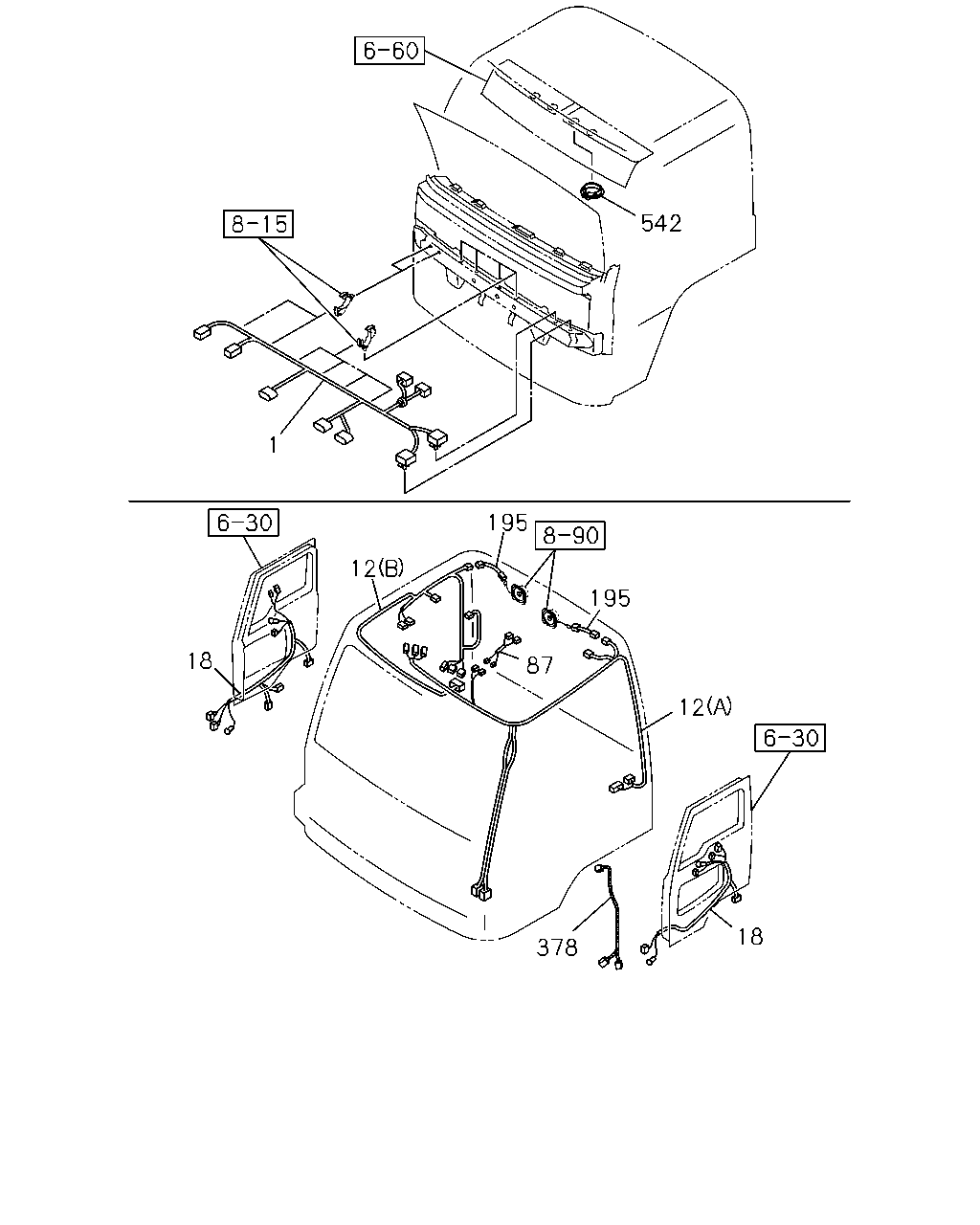

12 195 195 12 18 378 18 542 87 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB	1-82629-234-1	01	1	0710-
12	HARNESS; ROOF 6WF1 TC-C(1B8) (B)	1-82662-588-0	01	1	0710-
12	HARNESS; ROOF 6WF1 TC-C(1B8) HIGH ROOF<S2F> (A)	1-82662-253-2	01	1	0710-
12	HARNESS; ROOF 6WF1 TC-C(1B8) EXC. HIGH ROOF<S2F> (A)	1-82662-252-2	01	1	0710-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97611-862-0	01	1	0710-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) HIGH ROOF<S2F> (A)	8-97622-963-1	01	1	0710-
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. HIGH ROOF<S2F> (A)	8-97611-861-1	01	1	0710-0802
12	HARNESS; ROOF 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. HIGH ROOF<S2F> (A)	8-97625-970-0	01	1	0803-
18	HARNESS; DOOR CHEAPER CAB(WY1)	1-82628-582-0	01	1	1111-
18	HARNESS; DOOR CHEAPER CAB(WY1) EXC. REMOTE CONT DOOR LOCK<SLG>	1-82628-588-0	01	1	1111-
18	HARNESS; DOOR EXC. REMOTE CONT DOOR LOCK<SLG>	8-97625-320-0	01	1	0710-1110
18	HARNESS; DOOR EXC. REMOTE CONT DOOR LOCK<SLG>,CHEAPER CAB(WY1)	8-97625-320-0	01	1	1111-
18	HARNESS; DOOR	8-97618-824-1	01	1	0710-1110
18	HARNESS; DOOR EXC. CHEAPER CAB(WY1)	8-97618-824-1	01	1	1111-
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<SLG>	8-97618-825-1	01	1	0710-1110
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<SLG> EXC. CHEAPER CAB(WY1)	8-97618-825-1	01	1	1111-
87	HARNESS; EXT,ROOM LAMP HIGH ROOF<S2F>	1-82661-333-0	01	1	0710-
195	HARNESS; EXT HIGH ROOF<S2F>	1-82625-300-1	02	1	0710-
378	HARNESS; EXT,MIRROR	8-97621-787-0	02	1	0710-1110
378	HARNESS; EXT,MIRROR EXC. CHEAPER CAB(WY1)	8-97621-787-0	02	1	1111-
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	01	1	0710-0712
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	0801-

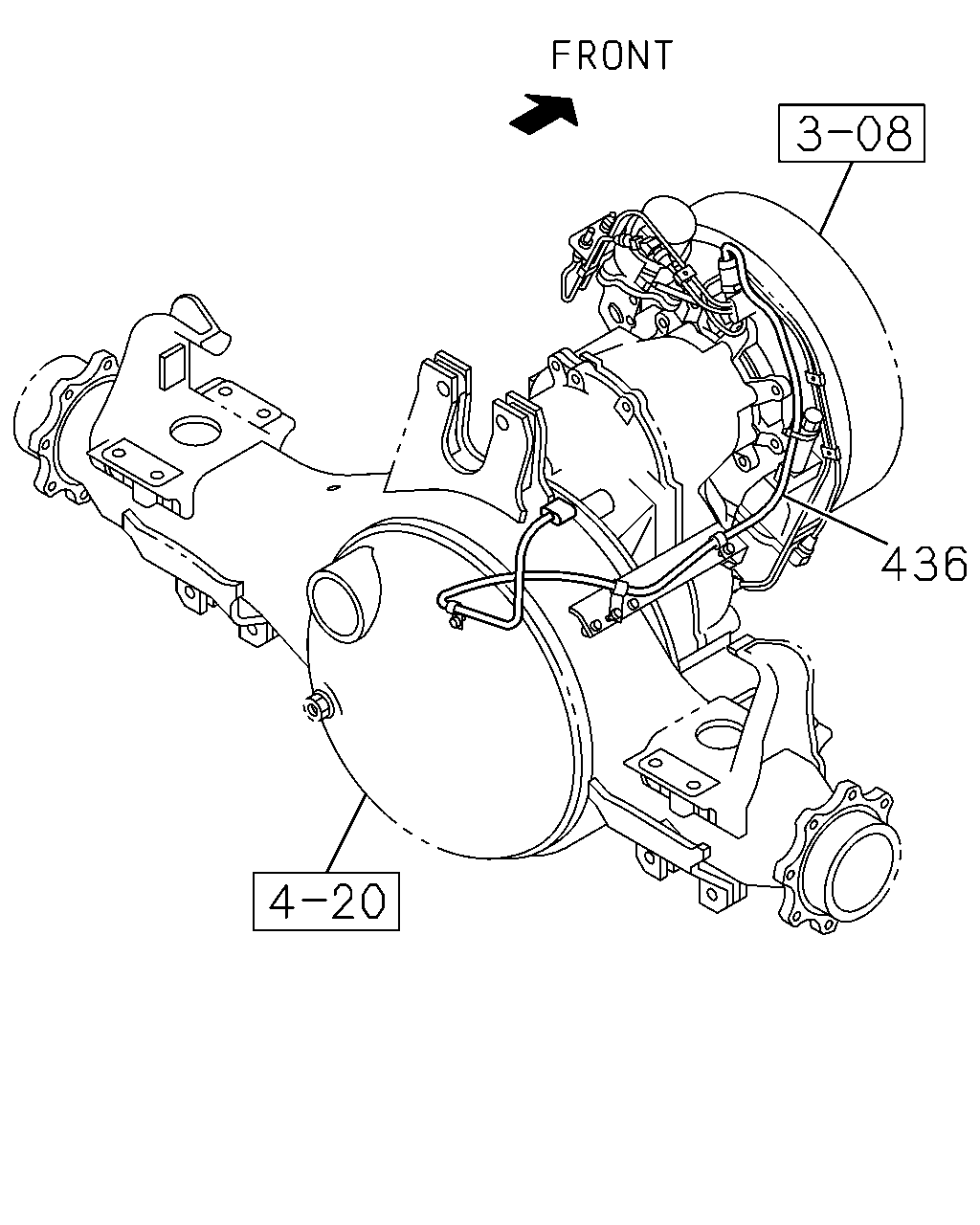

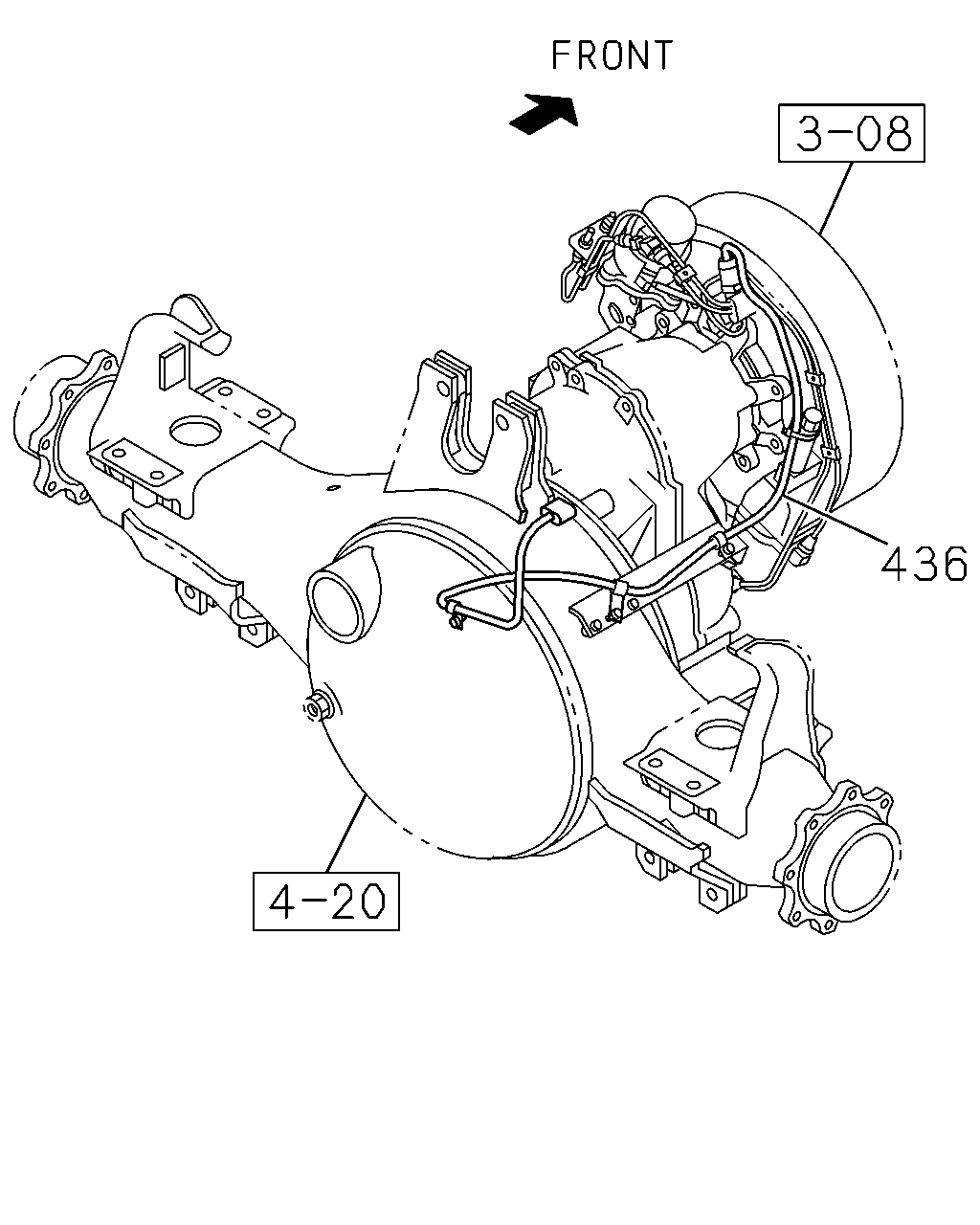

436

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	436	HARNESS; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82677-629-0	01	1	0710-

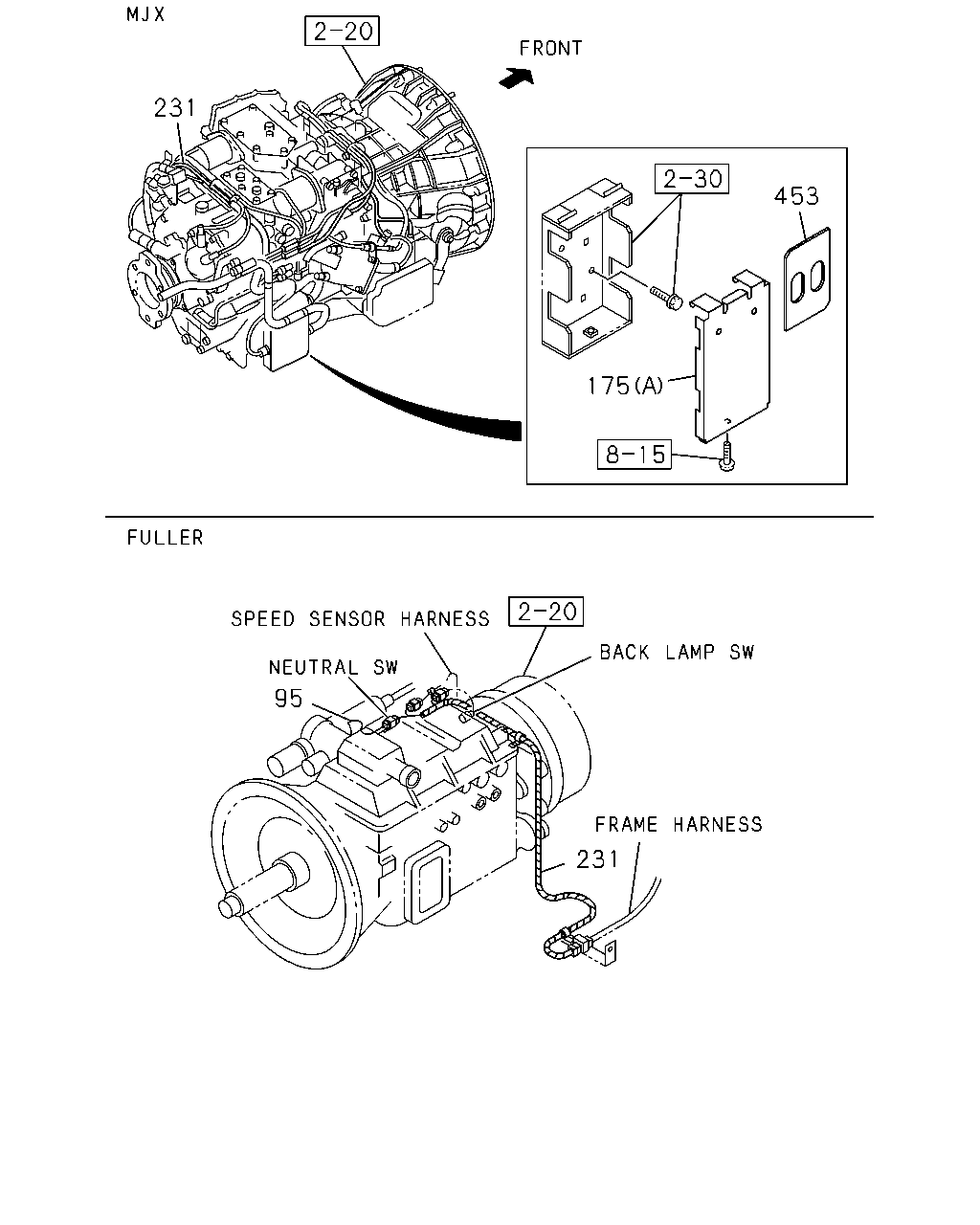

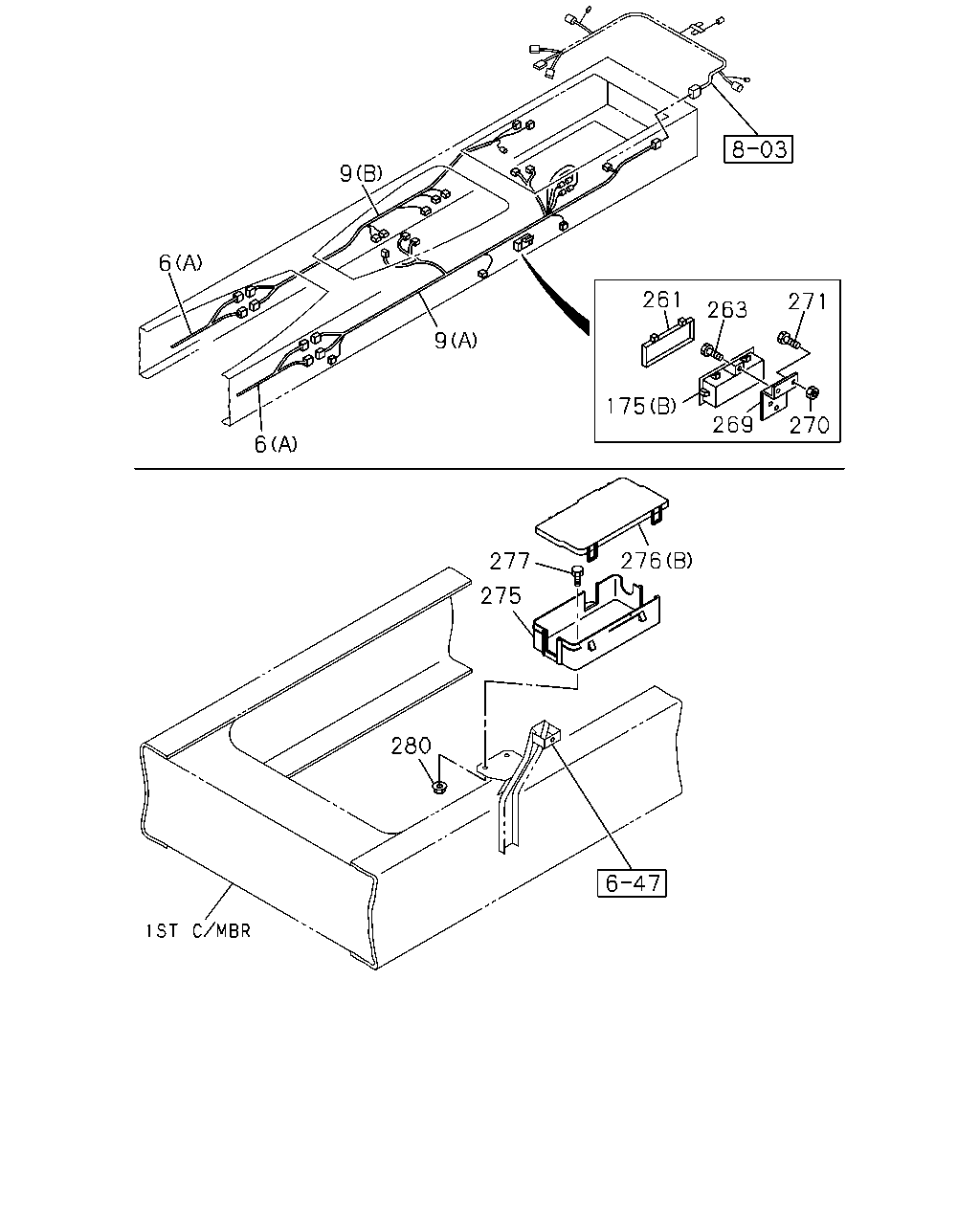

9 6 261 271 263 9 270 175 269 6 276 277 275 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (A)	8-97624-215-1	01	1	0710-
6	HARNESS; FRAME MJX16P M/T(Y3Z) (A)	8-97624-212-1	01	1	0710-
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	1-82678-117-1	01	1	0710-0806
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	8-98122-932-0	01	1	0807-
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B)	1-82678-193-0	01	1	0710-
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A)	1-82678-174-3	01	1	0710-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	8-97607-307-1	01	1	0710-0806
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	8-98122-928-0	01	1	0807-
9	HARNESS; FRAME,RR (A)	1-82677-971-2	01	1	0710-
9	HARNESS; FRAME,RR (B)	1-82677-972-1	01	1	0710-
175	BOX; CONNECTOR (B)	1-82699-467-0	01	1	0710-
175	BOX; CONNECTOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-82569-435-1	01	1	0710-
261	COVER; CONNECTOR BOX	1-82699-320-0	01	1	0710-
263	BOLT; CONNECTOR BOX M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0710-
269	BRACKET; CONNECTOR BOX	1-82698-424-0	01	1	0710-
270	NUT; BRKT,CONNECTOR BOX M8 FLANGE	0-91180-108-0	02	1	0710-
271	BOLT; BRKT CONNECTOR BOX M8X25 FLANGE	0-28650-825-0	02	1	0710-
275	BOX ASM; FRAME HARNESS 6WF1 TC-C(1B8)	1-82699-474-2	01	1	0710-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0710-
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0710-
277	BOLT; BOX ASM FIX 6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0710-
280	NUT; BOX ASM FIX 6WF1 TC-C(1B8) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0710-

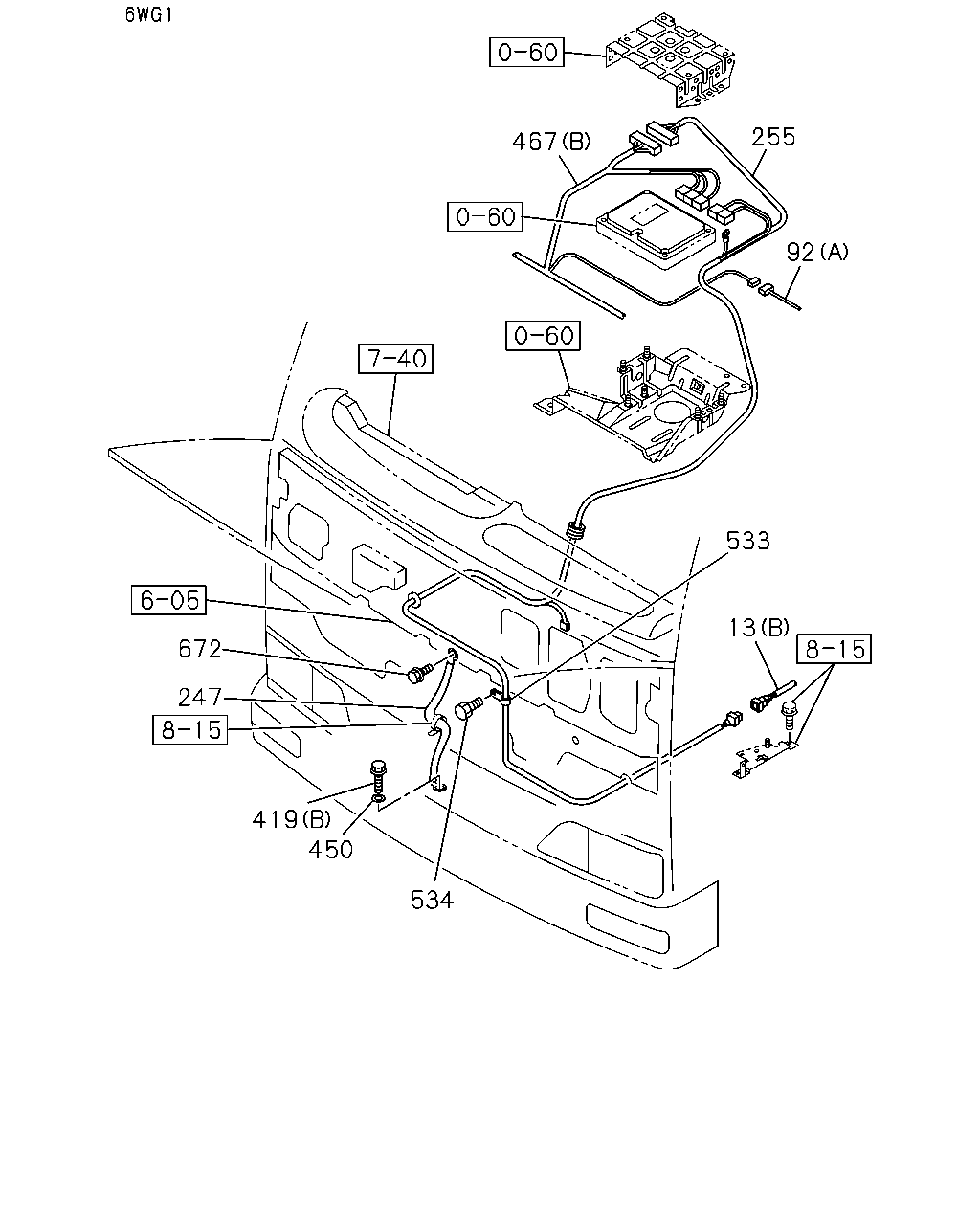

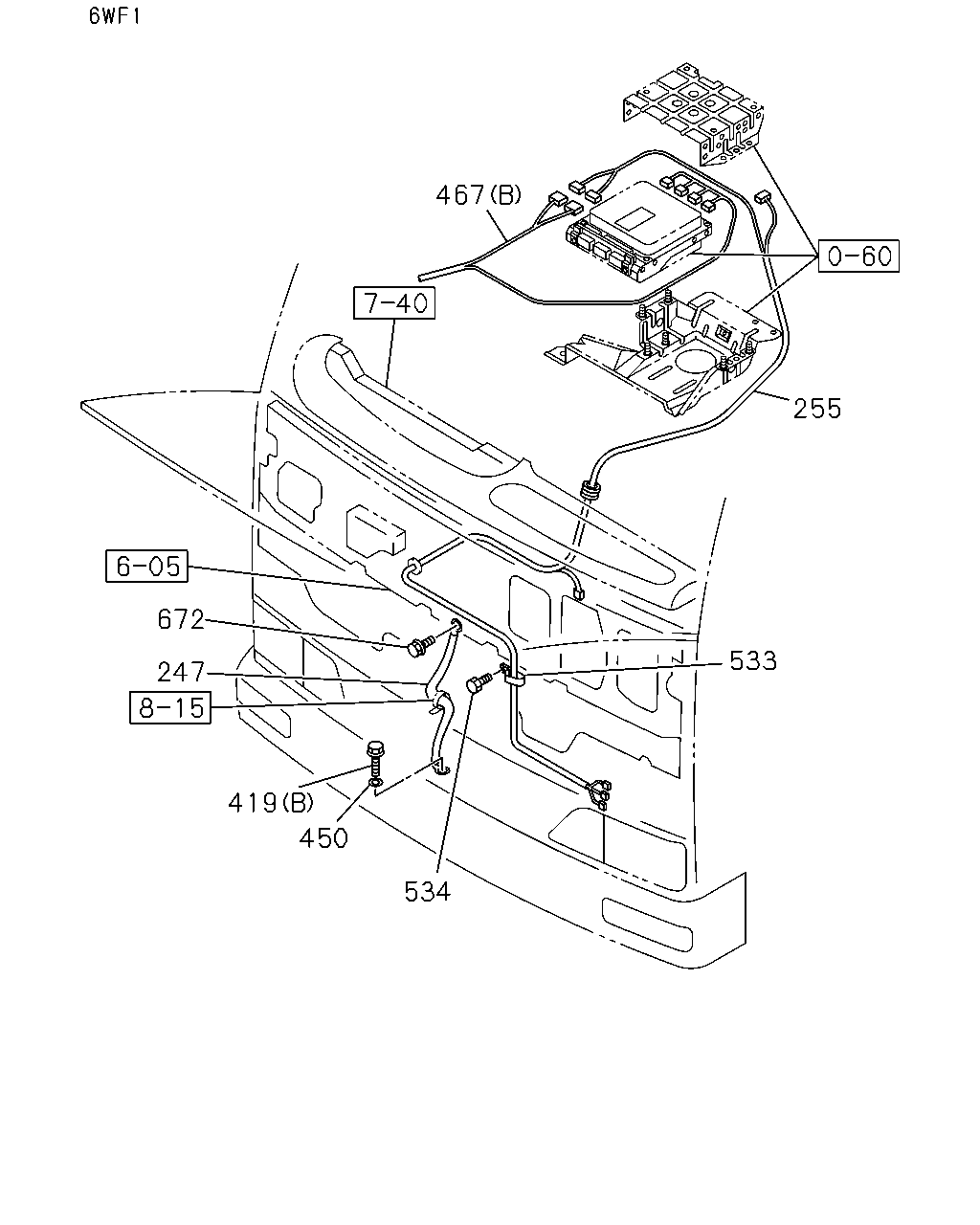

467 255 672 533 247 419 450 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0710-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0710-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0710-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1201
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1201
419	BOLT; CAB EARTH (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0710-0809
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0810-1201
419	BOLT; CAB EARTH (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1201
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0810-1201
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0710-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (B)	8-97642-244-0	01	1	1111-
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B)	8-97622-964-1	01	1	0710-1110
467	HARNESS; FACIA 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (B)	8-97622-964-1	01	1	1111-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97618-829-2	01	1	0710-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97622-965-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97634-129-0	01	1	0908-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97622-967-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97634-131-0	01	1	0908-
533	CLIP 6WF1 TC-C(1B8) ID=31 L=35	1-09700-329-1	01	1	0710-
533	CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35	1-09700-329-1	01	1	0710-
533	CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63	1-09701-310-0	01	1	0710-
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0710-
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0710-1309
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-

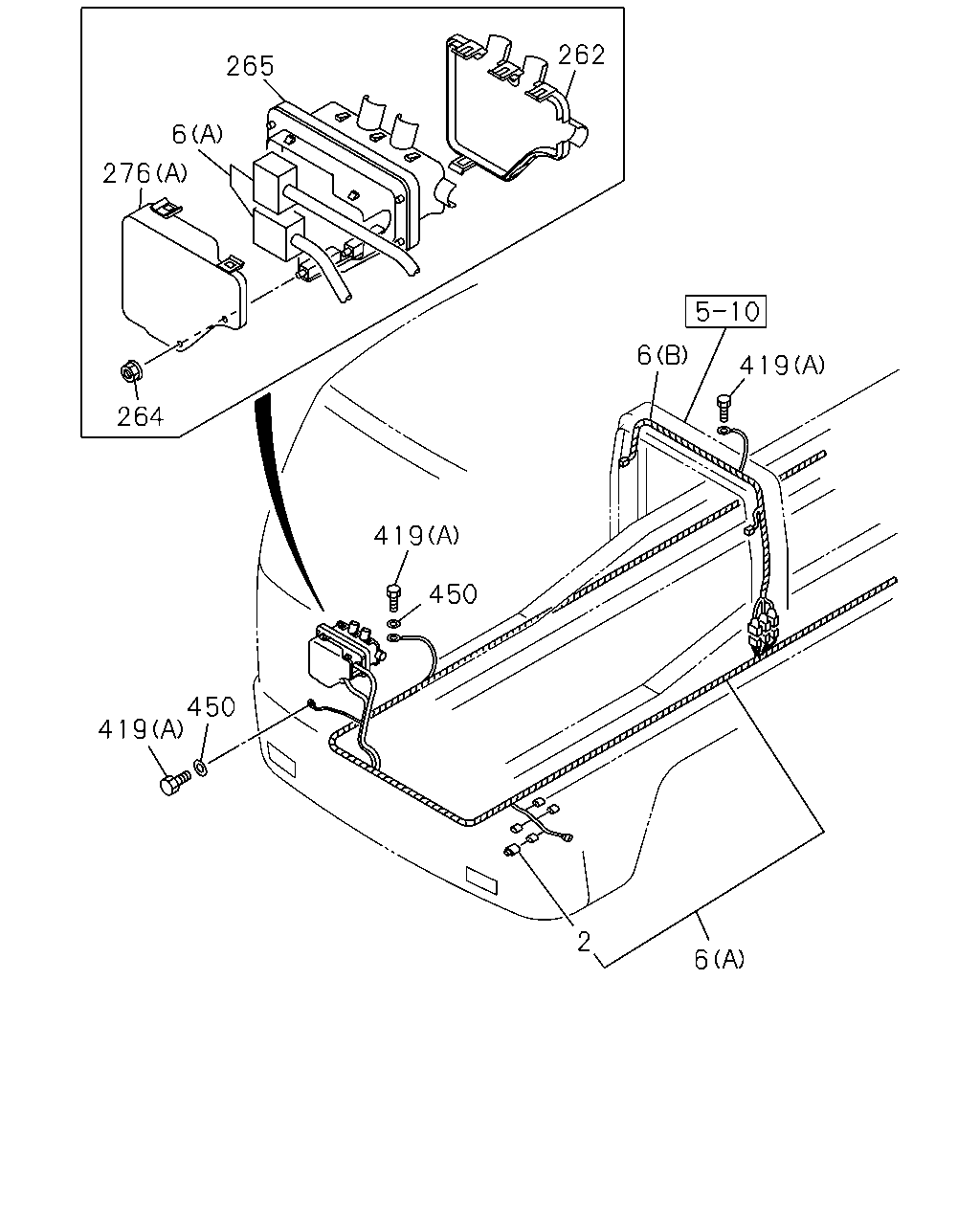

262 265 6 276 6 419 264 419 450 450 419 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	AR	1	0710-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B> (A)	8-97624-215-1	01	1	0710-
6	HARNESS; FRAME MJX16P M/T(Y3Z) (A)	8-97624-212-1	01	1	0710-
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	1-82678-117-1	01	1	0710-0806
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	8-98122-932-0	01	1	0807-
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B)	1-82678-193-0	01	1	0710-
6	HARNESS; FRAME 6WF1 TC-C(1B8) FULLER M/T<X9B> (A)	1-82678-174-3	01	1	0710-
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	8-97607-307-1	01	1	0710-0806
6	HARNESS; FRAME 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	8-98122-928-0	01	1	0807-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	0710-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0710-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0710-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0710-
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0710-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1201
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1201
419	BOLT; CAB EARTH (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0710-0809
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0810-1201
419	BOLT; CAB EARTH (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1201
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0810-1201
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0710-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0710-

467 255 92 533 13 672 247 419 450 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97617-391-0	01	1	0710-
13	HARNESS; ENG 6WF1 TC-C(1B8) (B)	8-97617-395-0	01	1	0710-1004
13	HARNESS; ENG 6WF1 TC-C(1B8) (B)	8-98169-641-0	01	1	1005-
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0710-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA), AIR BAG<TFQ> (B)	8-97642-246-0	01	1	1111-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-901-0	01	1	0710-0802
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	8-97625-969-0	01	1	0803-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-970-1	01	1	0710-1110
92	HARNESS; FLOOR 6WF1 TC-C(1B8) DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-970-1	01	1	1111-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-971-1	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	0710-1210
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-98229-074-0	01	1	1211-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	8-97622-972-1	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	8-97619-666-2	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	0710-
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0710-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0710-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0710-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0810-1201
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1201
419	BOLT; CAB EARTH (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1202-
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0710-0809
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0810-1201
419	BOLT; CAB EARTH (A) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0810-1201
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1202-
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-0809
419	BOLT; CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0810-1201
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0710-
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=8.4	1-09503-264-0	04	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (B)	8-97642-244-0	01	1	1111-
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B)	8-97622-964-1	01	1	0710-1110
467	HARNESS; FACIA 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (B)	8-97622-964-1	01	1	1111-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97618-829-2	01	1	0710-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97622-965-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97634-129-0	01	1	0908-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97622-967-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97634-131-0	01	1	0908-
533	CLIP 6WF1 TC-C(1B8) ID=31 L=35	1-09700-329-1	01	1	0710-
533	CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) ID=31 L=35	1-09700-329-1	01	1	0710-
533	CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) ID=28 & 34 L=63	1-09701-310-0	01	1	0710-
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0710-
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0710-1309
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-

436

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	436	HARNESS; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82677-629-0	01	1	0710-

92 92 467 467 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82678-323-0	02	1	0710-
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82677-628-3	02	1	0710-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W),DRIVER ISRINGHAUSEN SEAT(SJA), AIR BAG<TFQ> (B)	8-97642-246-0	01	1	1111-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-901-0	01	1	0710-0802
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	8-97625-969-0	01	1	0803-
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-970-1	01	1	0710-1110
92	HARNESS; FLOOR 6WF1 TC-C(1B8) DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-970-1	01	1	1111-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	8-97622-971-1	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-97619-669-1	01	1	0710-1210
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (A)	8-98229-074-0	01	1	1211-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	8-97622-972-1	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	8-97619-666-2	01	1	0710-
92	HARNESS; FLOOR 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (A)	8-97619-667-1	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (B)	8-97642-244-0	01	1	1111-
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B)	8-97622-964-1	01	1	0710-1110
467	HARNESS; FACIA 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (B)	8-97622-964-1	01	1	1111-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97618-829-2	01	1	0710-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97622-965-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97634-129-0	01	1	0908-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97622-967-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97634-131-0	01	1	0908-

467 467 266 267 467 467 265 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0710-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0710-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0710-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) CHEAPER CAB(WY1) EXC. SMOOTHER-G(C1W),AIR BAG<TFQ> (B)	8-97642-244-0	01	1	1111-
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0710-
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (B)	8-97622-964-1	01	1	0710-1110
467	HARNESS; FACIA 6WF1 TC-C(1B8) AIR BAG<TFQ> EXC. SMOOTHER-G(C1W),CHEAPER CAB(WY1) (B)	8-97622-964-1	01	1	1111-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	8-97618-829-2	01	1	0710-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97622-965-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) SMOOTHER-G(C1W) (B)	8-97634-129-0	01	1	0908-
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97622-967-3	01	1	0710-0907
467	HARNESS; FACIA 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. SMOOTHER-G(C1W) (B)	8-97634-131-0	01	1	0908-

231 453 175 95 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W)	1-82639-626-0	01	1	0710-
175	BOX; CONNECTOR (B)	1-82699-467-0	01	1	0710-
175	BOX; CONNECTOR MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-82569-435-1	01	1	0710-
231	HARNESS; TRANS MJX16P M/T(Y3Z)	8-97624-216-1	01	1	0710-
231	HARNESS; TRANS 6WF1 TC-C(1B8) FULLER M/T<X9B>	1-82677-185-0	01	1	0710-
231	HARNESS; TRANS 6WG1 TC-C(72L),6WG1 TC-S(97L) FULLER M/T<X9B>	8-97620-988-0	01	1	0710-
453	PROTECTOR; HARNESS MJX16P M/T(Y3Z)	8-98213-847-1	01	1	1207-

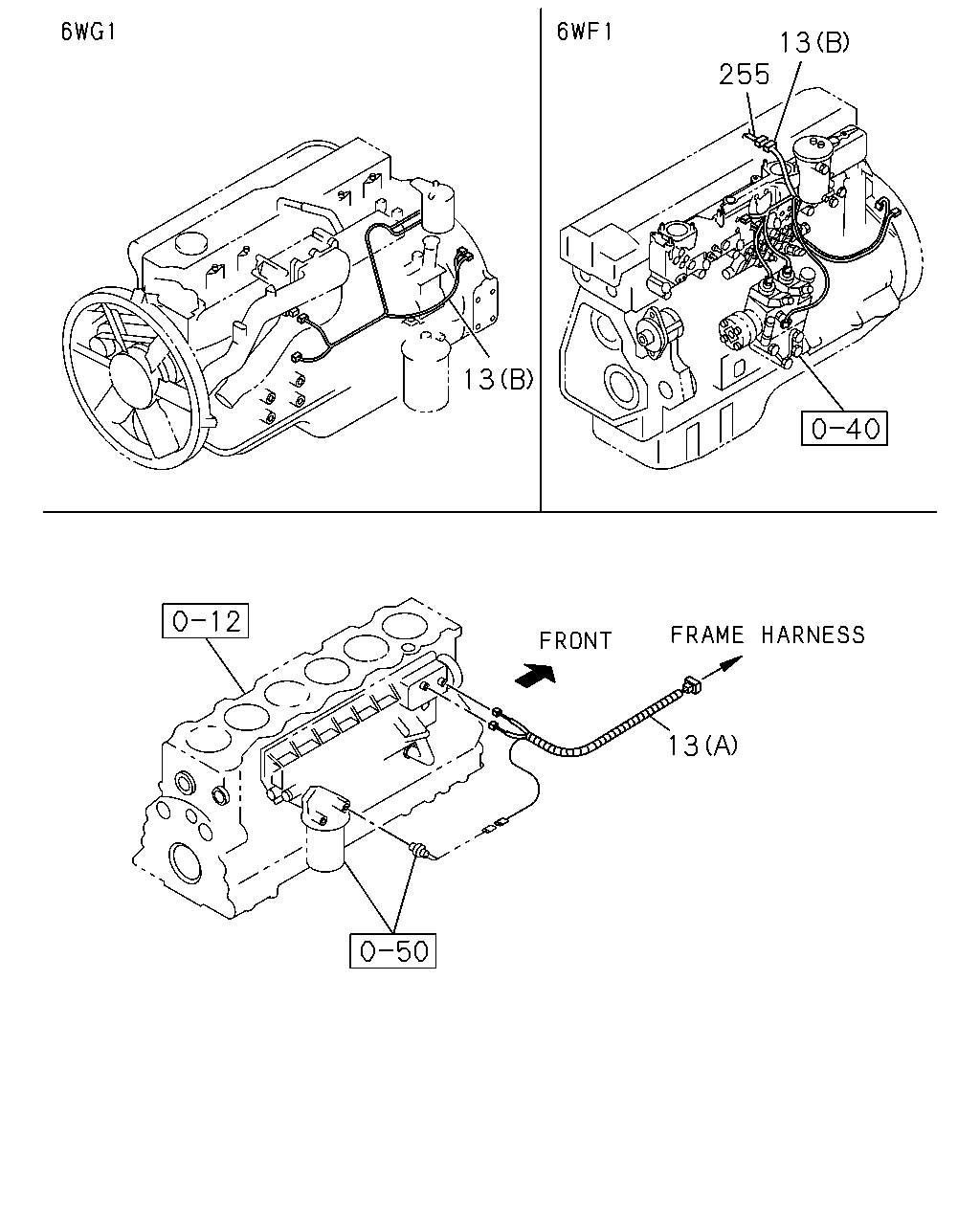

255 13 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97617-391-0	01	1	0710-
13	HARNESS; ENG 6WF1 TC-C(1B8) (B)	8-97617-395-0	01	1	0710-1004
13	HARNESS; ENG 6WF1 TC-C(1B8) (B)	8-98169-641-0	01	1	1005-
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0710-
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0710-
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82662-307-3	01	1	0710-1210
255	HARNESS; ELEC GOV 6WG1 TC-C(72L),6WG1 TC-S(97L)	8-98229-084-0	01	1	1211-

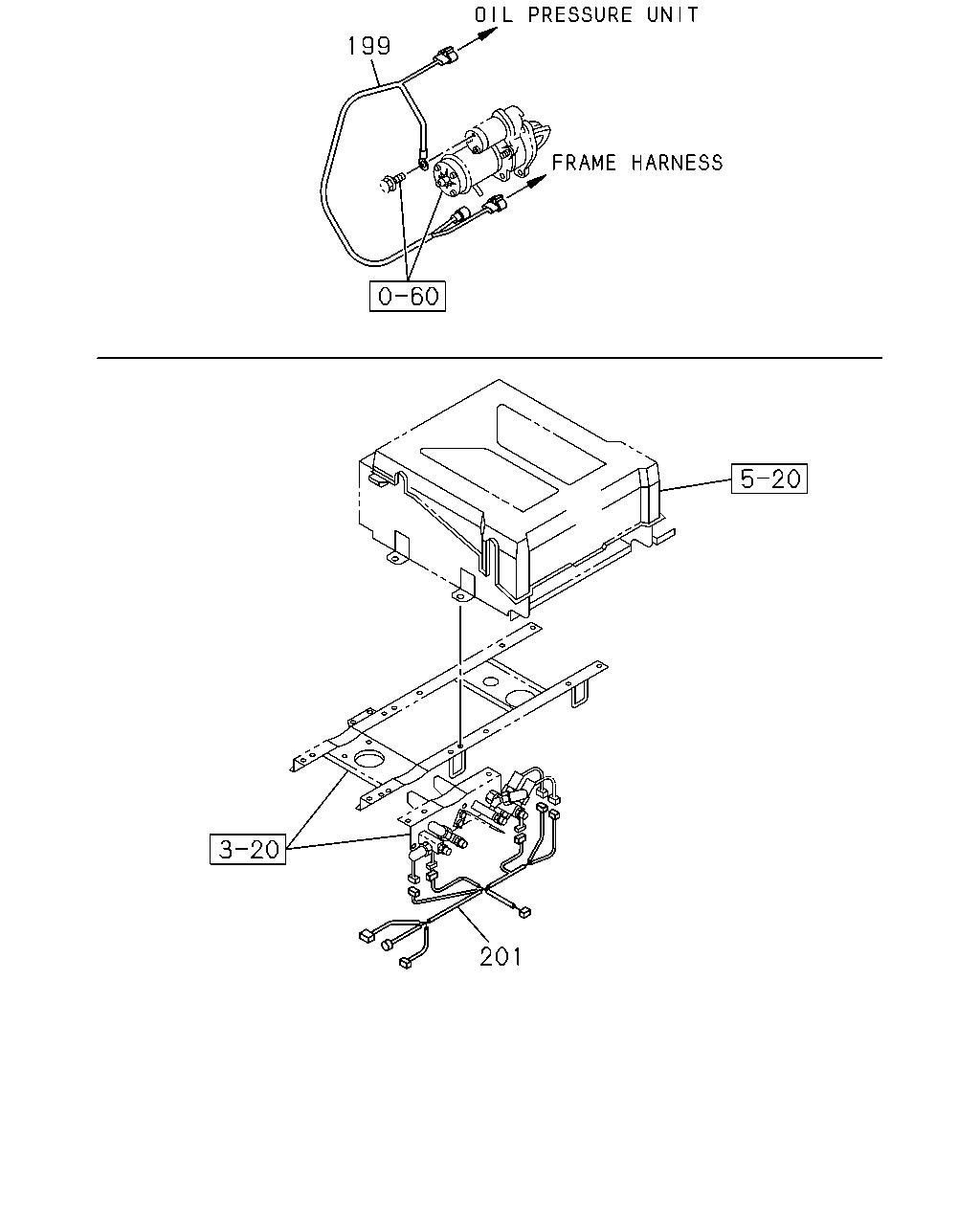

199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	HARNESS; STARTER 6WF1 TC-C(1B8)	1-82641-329-3	01	1	0710-
199	HARNESS; STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82641-368-2	01	1	0710-
201	HARNESS; AIR TANK	1-82678-176-1	01	1	0710-1112
201	HARNESS; AIR TANK	8-98191-795-0	01	1	1201-

201 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	HARNESS; STARTER 6WF1 TC-C(1B8)	1-82641-329-3	01	1	0710-
199	HARNESS; STARTER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82641-368-2	01	1	0710-
201	HARNESS; AIR TANK	1-82678-176-1	01	1	0710-1112
201	HARNESS; AIR TANK	8-98191-795-0	01	1	1201-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
