◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#67030) — 130 parça

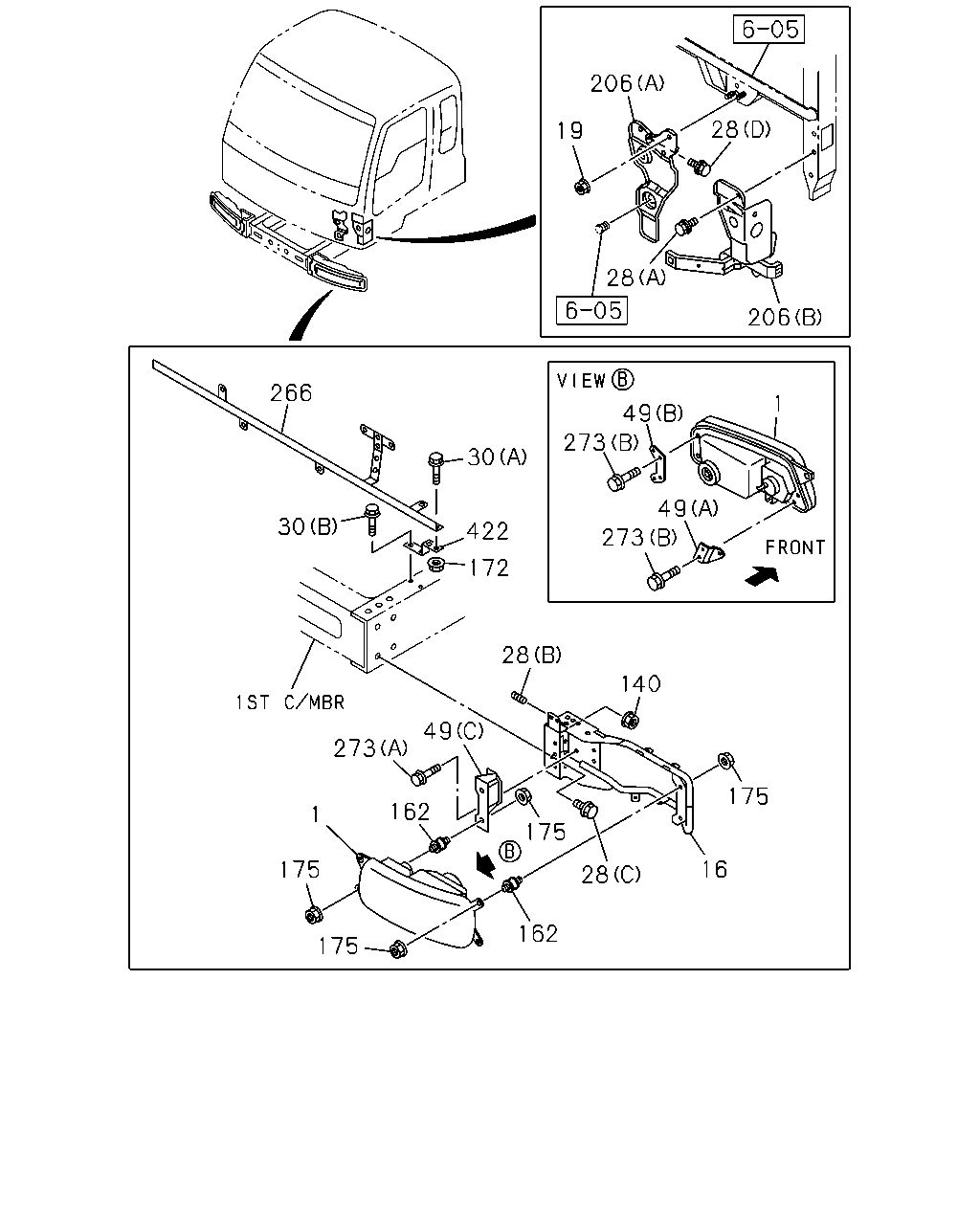

çizim 135746
206 28 19 28 206 49 273 273 49 1 266 30 422 172 30 28 49 273 140 175 16 28 162 175 162 1 175 175
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82110-403-2 01 1 0710-0711
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98097-198-0 01 1 0712-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82110-404-2 01 1 0710-0711
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98097-199-0 01 1 0712-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82110-461-1 01 1 0710-0711
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98097-188-0 01 1 0712-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82110-462-1 01 1 0710-0711
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98097-189-0 01 1 0712-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0710-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0710-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0710-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0710-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710-
30 BOLT; STAY
6WF1 TC-C(1B8) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
30 BOLT; STAY
6WF1 TC-C(1B8) (B) M10X25 FLANGE 		0-28651-025-0 04 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0710-
172 NUT; STAY
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0710-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0710-
266 STAY; BRKT,HEADLAMP
6WF1 TC-C(1B8) 		1-82117-182-0 01 1 0710-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0710-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0710-
422 BRACKET; HEADLAMP STAY
6WF1 TC-C(1B8) 		1-82698-605-0 02 1 0710-
çizim 135857
1 12 5 14 23 18 202 202 339 338 13 4 211 13 340
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82110-403-2 01 1 0710-0711
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98097-198-0 01 1 0712-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82110-404-2 01 1 0710-0711
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98097-199-0 01 1 0712-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82110-461-1 01 1 0710-0711
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98097-188-0 01 1 0712-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82110-462-1 01 1 0710-0711
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98097-189-0 01 1 0712-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82119-173-0 01 1 0710-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-82119-174-0 01 1 0710-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82119-214-0 01 1 0710-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-82119-215-0 01 1 0710-
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> 24V 75/70W 		1-82194-063-0 02 1 0710-
12 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		1-82118-014-0 02 1 0710-
13 CLIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		8-94381-588-0 14 1 0710-
13 CLIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		1-82119-084-0 04 1 0710-0711
13 CLIP; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> (A) 		1-82119-084-0 02 1 0710-0711
13 CLIP; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 		1-82119-084-0 02 1 0712-
14 CAP; BULB,LAMP
HALOGEN HEADLAMPS<TT5> 		1-86830-148-0 02 1 0710-
18 SCREW; GEAR CASE
HALOGEN HEADLAMPS<TT5> M4X16 TAPPING 		1-82119-067-0 08 1 0710-
23 COVER; BULB,HEADLAMP
HALOGEN HEADLAMPS<TT5> 		1-86830-147-0 02 1 0710-
202 GEAR UNIT; HEADLAMP
HALOGEN HEADLAMPS<TT5> 		1-86830-139-0 04 1 0710-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		1-86830-330-0 01 1 0710-0711
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		1-86830-331-0 01 1 0710-0711
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		8-98101-138-0 01 1 0712-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98010-256-0 02 1 0710-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		1-86830-158-0 02 1 0710-
340 BULB; POSITION
HALOGEN HEADLAMPS<TT5> 24V 5W 		1-82194-042-0 02 1 0710-

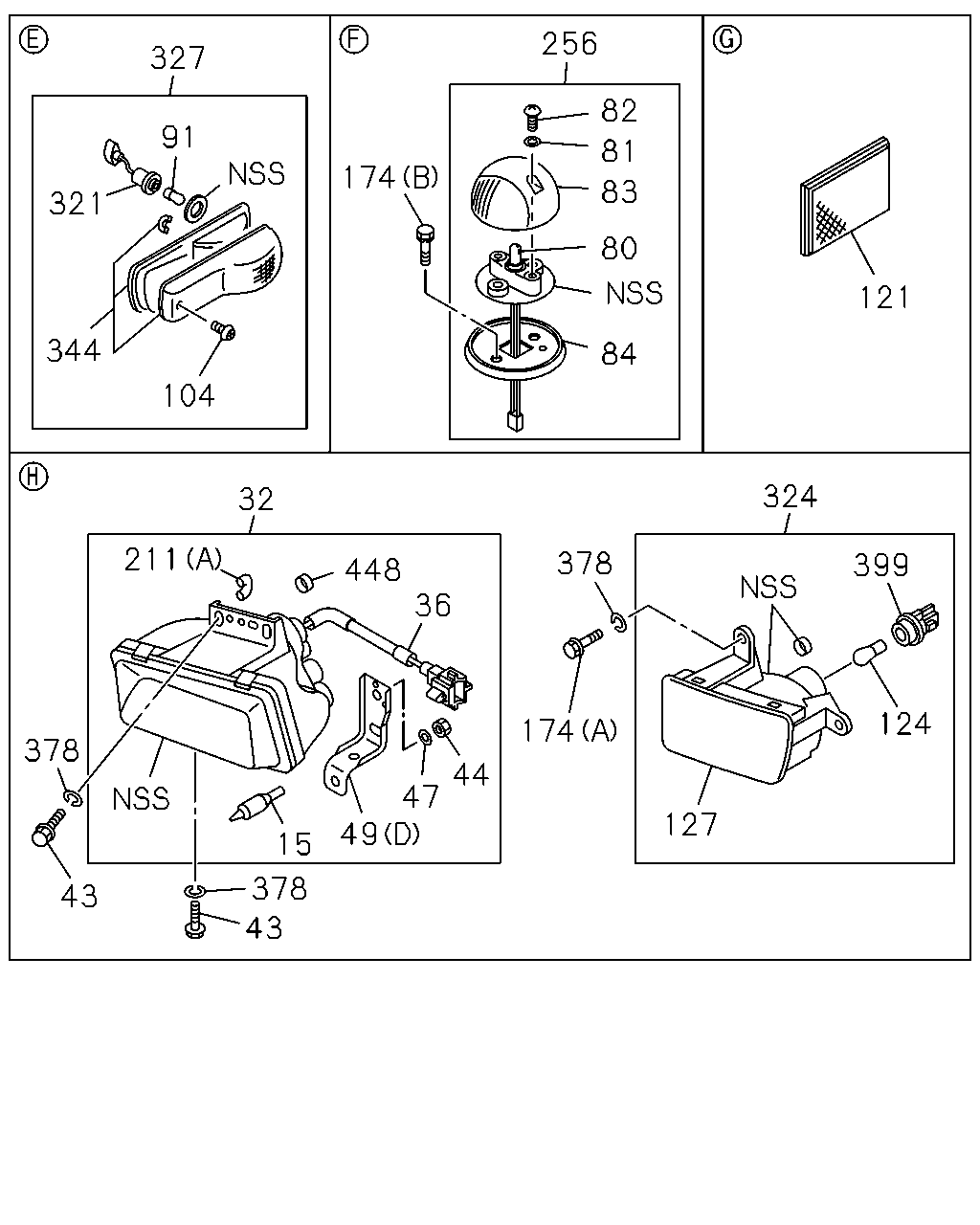

çizim 136252
327 91 321 104 344 174 256 82 83 81 80 84 121 324 399 124 127 174 378 49 44 47 15 378 43 43 378 211 448 36 32
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710-
32 LAMP ASM; FOG 1-82110-454-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0710-
36 CORD; FOG LAMP 1-82118-015-0 01 1 0710-
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0710-
43 BOLT; FOG LAMP
FRONT SPOILER<VP1> M8X20 FLANGE 		0-28650-820-0 02 1 0710-
43 BOLT; FOG LAMP
EXC. FRONT SPOILER<VP1> M6X20 FLANGE 		0-28650-620-0 02 1 0710-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710-
81 SEAT; SCREW 1-82219-012-0 04 1 0710-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710-
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0710-
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0710-
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0710-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0710-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0710-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0710-
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		1-86830-330-0 01 1 0710-0711
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		1-86830-331-0 01 1 0710-0711
211 TUBE; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 		8-98101-138-0 01 1 0712-
256 LAMP; MARKER 1-86830-242-3 02 1 0710-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0710-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0710-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-364-0 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-363-0 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-368-0 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-367-0 01 1 0710-
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0710-
378 WASHER; PL
EXC. FRONT SPOILER<VP1> ID=6.4 		0-91610-606-0 02 1 0710-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0710-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-

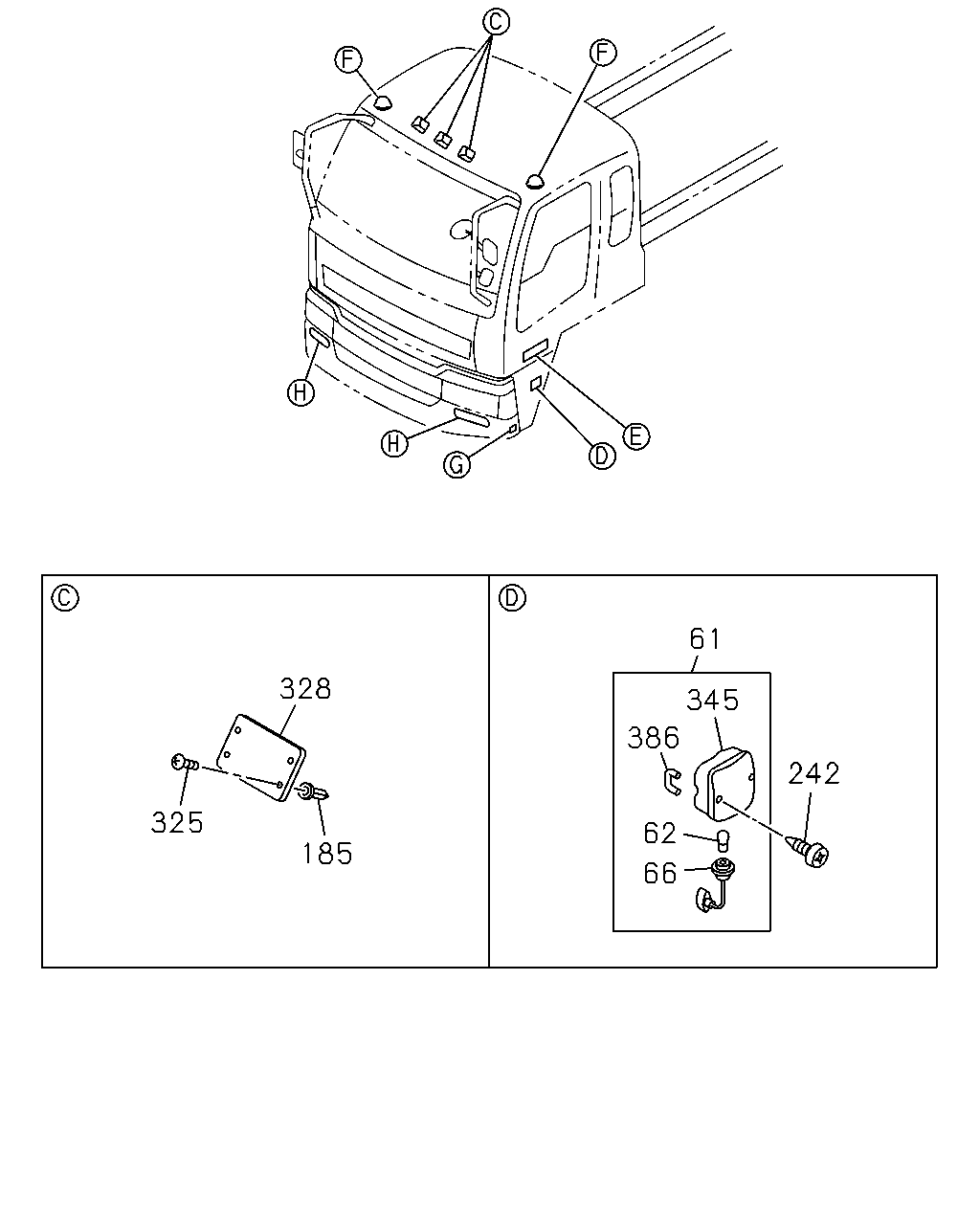

çizim 136512
328 185 325 386 61 345 242 62 66
BalonParca AdiParca NoAdetTipApplied Date
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 		8-98024-495-2 01 1 0710-
61 LAMP ASM; CORNERING
CORNERING LAMP<TDS> 		8-98024-494-2 01 1 0710-
62 BULB; CORNERING LAMP
CORNERING LAMP<TDS> 24V 21W 		1-82194-036-0 02 1 0710-
66 HARNESS; CORNERING LAMP
CORNERING LAMP<TDS> 		1-86830-146-0 02 1 0710-
185 GROMMET; SCREW
LOW ROOF<6XQ> M5 SCREW GROMMET 		1-09983-131-0 12 1 0710-
242 SCREW; CORNERING LAMP
CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0710-
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 0710-
328 COVER; LAMP
LOW ROOF<6XQ> 		1-76217-122-1 03 1 0710-
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-042-0 01 1 0710-
345 LAMP UNIT; CORNERING
CORNERING LAMP<TDS> 		8-98004-041-0 01 1 0710-
386 TUBE; CORNERING LAMP
CORNERING LAMP<TDS> 		8-94451-175-0 02 1 0710-
