◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#67027) — 200 parça

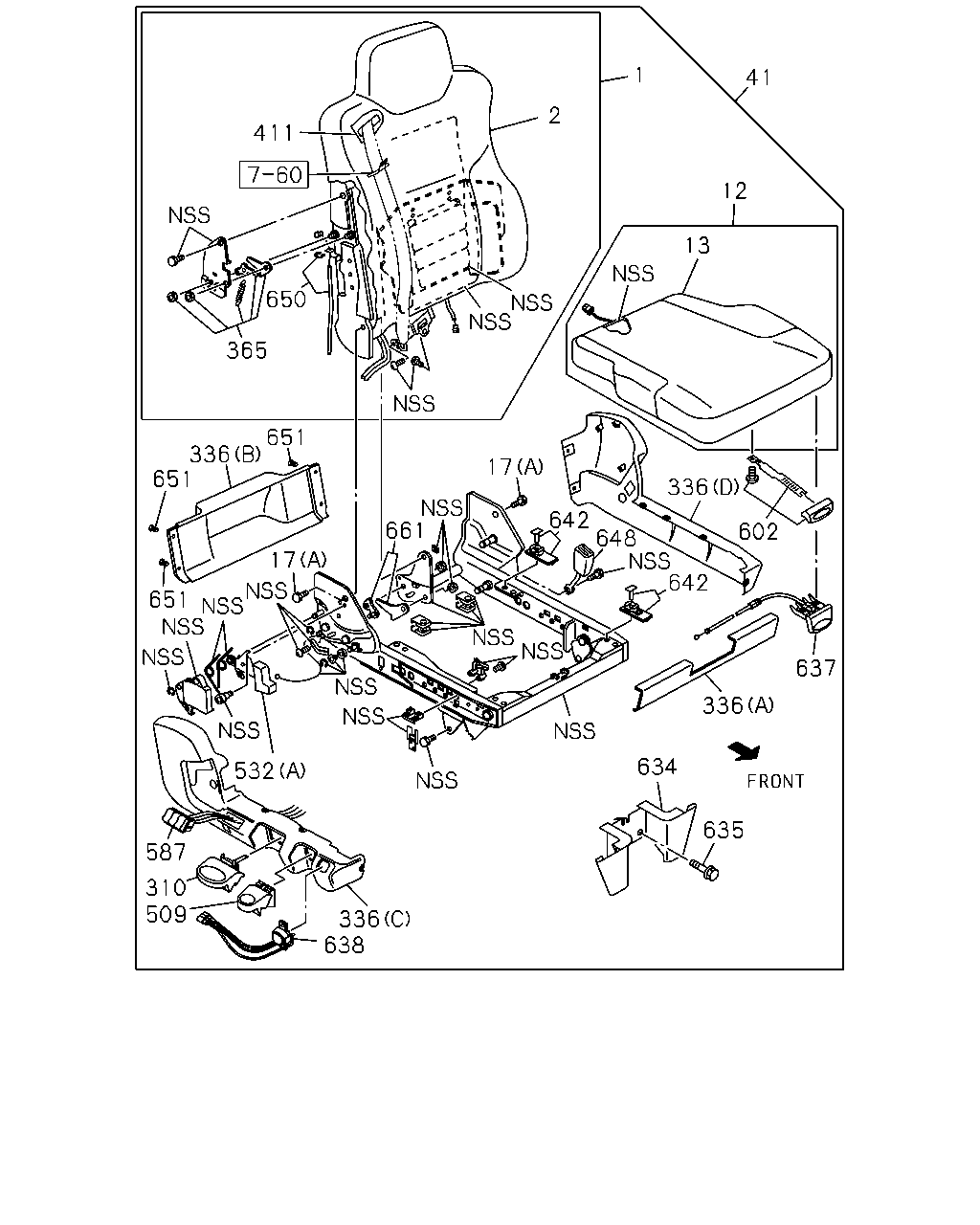

çizim 134243
1 41 2 411 650 365 13 17 661 17 651 336 651 651 642 648 642 602 336 637 336 634 635 532 587 310 509 336 638 12
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-064-0 01 1 1111-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98097-964-0 01 1 0710-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98097-963-0 01 1 0710-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-083-0 01 1 1111-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-966-0 01 1 0710-1212
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-042-0 01 1 1111-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-006-0 01 1 0710-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-074-0 01 1 1111-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-007-0 01 1 0710-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-974-0 02 1 0710-
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST(TAZ) (B) M8X20 		8-97255-906-0 02 1 1111-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98195-066-1 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-992-0 01 1 0710-
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) (E) 		1-75518-316-0 01 1 1111-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98097-978-0 01 1 0710-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-984-0 01 1 0710-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-995-0 01 1 0710-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-996-0 01 1 0710-
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-972-0 01 1 0710-
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-967-0 01 1 0710-
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-988-0 01 1 0710-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-203-0 01 1 1111-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-204-1 01 1 1111-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-982-0 01 1 0710-
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-986-0 01 1 0710-
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-008-0 01 1 0710-
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98088-279-0 01 1 0710-
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) M6X16 		0-52000-616-0 02 1 0710-
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-989-0 01 1 0710-
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-994-0 01 1 0710-
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98192-932-0 04 1 0710-
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-976-0 01 1 0710-
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-973-0 01 1 0710-1212
650 CABLE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98232-354-0 01 1 1301-
651 RIVET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98194-075-0 04 1 0710-
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-980-0 01 1 0710-

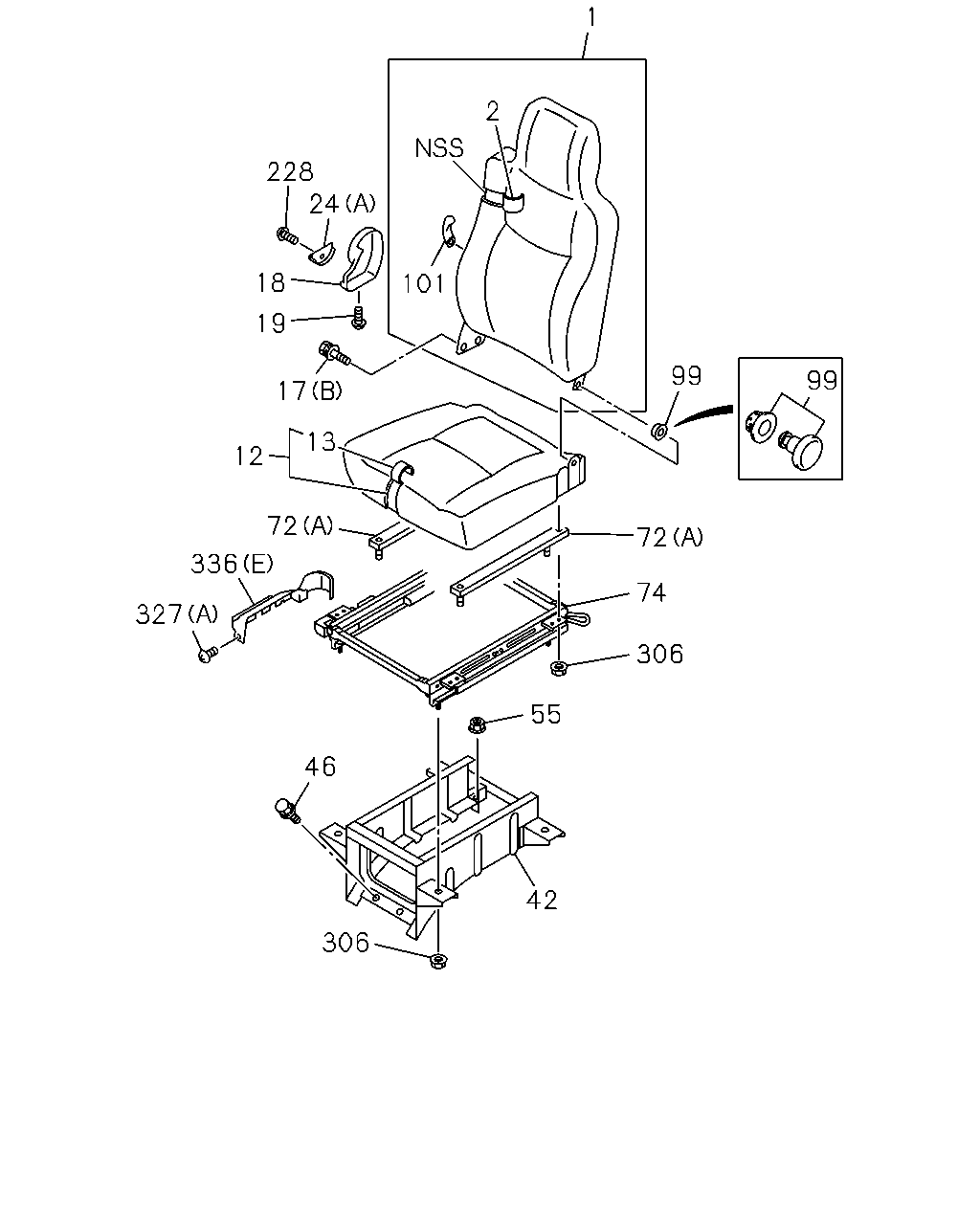

çizim 135047
1 2 101 228 18 17 19 13 12 72 336 327 46 306 55 42 306 74 72 99 99 24
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-064-0 01 1 1111-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98097-964-0 01 1 0710-
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98097-963-0 01 1 0710-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-083-0 01 1 1111-
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-966-0 01 1 0710-1212
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-042-0 01 1 1111-
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-006-0 01 1 0710-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST(TAZ) 		8-98168-074-0 01 1 1111-
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-007-0 01 1 0710-
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-974-0 02 1 0710-
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST(TAZ) (B) M8X20 		8-97255-906-0 02 1 1111-
18 COVER; RECLINING
RIGID SEAT WO/ARM REST(TAZ) DARK GRAY 		8-97867-020-0 01 1 1111-
19 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 1111-
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75418-066-0 01 1 1111-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0710-
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-347-0 01 1 0710-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 1111-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0710-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75517-911-0 02 1 1111-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-334-1 02 1 1111-1502
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75517-959-3 01 1 1111-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-642-0 01 1 1503-
99 BUSHING; SEAT BACK
RIGID SEAT WO/ARM REST(TAZ) 		8-97854-087-0 01 1 1111-
101 LEVER ASM; LUMBAR
RIGID SEAT WO/ARM REST(TAZ) 		5-75190-138-0 01 1 1111-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710-1110
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1111-
228 SCREW; KNOB
RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1111-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 18 1 1111-
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-09987-273-0 01 1 1111-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-004-0 01 1 0710-
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0710-
336 COVER; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) (E) 		1-75518-316-0 01 1 1111-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98097-978-0 01 1 0710-1508
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98097-984-0 01 1 0710-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-995-0 01 1 0710-
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98097-996-0 01 1 0710-

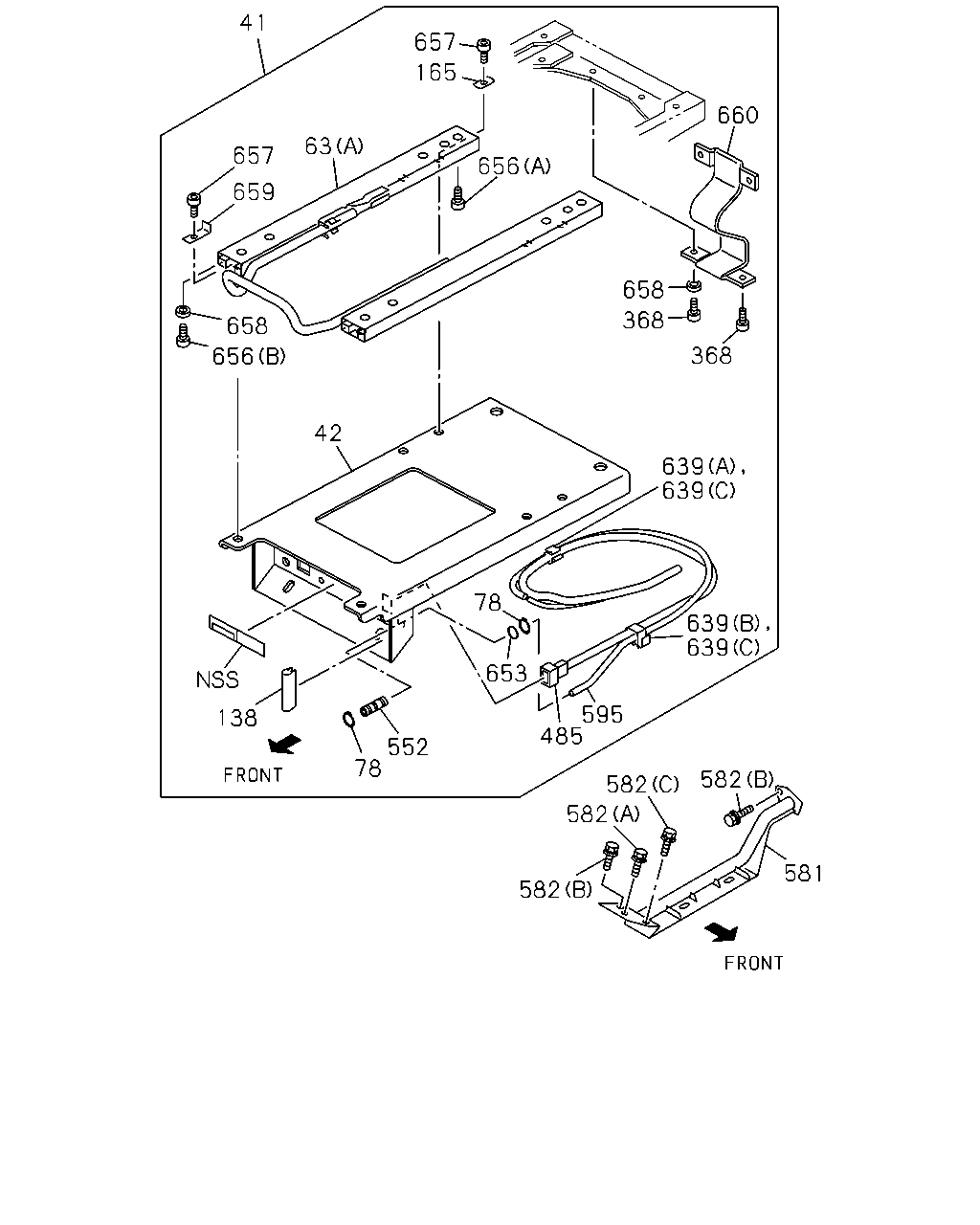

çizim 135092
41 657 63 165 657 656 660 659 658 658 368 656 42 639 78 639 639 639 595 653 485 552 78 138 582 582 582 581 582 368
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98195-066-1 01 1 1301-
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-347-0 01 1 0710-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 1111-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-199-1 01 1 1111-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-323-0 01 1 1111-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-005-0 01 1 0710-
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-900-0 02 1 0710-
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-351-0 01 1 0710-
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-086-0 04 1 0710-
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-353-0 04 1 0710-
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98106-360-0 01 1 0710-
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98106-361-0 01 1 0710-
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-902-0 01 1 0710-1508
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98308-101-0 01 1 1509-
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73907-605-2 01 1 0710-1110
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CHEAPER CAB(WY1) 		1-73907-605-2 01 1 1111-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 0710-1110
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CHEAPER CAB(WY1) (B) 		1-09980-619-1 02 1 1111-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-1110
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CHEAPER CAB(WY1) (A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1111-
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710-1110
582 BOLT; PIPE,SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CHEAPER CAB(WY1) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 1111-
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-348-0 01 1 0710-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98106-349-0 01 1 0710-1508
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-350-0 01 1 0710-1508
653 GASKET
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98101-901-0 01 1 0710-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-75590-085-0 04 1 0710-
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) (B) 		8-98106-354-0 02 1 0710-
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75590-085-0 06 1 0710-
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-355-0 02 1 0710-
659 STOPPER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-356-0 02 1 0710-
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98106-357-0 01 1 0710-

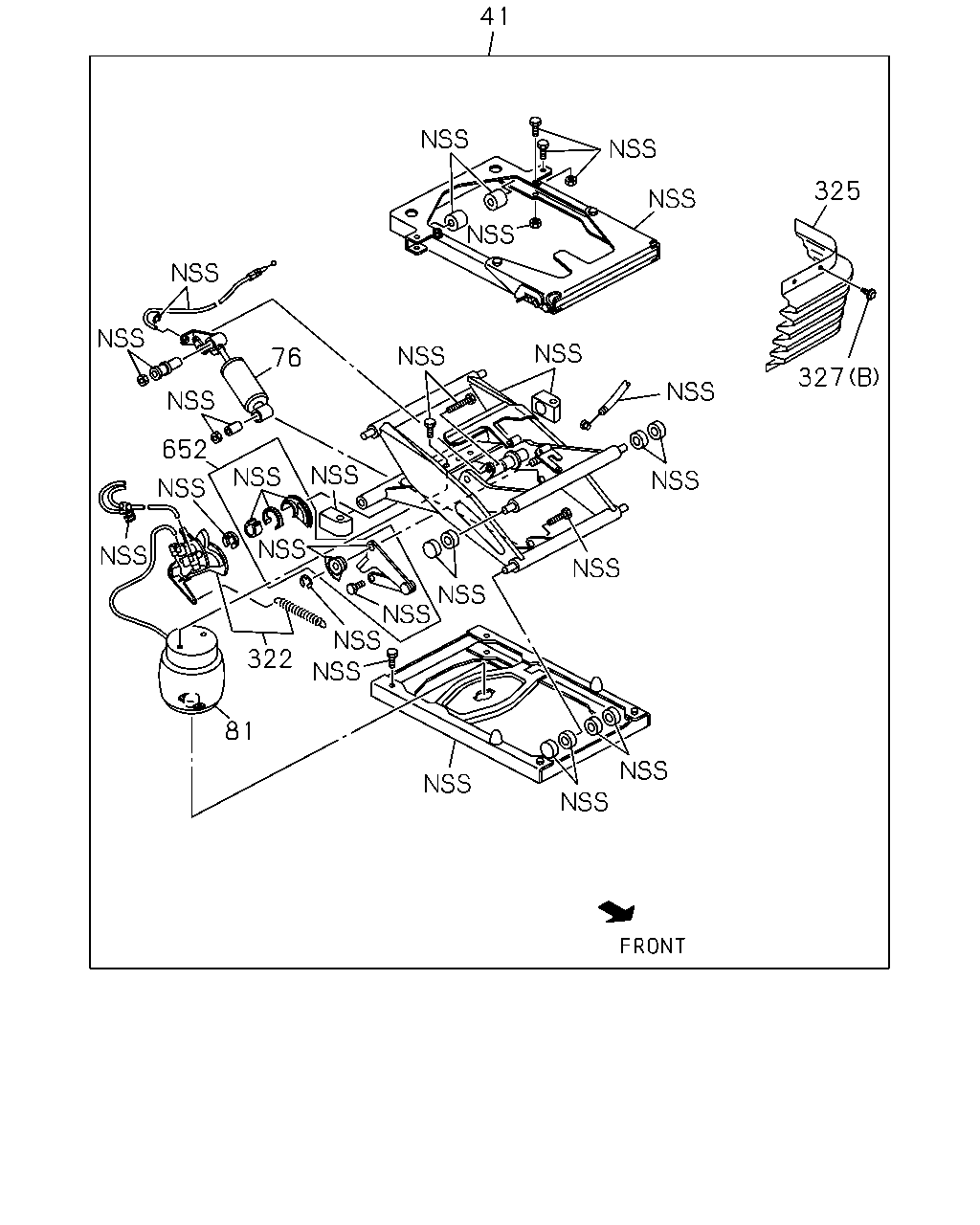

çizim 135207
327 81 322 652 76 41 325
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98036-942-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) AIR BAG<TFQ> 		8-98195-067-1 01 1 1301-
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98013-721-2 01 1 0710-1212
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. AIR BAG<TFQ> 		8-98195-066-1 01 1 1301-
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98097-999-0 01 1 0710-
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-000-0 01 1 0710-
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-001-0 01 1 0710-1508
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-003-0 01 1 0710-
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-09987-273-0 01 1 1111-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-004-0 01 1 0710-
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0710-
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98098-002-0 01 1 0710-
çizim 192725
74 543 302 518 543 72 518 302 518 72 551 551 201 306 63 63 306 201 518 302 518 302 302 551 302 551 468 529 468 158 158 471 518 543 518 302 278 532 51 512 51 51 512 51 468 468 532 278 518 278 518 518 543 543 302
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-325-1 04 1 1111-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-199-1 01 1 1111-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-323-0 01 1 1111-
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-005-0 01 1 0710-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75517-911-0 02 1 1111-
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-334-1 02 1 1111-1502
72 SPACER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		1-75517-959-3 01 1 1111-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) 		8-98291-642-0 01 1 1503-
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-209-0 02 1 1111-
201 CABLE; ADJ
RIGID SEAT WO/ARM REST(TAZ) (A) L=667 		1-75518-288-0 01 1 1111-
201 CABLE; ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) L=605 		1-75518-289-1 01 1 1111-
278 COLLAR; FRT SEAT
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-244-0 03 1 1111-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-266-2 02 1 1111-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-270-1 04 1 1111-1502
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-336-1 02 1 1111-
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE 		1-75538-207-0 18 1 1111-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-206-0 01 1 1111-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-207-0 01 1 1111-
468 SPRING; RETURN
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-208-0 02 1 1111-
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		8-98107-869-0 01 1 1111-
512 COVER; LEVER
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-243-1 02 1 1111-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-263-0 01 1 1111-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (C) M8 		1-75518-264-0 04 1 1111-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (D) M6 LOCK NUT 		5-09984-020-0 02 1 1111-
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST(TAZ) (B) M8 FLANGE 		8-94152-886-0 04 1 1111-
529 PIN; LINK
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-262-0 01 1 1111-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75518-203-0 01 1 1111-
532 LEVER ASM; TILT
RIGID SEAT WO/ARM REST(TAZ) (C) 		1-75518-204-1 01 1 1111-
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98097-982-0 01 1 0710-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75518-335-0 02 1 1111-1502
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT WO/ARM REST(TAZ) (B) ID=8.4 		9-09160-508-0 04 1 1111-
551 SLIDER; HEIGHT ADJ
RIGID SEAT WO/ARM REST(TAZ) 		1-75518-265-0 04 1 1111-

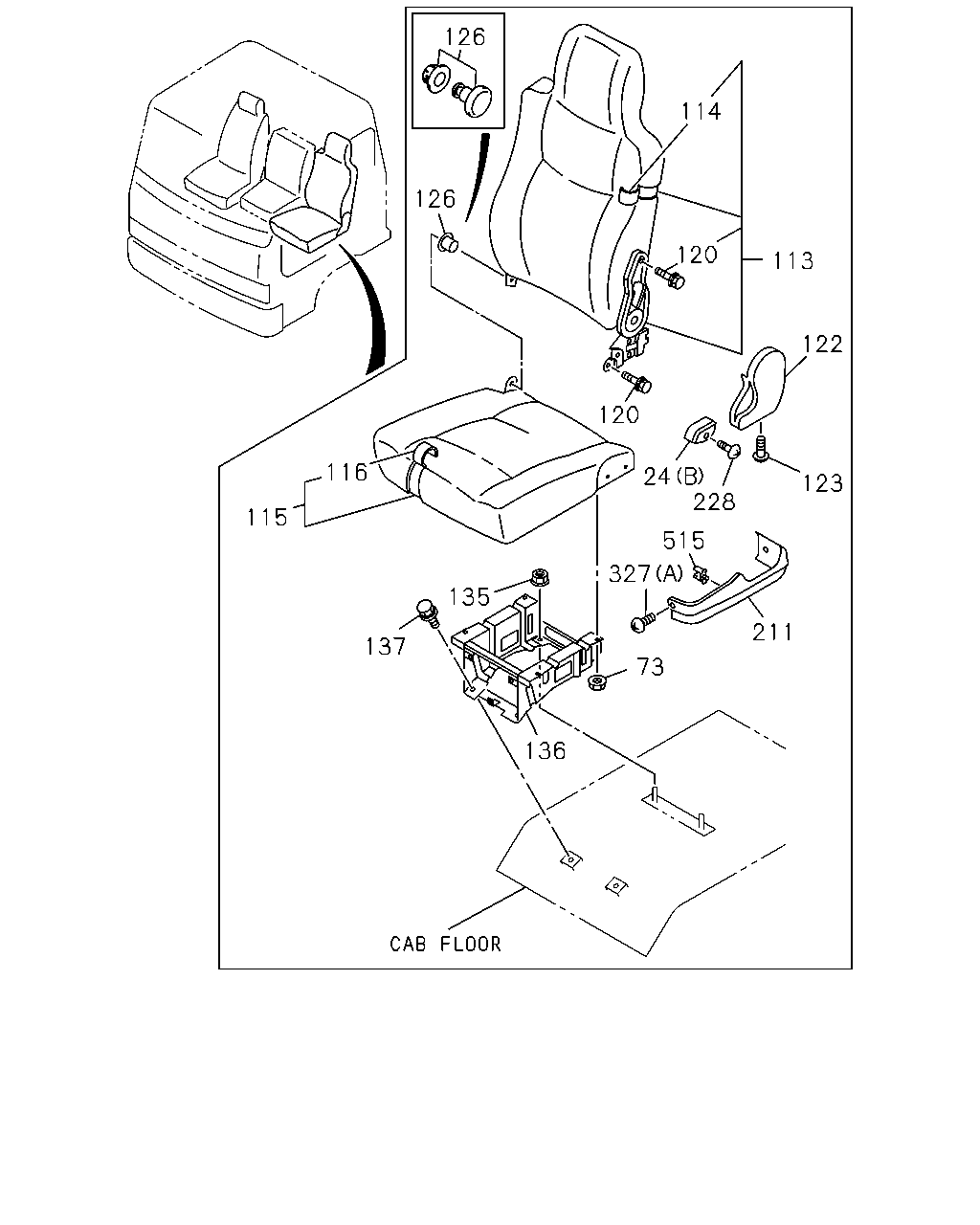

çizim 322076
126 114 113 122 123 211 73 136 137 135 116 115 126 120 120 24 515 228 327
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST(TAZ) (A) 		1-75418-066-0 01 1 1111-
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0710-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0710-
113 BACK ASM; SEAT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98168-274-0 01 1 1111-
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98054-773-0 01 1 0710-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98168-290-0 01 1 1111-
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98054-777-0 01 1 0710-
115 CUSHION ASM; PASSENGER SEAT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98168-126-0 01 1 1111-
115 CUSHION ASM; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		8-98054-770-0 01 1 0710-
115 CUSHION ASM; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-771-0 01 1 0710-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98168-139-0 01 1 1111-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
REMOTE CONT DOOR LOCK<SLG> 		8-98054-775-0 01 1 0710-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-776-0 01 1 0710-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0710-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0710-
123 SCREW; COVER,RECLINING
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 1111-
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0710-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0710-
136 STAND; PASSENGER SEAT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		1-75558-602-3 01 1 1111-1305
136 STAND; PASSENGER SEAT
EXC. DRIVER ISRINGHAUSEN SEAT(SJA) 		8-98242-299-0 01 1 1306-
136 STAND; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		1-75558-601-3 01 1 0710-1305
136 STAND; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		8-98242-298-0 01 1 1306-
136 STAND; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-75558-550-7 01 1 0710-1305
136 STAND; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98242-292-0 01 1 1306-
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0710-
211 COVER; FRT SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-72538-274-0 01 1 0710-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710-1110
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1111-
228 SCREW; KNOB
RIGID SEAT WO/ARM REST(TAZ) M4 		8-98062-662-0 01 1 1111-
327 CLIP; COVER
RIGID SEAT WO/ARM REST(TAZ) (B) 		1-09987-273-0 01 1 1111-
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		8-98098-004-0 01 1 0710-
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0710-
515 CLIP; PIPE
EXC. REMOTE CONT DOOR LOCK<SLG> BLACK 		8-94227-248-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
