7-45 — CONSOLE BOX (#67026) — 59 parça

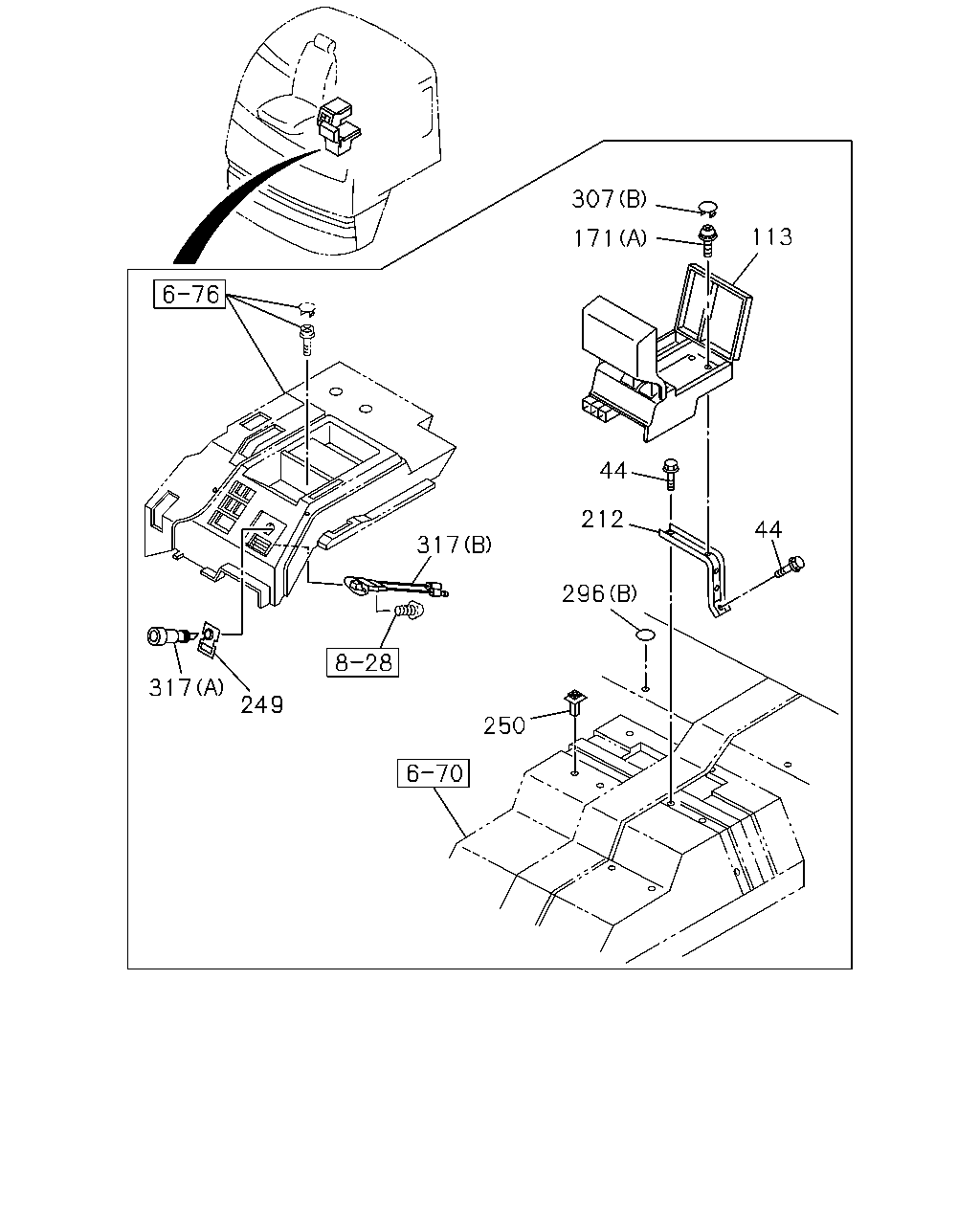

çizim 134056
307 171 113 44 212 44 296 250 317 249 317
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0710-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0710-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0710-
249 COVER 1-82529-001-0 01 1 0710-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0710-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0710-
317 CONSENT
(B) 		1-82523-020-2 01 1 0710-
317 CONSENT
(A) 		8-94382-451-1 01 1 0710-

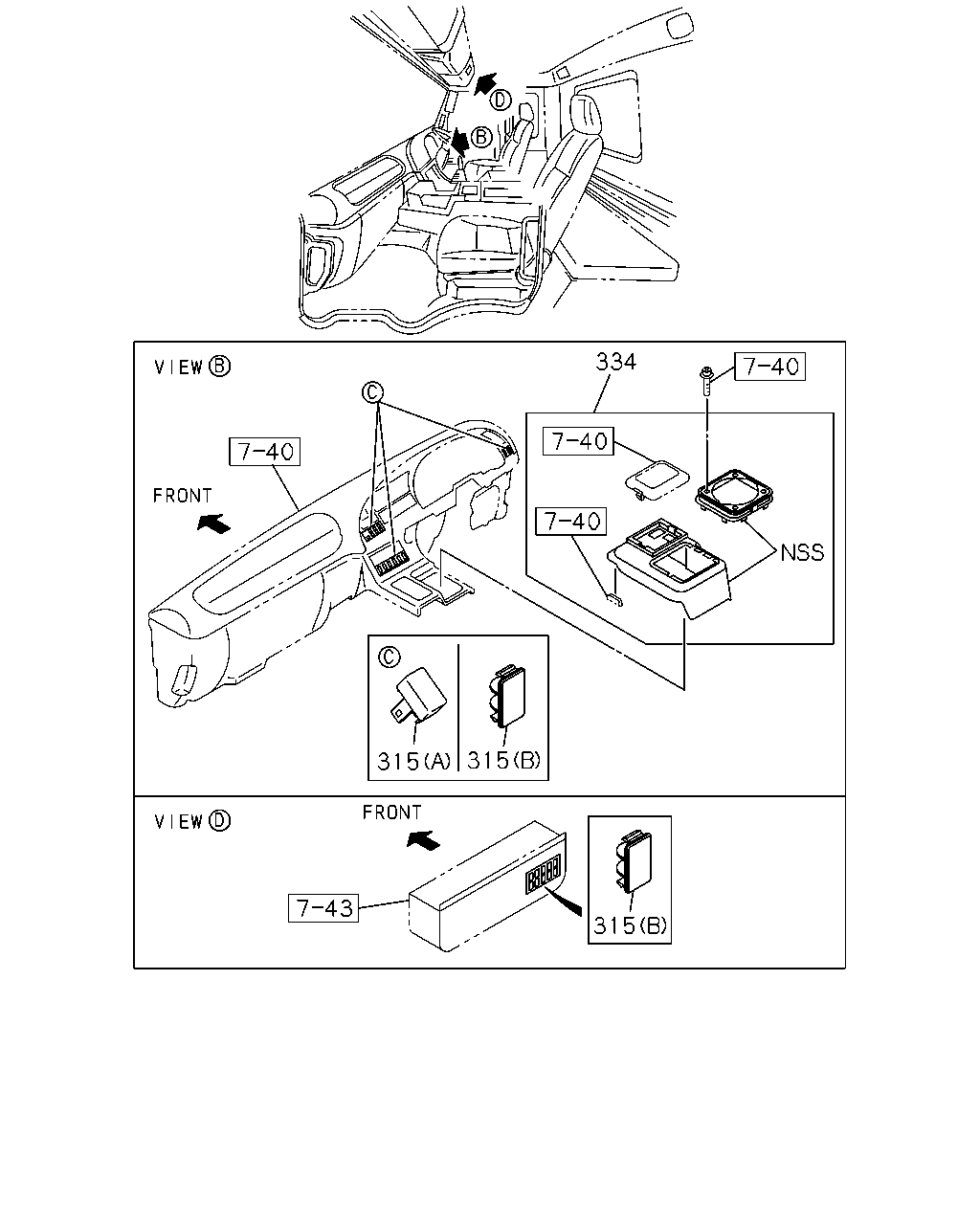

çizim 134134
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 13 1 0710-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0710-
315 COVER; HOLE,SW
EXC. SMOOTHER-G(C1W) (A) 		1-82359-069-2 03 1 0710-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-82359-069-2 01 1 0710-1110
315 COVER; HOLE,SW
EXC. AUTO CRUISE W/RESUME<NKA> (A) 		1-82359-069-2 01 1 0710-1110
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-82359-069-2 01 1 1111-
315 COVER; HOLE,SW
EXC. AUTO CRUISE W/RESUME<NKA> (A) 		1-82359-069-2 01 1 1111-
315 COVER; HOLE,SW
CHEAPER CAB(WY1) (A) 		1-82359-069-2 01 1 1111-
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0710-

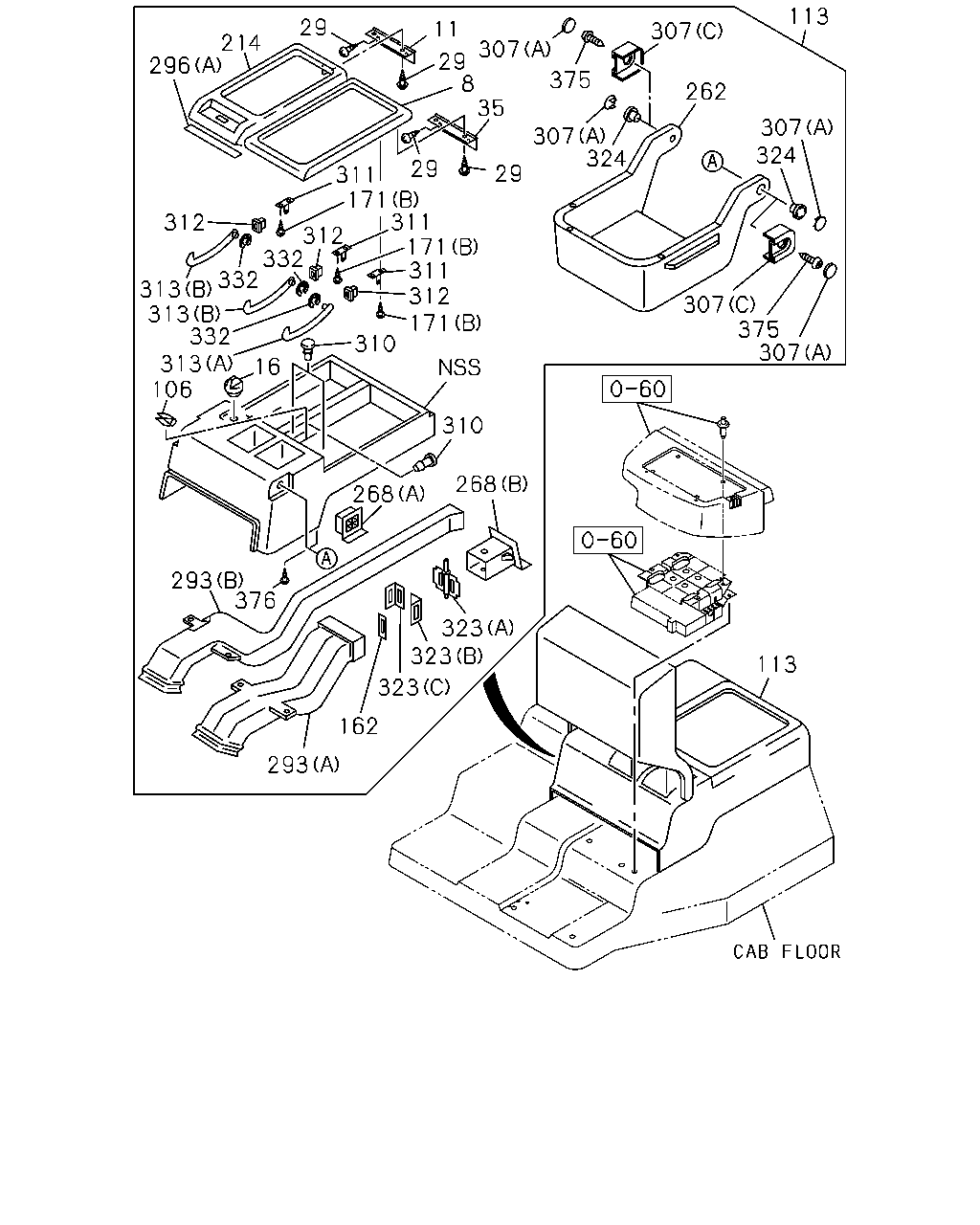

çizim 192598
296 214 29 11 29 8 35 307 375 307 307 262 113 307 324 307 375 307 29 29 311 311 171 311 312 171 310 312 332 312 313 332 313 332 313 106 16 310 268 268 293 376 323 323 323 162 293 113 171
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0710-
11 HINGE; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0710-
16 KNOB ASM
COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0710-
29 SCREW; HINGE
COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0710-
35 HINGE; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0710-
106 LOCK; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0710-
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0710-
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0710-
162 CUSHION; PARCEL BOX
COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0710-
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0710-
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0710-
214 LID; CONSOLE
COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0710-
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0710-
268 COVER; DUCT
COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0710-
268 COVER; DUCT
COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0710-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0710-
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0710-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0710-
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0710-
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0710-
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0710-
310 CUSHION; CTR CONSOLE
COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0710-
311 HOLDER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0710-
312 STOPPER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0710-
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0710-
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0710-
323 SHUTTER
COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0710-
323 SHUTTER
COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0710-
323 SHUTTER
COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0710-
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0710-
332 RING; SNAP,CONSOLE BOX
COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0710-
375 SCREW; TAP BUSHING
COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0710-
376 SCREW; TAP DUCT
COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0710-
