7-43 — SUN VISOR AND ASSIST GRIP (#67025) — 102 parça

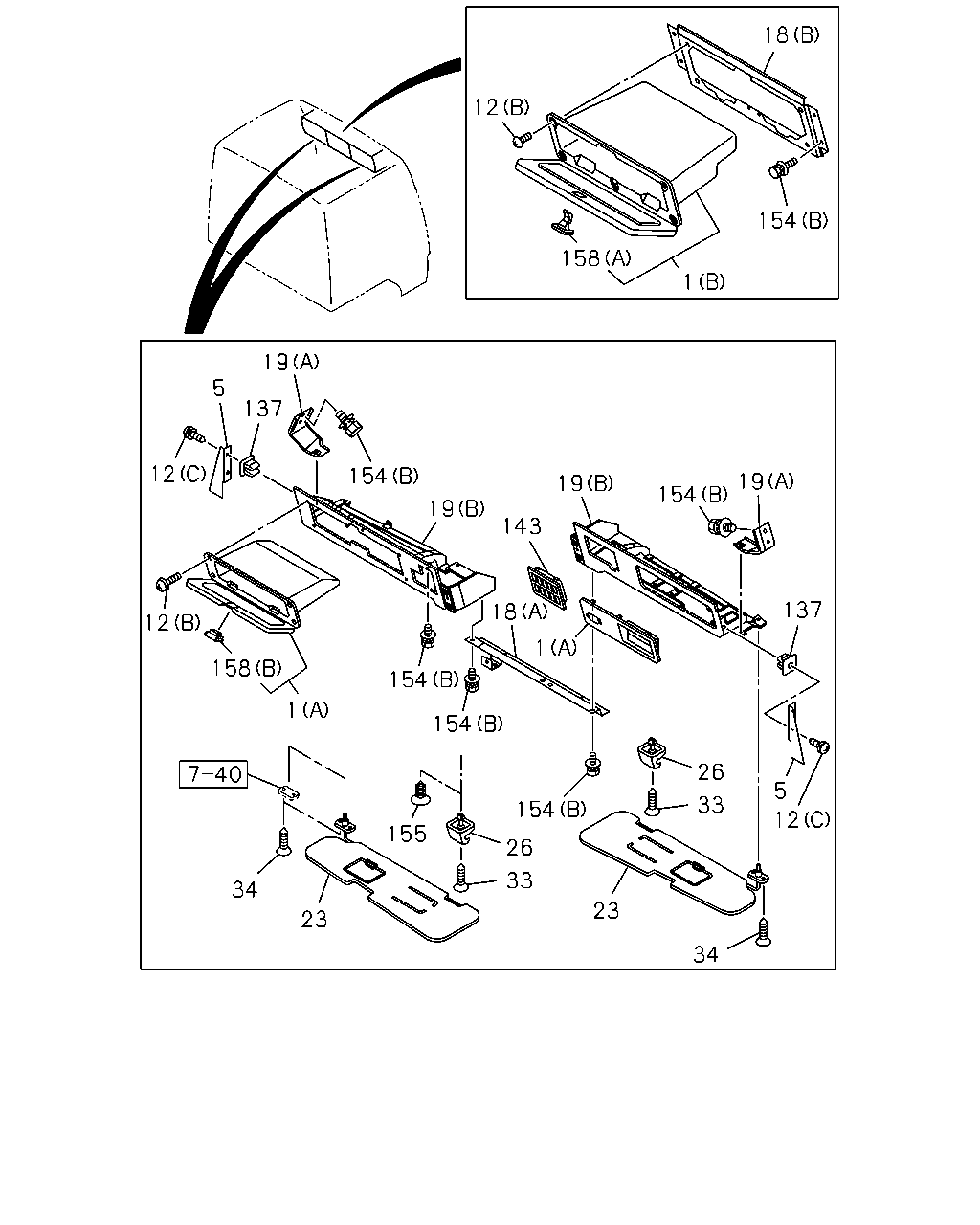

12 18 154 158 1 19 5 137 12 154 19 143 19 154 19 137 18 1 154 154 1 158 12 34 23 155 33 23 34 26 154 33 26 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0710-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0710-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0710-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0710-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0710-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0710-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0710-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0710-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0710-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0710-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0710-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0710-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0710-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0710-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0710-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0710-
23	SUN VISOR 6WF1 TC-C(1B8)	1-73138-156-1	01	1	0710-
23	SUN VISOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73138-162-0	01	1	0710-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0710-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0710-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0710-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0710-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0710-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-
143	BEZEL	1-72447-768-2	01	1	0710-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0710-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0710-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0710-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0710-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0710-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0710-

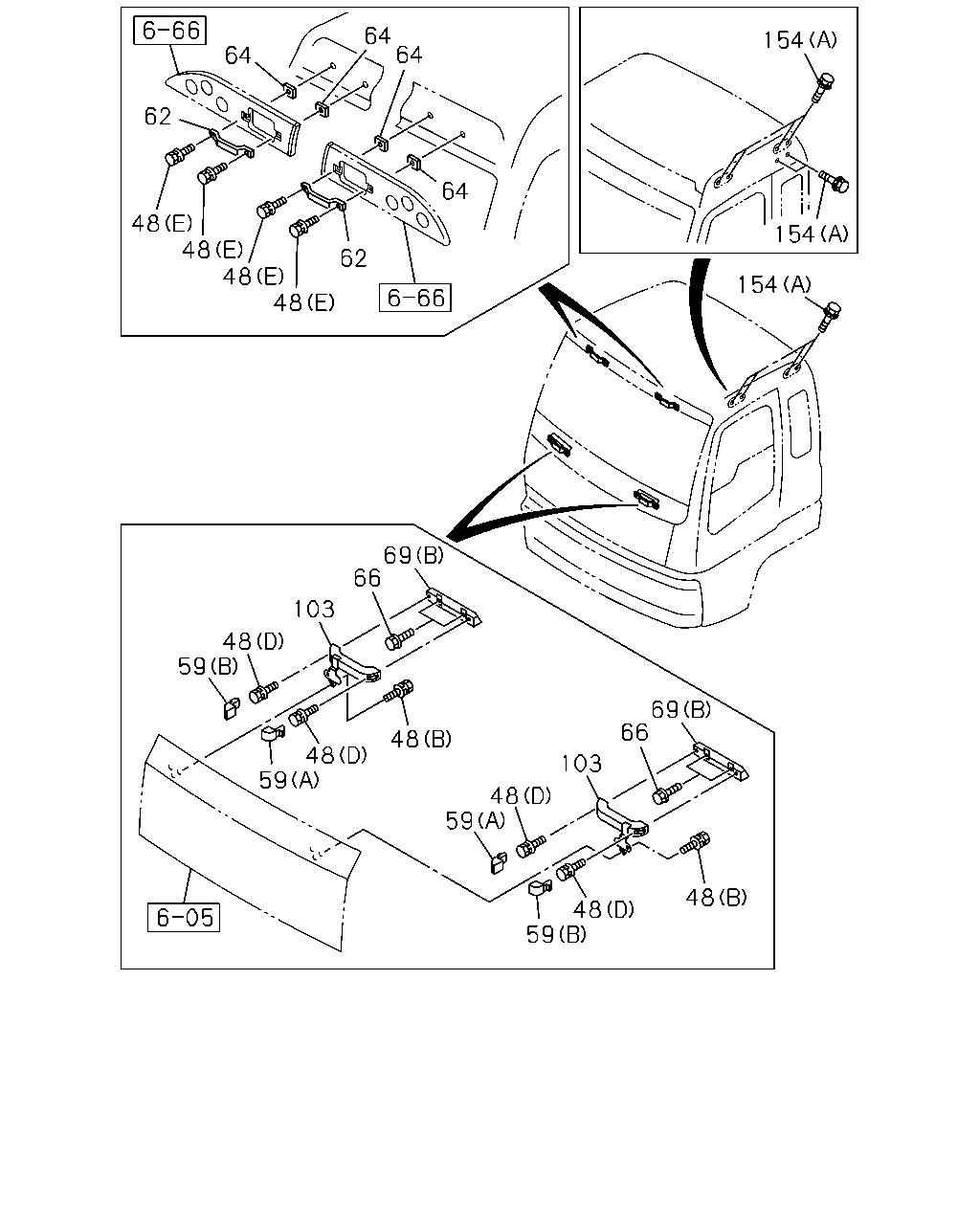

62 64 64 64 64 62 48 48 48 48 154 154 154 69 66 103 48 59 59 48 48 69 66 103 48 59 59 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0710-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0710-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0710-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0710-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0710-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0710-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0710-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0710-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0710-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0710-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0710-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0710-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0710-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0710-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0710-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0710-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0710-

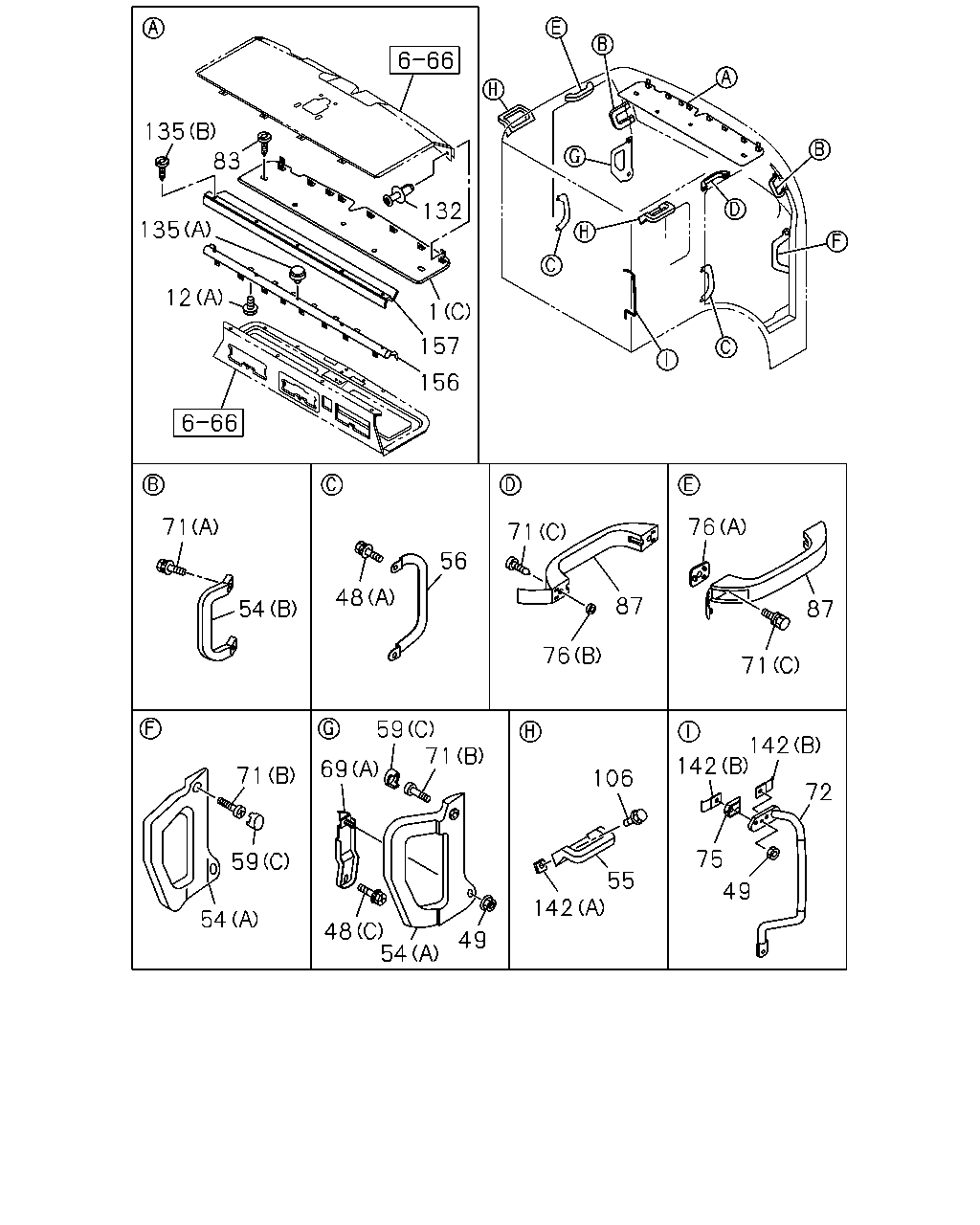

135 132 135 12 157 1 156 71 54 48 56 71 87 76 76 87 71 71 59 54 69 59 71 48 54 49 142 55 106 49 75 142 142 72 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0710-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0710-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0710-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0710-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0710-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0710-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0710-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0710-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0710-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0710-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0710-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0710-
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0710-0808
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0710-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0710-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0710-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0710-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0710-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0710-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0710-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0710-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0710-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0710-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0710-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0710-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0710-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0710-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0710-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0710-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	0710-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	0710-
83	PLUG D6X23 LIGHT GRAY	1-73318-629-0	03	1	0710-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0710-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0710-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0710-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0710-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0710-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0710-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0710-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0710-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0710-
