◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#67021) — 32 parça
çizim 132692
51 180 180 180 180 180
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (A) 		1-85881-871-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (B) 		1-85881-872-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (C) 		1-85881-873-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (D) 		1-85881-880-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
MJX16P M/T(Y3Z) (E) 		1-85881-881-0 01 1 0710-

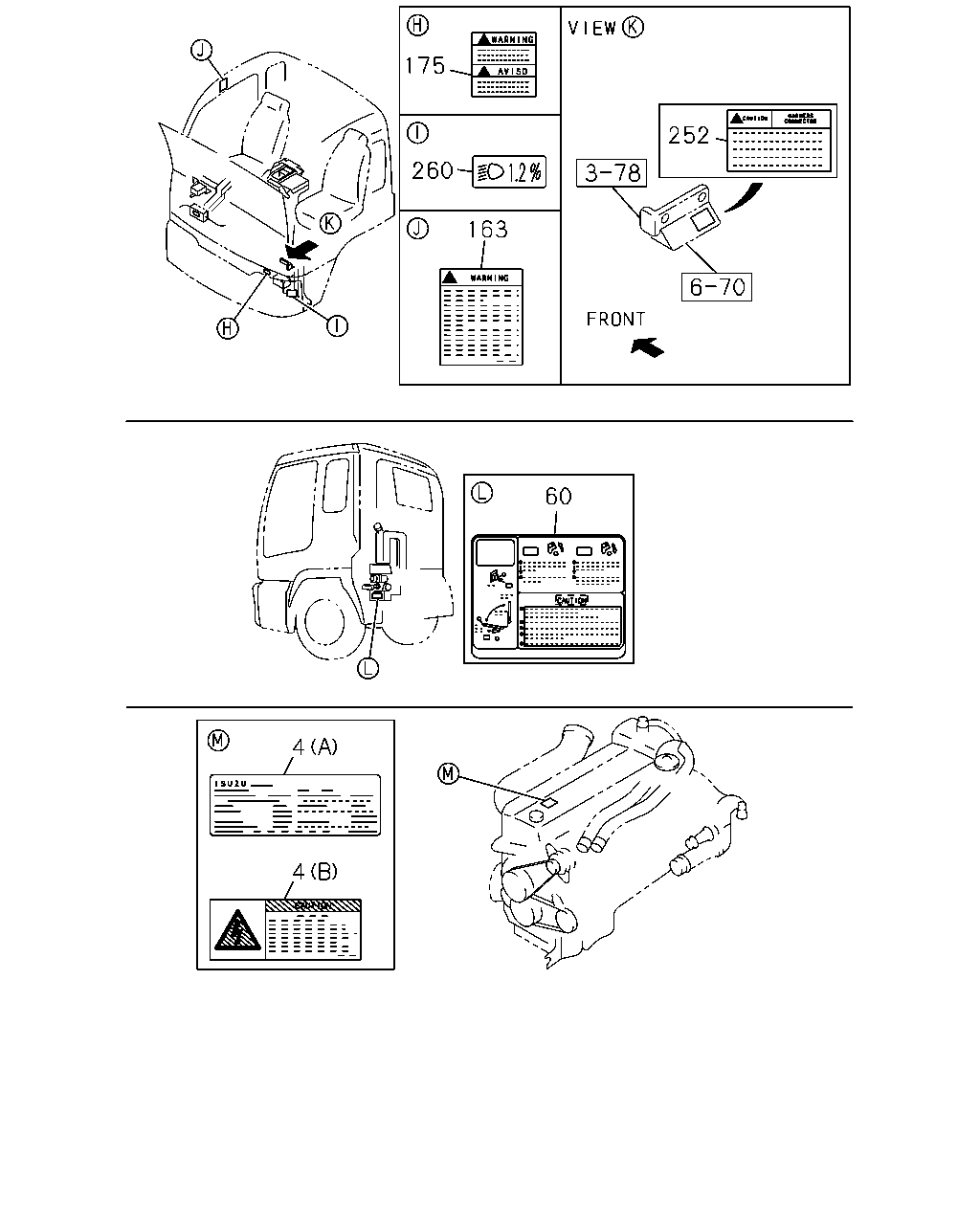

çizim 132911
175 252 260 163 60 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (A) 		1-85875-462-1 01 1 0710-
4 LABEL; ENG MAINTENANCE
6WF1 TC-C(1B8) (B) 		8-94391-524-0 01 1 0710-0902
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0903-
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-94391-524-0 01 1 0710-0902
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L),6WG1 TC-S(97L) (A) 		1-85875-350-2 01 1 0710-
60 PLATE; CAUTION,CAB TILT
6WF1 TC-C(1B8) 		1-85883-174-0 01 1 0710-
60 PLATE; CAUTION,CAB TILT
6WG1 TC-C(72L),6WG1 TC-S(97L) 		1-85883-234-0 01 1 0710-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0710-

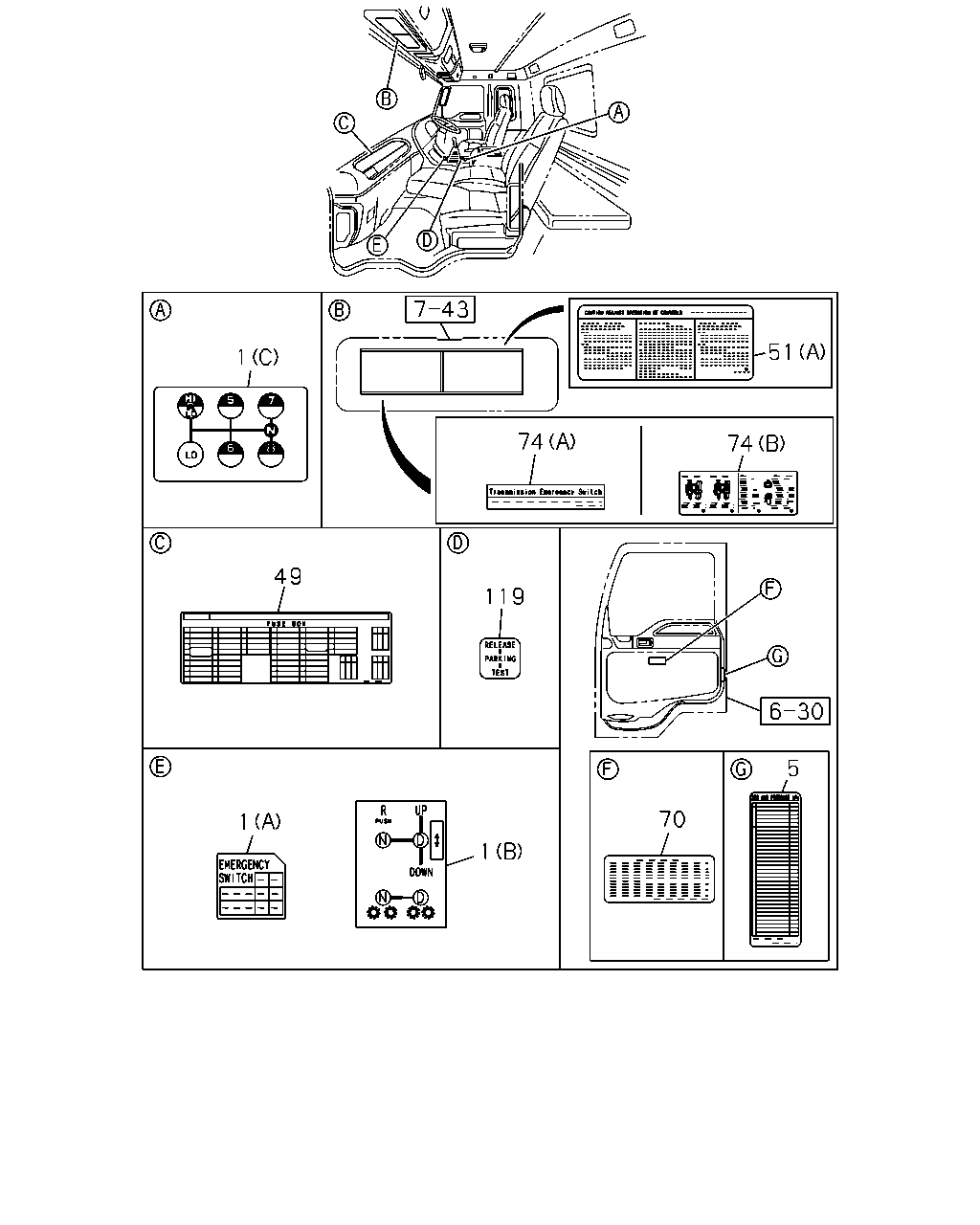

çizim 133047
1 74 74 51 49 119 1 1 70 5
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
FULLER M/T<X9B> (C) 		1-85881-519-0 01 1 0710-
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) 		1-85881-798-0 01 1 0710-
1 PLATE; CAUTION,SHIFT PATTERN
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-85881-879-1 01 1 0710-
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0710-
49 PLATE; CAUTION,FUSE BOX
6WF1 TC-C(1B8) 		1-85878-550-0 01 1 0710-
49 PLATE; CAUTION,FUSE BOX
6WG1 TC-C(72L),6WG1 TC-S(97L) 		8-97623-001-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
70 PLATE; CAUTION,ACT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-85878-484-0 01 1 0710-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) 		1-85881-869-0 01 1 0710-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) 		1-85881-786-0 01 1 0710-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-791-0 01 1 0710-
çizim 192593
181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-85886-813-1 01 1 0710-
