◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#67008) — 143 parça

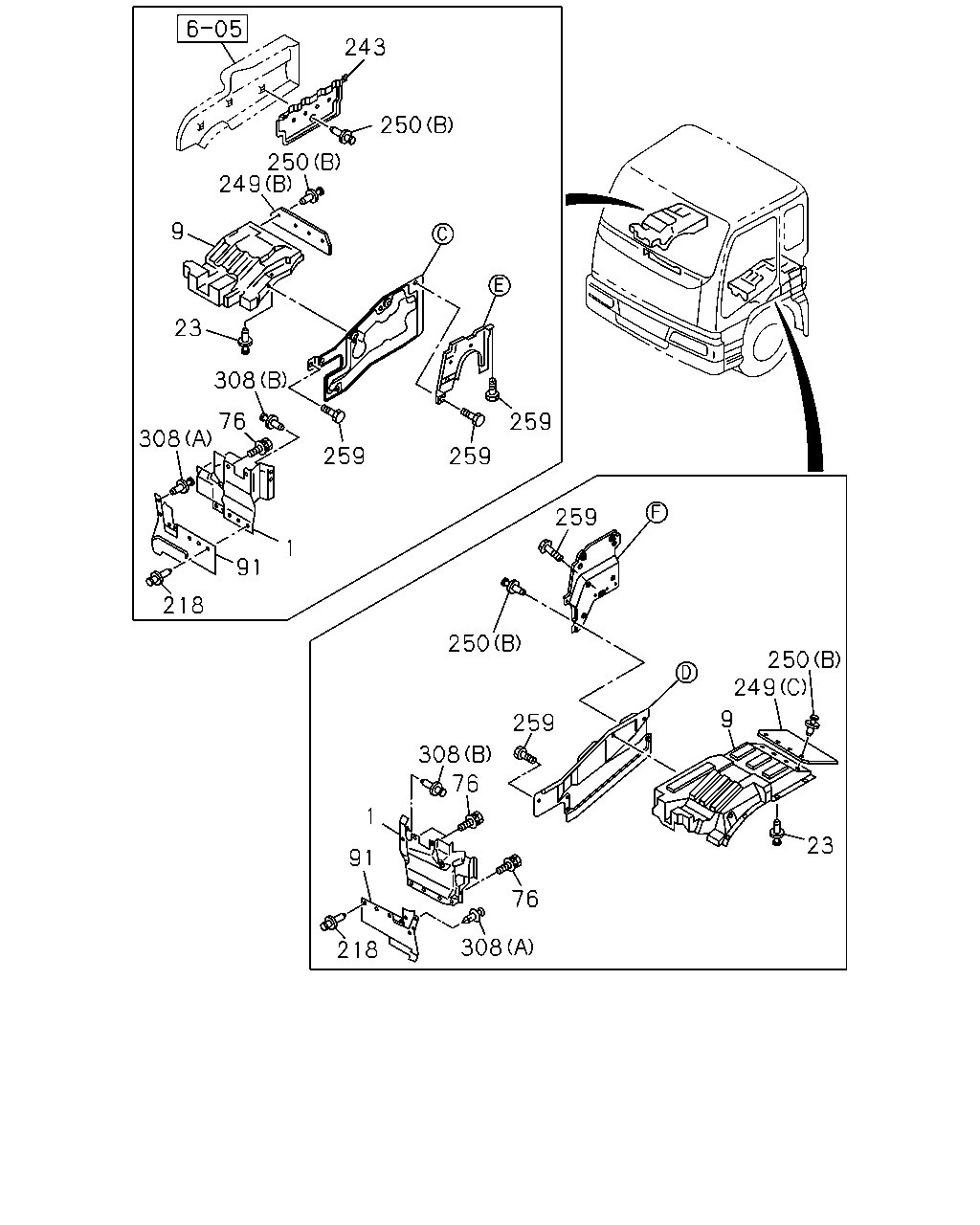

çizim 131242
243 250 250 249 9 23 308 308 259 76 1 91 218 259 259 259 250 250 249 23 259 308 76 76 308 91 1 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710-

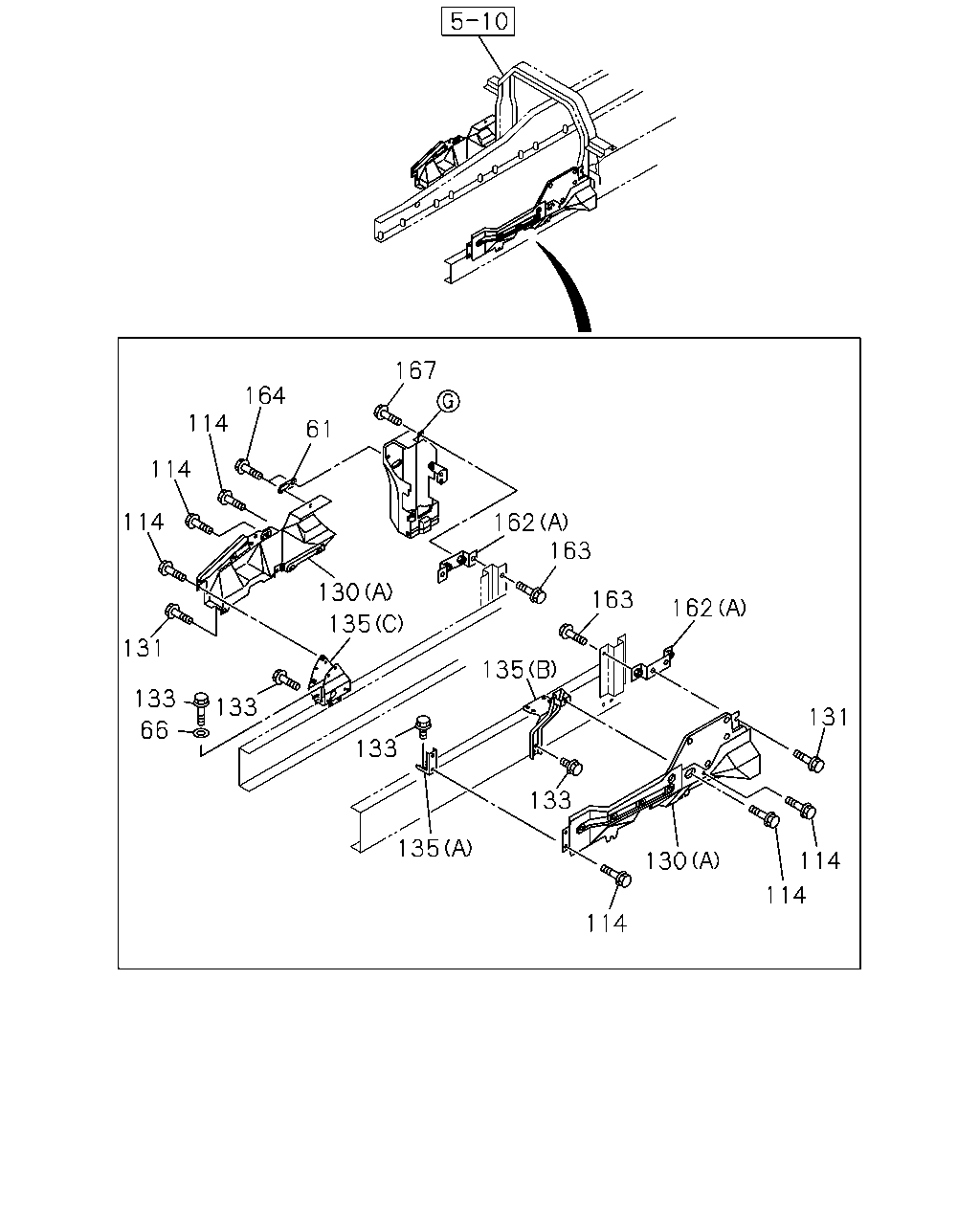

çizim 131328
167 164 114 61 114 114 131 130 135 133 133 66 162 163 163 162 131 135 133 133 135 114 130 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0710-0803
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
66 WASHER; LK
SMOOTHER-G(C1W) ID=14.2 		0-91510-614-0 02 1 0710-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
131 BOLT; PANEL
6WG1 TC-C(72L),6WG1 TC-S(97L) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0710-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
133 BOLT; FRAME
SMOOTHER-G(C1W) M14X45 		0-20801-445-0 02 1 0710-
133 BOLT; FRAME
SMOOTHER-G(C1W) M10X35 FLANGE 		0-28651-035-0 02 1 0710-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710-
135 BRACKET; SIDE PANEL
SMOOTHER-G(C1W) (C) 		1-33657-840-1 01 1 0710-
135 BRACKET; SIDE PANEL
6WF1 TC-C(1B8) (B) 		1-53441-598-1 01 1 0710-
135 BRACKET; SIDE PANEL
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		1-53441-508-1 01 1 0710-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
çizim 131599
130 281 185 249 130 281 185 249 130 185 249 185 130
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
çizim 131765
130 130 167 167 160 122 162 167 122 160 74 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
122 BOLT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		1-79947-078-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		1-53194-386-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-890-2 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0710-
160 COVER ASM; EXH
(A) 		1-79931-418-1 01 1 0710-
160 COVER ASM; EXH
(B) 		1-79931-443-0 01 1 0710-1207
160 COVER ASM; EXH
(B) 		1-79931-441-0 01 1 1208-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 04 1 0710-

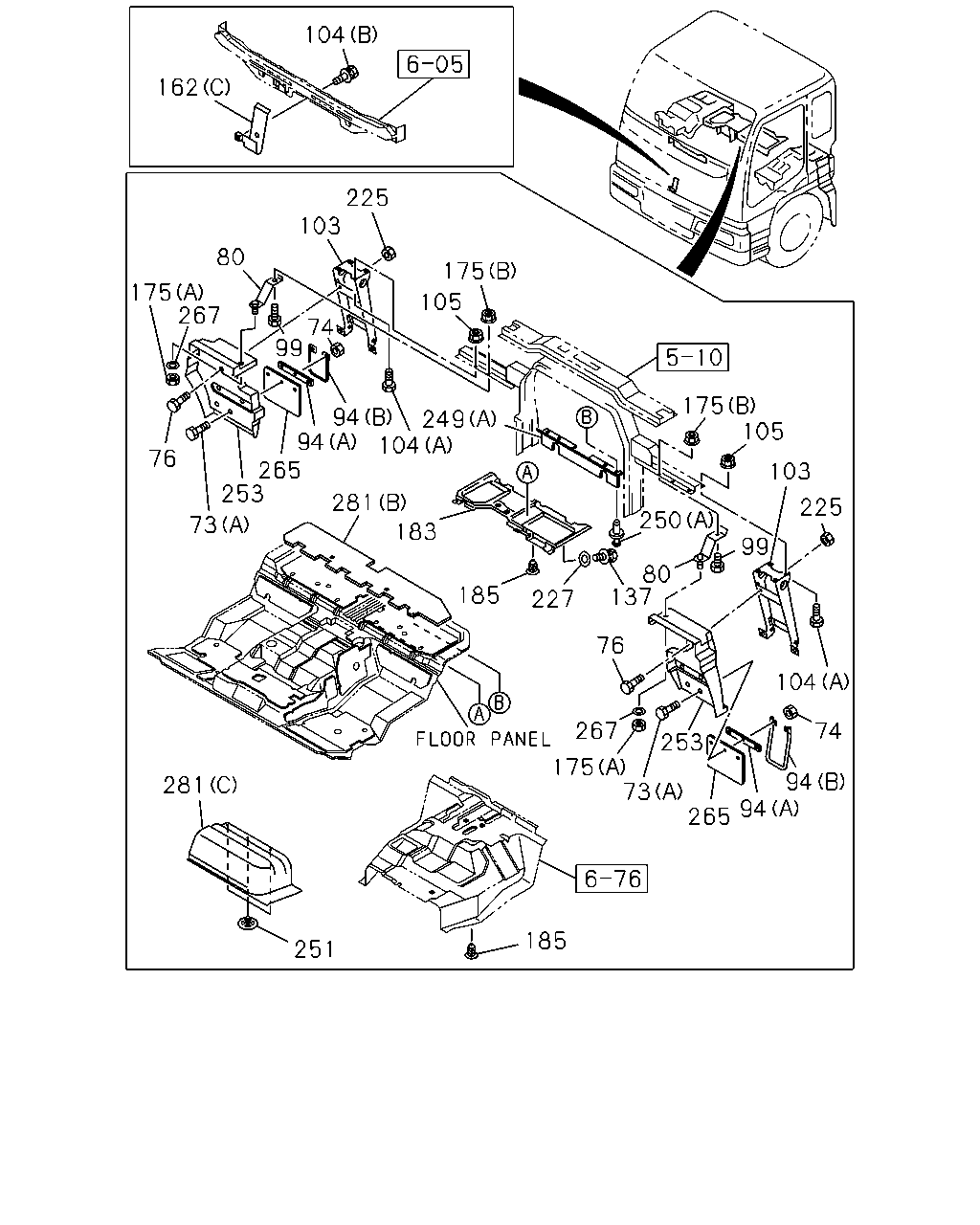

çizim 192590
162 104 225 103 80 175 105 74 99 267 175 76 73 253 265 94 94 249 104 281 185 227 137 80 99 250 225 103 105 175 76 104 74 94 94 265 253 267 175 73 281 251 185 183
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0710-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 0710-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 02 1 0710-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 02 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
105 NUT; BRKT
6WF1 TC-C(1B8) M10 FLANGE 		0-91180-210-0 08 1 0710-
105 NUT; BRKT
6WG1 TC-C(72L),6WG1 TC-S(97L) M10 FLANGE 		0-91180-210-0 07 1 0710-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(C) 		1-71907-815-0 01 1 0710-
162 BRACKET
(B) 		1-53441-552-1 01 1 0710-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0710-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0710-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0710-
253 GUARD; MUD 1-79931-066-7 01 1 0710-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
253 GUARD; MUD 1-79931-064-7 01 1 0710-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79931-460-0 02 1 0710-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
