6-35 — FRONT DOOR TRIM (#67005) — 86 parça

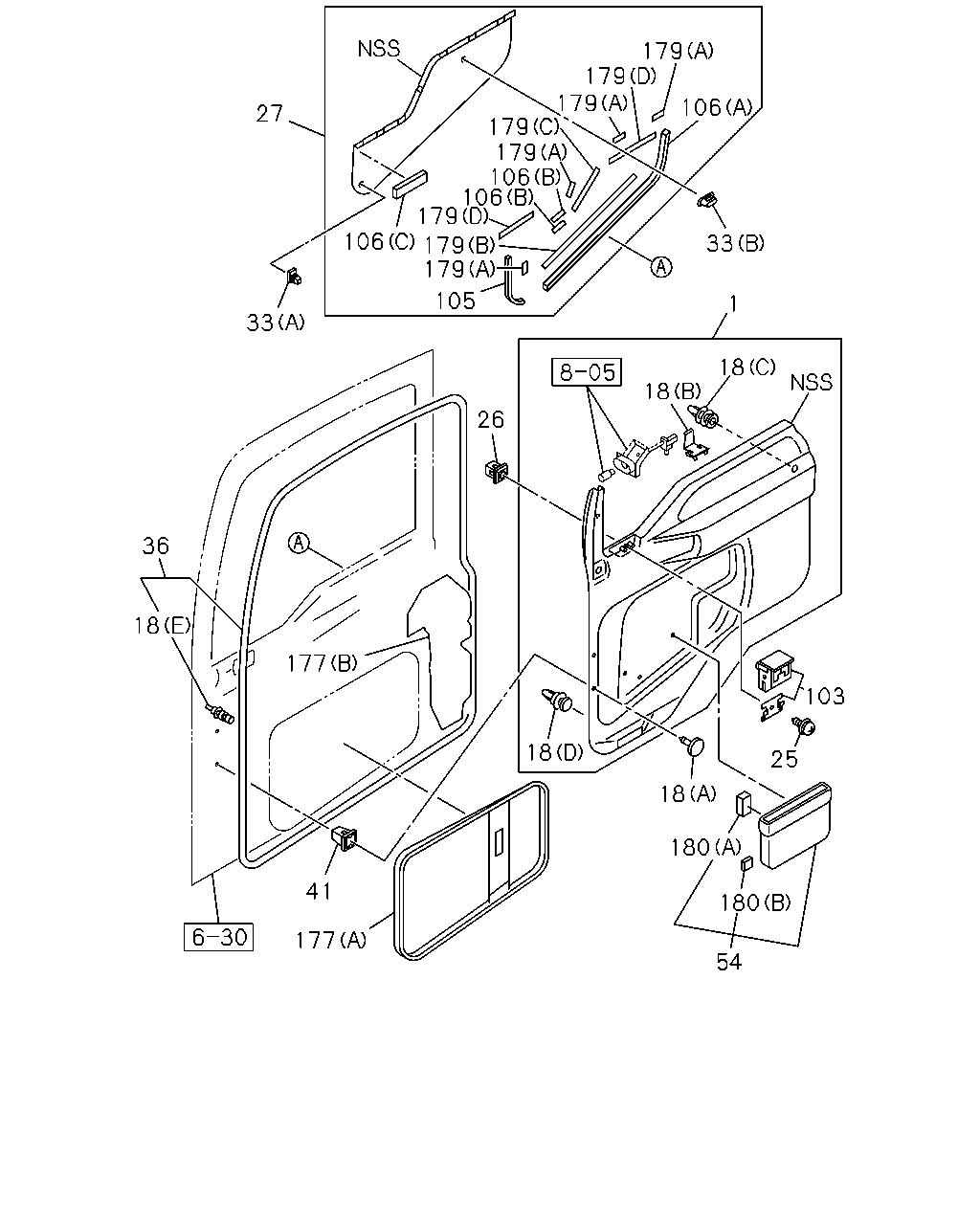

177 177 41 18 36 18 18 180 180 54 25 103 18 18 26 33 27 106 179 105 179 179 106 106 179 179 179 179 179 106 33 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR	1-73337-516-1	01	1	0710-
1	PAD; TRIM,FRT DOOR	1-73337-506-1	01	1	0710-
18	CLIP; DOOR PAD (B)	1-09987-262-0	09	1	0710-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0710-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	02	1	0710-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	10	1	0710-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0710-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0710-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0710-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0710-
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	1-76218-095-7	01	1	1111-1210
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	8-98229-328-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	1-76218-099-7	01	1	1111-
27	PANEL; ORNAMENT,DOOR	1-76217-157-3	01	1	0710-1110
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	1-76217-157-3	01	1	1111-
27	PANEL; ORNAMENT,DOOR	1-76217-149-3	01	1	0710-1110
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	1-76217-149-3	01	1	1111-1210
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	8-98229-330-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	02	1	0710-0802
33	GROMMET; DOOR ORNAMENT (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	02	1	0710-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0710-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0710-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0710-
54	BOX; FRT DOOR	1-72537-177-0	01	1	0710-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0710-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0710-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0710-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT EXC. CHEAPER CAB(WY1) (B)	1-76218-104-0	04	1	1111-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0710-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	04	1	0710-1110
106	SEAL; DOOR ORNAMENT CHEAPER CAB(WY1) (B)	1-76218-104-0	02	1	1111-
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0710-
177	SEAL; WATER,DOOR (A)	1-76778-052-2	01	1	0710-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0710-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0710-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0710-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0710-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0710-
180	SEAL; BOX (A) 5X10X30	1-72538-153-1	02	1	0710-
180	SEAL; BOX (B) 15X30	1-74998-069-0	02	1	0710-

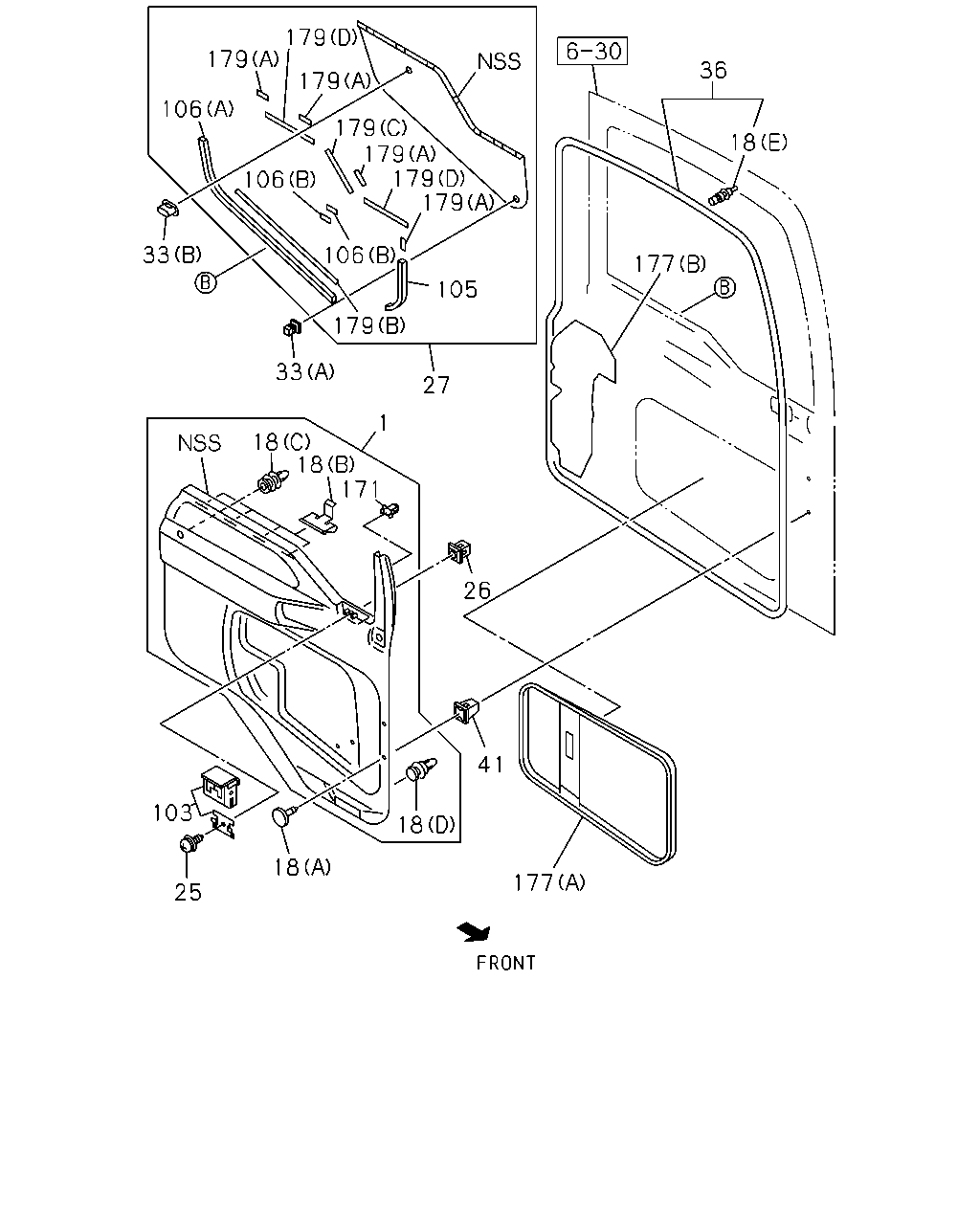

106 179 179 179 179 179 179 179 105 106 106 33 33 179 27 36 18 177 18 18 171 1 26 41 177 18 18 103 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAD; TRIM,FRT DOOR	1-73337-516-1	01	1	0710-
1	PAD; TRIM,FRT DOOR	1-73337-506-1	01	1	0710-
18	CLIP; DOOR PAD (B)	1-09987-262-0	09	1	0710-
18	CLIP; DOOR PAD (A) D4.2X19.9 GRAY	1-09987-272-0	04	1	0710-
18	CLIP; DOOR PAD (C) OD=7.9 BLACK	8-94279-974-1	02	1	0710-
18	CLIP; DOOR PAD (D) OD=8.5 GRAY	8-97893-482-0	10	1	0710-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0710-
18	CLIP; DOOR PAD (E) NATURAL	1-09987-257-0	23	1	0710-
25	SCREW; ASH TRAY,DOOR M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0710-
26	GROMMET; SCREW,ASH TRAY DOOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0710-
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	1-76218-095-7	01	1	1111-1210
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	8-98229-328-0	01	1	1211-
27	PANEL; ORNAMENT,DOOR CHEAPER CAB(WY1)	1-76218-099-7	01	1	1111-
27	PANEL; ORNAMENT,DOOR	1-76217-157-3	01	1	0710-1110
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	1-76217-157-3	01	1	1111-
27	PANEL; ORNAMENT,DOOR	1-76217-149-3	01	1	0710-1110
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	1-76217-149-3	01	1	1111-1210
27	PANEL; ORNAMENT,DOOR EXC. CHEAPER CAB(WY1)	8-98229-330-0	01	1	1211-
33	GROMMET; DOOR ORNAMENT (A)	1-09983-149-1	02	1	0710-0802
33	GROMMET; DOOR ORNAMENT (A) OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	02	1	0803-
33	GROMMET; DOOR ORNAMENT (B)	1-74998-111-0	02	1	0710-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-177-9	01	1	0710-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-764-0	01	1	1011-
36	SEAL; DOOR,MAIN,CAB SIDE	1-76718-176-9	01	1	0710-1010
36	SEAL; DOOR,MAIN,CAB SIDE	8-98177-763-0	01	1	1011-
41	GROMMET; SCREW,DOOR PAD OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	04	1	0710-
103	TRAY ASM; ASH,DOOR	1-76458-086-1	01	1	0710-
103	TRAY ASM; ASH,DOOR	1-76458-085-1	01	1	0710-
105	SEAL; DOOR ORNAMENT,FRT	1-76218-082-2	02	1	0710-
106	SEAL; DOOR ORNAMENT (C)	8-98226-642-0	01	1	1211-
106	SEAL; DOOR ORNAMENT EXC. CHEAPER CAB(WY1) (B)	1-76218-104-0	04	1	1111-
106	SEAL; DOOR ORNAMENT (A)	1-76218-083-2	02	1	0710-
106	SEAL; DOOR ORNAMENT (B)	1-76218-104-0	04	1	0710-1110
106	SEAL; DOOR ORNAMENT CHEAPER CAB(WY1) (B)	1-76218-104-0	02	1	1111-
171	RETAINER; DOOR PAD	1-09987-264-0	01	1	0710-
177	SEAL; WATER,DOOR (A)	1-76778-035-6	01	1	0710-
177	SEAL; WATER,DOOR (A)	1-76778-052-2	01	1	0710-
177	SEAL; WATER,DOOR (B)	1-76778-055-2	02	1	0710-
179	TAPE; ORNAMENT (A) L=45	1-76218-063-2	08	1	0710-
179	TAPE; ORNAMENT (B) L=770	1-76218-091-2	02	1	0710-
179	TAPE; ORNAMENT (C) L=160	1-76218-094-1	02	1	0710-
179	TAPE; ORNAMENT (D) L=235	1-76218-127-1	04	1	0710-
