6-01 — FRONT BUMPER (#66997) — 138 parça

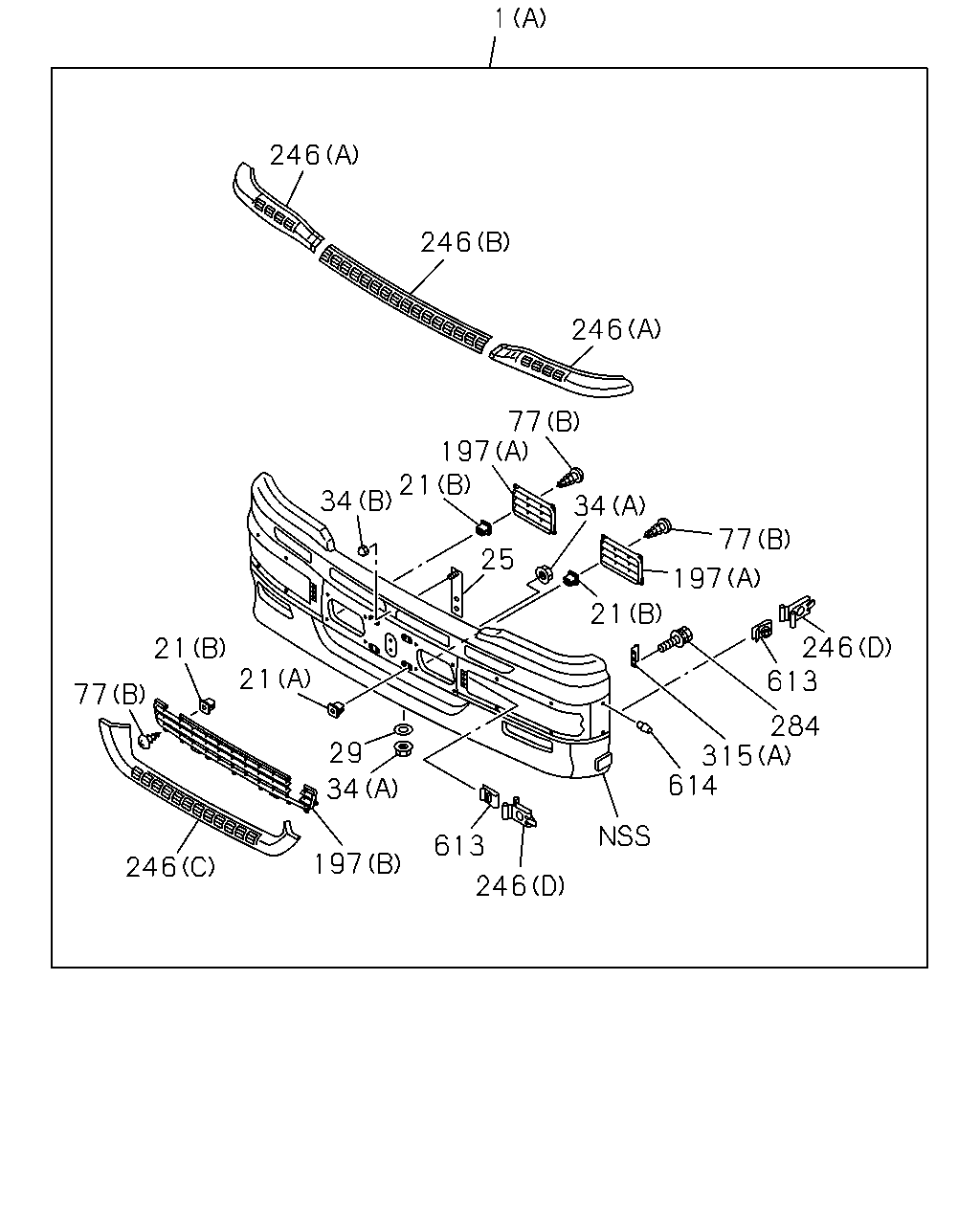

1 246 246 246 77 197 21 34 34 25 77 197 21 246 613 284 315 614 246 613 197 34 29 246 77 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (A) WHITE	1-71211-419-2	01	1	0710-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0710-
25	SPACER; PLATFORM	1-71230-640-0	01	1	0710-
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0710-
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0710-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	0710-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0710-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0710-
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0710-
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0710-
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0710-
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0710-
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	0710-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	0710-
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	0710-
246	PROTECTOR; BUMPER (A)	1-71260-094-2	01	1	0710-
246	PROTECTOR; BUMPER (A)	1-71260-095-2	01	1	0710-
246	PROTECTOR; BUMPER (B)	1-71260-155-1	01	1	0710-
246	PROTECTOR; BUMPER (D)	1-71260-162-0	06	1	0710-
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0710-
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0710-
613	CLIP FRONT SPOILER<VP1>	1-71260-174-0	06	1	0710-
614	STOPPER; LID	1-71260-163-0	12	1	0710-

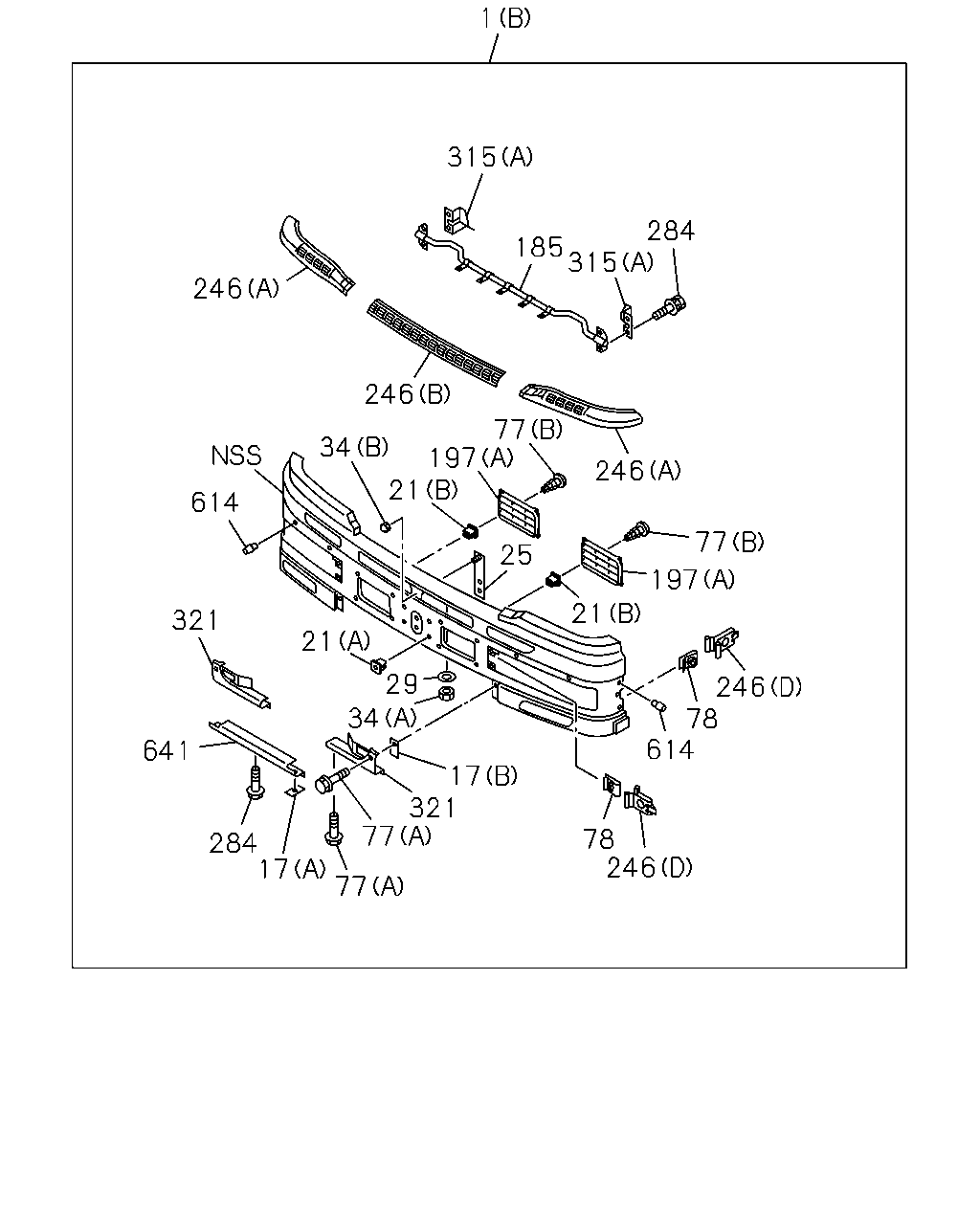

1 315 284 185 315 246 246 77 197 246 21 34 614 21 321 25 21 197 77 29 34 641 284 17 77 77 321 17 78 246 614 78 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (A) WHITE	1-71211-419-2	01	1	0710-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0710-
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71260-185-0	02	1	0710-
17	PROTECTOR; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71260-277-0	02	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	22	1	0710-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0710-
25	SPACER; PLATFORM	1-71230-640-0	01	1	0710-
29	WASHER; FRT BUMPER FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	17	1	0710-
29	WASHER; FRT BUMPER EXC. FRONT SPOILER<VP1> ID=8.4 OD=22	0-91610-708-0	13	1	0710-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	0710-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0710-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0710-
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0710-
77	SCREW; BRKT FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	22	1	0710-
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (B) M5X16 TAPPING	0-71240-516-0	08	1	0710-
77	SCREW; BRKT EXC. FRONT SPOILER<VP1> (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0710-
78	NUT; SPIRE EXC. FRONT SPOILER<VP1>	1-71260-174-0	06	1	0710-
185	BRACKET; BUMPER,INNER EXC. FRONT SPOILER<VP1>	1-71230-610-0	01	1	0710-
197	GRILLE; BUMPER (A)	1-71260-115-1	01	1	0710-
197	GRILLE; BUMPER (A)	1-71260-116-1	01	1	0710-
197	GRILLE; BUMPER FRONT SPOILER<VP1> (B)	8-97617-998-0	01	1	0710-
246	PROTECTOR; BUMPER (A)	1-71260-094-2	01	1	0710-
246	PROTECTOR; BUMPER (A)	1-71260-095-2	01	1	0710-
246	PROTECTOR; BUMPER (B)	1-71260-155-1	01	1	0710-
246	PROTECTOR; BUMPER (D)	1-71260-162-0	06	1	0710-
246	PROTECTOR; BUMPER FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0710-
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0710-
284	BOLT; BRKT EXC. FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0710-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-263-1	01	1	0710-
321	COVER; BUMPER FRT SIDE EXC. FRONT SPOILER<VP1>	1-71260-264-1	01	1	0710-
614	STOPPER; LID	1-71260-163-0	12	1	0710-
641	BUMPER; FRT,LWR EXC. FRONT SPOILER<VP1>	1-71211-304-1	01	1	0710-

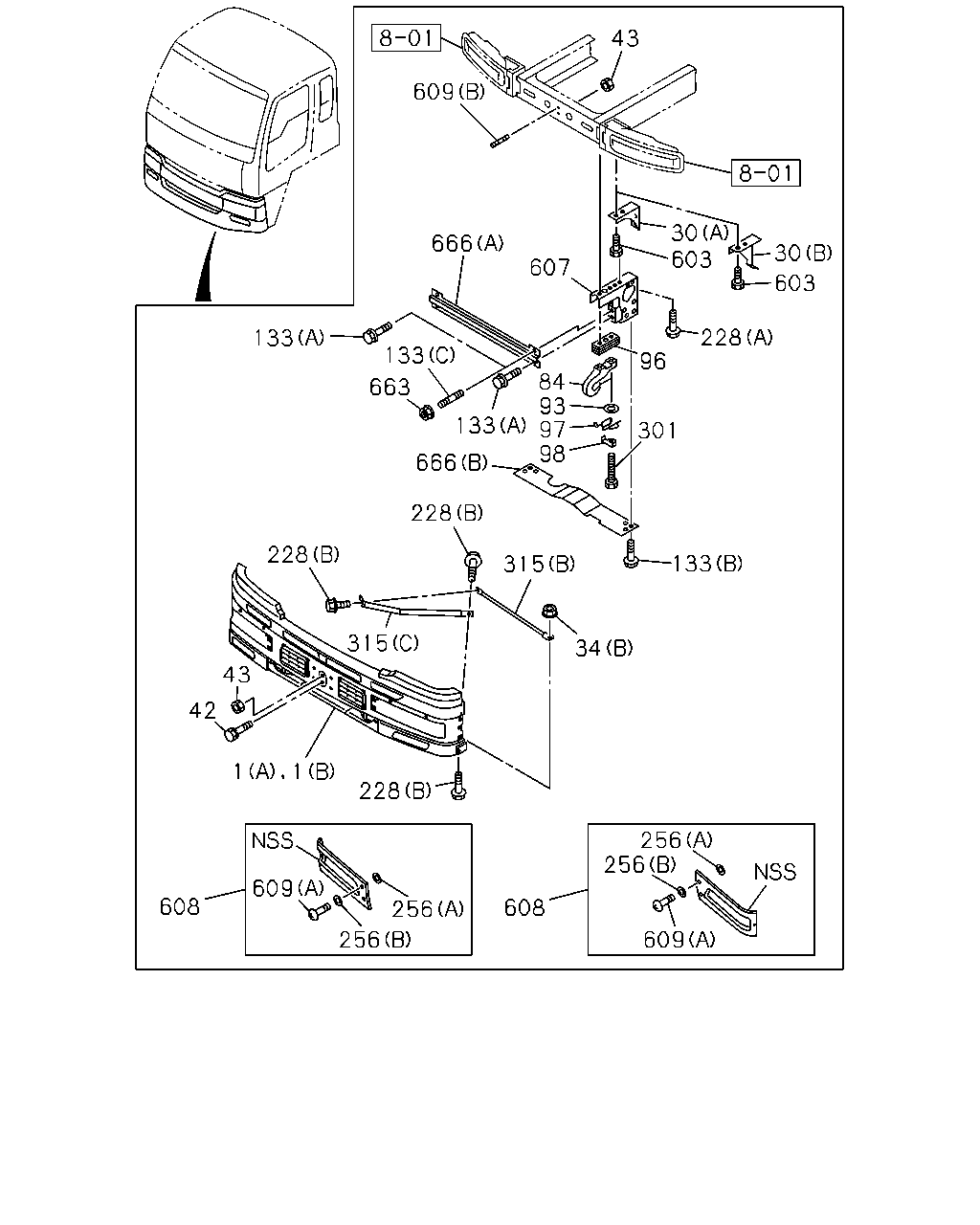

43 609 30 603 666 30 607 603 228 133 133 84 93 97 98 96 663 133 301 666 228 228 133 315 315 34 43 42 1 1 228 256 256 609 608 608 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (A) WHITE	1-71211-419-2	01	1	0710-
1	BUMPER ASM; FRT EXC. FRONT SPOILER<VP1> (B) WHITE	1-71211-427-2	01	1	0710-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-428-0	01	1	0710-
30	BRACKET; FRT BUMPER FRONT SPOILER<VP1> (A)	1-71230-429-0	01	1	0710-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-638-0	01	1	0710-
30	BRACKET; FRT BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-639-0	01	1	0710-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	03	1	0710-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0710-
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	17	1	0710-
34	NUT; BRKT,BUMPER EXC. FRONT SPOILER<VP1> (A) M8 FLANGE	0-91180-108-0	13	1	0710-
42	BOLT; BUMPER M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	0710-
43	NUT; BRKT TO BUMPER FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	01	1	0710-
43	NUT; BRKT TO BUMPER EXC. FRONT SPOILER<VP1> M10 FLANGE	0-91180-210-0	03	1	0710-
84	HOOK	1-57181-027-1	01	1	0710-
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0710-
96	PLATE; DIST,HOOK FRONT SPOILER<VP1>	1-53497-473-0	01	1	0710-
96	PLATE; DIST,HOOK EXC. FRONT SPOILER<VP1>	1-53497-595-0	01	1	0710-
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0710-
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0710-
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	02	1	0710-0808
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (A) M12X60 FLANGE	0-28051-260-0	04	1	0809-
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (B) M12X25 FLANGE	0-28661-225-0	06	1	0710-1207
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (B) M12X30 FLANGE	0-28661-230-0	06	1	1208-
133	BOLT; PROTECTOR FIX EXC. FRONT SPOILER<VP1> (C)	8-97617-397-0	02	1	0710-0808
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	0710-
228	BOLT; BRKT EXC. FRONT SPOILER<VP1> (A) M16X40	0-20951-640-0	06	1	0710-
256	WASHER; PL (A)	1-71260-173-0	06	1	0710-
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0710-
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0710-
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-435-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	8-97608-941-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	0710-
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-636-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (A)	1-71230-637-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	1-71230-434-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	1-71230-491-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (C)	8-97609-954-0	01	1	0710-
315	STAY; BUMPER EXC. FRONT SPOILER<VP1> (B)	8-97609-955-0	01	1	0710-
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0710-
607	BRACKET EXC. FRONT SPOILER<VP1>	8-97609-951-2	01	1	0710-
607	BRACKET EXC. FRONT SPOILER<VP1>	8-97610-034-2	01	1	0710-
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-753-6	01	1	0710-
608	LID; BUMPER FRONT SPOILER<VP1>	1-71210-752-6	01	1	0710-
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-285-2	01	1	0710-
608	LID; BUMPER EXC. FRONT SPOILER<VP1>	1-71211-284-2	01	1	0710-
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0710-
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0710-
663	NUT EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0710-0808
666	PROTECTOR; UNDER EXC. FRONT SPOILER<VP1> (B)	8-97608-467-1	01	1	0710-
666	PROTECTOR; UNDER EXC. FRONT SPOILER<VP1> (A)	8-97610-033-0	01	1	0710-
