5-17 — CYLINDER; CAB TILT (#66995) — 70 parça

1 1 33 44 43 8 8 45 45 19 28 19 4 24 10 23 23 31 6 34 6 36 35 42 37 38 39 39 39 39 40 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

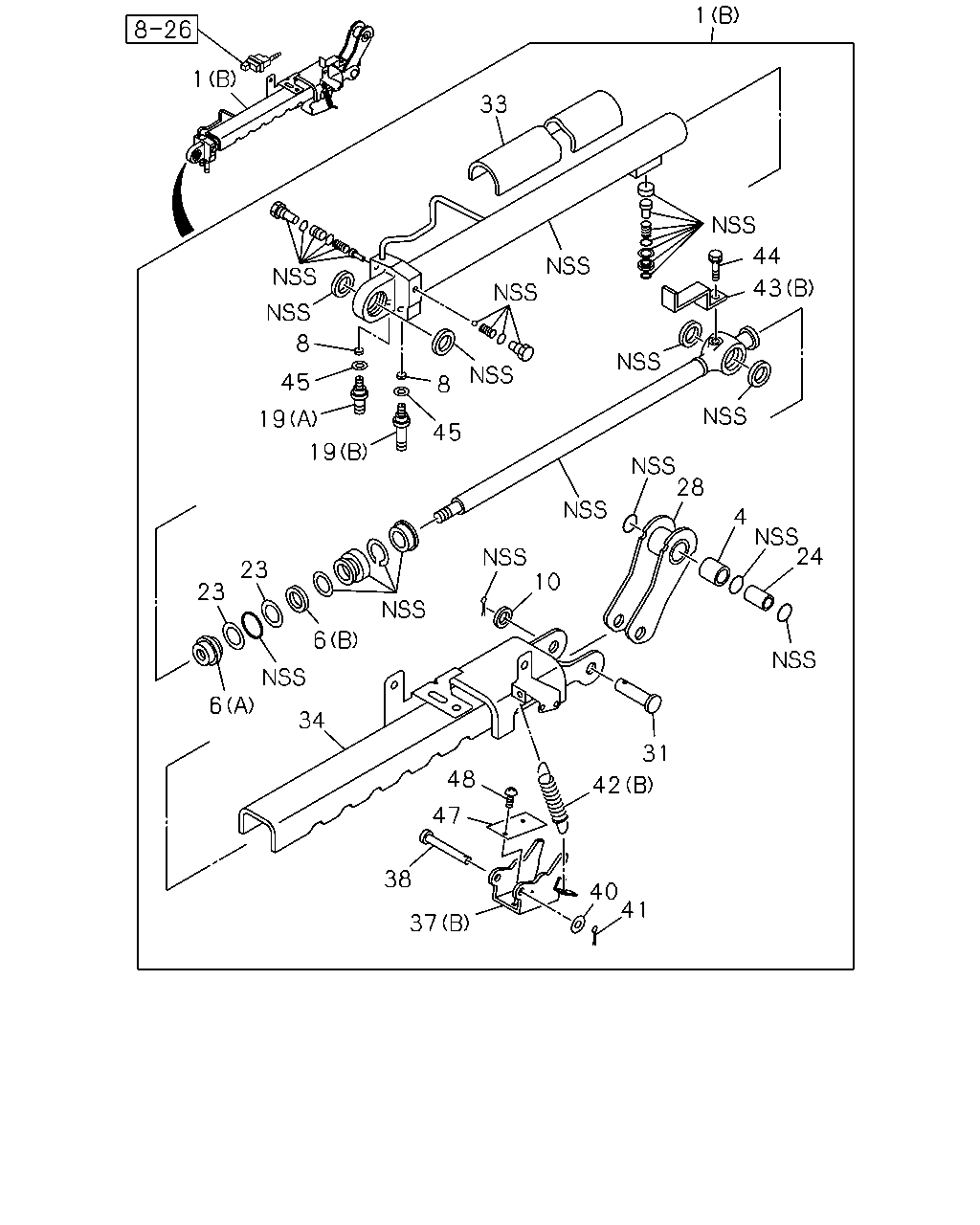

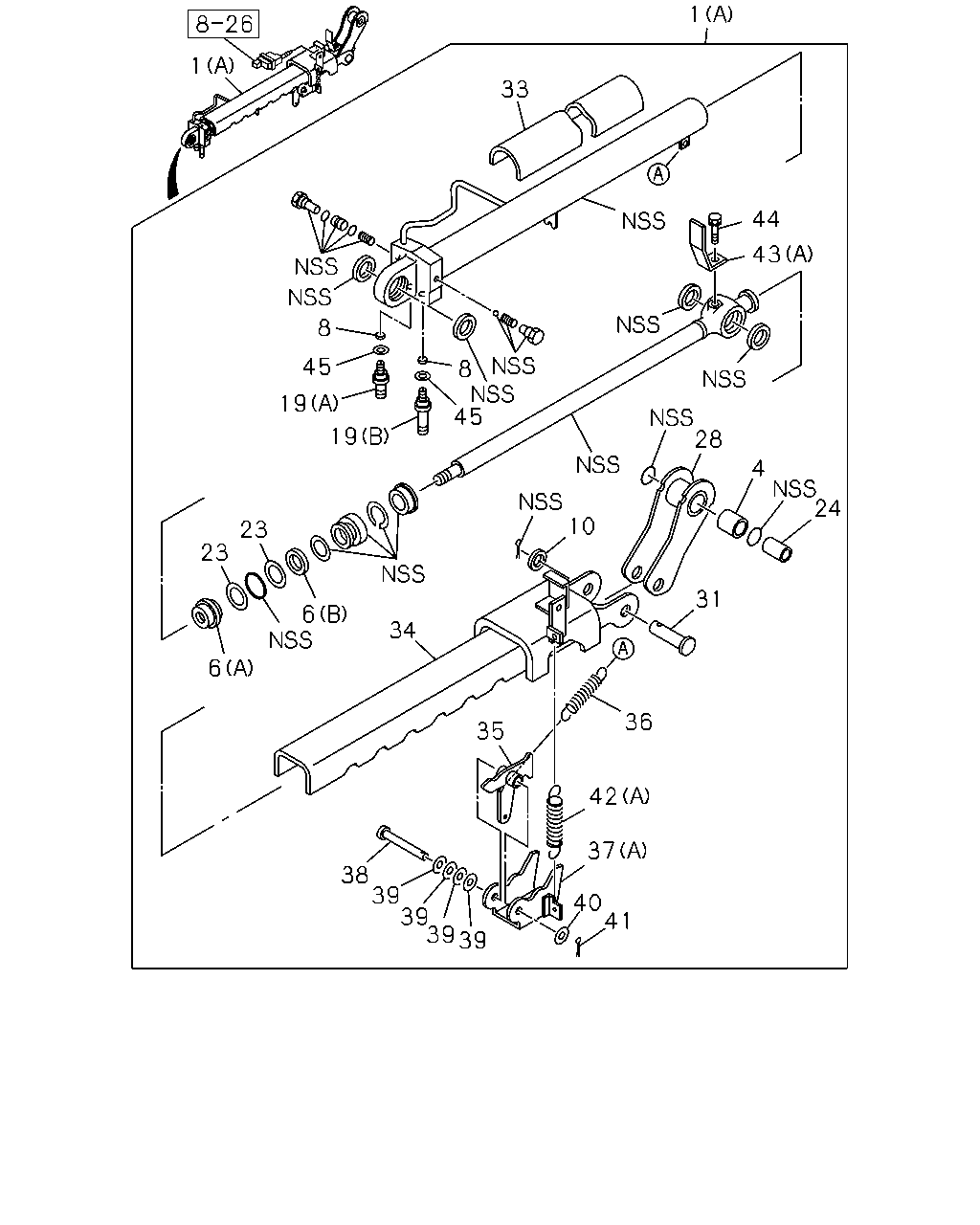

1	CYLINDER; OIL,CAB TILT 6WF1 TC-C(1B8) (A)	1-53457-140-1	01	1	0710-
1	CYLINDER; OIL,CAB TILT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-151-1	01	1	0710-
4	BUSHING; OIL CYL	1-53458-405-0	01	1	0710-
6	PISTON; OIL CYL (A)	8-98134-365-0	01	1	0710-
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	0710-
8	FILTER; OIL CYL	1-53458-102-0	02	1	0710-
10	WASHER; OIL CYL	1-53458-401-0	01	1	0710-
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	0710-
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	0710-
23	RING; SNAP	1-53457-048-0	02	1	0710-
24	COLLAR; LEVER	1-53458-398-0	01	1	0710-
28	LEVER; OIL CYL	1-53458-557-1	01	1	0710-
31	PIN; OIL CYL 6WF1 TC-C(1B8)	1-53458-554-0	01	1	0710-1007
31	PIN; OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53457-172-0	01	1	0710-1007
31	PIN; OIL CYL	1-53457-172-0	01	1	1008-
33	COVER; CYL	1-53458-556-0	01	1	0710-
34	STOPPER; OIL CYL	1-53458-555-0	01	1	0710-
35	LEVER; WIRE 6WF1 TC-C(1B8)	1-53458-689-0	01	1	0710-
36	SPRING; WIRE LEVER 6WF1 TC-C(1B8)	1-53458-552-0	01	1	0710-
37	LEVER; STOPPER 6WF1 TC-C(1B8) (A)	1-53458-551-0	01	1	0710-
37	LEVER; STOPPER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-170-0	01	1	0710-
38	PIN; STOPPER	1-53458-550-0	01	1	0710-
39	SHIM; LEVER 6WF1 TC-C(1B8) T=0.7	1-53458-546-0	AR	1	0710-
39	SHIM; LEVER 6WF1 TC-C(1B8) T=0.5	1-53458-547-0	AR	1	0710-
39	SHIM; LEVER 6WF1 TC-C(1B8) T=0.3	1-53458-548-0	AR	1	0710-
39	SHIM; LEVER 6WF1 TC-C(1B8) T=0.1	1-53458-549-0	AR	1	0710-
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	0710-
41	PIN; SPLIT	1-53458-545-0	01	1	0710-
42	SPRING; LOCK LEVER 6WF1 TC-C(1B8) (A)	1-53458-544-0	01	1	0710-
42	SPRING; LOCK LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-168-0	01	1	0710-
43	PLATE; SW 6WF1 TC-C(1B8) (A)	1-53458-543-0	01	1	0710-
43	PLATE; SW 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-167-0	01	1	0710-
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	0710-
45	GASKET; OIL CYL	1-53458-073-0	02	1	0710-

1 1 33 44 43 8 45 8 19 45 19 28 4 24 10 23 23 6 6 34 31 48 42 47 38 40 41 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CYLINDER; OIL,CAB TILT 6WF1 TC-C(1B8) (A)	1-53457-140-1	01	1	0710-
1	CYLINDER; OIL,CAB TILT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-151-1	01	1	0710-
4	BUSHING; OIL CYL	1-53458-405-0	01	1	0710-
6	PISTON; OIL CYL (A)	8-98134-365-0	01	1	0710-
6	PISTON; OIL CYL (B)	8-98134-367-0	01	1	0710-
8	FILTER; OIL CYL	1-53458-102-0	02	1	0710-
10	WASHER; OIL CYL	1-53458-401-0	01	1	0710-
19	NIPPLE; OIL CYL (A)	1-53457-044-0	01	1	0710-
19	NIPPLE; OIL CYL (B)	1-53457-045-0	01	1	0710-
23	RING; SNAP	1-53457-048-0	02	1	0710-
24	COLLAR; LEVER	1-53458-398-0	01	1	0710-
28	LEVER; OIL CYL	1-53458-557-1	01	1	0710-
31	PIN; OIL CYL 6WF1 TC-C(1B8)	1-53458-554-0	01	1	0710-1007
31	PIN; OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53457-172-0	01	1	0710-1007
31	PIN; OIL CYL	1-53457-172-0	01	1	1008-
33	COVER; CYL	1-53458-556-0	01	1	0710-
34	STOPPER; OIL CYL	1-53458-555-0	01	1	0710-
37	LEVER; STOPPER 6WF1 TC-C(1B8) (A)	1-53458-551-0	01	1	0710-
37	LEVER; STOPPER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-170-0	01	1	0710-
38	PIN; STOPPER	1-53458-550-0	01	1	0710-
40	WASHER; STOPPER PIN	1-53458-045-0	01	1	0710-
41	PIN; SPLIT	1-53458-545-0	01	1	0710-
42	SPRING; LOCK LEVER 6WF1 TC-C(1B8) (A)	1-53458-544-0	01	1	0710-
42	SPRING; LOCK LEVER 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-168-0	01	1	0710-
43	PLATE; SW 6WF1 TC-C(1B8) (A)	1-53458-543-0	01	1	0710-
43	PLATE; SW 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53457-167-0	01	1	0710-
44	BOLT; SW PLATE M6X12	1-53458-542-0	01	1	0710-
45	GASKET; OIL CYL	1-53458-073-0	02	1	0710-
47	PLATE; THRUST,OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53457-169-0	01	1	0710-
48	SCREW; OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L) M5X8	1-53458-005-0	02	1	0710-

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

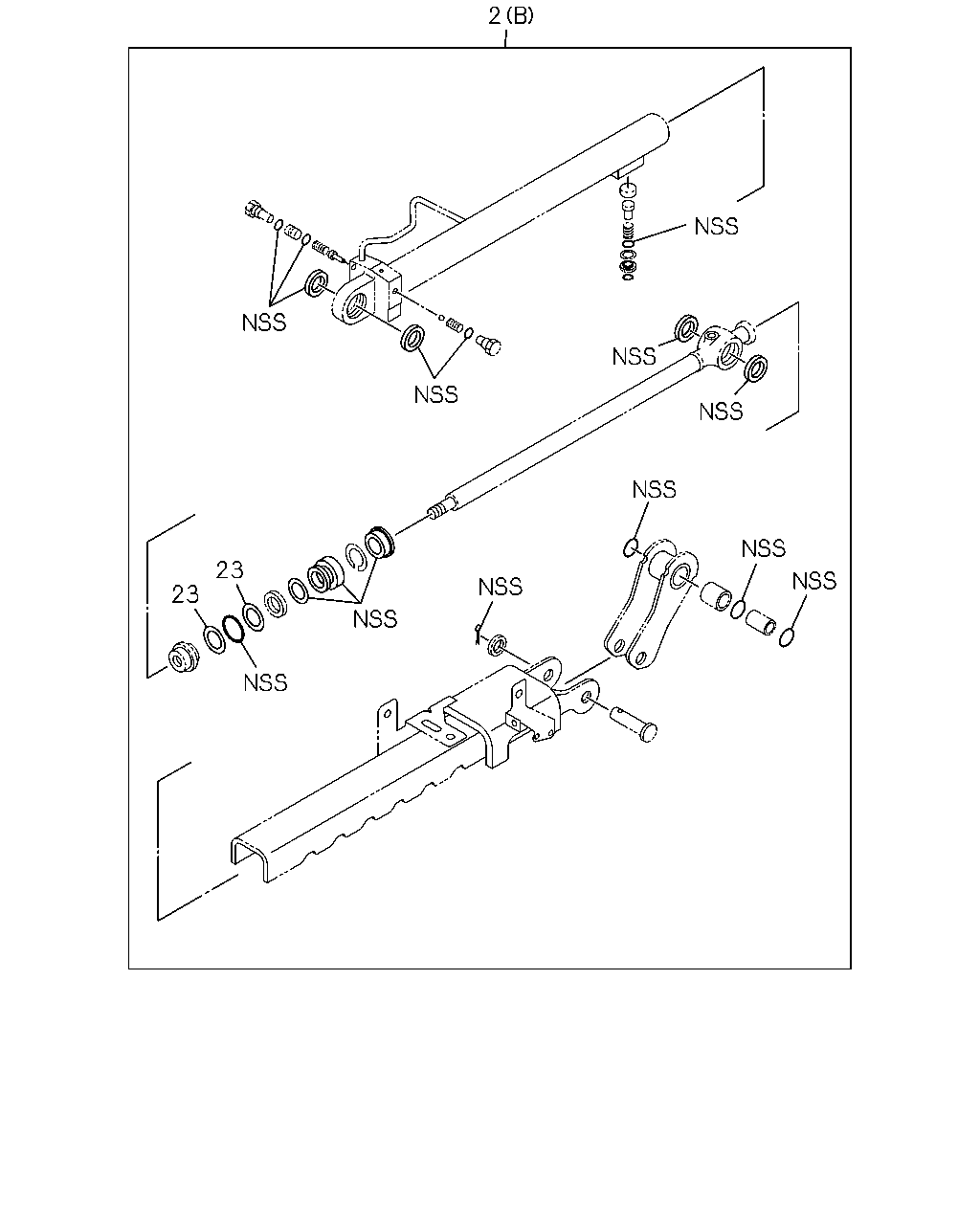

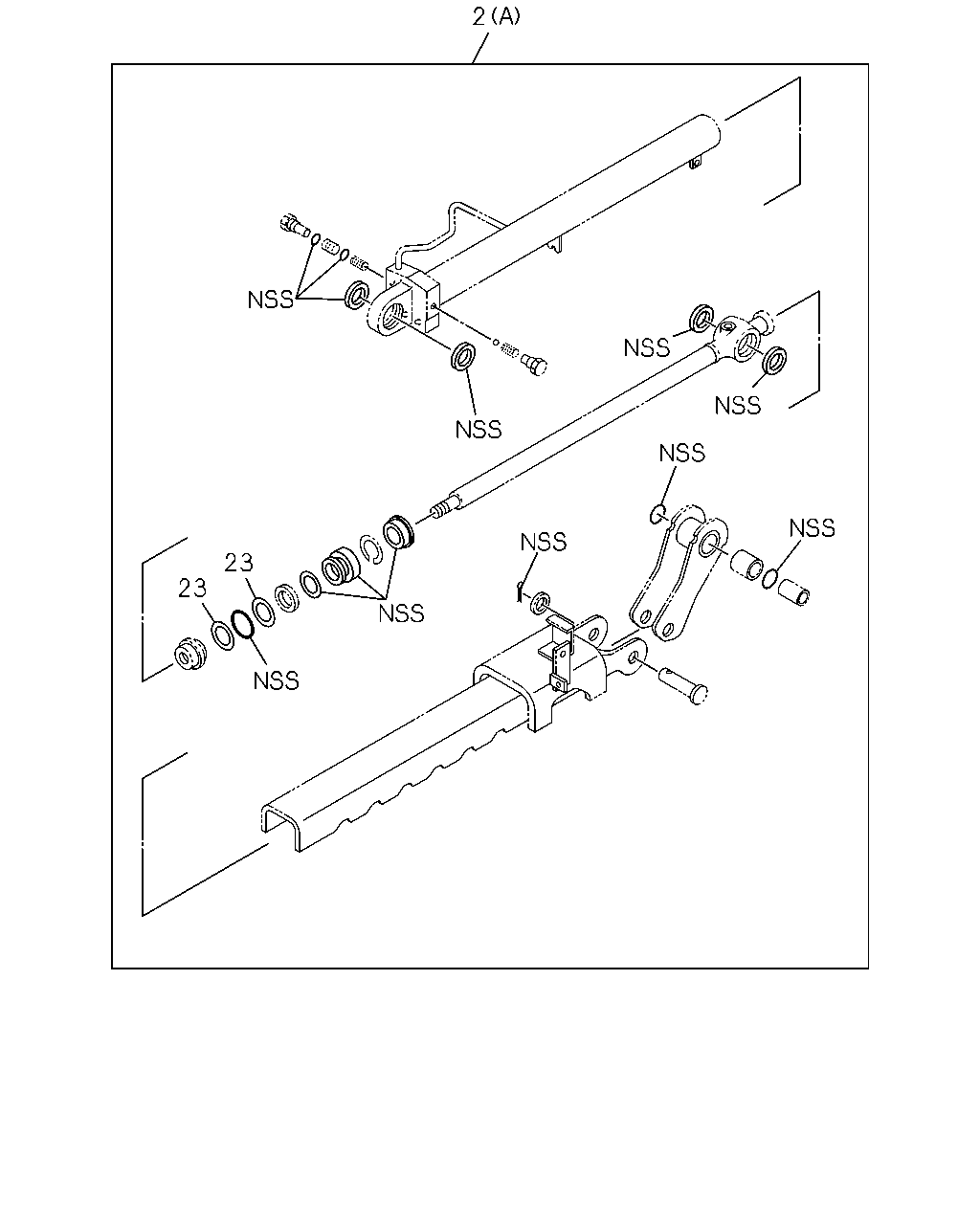

2	REPAIR KIT; OIL CYL 6WF1 TC-C(1B8) (A)	8-98169-204-0	01	1	0710-
2	REPAIR KIT; OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-85579-068-0	01	1	0710-
23	RING; SNAP	1-53457-048-0	02	1	0710-

2 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; OIL CYL 6WF1 TC-C(1B8) (A)	8-98169-204-0	01	1	0710-
2	REPAIR KIT; OIL CYL 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-85579-068-0	01	1	0710-
23	RING; SNAP	1-53457-048-0	02	1	0710-
