Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#66992) — 265 parça

69 72 70 203 204 65 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	0710-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0710-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0710-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0710-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0710-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0710-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0710-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0710-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0710-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0710-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0710-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0710-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0710-

294 202 202 203 204 205 204 203 201 173 203 204 205 205 204 203 202 202 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR	1-53450-670-1	01	1	0710-1003
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0710-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER 6WF1 TC-C(1B8)	1-53456-277-3	01	1	0710-1003
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1004-
174	OUTRIGGER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53456-418-3	01	1	0710-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	0710-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0710-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0710-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0710-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0710-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0710-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0710-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0710-
294	MEMBER; FLOATING	1-53454-949-2	01	1	0710-

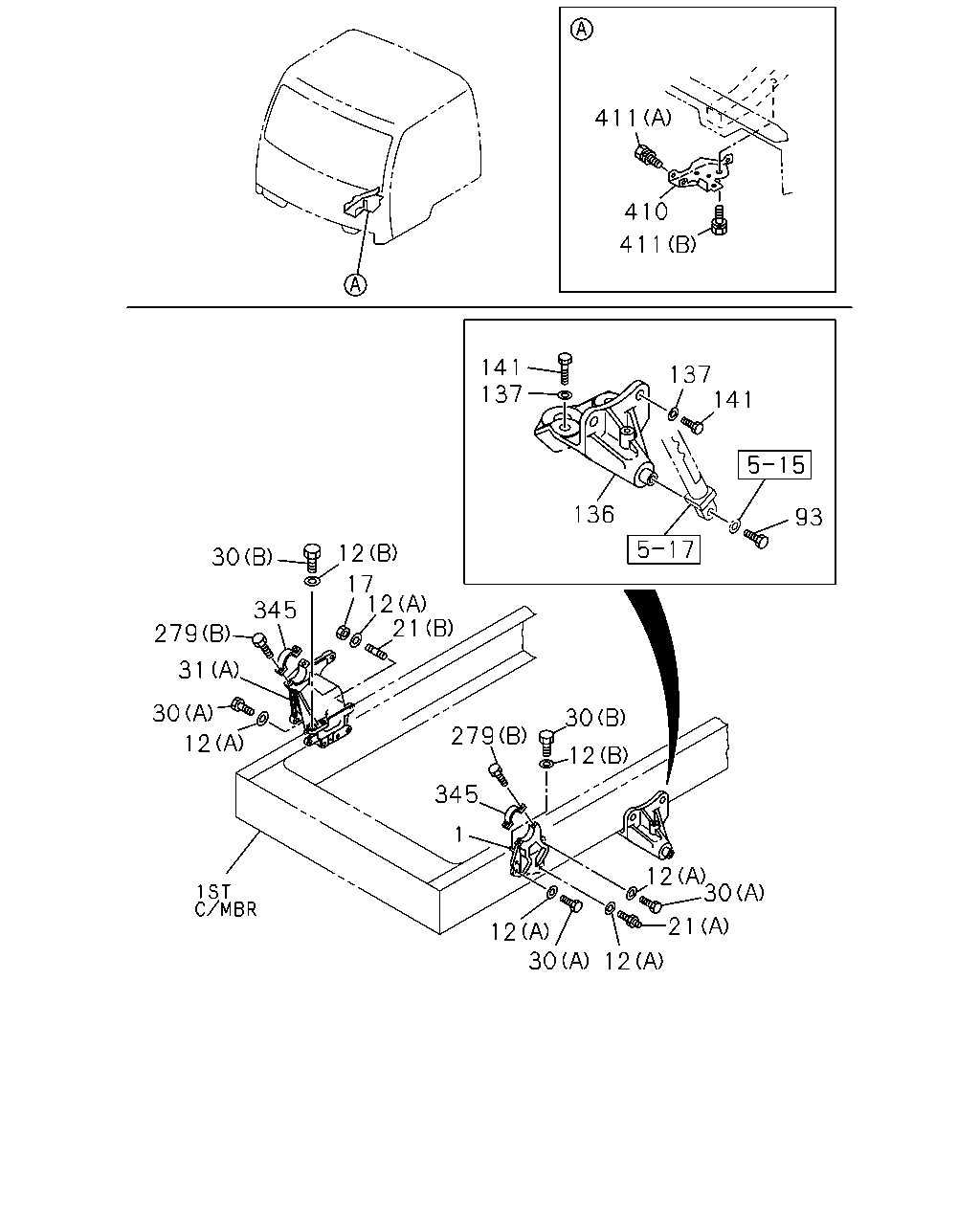

411 410 411 141 137 137 141 136 93 30 12 279 345 1 12 30 12 12 21 30 12 30 31 279 30 12 345 17 12 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-312-0	01	1	0710-0802
1	BRACKET; CAB MTG	8-98094-536-0	01	1	0803-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-223-0	11	1	0710-
12	WASHER; LK,BRKT (B) ID=15	9-09651-069-0	04	1	0710-1201
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1202-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0710-
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0710-
21	STUD; BRKT,CAB TILT FRONT SPOILER<VP1> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0710-
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	0710-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	0710-
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	0710-
30	BOLT; CAB FRT FOOT (A) M16X45	9-92061-645-0	03	1	0710-
30	BOLT; CAB FRT FOOT FRONT SPOILER<VP1> (A) M16X45	9-92061-645-0	03	1	0710-
30	BOLT; CAB FRT FOOT EXC. FRONT SPOILER<VP1> (A) M16X45	9-92061-645-0	05	1	0710-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0710-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0710-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0710-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0710-
31	BRACKET; CAB 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0710-
31	BRACKET; CAB 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (E)	8-97606-793-0	01	1	0710-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0710-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0710-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0710-1201
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1202-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0710-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0710-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0710-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0710-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-
279	BOLT (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0710-
345	CAP; CAB	1-53458-336-3	02	1	0710-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0710-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0710-0904
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0710-

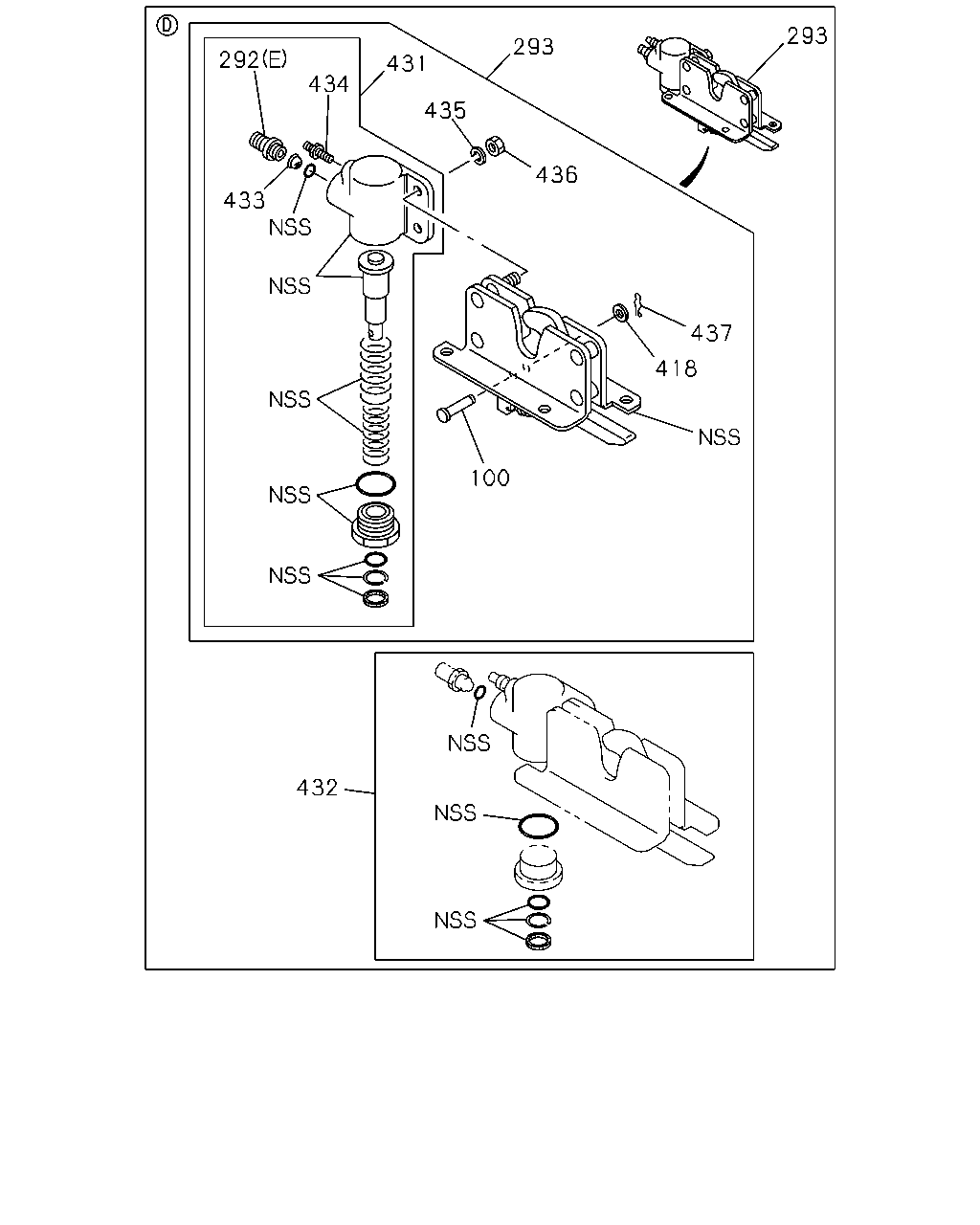

292 434 435 431 293 436 293 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0710-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0710-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0710-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0710-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0710-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0710-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0710-
436	NUT; AIR CYL	1-53458-528-0	02	1	0710-
437	PIN; SNAP	1-53458-526-0	01	1	0710-

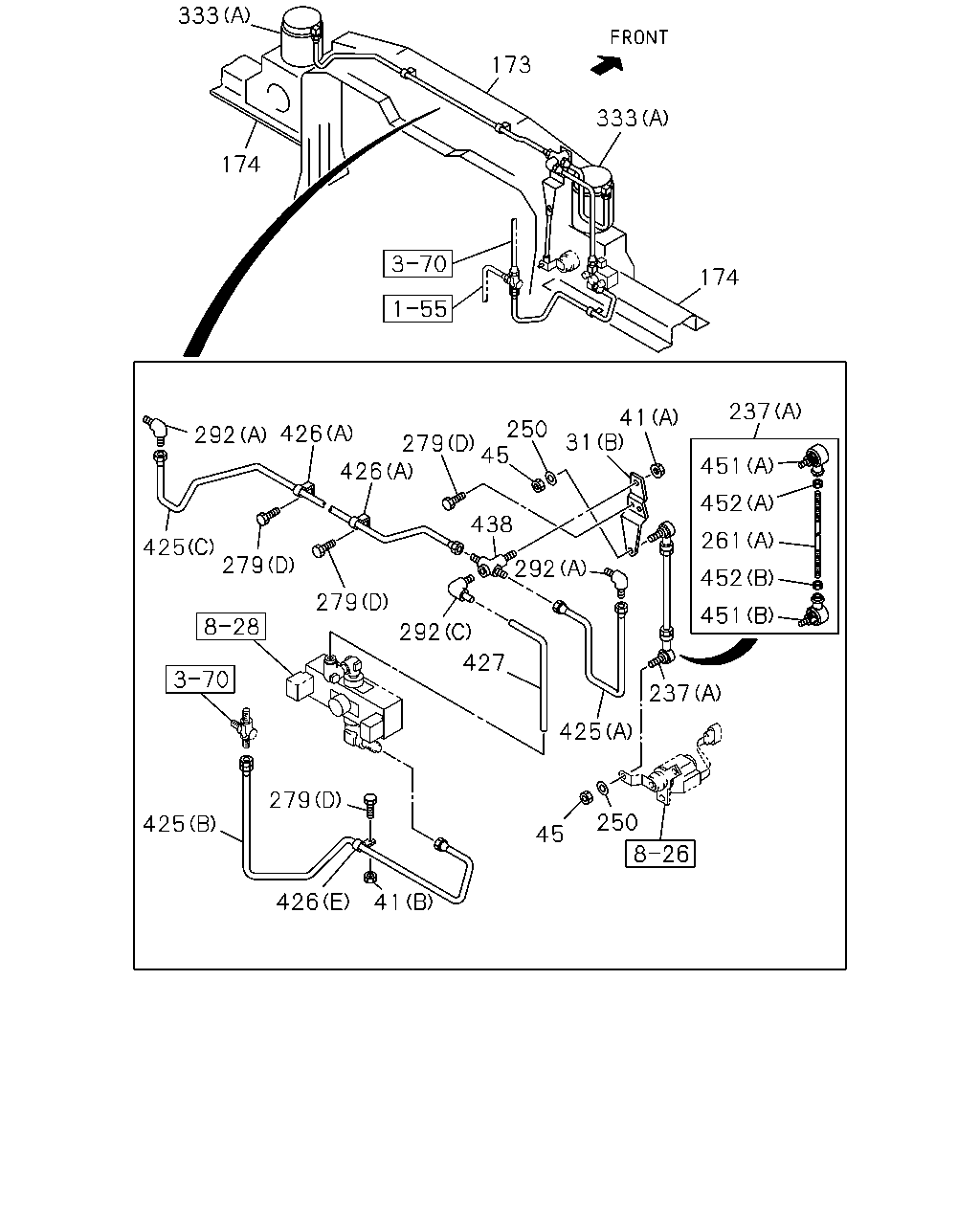

333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 452 279 451 292 427 237 425 279 250 425 45 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0710-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0710-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0710-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0710-
31	BRACKET; CAB 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0710-
31	BRACKET; CAB 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (E)	8-97606-793-0	01	1	0710-
41	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0710-
41	NUT (A) M12 FLANGE	0-91180-212-0	01	1	0710-
45	NUT M5	0-91110-505-0	02	1	0710-
45	NUT M5	0-91110-505-0	02	1	0710-
173	MEMBER; CAB MTG RR	1-53450-670-1	01	1	0710-1003
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0710-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER 6WF1 TC-C(1B8)	1-53456-277-3	01	1	0710-1003
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1004-
174	OUTRIGGER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53456-418-3	01	1	0710-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0710-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0710-
237	ROD ASM; LATERAL 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0710-
237	ROD ASM; LATERAL 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0710-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	0710-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	0710-
261	ROD; LINK (A)	9-08410-514-0	01	1	0710-
261	ROD; LINK 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0710-
261	ROD; LINK 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	0710-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0710-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0710-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0710-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-
279	BOLT (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
333	SPRING (A)	1-52110-143-4	02	1	0710-
333	SPRING (B)	1-52110-142-4	02	1	0710-
425	PIPE ASM; AIR (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	0710-
425	PIPE ASM; AIR (A) L=298	1-47494-961-1	01	1	0710-
425	PIPE ASM; AIR (B)	1-49122-659-0	01	1	0710-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	0710-
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	0710-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0710-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	0710-
426	CLIP (C) ID=5.8 L=8	8-94155-681-0	02	1	0710-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
438	UNION M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0710-
451	JOINT; BALL (B)	1-09760-103-2	01	1	0710-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0710-
451	JOINT; BALL (A)	1-09760-104-2	01	1	0710-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0710-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	0710-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0710-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	0710-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0710-

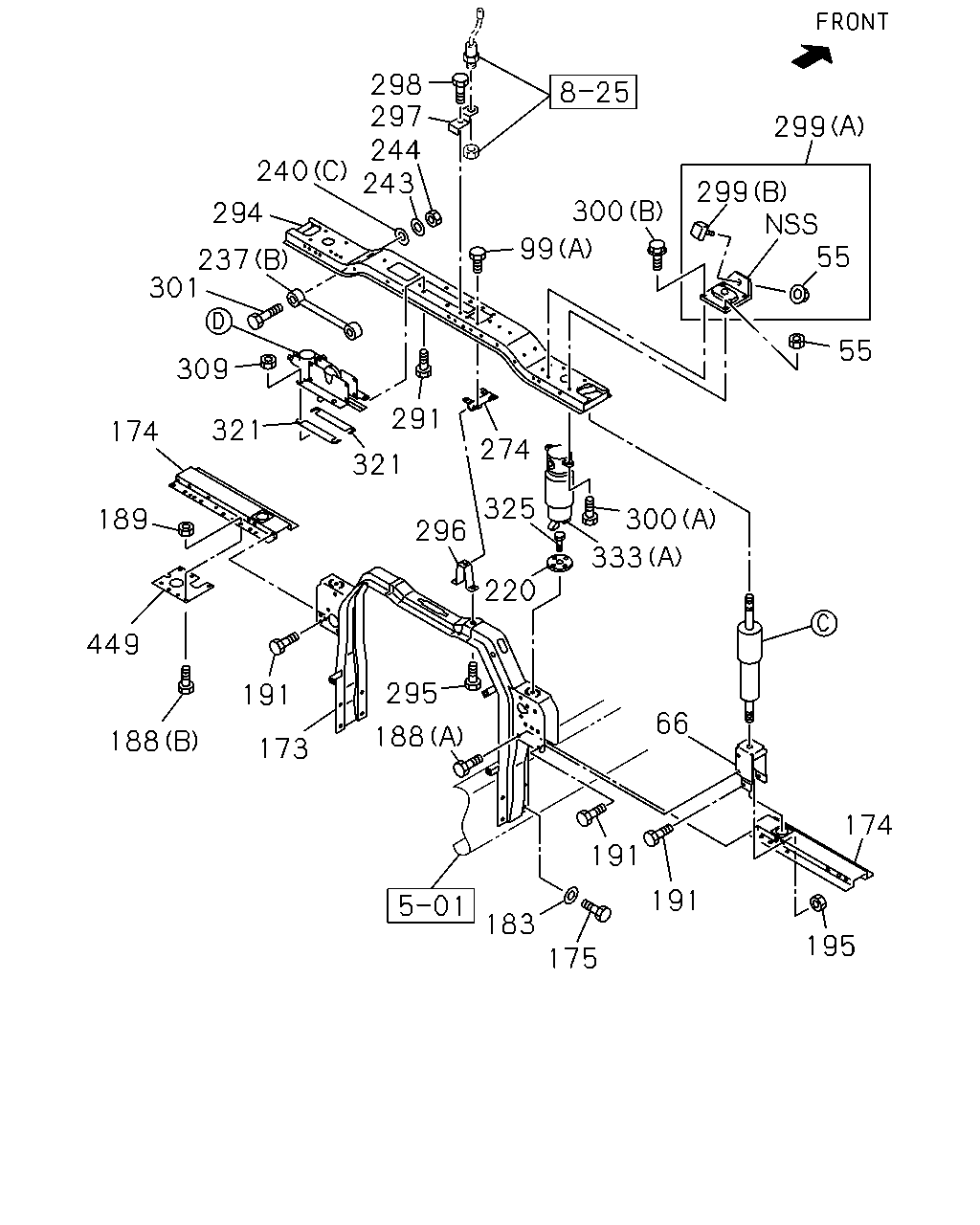

237 294 240 243 298 297 244 99 300 299 55 55 274 325 300 333 220 301 309 174 321 321 291 296 189 449 191 188 173 188 295 191 191 183 175 195 174 66 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	02	1	0710-
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	04	1	0710-
66	BRACKET; S/ABS	1-53458-755-1	01	1	0710-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0710-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0710-
173	MEMBER; CAB MTG RR	1-53450-670-1	01	1	0710-1003
173	MEMBER; CAB MTG RR	8-98166-139-1	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0710-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER 6WF1 TC-C(1B8)	1-53456-277-3	01	1	0710-1003
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1004-
174	OUTRIGGER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53456-418-3	01	1	0710-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	0710-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0710-1201
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1202-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	0710-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0710-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	0710-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0710-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0710-
220	GUIDE; SPR	1-53458-648-1	02	1	0710-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0710-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0710-
237	ROD ASM; LATERAL 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0710-
237	ROD ASM; LATERAL 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0710-
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0710-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0710-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0710-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0710-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0710-
274	PIN	1-53458-996-0	01	1	0710-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0710-
294	MEMBER; FLOATING	1-53454-949-2	01	1	0710-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0710-
296	STOPPER; UPR	1-53458-973-1	01	1	0710-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0710-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0710-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0710-
299	RUBBER; MTG 6WF1 TC-C(1B8) (A)	1-53366-156-0	02	1	0710-0812
299	RUBBER; MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53366-194-0	02	1	0710-0812
299	RUBBER; MTG (A)	1-53366-194-0	02	1	0901-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	0710-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0710-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0710-
309	NUT M10 FLANGE	0-91180-210-0	04	1	0710-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0710-
325	BOLT; GUIDE NUT M8X20 FLANGE	0-28650-820-0	02	1	0710-
333	SPRING (A)	1-52110-143-4	02	1	0710-
333	SPRING (B)	1-52110-142-4	02	1	0710-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0710-

237 333 279 451 452 261 452 451 292 99 240 31 192 427 278 237 72 31 72 69 73 71 105 45 250 72 112 45 250 72 279 73 426 71 69 72 105 426 67 279 240 426 279 98 192 333 292 112 292 292 31 279 120 31 118 27 315 113 315 113 27 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0710-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0710-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0710-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0710-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0710-
31	BRACKET; CAB (B)	1-53458-374-1	01	1	0710-
31	BRACKET; CAB 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	0710-
31	BRACKET; CAB 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (E)	8-97606-793-0	01	1	0710-
45	NUT M5	0-91110-505-0	02	1	0710-
45	NUT M5	0-91110-505-0	02	1	0710-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0710-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0710-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0710-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0710-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0710-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0710-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0710-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0710-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0710-
112	ARM ASM; LINK,CAB FRT SUSP 6WF1 TC-C(1B8)	1-53450-647-4	01	1	0710-
112	ARM ASM; LINK,CAB FRT SUSP 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53450-684-2	01	1	0710-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	0710-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0710-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0710-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0710-
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	0710-
237	ROD ASM; LATERAL (A)	1-33670-407-0	01	1	0710-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0710-
237	ROD ASM; LATERAL 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	0710-
237	ROD ASM; LATERAL 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0710-
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0710-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0710-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0710-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	0710-
250	WASHER; LK ID=5.1	0-91510-505-0	02	1	0710-
261	ROD; LINK (A)	9-08410-514-0	01	1	0710-
261	ROD; LINK 6WF1 TC-C(1B8) FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	0710-
261	ROD; LINK 6WG1 TC-C(72L),6WG1 TC-S(97L) FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	0710-
278	COVER SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0710-1105
278	COVER L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	1106-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0710-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
279	BOLT (C) M8X16 FLANGE	0-28050-816-0	04	1	0710-
279	BOLT (E) M8X60 FLANGE	0-28050-860-0	02	1	0710-
279	BOLT (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-
279	BOLT (A) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0710-
292	CONNECTOR; CAB SUSPENSION (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (D)	1-09661-577-0	01	1	0710-
292	CONNECTOR; CAB SUSPENSION (F) PT1/8 ELBOW	8-94338-418-1	01	1	0710-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0710-
333	SPRING (A)	1-52110-143-4	02	1	0710-
333	SPRING (B)	1-52110-142-4	02	1	0710-
426	CLIP (E) ID=7 L=32	0-95234-665-0	01	1	0710-
426	CLIP (D) ID=11 L=16	0-95235-025-0	01	1	0710-
426	CLIP (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0710-
426	CLIP (B) ID=9.5	5-09709-020-0	01	1	0710-
426	CLIP (C) ID=5.8 L=8	8-94155-681-0	02	1	0710-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0710-
451	JOINT; BALL (B)	1-09760-103-2	01	1	0710-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	01	1	0710-
451	JOINT; BALL (A)	1-09760-104-2	01	1	0710-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	01	1	0710-
452	NUT; BALL JOINT (A) M5	0-91110-505-0	01	1	0710-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	01	1	0710-
452	NUT; BALL JOINT (B) M5 LH THREAD	9-09840-277-0	01	1	0710-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
