5-01 — FRAME AND OTHER PARTS (#66991) — 168 parça

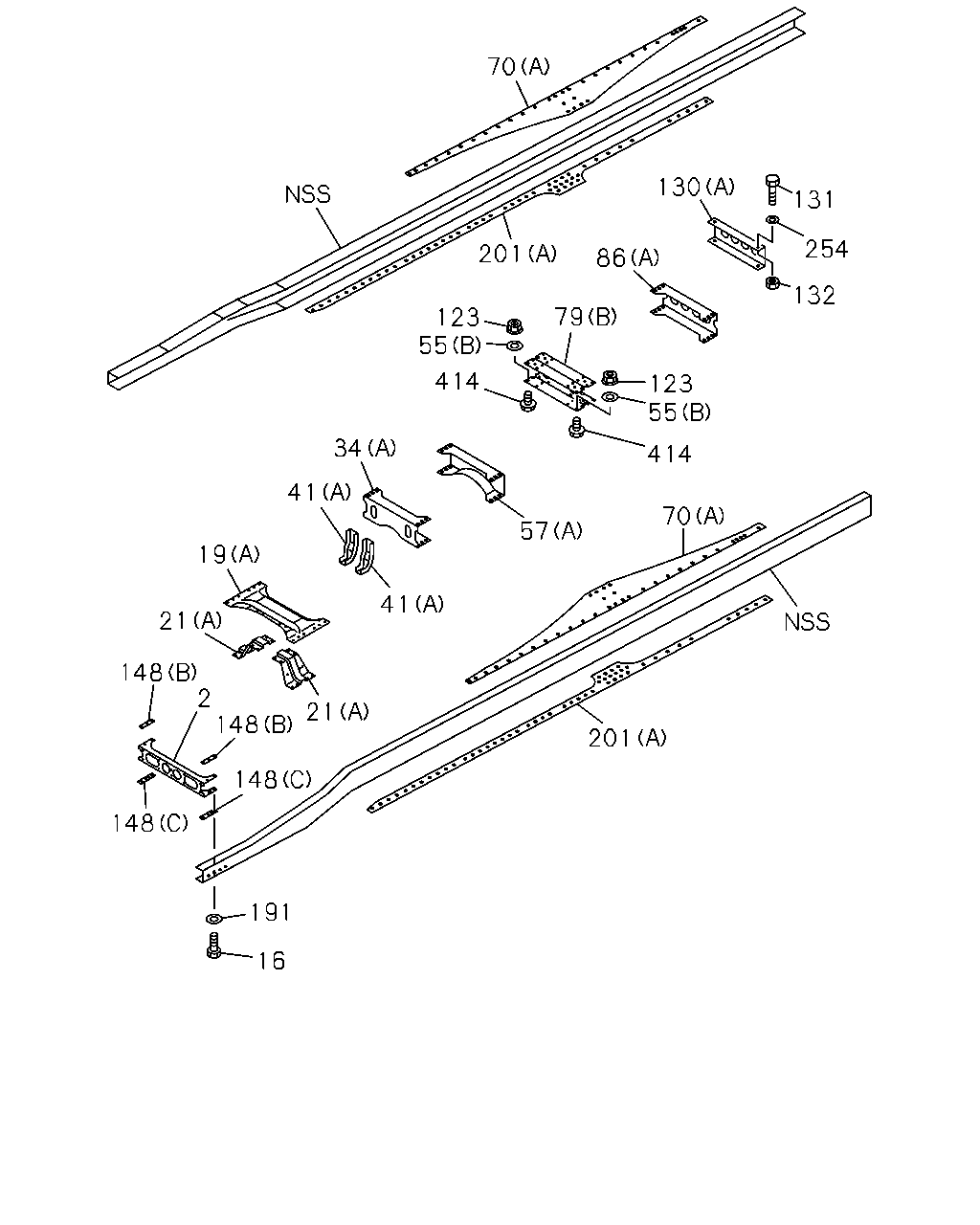

70 201 123 55 79 414 86 130 131 132 254 123 414 55 70 57 201 16 191 148 148 148 21 2 148 19 21 41 34 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0710-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0710-1209
16	BOLT; 1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> M16X40	0-20951-640-0	02	1	1210-
19	MEMBER; CROSS,2ND 6WF1 TC-C(1B8) (A)	1-53174-231-2	01	1	0710-
19	MEMBER; CROSS,2ND 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53174-221-0	01	1	0710-
21	GUSSET; 2ND CROSS 6WF1 TC-C(1B8) (A)	1-53164-185-1	02	1	0710-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53164-225-0	02	1	0710-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-287-3	02	1	0710-
34	MEMBER; CROSS,3RD 6WF1 TC-C(1B8) (A)	1-53182-090-0	01	1	0710-
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53182-091-0	01	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WF1 TC-C(1B8) (A) L=325	1-53271-341-0	02	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L) (C) L=355	1-53271-289-1	02	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=330	1-53271-263-2	02	1	0710-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0710-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL 6WF1 TC-C(1B8) (B) ID=19	9-09160-518-0	32	1	0710-1209
57	MEMBER; CROSS,RR SUSP FRT 6WF1 TC-C(1B8) (A)	1-53181-937-3	01	1	0710-
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-994-1	01	1	0710-
70	GUSSET; TRUNNION,UPR 6WF1 TC-C(1B8) (A)	1-53161-928-0	02	1	0710-
70	GUSSET; TRUNNION,UPR 6WG1 TC-C(72L) (B)	8-97620-862-1	02	1	0710-
70	GUSSET; TRUNNION,UPR 6WG1 TC-S(97L) (B)	1-53182-058-2	02	1	0710-
79	MEMBER; CROSS,TRUNNION ASM 6WF1 TC-C(1B8) (B)	1-53181-686-2	01	1	0710-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53182-054-1	01	1	0710-
86	MEMBER; CROSS,RR SUSP RR 6WF1 TC-C(1B8) (A)	1-53181-646-8	01	1	0710-
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-134-2	01	1	0710-
123	NUT 6WF1 TC-C(1B8) M18	0-91110-518-0	16	1	0710-1209
130	MEMBER; CROSS,END 6WF1 TC-C(1B8) (A)	1-53181-613-1	01	1	0710-
130	MEMBER; CROSS,END 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-537-2	01	1	0710-
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0710-1209
131	BOLT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14X40	0-20951-440-0	04	1	1210-
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0710-1209
132	NUT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	04	1	1210-
148	SPACER; C/MBR (B)	1-53168-400-1	02	1	0710-
148	SPACER; C/MBR (C)	1-53168-403-1	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-53168-443-0	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) T=7.0	1-53168-486-0	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) T=7.5	1-53168-487-0	02	1	0710-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0710-1209
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> ID=16.2	1-09503-223-0	02	1	1210-
201	GUSSET; C/MBR 6WF1 TC-C(1B8) (A)	1-53161-929-0	02	1	0710-
201	GUSSET; C/MBR 6WG1 TC-C(72L) (B)	8-97620-863-1	02	1	0710-
201	GUSSET; C/MBR 6WG1 TC-S(97L) (B)	1-53182-059-3	02	1	0710-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0710-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-1209
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	04	1	1210-
414	BOLT 6WF1 TC-C(1B8) M18X60	9-91066-860-0	16	1	0710-0805
414	BOLT 6WF1 TC-C(1B8) M18X60	8-98036-497-0	16	1	0806-1209

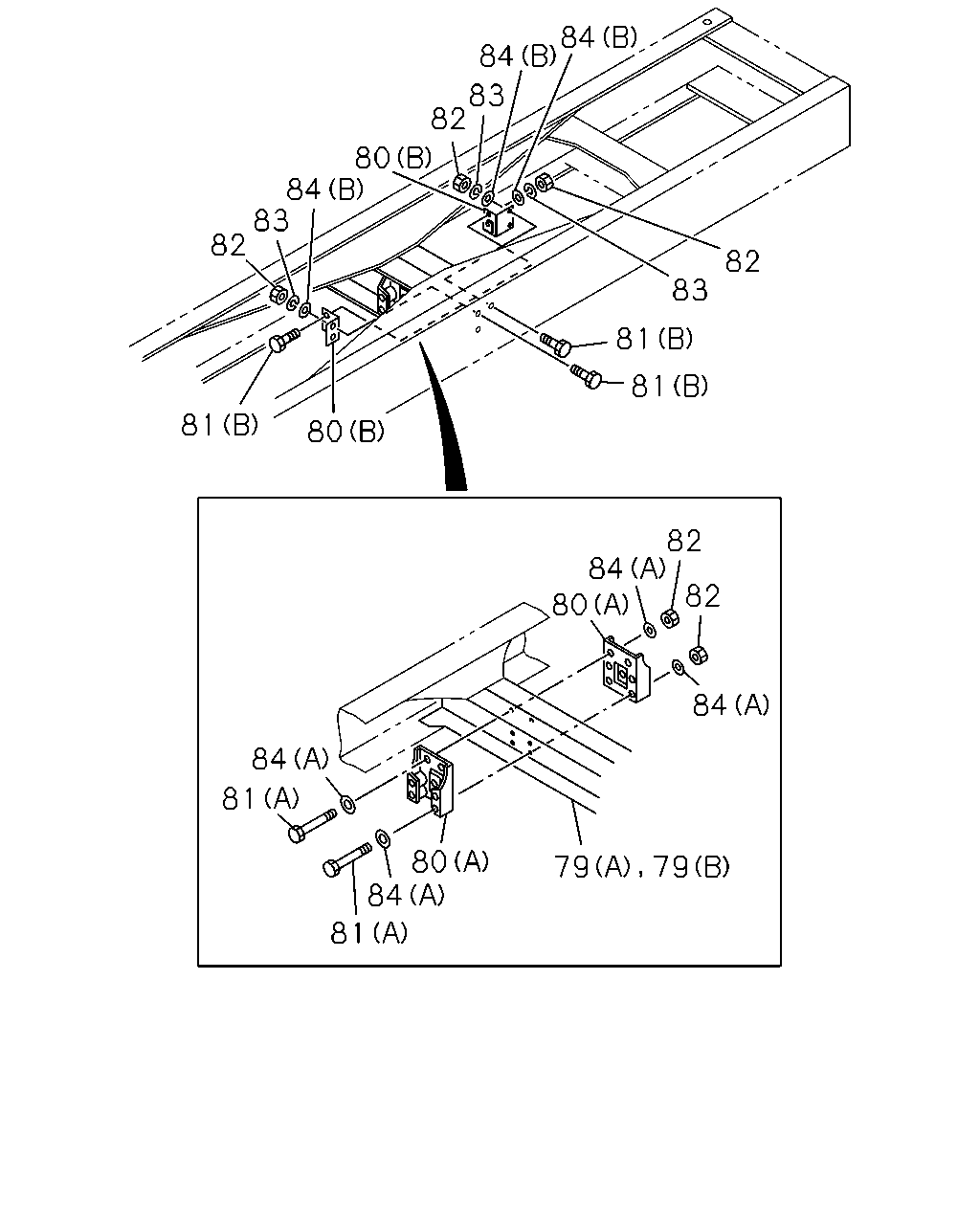

84 84 83 82 80 84 83 82 81 80 81 81 83 82 82 82 84 84 80 84 81 80 84 81 79 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM 6WF1 TC-C(1B8) (B)	1-53181-686-2	01	1	0710-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53182-054-1	01	1	0710-
80	BRACKET; C/MBR 6WF1 TC-C(1B8) (B)	1-53167-610-0	04	1	0710-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-665-1	02	1	0710-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-666-1	02	1	0710-
80	BRACKET; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53363-031-2	02	1	0710-
80	BRACKET; C/MBR 6WF1 TC-C(1B8) (A)	1-53363-031-2	02	1	0710-
81	BOLT; BRKT (B) M14X60	0-20951-460-0	04	1	0710-
81	BOLT; BRKT 6WF1 TC-C(1B8) (B) M14X40	0-20951-440-0	08	1	0710-
81	BOLT; BRKT 6WF1 TC-C(1B8) (A) M14X50	0-20951-450-0	02	1	0710-1209
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1210-
81	BOLT; BRKT 6WF1 TC-C(1B8) (A) M14X205	1-09000-147-0	02	1	0710-1209
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	1210-
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M14X100	9-91066-400-0	04	1	0710-1209
81	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M14X45	9-92061-445-0	08	1	0710-
82	NUT; BRKT M14	0-91110-514-0	08	1	0710-
82	NUT; BRKT M14	0-91110-514-0	12	1	0710-
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0710-
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0710-1104
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-
84	WASHER; PL,BRKT 6WF1 TC-C(1B8) (A) ID=15	9-09651-069-0	08	1	0710-1201
84	WASHER; PL,BRKT 6WF1 TC-C(1B8) (A) ID=15	8-98010-627-1	08	1	1202-
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	9-09651-069-0	04	1	0710-1201
84	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=15	8-98010-627-1	04	1	1202-

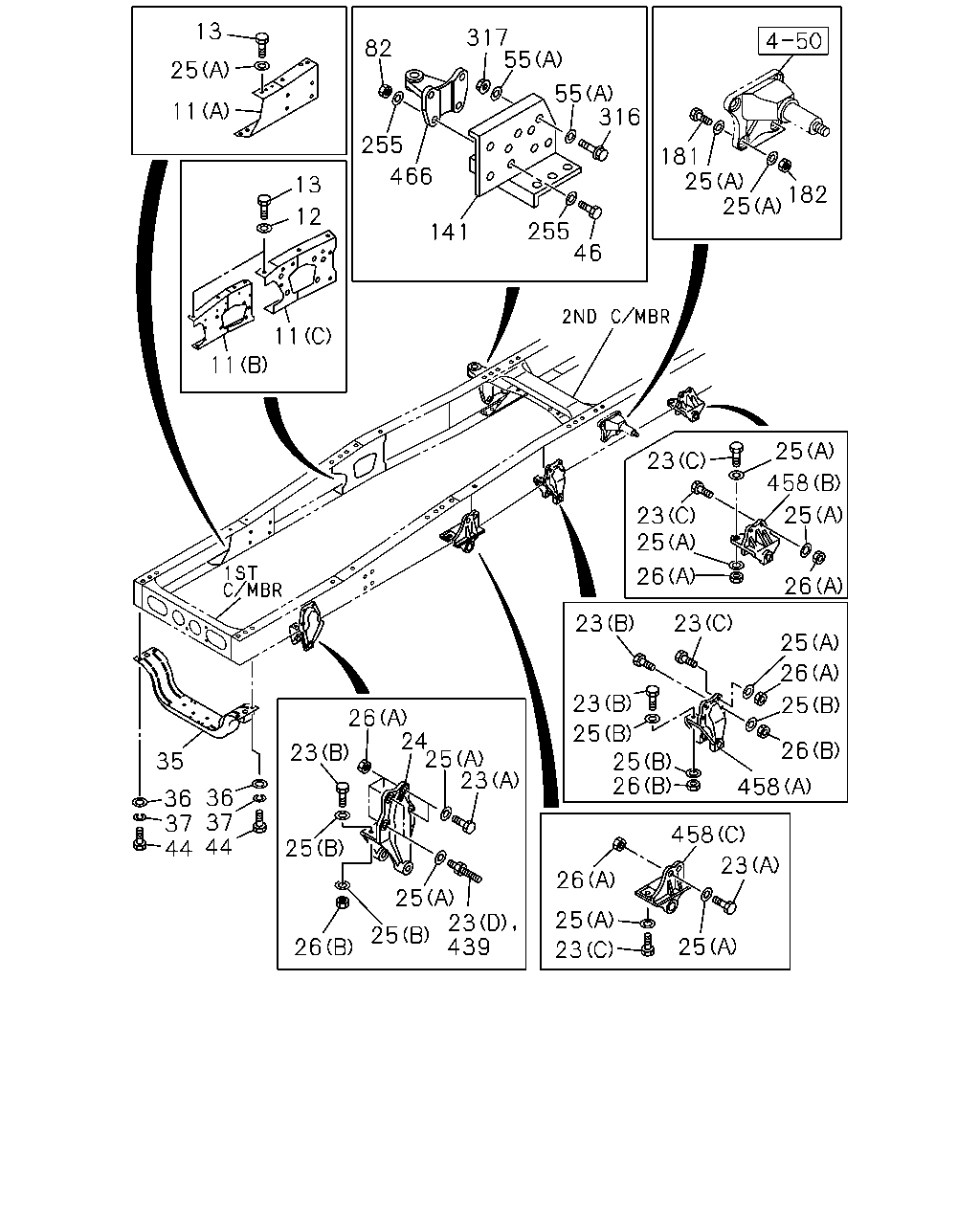

13 25 11 82 317 255 141 255 55 55 316 46 181 182 25 25 23 25 23 458 25 25 26 26 23 23 25 26 25 26 458 26 25 25 23 26 23 35 36 36 37 37 44 44 25 26 25 439 25 23 23 25 24 26 25 23 25 23 458 11 11 12 13 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0710-
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0710-
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (C)	1-53221-230-4	01	1	0710-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (C)	8-98056-611-1	01	1	0806-
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (C)	1-53221-231-4	01	1	0710-0805
11	BRACKET; ENG MTG 6WF1 TC-C(1B8) (C)	8-98056-612-0	01	1	0806-
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-226-4	01	1	0710-
11	BRACKET; ENG MTG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53221-227-4	01	1	0710-
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0710-1201
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	04	1	0710-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	10	1	0710-
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0710-
23	BOLT; BRKT,SPR 6WF1 TC-C(1B8) (C) M14X50	0-20951-450-0	16	1	0710-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X50	0-20951-450-0	12	1	0710-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M14X60	0-20951-460-0	04	1	0710-
23	BOLT; BRKT,SPR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D) M12X25,M14X45 L=81	1-09029-103-0	02	1	0710-
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0710-
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0710-
25	WASHER; PL,BRKT RADIATOR GUARD<WV1> (B) ID=16.2	1-09503-316-0	20	1	1210-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0710-1209
25	WASHER; PL,BRKT EXC. RADIATOR GUARD<WV1> (B) ID=16.2	1-09503-223-0	20	1	1210-
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	50	1	0710-1201
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	50	1	1202-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0710-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0710-
35	MEMBER; UNDER	1-53174-263-2	01	1	0710-
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0710-
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0710-
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0710-
46	BOLT; BRKT FIX M14X60	0-20951-460-0	04	1	0710-
55	WASHER; PL (A) ID=15	9-09651-069-0	10	1	0710-1201
55	WASHER; PL (A) ID=15	8-98010-627-1	10	1	1202-
55	WASHER; PL 6WF1 TC-C(1B8) (B) ID=19	9-09160-518-0	32	1	0710-1209
82	NUT; BRKT M14	0-91110-514-0	08	1	0710-
82	NUT; BRKT M14	0-91110-514-0	12	1	0710-
141	STIFFENER	1-53151-833-1	01	1	0710-
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0710-
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0710-
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0710-1201
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0710-
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0710-
439	STUD; BRKT,SPR 6WF1 TC-C(1B8) M12X25,M14X45 L=81	1-09029-103-0	02	1	0710-
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0710-
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0710-
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0710-
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0710-
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0710-
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0710-

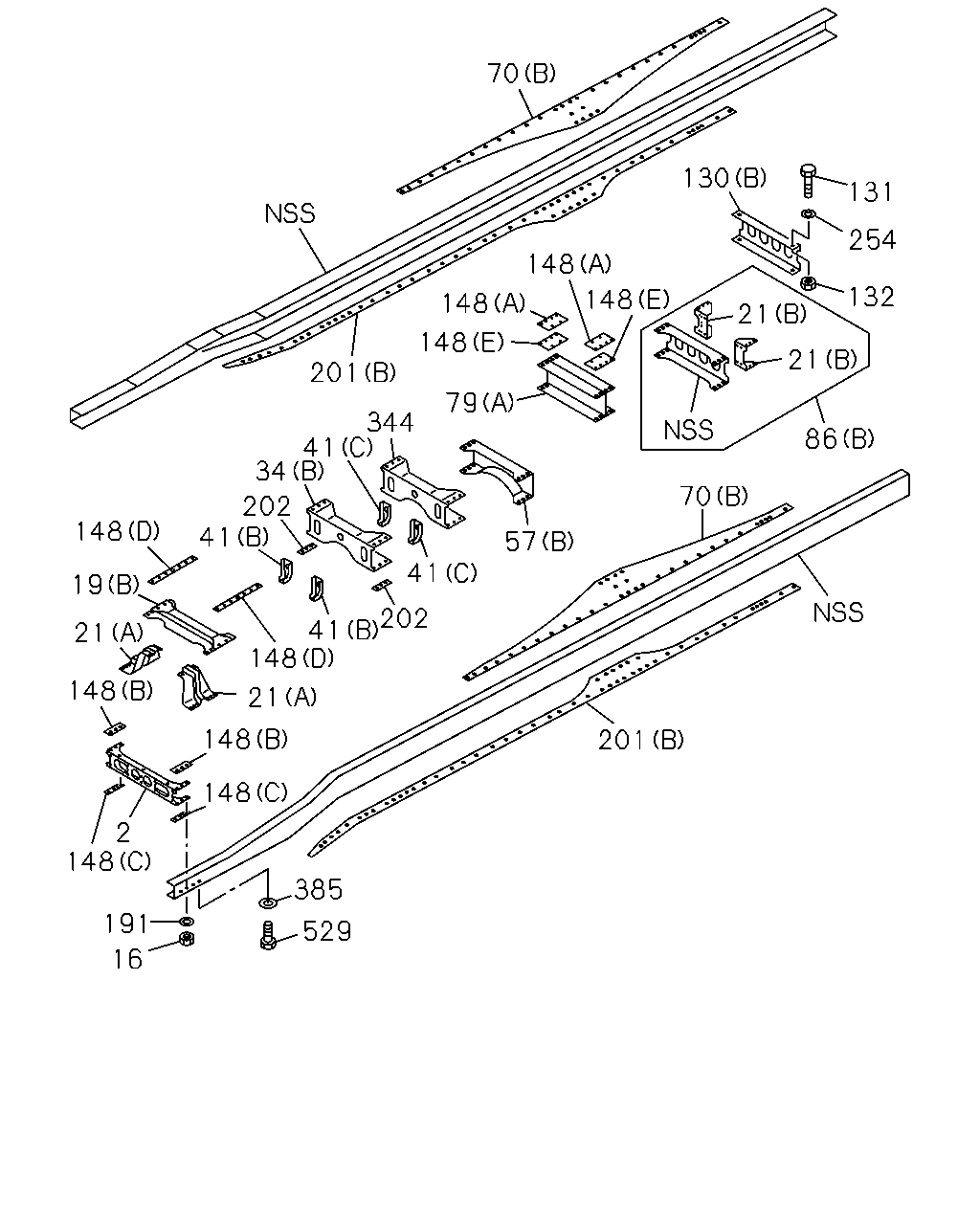

70 130 131 254 132 21 21 86 70 148 148 148 148 79 201 57 344 41 34 202 41 148 19 148 148 21 21 41 148 202 41 148 2 148 191 16 529 201 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0710-
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0710-1209
16	BOLT; 1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> M16X40	0-20951-640-0	02	1	1210-
19	MEMBER; CROSS,2ND 6WF1 TC-C(1B8) (A)	1-53174-231-2	01	1	0710-
19	MEMBER; CROSS,2ND 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53174-221-0	01	1	0710-
21	GUSSET; 2ND CROSS 6WF1 TC-C(1B8) (A)	1-53164-185-1	02	1	0710-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53164-225-0	02	1	0710-
21	GUSSET; 2ND CROSS 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53167-287-3	02	1	0710-
34	MEMBER; CROSS,3RD 6WF1 TC-C(1B8) (A)	1-53182-090-0	01	1	0710-
34	MEMBER; CROSS,3RD 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53182-091-0	01	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WF1 TC-C(1B8) (A) L=325	1-53271-341-0	02	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L) (C) L=355	1-53271-289-1	02	1	0710-
41	BRACKET; CENTER BRG,FRAME SIDE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) L=330	1-53271-263-2	02	1	0710-
57	MEMBER; CROSS,RR SUSP FRT 6WF1 TC-C(1B8) (A)	1-53181-937-3	01	1	0710-
57	MEMBER; CROSS,RR SUSP FRT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-994-1	01	1	0710-
70	GUSSET; TRUNNION,UPR 6WF1 TC-C(1B8) (A)	1-53161-928-0	02	1	0710-
70	GUSSET; TRUNNION,UPR 6WG1 TC-C(72L) (B)	8-97620-862-1	02	1	0710-
70	GUSSET; TRUNNION,UPR 6WG1 TC-S(97L) (B)	1-53182-058-2	02	1	0710-
79	MEMBER; CROSS,TRUNNION ASM 6WF1 TC-C(1B8) (B)	1-53181-686-2	01	1	0710-
79	MEMBER; CROSS,TRUNNION ASM 6WG1 TC-C(72L),6WG1 TC-S(97L) (A)	1-53182-054-1	01	1	0710-
86	MEMBER; CROSS,RR SUSP RR 6WF1 TC-C(1B8) (A)	1-53181-646-8	01	1	0710-
86	MEMBER; CROSS,RR SUSP RR 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-134-2	01	1	0710-
130	MEMBER; CROSS,END 6WF1 TC-C(1B8) (A)	1-53181-613-1	01	1	0710-
130	MEMBER; CROSS,END 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-53181-537-2	01	1	0710-
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0710-1209
131	BOLT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14X40	0-20951-440-0	04	1	1210-
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0710-1209
132	NUT; END C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) M14	0-91110-514-0	04	1	1210-
148	SPACER; C/MBR (B)	1-53168-400-1	02	1	0710-
148	SPACER; C/MBR (C)	1-53168-403-1	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (D)	1-53168-443-0	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (E) T=7.0	1-53168-486-0	02	1	0710-
148	SPACER; C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) T=7.5	1-53168-487-0	02	1	0710-
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0710-1209
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. RADIATOR GUARD<WV1> ID=16.2	1-09503-223-0	02	1	1210-
201	GUSSET; C/MBR 6WF1 TC-C(1B8) (A)	1-53161-929-0	02	1	0710-
201	GUSSET; C/MBR 6WG1 TC-C(72L) (B)	8-97620-863-1	02	1	0710-
201	GUSSET; C/MBR 6WG1 TC-S(97L) (B)	1-53182-059-3	02	1	0710-
202	SPACER; 3RD C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-53168-506-0	02	1	0710-
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0710-1201
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-1209
254	WASHER; PL,C/MBR 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=15	8-98010-627-1	04	1	1210-
344	MEMBER; CROSS,4TH 6WG1 TC-C(72L)	1-53182-091-0	01	1	0710-
385	WASHER; PL,DUMMY 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.2	1-09503-223-0	02	1	0710-1209
385	WASHER; PL,DUMMY 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. RADIATOR GUARD<WV1> ID=16.2	1-09503-223-0	02	1	1210-
529	BOLT; DUMMY,HOLE 6WG1 TC-C(72L),6WG1 TC-S(97L) M16X30	0-20801-630-0	02	1	0710-1209
529	BOLT; DUMMY,HOLE 6WG1 TC-C(72L),6WG1 TC-S(97L) EXC. RADIATOR GUARD<WV1> M16X30	0-20801-630-0	02	1	1210-
