◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10781 - FTR(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#6699) — 123 parça

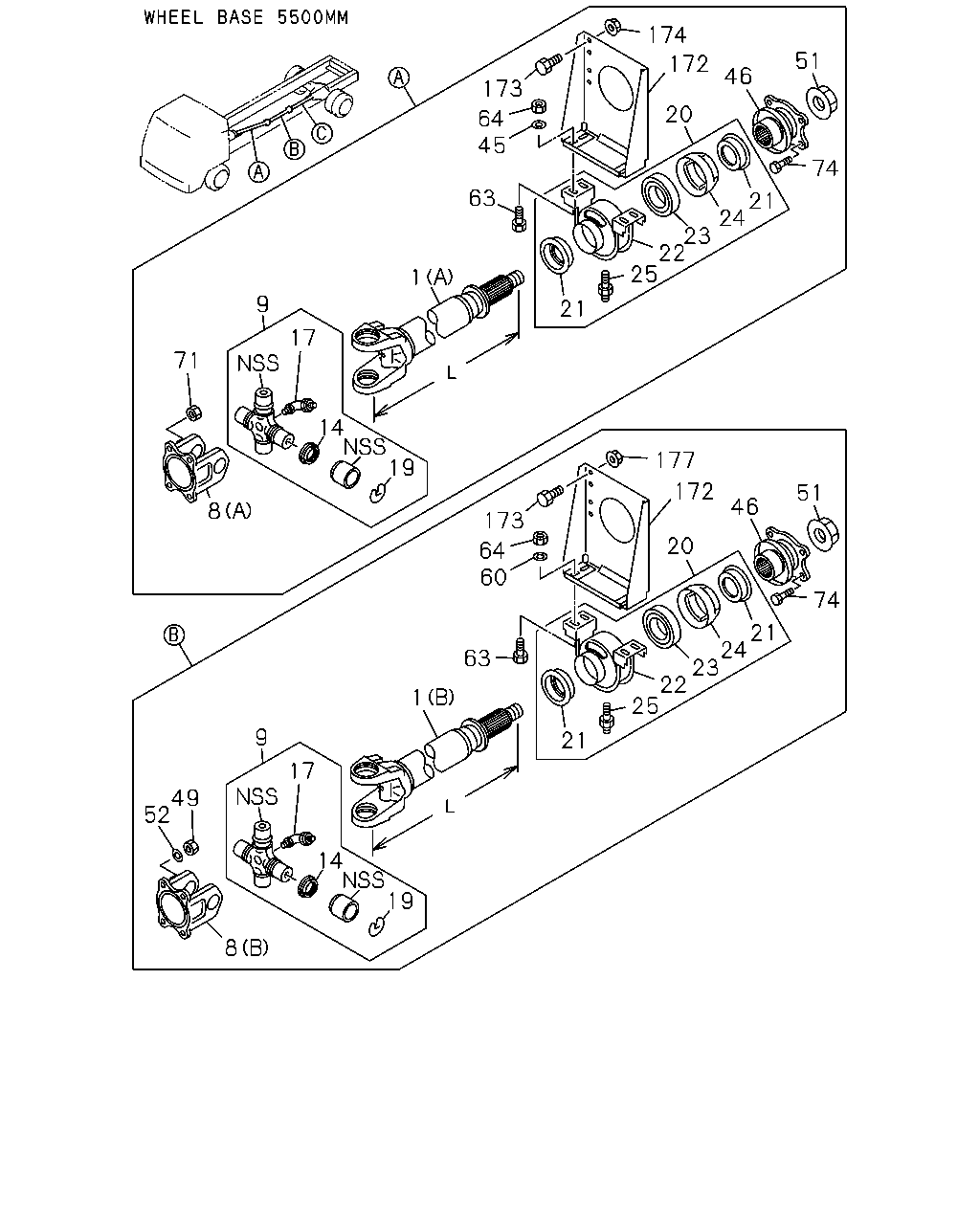

çizim 7942
174 51 172 46 173 20 64 45 74 63 21 24 23 22 25 1 9 21 17 71 14 19 177 172 51 46 8 173 20 64 60 74 21 24 23 22 25 63 1 9 21 17 49 52 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) END L=786 		1-37124-064-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=616 		1-37151-935-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=701 		1-37151-939-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1296 		1-37124-065-1 01 1 0011- ● ●
1 SHAFT; PROP
(A) 1ST L=1501 		1-37152-231-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1286 		1-37124-066-1 01 1 0011- ●
1 SHAFT; PROP
(B) 2ND L=1081 		1-37151-641-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=861 		1-37151-943-1 01 1 0011- ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0011- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0011- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND,END 		1-37211-056-3 03 1 0011- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0011- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0011- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0011- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0011- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0011- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0011- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0011- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0011- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0011- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0011- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0011- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0011- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0011- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0011- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0011- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0011- ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0011- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0011- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0011- ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0011- ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0011- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0011- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0011- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0011- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0011- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0011- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 0011- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0011- ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0011- ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0011- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ● ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0011- ●

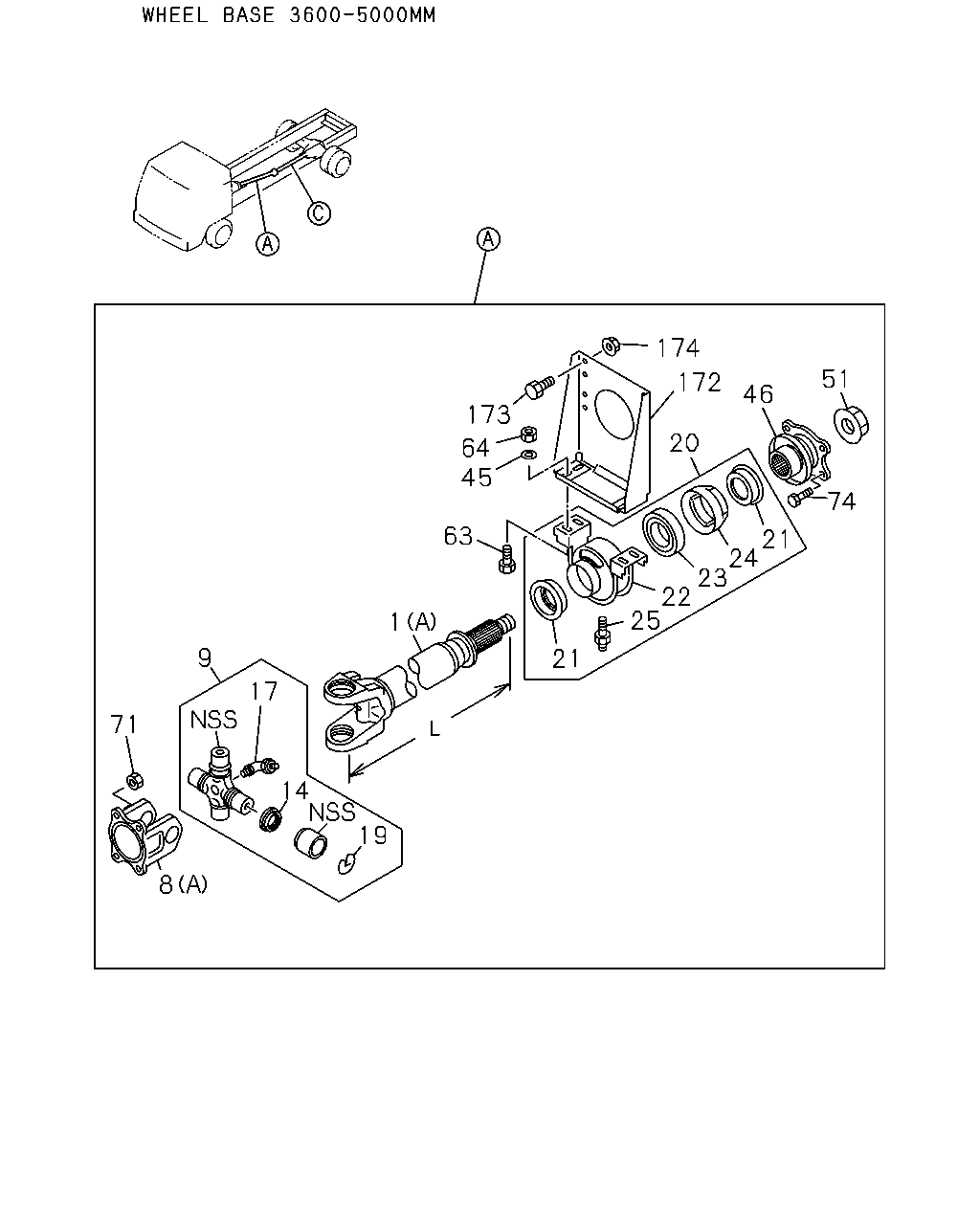

çizim 41173
174 51 172 46 173 20 64 45 74 63 21 24 23 22 25 1 9 21 17 71 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) END L=786 		1-37124-064-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=616 		1-37151-935-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=701 		1-37151-939-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1296 		1-37124-065-1 01 1 0011- ● ●
1 SHAFT; PROP
(A) 1ST L=1501 		1-37152-231-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1286 		1-37124-066-1 01 1 0011- ●
1 SHAFT; PROP
(B) 2ND L=1081 		1-37151-641-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=861 		1-37151-943-1 01 1 0011- ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0011- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0011- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND,END 		1-37211-056-3 03 1 0011- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0011- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0011- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0011- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0011- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0011- ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0011- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0011- ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0011- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0011- ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0011- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0011- ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0011- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0011- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011- ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0011- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0011- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0011- ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0011- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0011- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0011- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0011- ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0011- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0011- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 0011- ● ●
172 BRACKET; CENTER BRG
1ST 		1-37515-136-0 01 1 0011- ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 0011- ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0011- ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0011- ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0011- ● ● ●

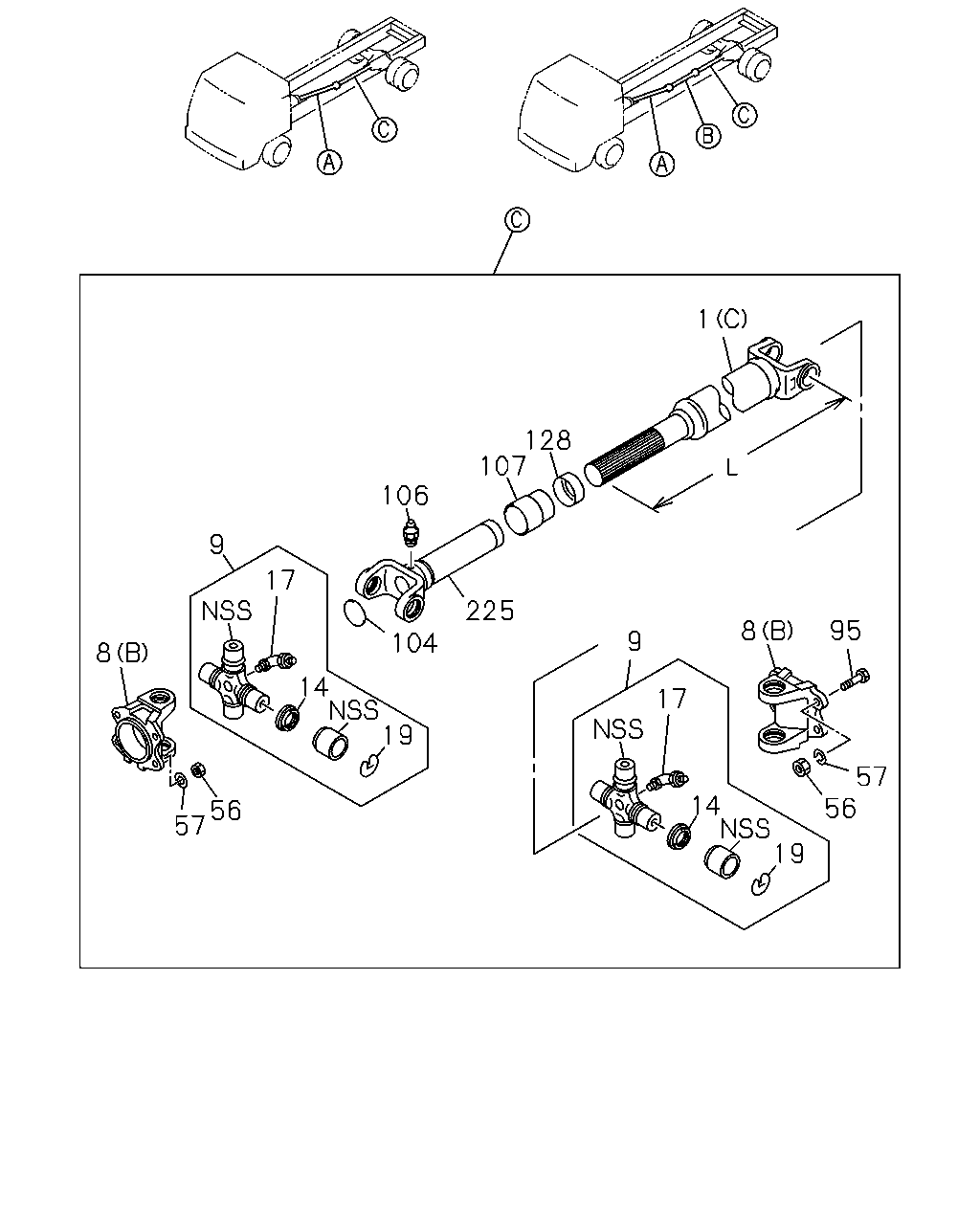

çizim 44508
1 128 107 106 9 17 225 95 8 9 104 8 14 19 17 57 56 14 19 56 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
(C) END L=786 		1-37124-064-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=616 		1-37151-935-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=701 		1-37151-939-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1296 		1-37124-065-1 01 1 0011- ● ●
1 SHAFT; PROP
(A) 1ST L=1501 		1-37152-231-1 01 1 0011- ●
1 SHAFT; PROP
(C) END L=1286 		1-37124-066-1 01 1 0011- ●
1 SHAFT; PROP
(B) 2ND L=1081 		1-37151-641-1 01 1 0011- ●
1 SHAFT; PROP
(A) 1ST L=861 		1-37151-943-1 01 1 0011- ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0011- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0011- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND,END 		1-37211-056-3 03 1 0011- ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0011- ● ● ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0011- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0011- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0011- ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0011- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0011- ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0011- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0011- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0011- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0011- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0011- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0011- ● ● ● ●
