4-55 — FRONT LEAF SPRING (#66987) — 43 parça

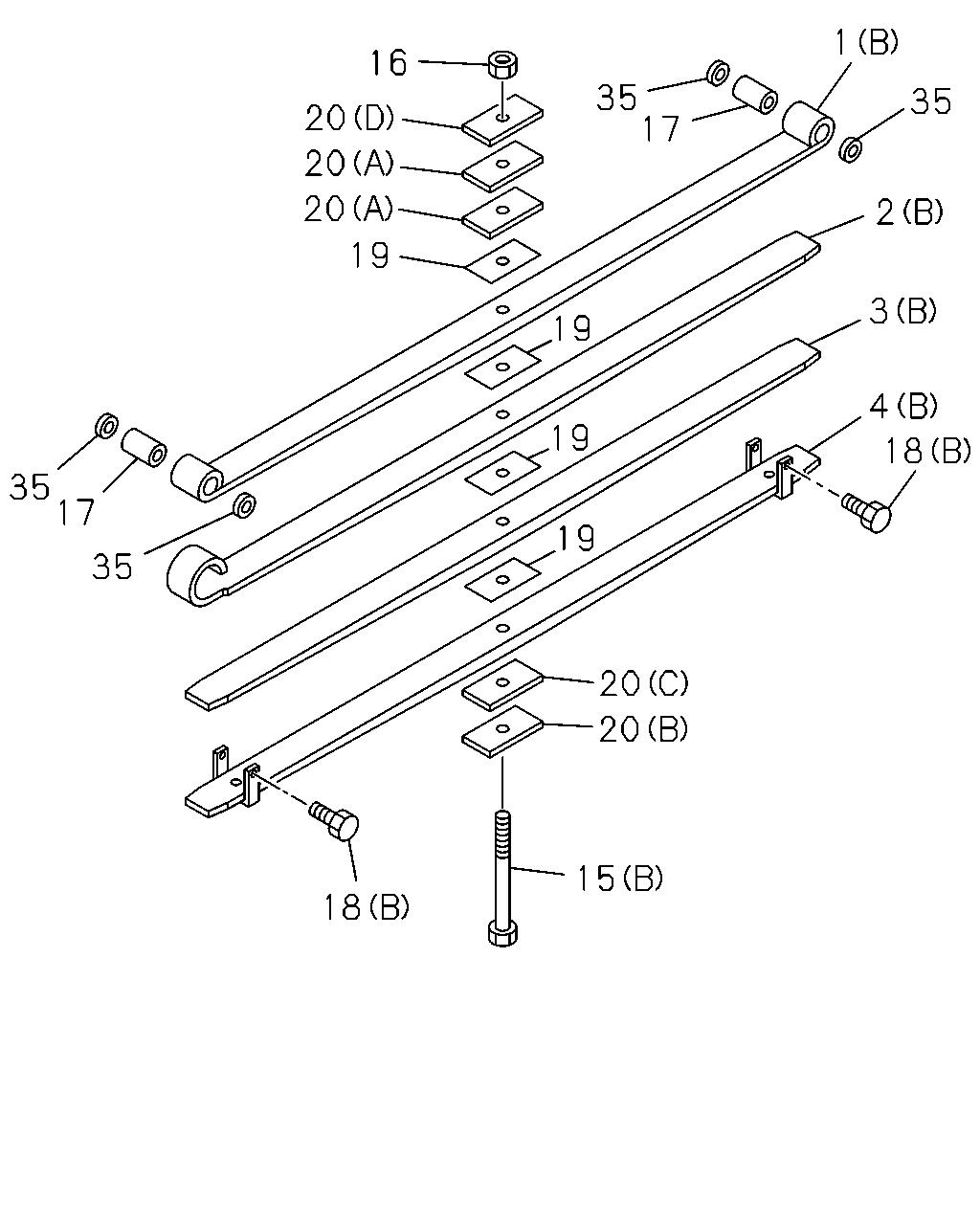

çizim 124818
16 35 1 35 17 2 3 4 18 19 19 19 19 20 20 20 35 35 17 18 15 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51131-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51132-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51133-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B), W/CLIP ASM PART: B = 1-51130-936-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A), W/CLIP ASM PART: A = 1-51130-929-0 		1-51134-929-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=210 ASM PART: A = 1-51130-929-0 		1-51156-347-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: B = 1-51130-936-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 1-51130-929-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 1-51130-936-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=7 ASM PART: B = 1-51130-936-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: B = 1-51130-936-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: B = 1-51130-936-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: B = 1-51130-936-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 1-51130-929-0 		1-51177-097-0 07 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51177-321-0 04 1 -
çizim 125011
1 35 35 17 2 3 4 18 16 20 19 19 19 19 20 20 20 20 20 20 29 15 18 35 17 35
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51131-890-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51131-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51132-890-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51132-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 1-51130-936-0 		1-51133-890-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 1-51130-929-0 		1-51133-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B), W/CLIP ASM PART: B = 1-51130-936-0 		1-51134-890-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A), W/CLIP ASM PART: A = 1-51130-929-0 		1-51134-929-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=210 ASM PART: A = 1-51130-929-0 		1-51156-347-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=165 ASM PART: B = 1-51130-936-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 1-51130-929-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: B = 1-51130-936-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), T=7 ASM PART: B = 1-51130-936-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), T=10 ASM PART: B = 1-51130-936-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=9 ASM PART: B = 1-51130-936-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: B = 1-51130-936-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 1-51130-929-0 		1-51177-097-0 07 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 1-51130-929-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-929-0, B = 1-51130-936-0 		1-51177-321-0 04 1 -
