◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#66986) — 97 parça

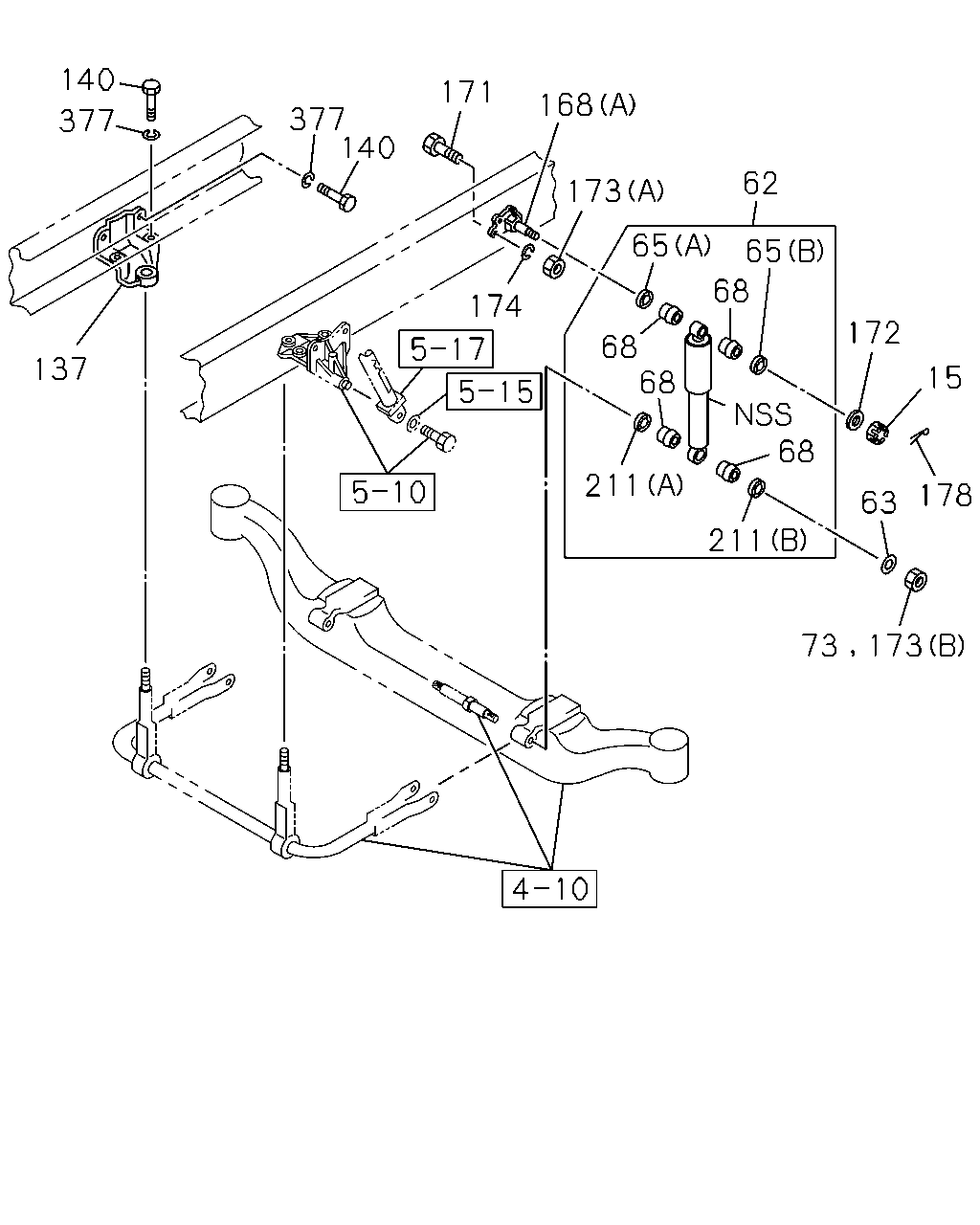

çizim 124041
140 377 137 377 171 140 168 173 62 65 65 68 172 15 178 63 173 73 211 68 211 68 68 174
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0710-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT 1-51630-805-1 02 1 0710-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0710-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 01 1 0710-
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 0710-
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0710-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0710-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0710-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0710-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0710-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0710-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0710-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0710-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0710-1011
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0710-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0710-
377 WASHER; LK,BRKT
ID=15 		9-09651-069-0 04 1 0710-1201
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 04 1 1202-

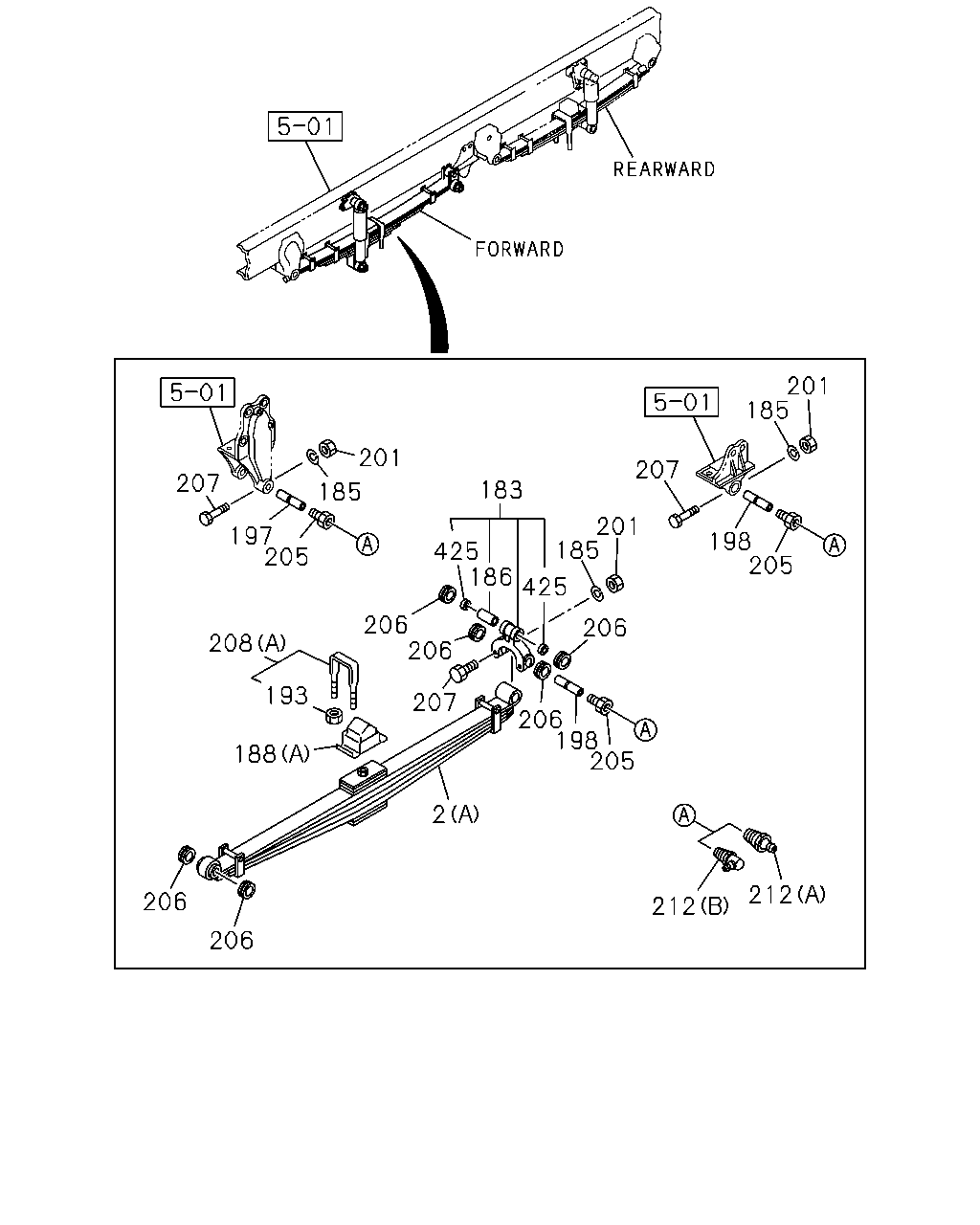

çizim 124380
201 185 207 205 197 183 425 207 185 201 201 205 185 425 186 206 212 212 205 198 206 2 206 206 188 193 207 206 206 208 198
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		1-51130-929-0 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		1-51130-936-0 02 1 0710-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0710-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0710-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0710-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-2 02 1 0710-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0710-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0710-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0710-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0710-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0710-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0710-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0710-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0710-
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
(A) L=240 		1-87870-376-2 04 1 0712-
208 U-BOLT SET; FRT SPRING
(B) L=290 		1-87870-437-1 04 1 0710-0712
208 U-BOLT SET; FRT SPRING
(B) L=270 		1-87870-327-2 04 1 0801-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0710-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0710-
425 SEAL; DUST 1-51177-321-0 08 1 0710-1005

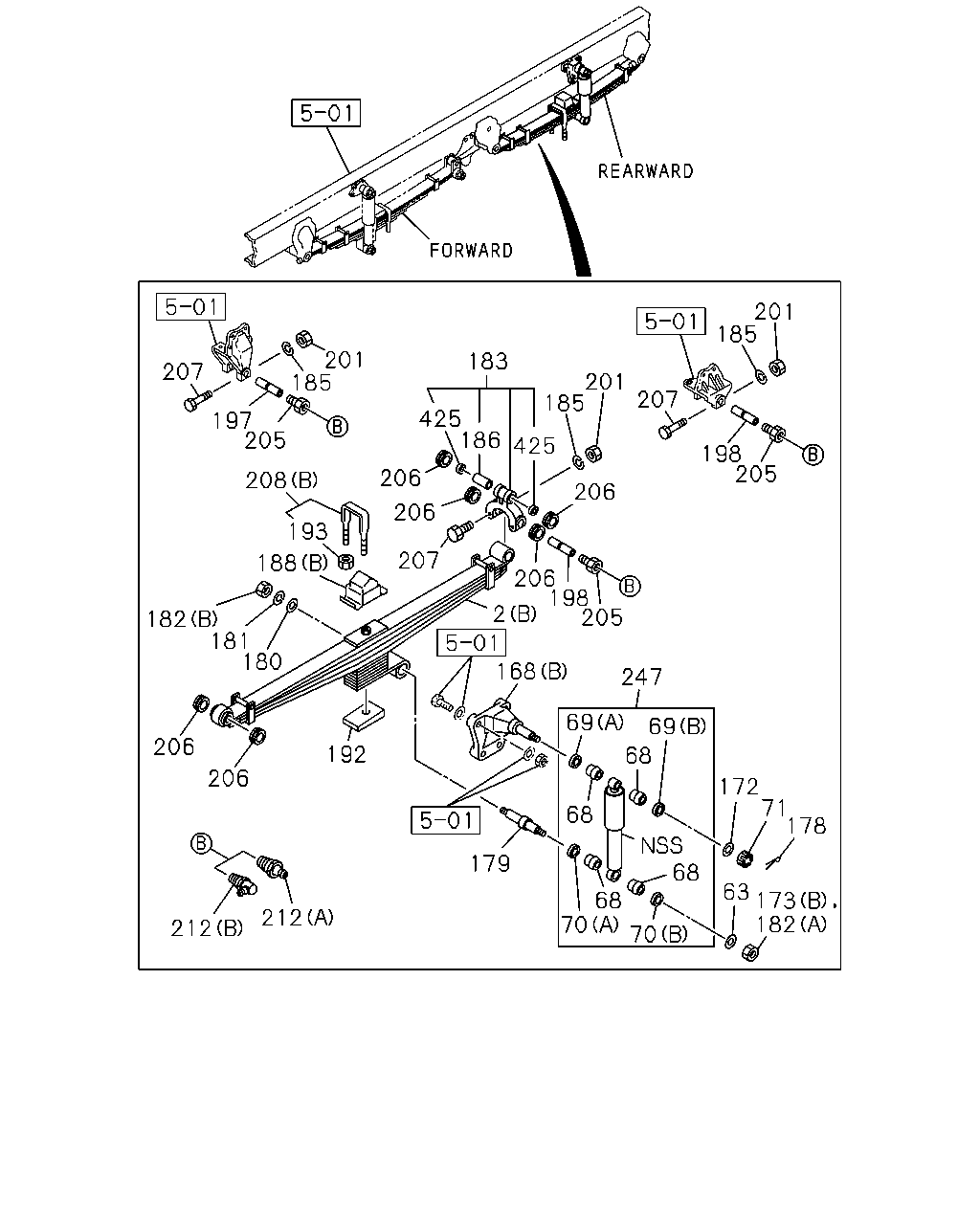

çizim 192582
207 201 185 197 205 206 208 206 193 188 207 186 425 183 425 185 201 207 185 201 198 206 205 206 198 205 247 168 2 69 69 68 172 71 178 182 63 173 68 68 70 70 68 179 192 206 206 180 181 182 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) REARWARD 		1-51130-929-0 02 1 0710-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) FORWARD 		1-51130-936-0 02 1 0710-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 04 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
68 BUSHING; S/ABS 9-51631-026-0 08 1 0710-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0710-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0710-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0710-1010
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0710-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0710-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0710-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0710-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 0710-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 02 1 0710-1011
179 PIN 1-51682-094-1 02 1 0710-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 02 1 0710-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 02 1 0710-
182 NUT; S/ABS LWR
(A) M20 		0-91110-520-0 01 1 0710-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 0710-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0710-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0710-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0710-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) REARWARD 		1-51172-085-2 02 1 0710-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) FORWARD 		1-51172-125-1 02 1 0710-
192 PIECE; DIST 1-51177-281-1 02 1 0710-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0710-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0710-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0710-
201 NUT; PIN LK
M12 		0-91110-512-0 24 1 0710-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0710-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0710-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0710-
208 U-BOLT SET; FRT SPRING
(A) L=230 		1-87870-269-2 04 1 0710-0711
208 U-BOLT SET; FRT SPRING
(A) L=240 		1-87870-376-2 04 1 0712-
208 U-BOLT SET; FRT SPRING
(B) L=290 		1-87870-437-1 04 1 0710-0712
208 U-BOLT SET; FRT SPRING
(B) L=270 		1-87870-327-2 04 1 0801-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0710-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0710-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-810-0 02 1 0710-
425 SEAL; DUST 1-51177-321-0 08 1 0710-1005
