4-43 — POWER STEERING BOOSTER (#66985) — 28 parça

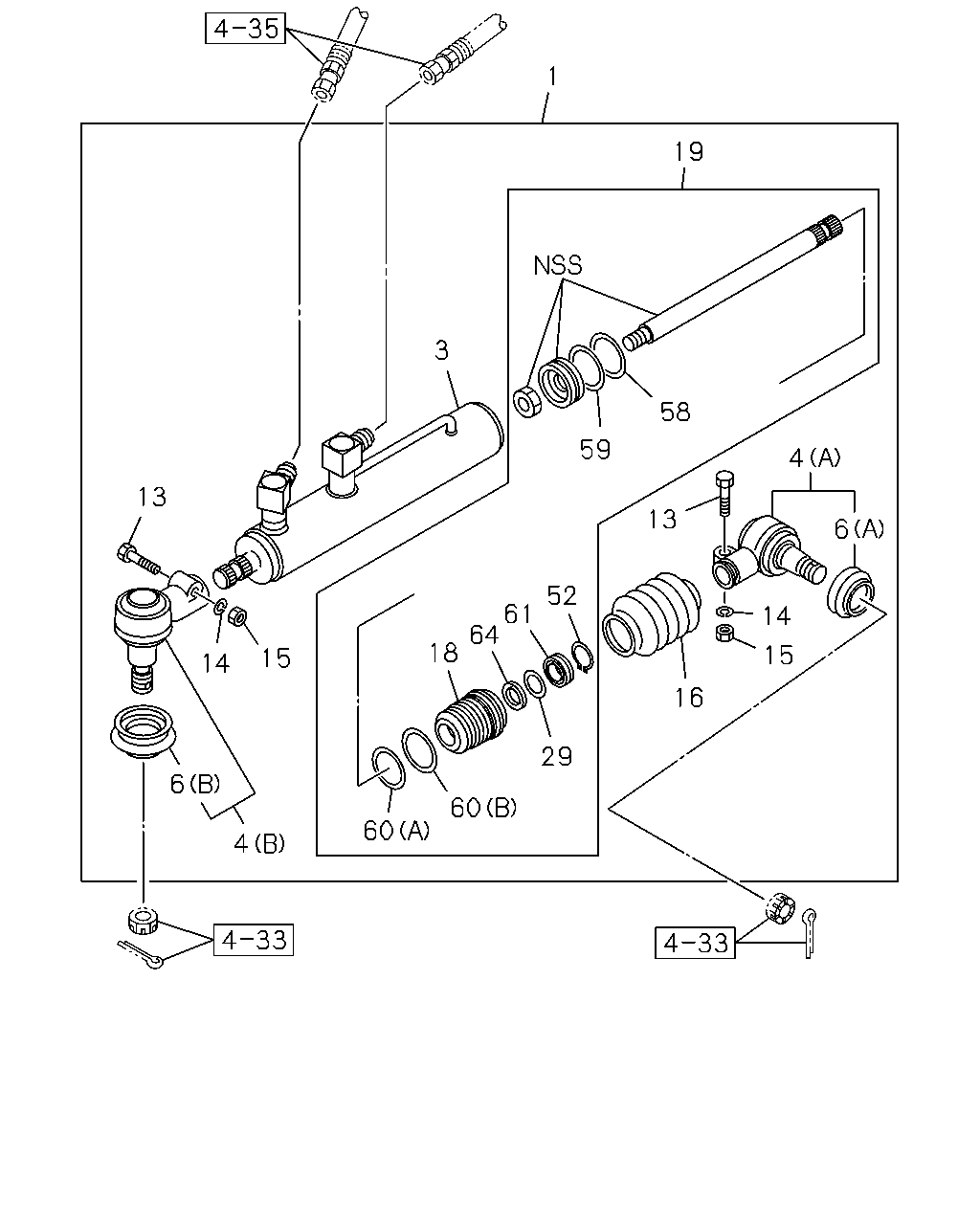

çizim 124282
1 19 3 59 58 13 4 6 14 16 15 29 52 61 64 18 60 60 4 6 14 15 13
BalonParca AdiParca NoAdetTipApplied Date
1 BOOSTER ASM; POWER STRG 1-44510-124-2 01 1 0710-
3 CYLINDER ASM; POWER STRG BOOSTER 1-44511-035-0 01 1 0710-
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(B) 		1-44517-021-0 01 1 0710-
4 SOCKET ASM; BALL,POWER STRG BOOSTER
(A) 		1-44517-022-0 01 1 0710-
6 COVER; DUST,POWER STRG BOOSTER
(A) 		1-43159-091-0 01 1 0710-
6 COVER; DUST,POWER STRG BOOSTER
(B) 		1-43159-078-0 01 1 0710-
13 BOLT; SOCKET,POWER STRG BOOSTER 1-44519-247-0 02 1 0710-
14 WASHER; SOCKET,POWER STRG BOOSTER 1-44519-248-0 02 1 0710-
15 NUT; SOCKET,POWER STRG BOOSTER 1-44519-249-0 02 1 0710-
16 BOOT; POWER STRG BOOSTER 1-44519-246-0 01 1 0710-
18 BEARING; POWER STRG BOOSTER 1-44519-237-0 01 1 0710-
19 PISTON & ROD ASM; POWER STRG BOOSTER 1-44520-008-0 01 1 0710-
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0710-
52 RING; RET,POWER STRG BOOSTER 1-44519-241-0 01 1 0710-
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0710-
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0710-
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0710-
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0710-
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0710-
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0710-
çizim 192705
2 58 59 61 64 29 60 60
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; POWER STRG BOOSTER 1-44519-250-0 01 1 0710-
29 RING; BACKUP,POWER STRG BOOSTER 1-44519-239-0 01 1 0710-
58 RING; SEAL,POWER STRG BOOSTER 1-44519-245-0 01 1 0710-
59 GASKET; PISTON,POWER STRG BOOSTER 1-44519-244-0 01 1 0710-
60 GASKET; BRG,POWER STRG BOOSTER
(A) 		1-44519-242-0 01 1 0710-
60 GASKET; BRG,POWER STRG BOOSTER
(B) 		1-44519-243-0 01 1 0710-
61 SEAL; DUST,POWER STRG BOOSTER 1-44519-240-0 01 1 0710-
64 GASKET; POWER STRG BOOSTER 1-44519-238-0 01 1 0710-
