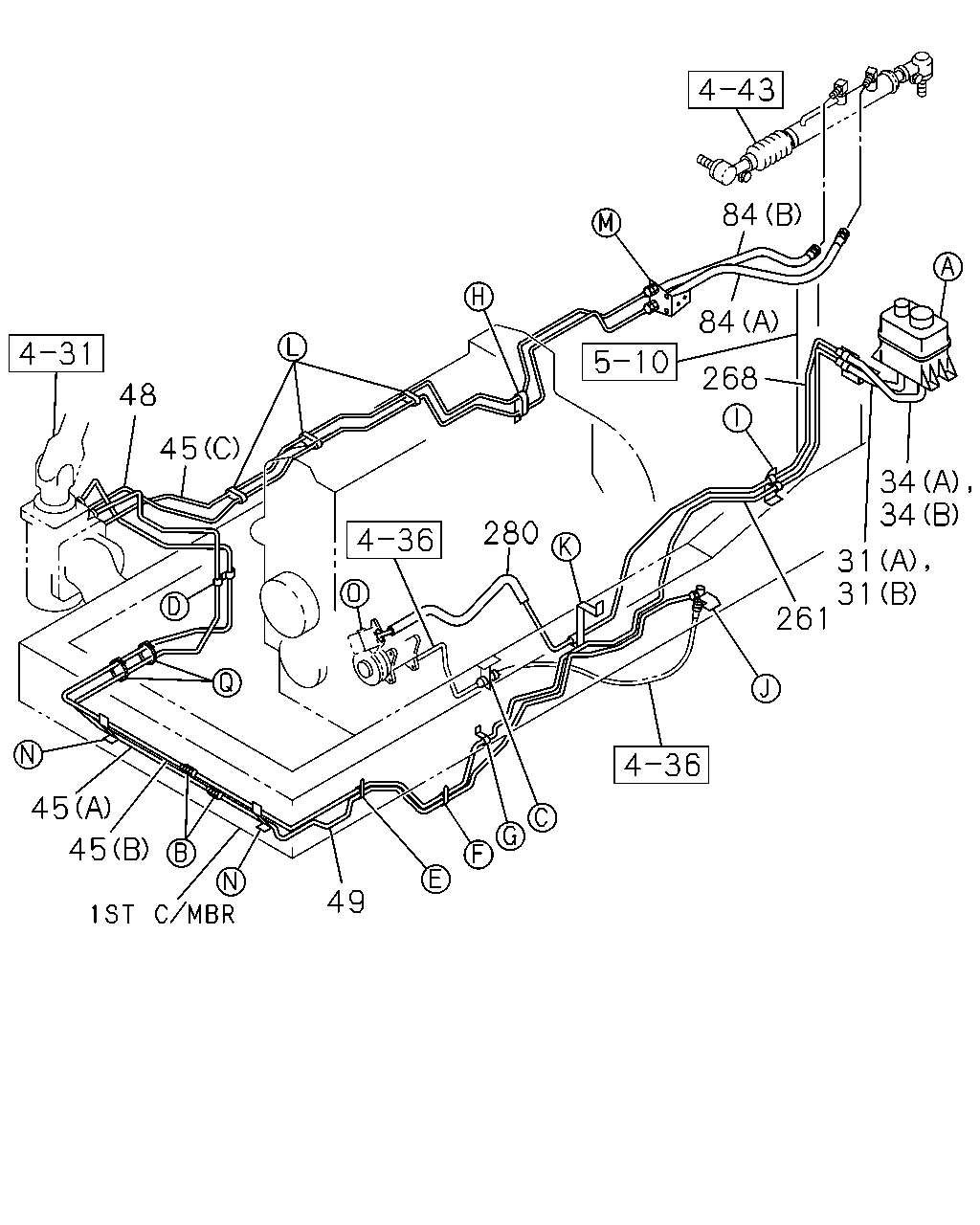

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#66981) — 165 parça

48 45 45 45 49 280 261 268 84 84 34 34 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	0710-
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21117-509-1	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21117-510-1	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0710-
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0710-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0710-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0710-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3312	8-98219-469-0	01	1	1209-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3351	8-98219-712-0	01	1	1209-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-

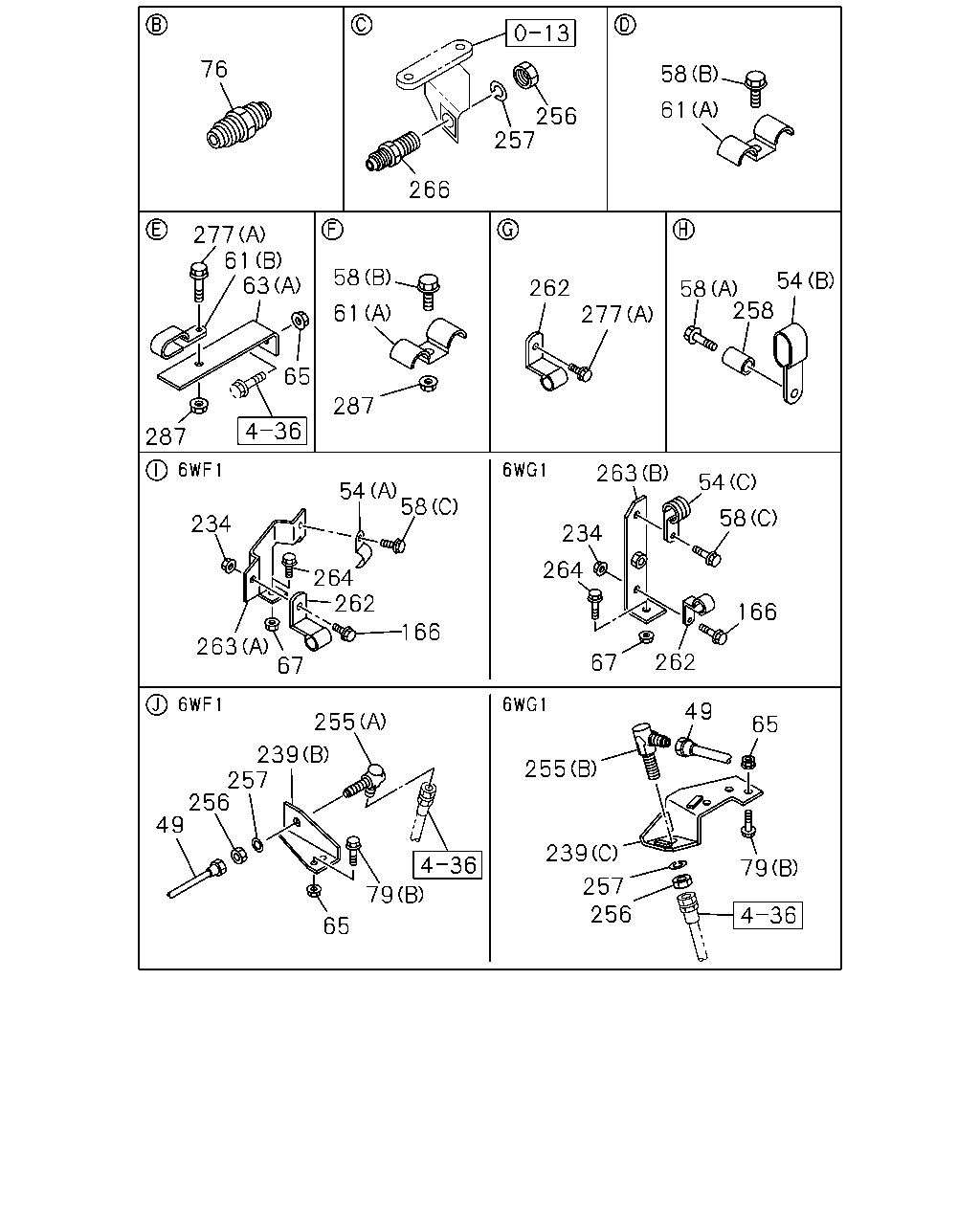

58 61 256 257 266 76 277 58 61 63 65 287 287 61 262 58 277 54 258 263 54 234 58 264 166 67 262 49 65 79 255 239 257 256 255 239 257 256 49 65 79 166 67 263 262 264 234 54 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION 6WF1 TC-C(1B8) L=2048	1-21117-741-0	01	1	0710-
49	PIPE; OIL,FLEX HOSE TO UNION 6WG1 TC-C(72L),6WG1 TC-S(97L) L=2147	1-21117-763-0	01	1	0710-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0710-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0710-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0710-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP 6WF1 TC-C(1B8) (C) M10X20 FLANGE	0-28651-020-0	02	1	0710-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10X20 FLANGE	0-28651-020-0	03	1	0710-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0710-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0710-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0710-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0710-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0710-
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0710-
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0710-
255	UNION; FLEX HOSE 6WF1 TC-C(1B8) (A) M22 & M22 ELBOW	1-09650-375-1	01	1	0710-
255	UNION; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M22 & M22 ELBOW	1-09654-163-1	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	0710-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	02	1	0710-
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	0710-
263	BRACKET; P/S PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-47471-191-1	01	1	0710-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-

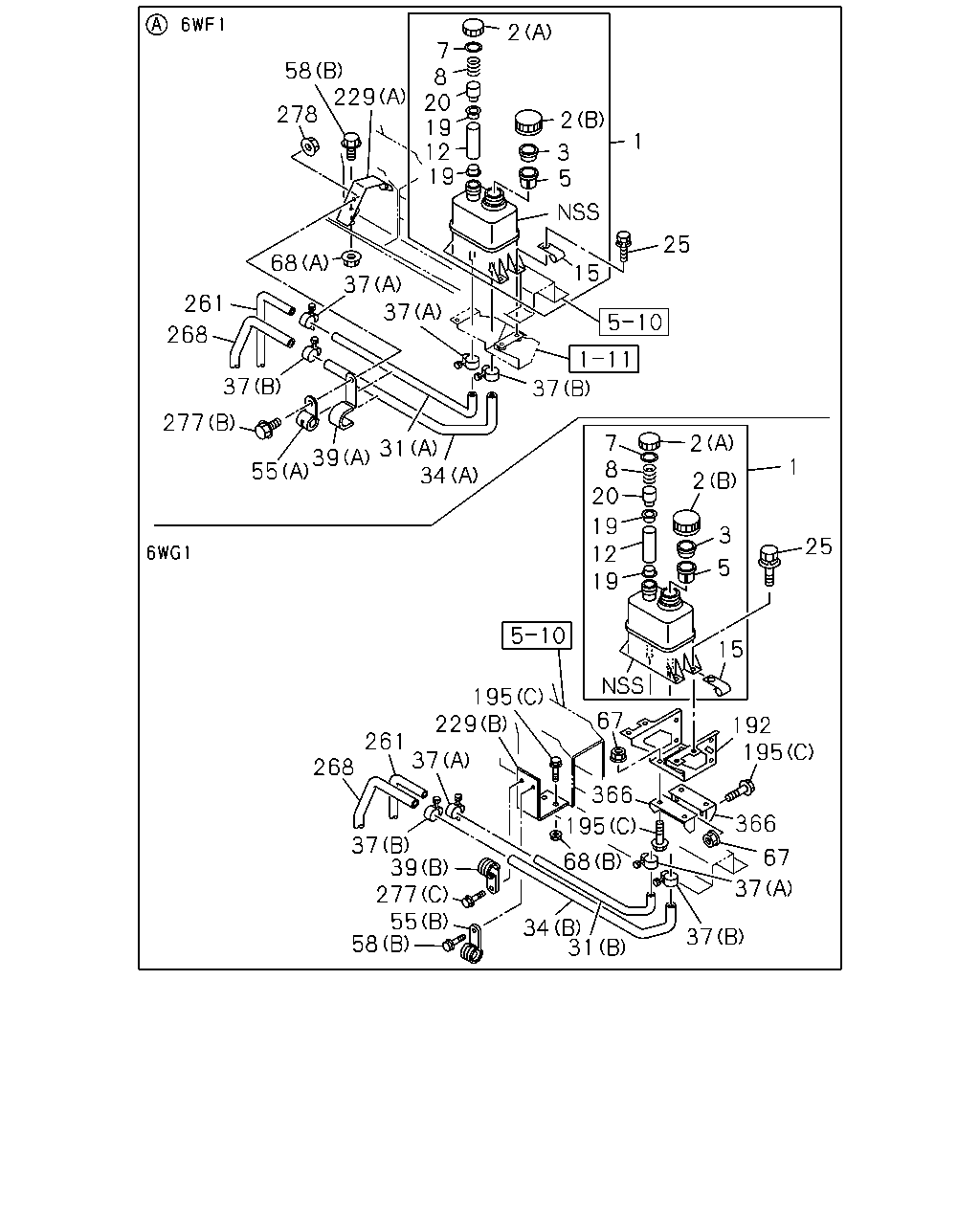

2 1 2 3 5 7 8 20 19 12 19 15 25 37 37 68 278 58 229 261 268 277 37 55 39 31 34 37 1 2 7 25 2 5 3 19 12 19 20 8 5 192 195 366 67 37 37 31 34 68 195 366 67 195 229 37 261 268 37 39 277 55 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-
31	HOSE; P/S OIL TANK,INL 6WF1 TC-C(1B8) (A)	1-21114-284-0	01	1	0710-
31	HOSE; P/S OIL TANK,INL 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21117-509-1	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET 6WF1 TC-C(1B8) (A)	1-21114-283-0	01	1	0710-
34	HOSE; P/S OIL TANK,OUTLET 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21117-510-1	01	1	0710-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-
39	CLIP; FLEX HOSE 6WF1 TC-C(1B8) (A) ID=32 L=75	1-09700-702-0	01	1	0710-
39	CLIP; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=37 L=35	1-09701-109-0	01	1	0710-
55	CLIP; P/S RUBBER HOSE 6WF1 TC-C(1B8) (A) ID=28 L=30	1-09700-607-1	01	1	0710-
55	CLIP; P/S RUBBER HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) ID=28 L=32	1-09701-107-1	01	1	0710-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0710-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP 6WF1 TC-C(1B8) (C) M10X20 FLANGE	0-28651-020-0	02	1	0710-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10X20 FLANGE	0-28651-020-0	03	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0710-
68	NUT; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A) M8 FLANGE	0-91180-108-0	01	1	0710-
68	NUT; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M10 FLANGE	0-91180-210-0	02	1	0710-
192	BRACKET; P/S OIL TANK 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-200-1	01	1	0710-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-
229	BRACKET; HOSE,POWER STRG 6WF1 TC-C(1B8) (A)	1-21464-407-1	01	1	0710-
229	BRACKET; HOSE,POWER STRG 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	1-21464-780-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3322	1-21117-801-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) L=3312	8-98219-469-0	01	1	1209-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3362	1-21117-802-0	01	1	0710-1208
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=3351	8-98219-712-0	01	1	1209-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) L=1287	1-21116-852-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) L=1367	1-21117-813-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	0710-
277	BOLT; HOSE CLIP 6WF1 TC-C(1B8) (B) M10X25 FLANGE	0-28651-025-0	01	1	0710-
277	BOLT; HOSE CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X20 FLANGE	0-28650-820-0	01	1	0710-
278	NUT; HOSE CLIP 6WF1 TC-C(1B8) M10 FLANGE	0-91180-210-0	01	1	0710-
366	SPACER; BRKT TO MEMBER 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-21489-196-1	02	1	0710-

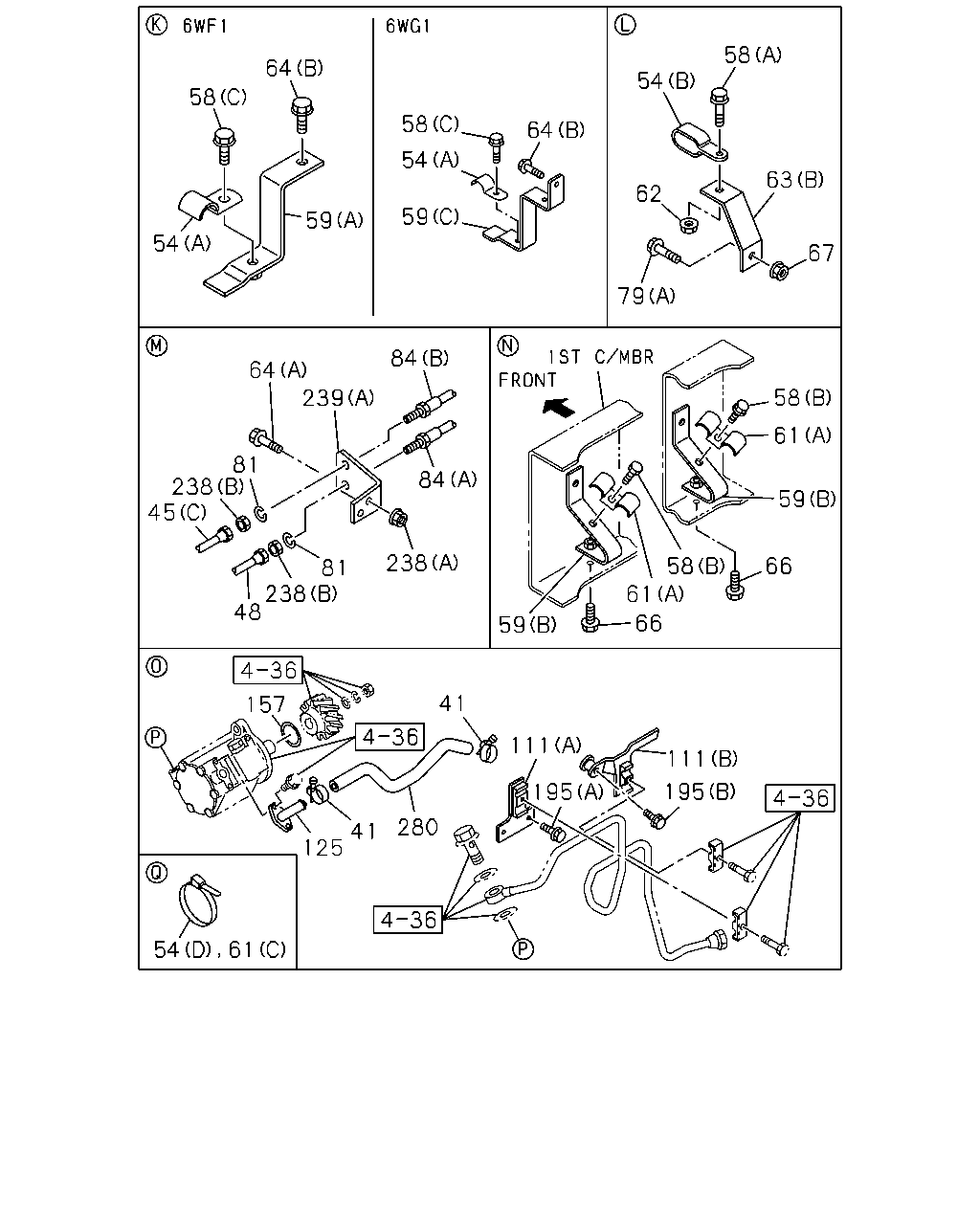

64 58 59 54 58 59 54 64 54 58 62 79 63 67 84 239 64 81 238 45 48 238 81 238 84 59 66 61 66 58 59 61 58 111 195 195 111 41 280 41 125 157 61 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (C) L=2539	1-21117-744-0	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	1-21117-916-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1475	8-98257-624-0	01	1	1310-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	1-21117-917-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1404	8-98257-625-0	01	1	1310-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2519	1-21117-745-0	01	1	0710-
54	CLIP; OIL PIPE (D) L=350	1-09707-183-0	01	1	1310-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	0710-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	0710-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0710-
58	BOLT; CLIP (A) M8X50 FLANGE	0-28050-850-0	01	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	0710-
58	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	03	1	0710-
58	BOLT; CLIP 6WF1 TC-C(1B8) (C) M10X20 FLANGE	0-28651-020-0	02	1	0710-
58	BOLT; CLIP 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M10X20 FLANGE	0-28651-020-0	03	1	0710-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (A)	1-47477-145-0	01	1	0710-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-183-0	01	1	0710-
61	CLIP; OIL PIPE (C) L=350	1-09707-183-0	01	1	1310-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	05	1	0710-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0710-
63	BRACKET; CLIP,P/S (A) L=115 B=25	1-47476-758-0	01	1	0710-
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	0710-
64	BOLT; CLIP BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
67	NUT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) M8 FLANGE	0-91180-108-0	04	1	0710-
79	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-
79	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	0710-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	0710-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	0710-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M8X25 FLANGE	0-28650-825-0	08	1	0710-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0710-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	0710-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	0710-
239	BRACKET; FLEX HOSE 6WF1 TC-C(1B8) (B)	1-47479-664-0	01	1	0710-
239	BRACKET; FLEX HOSE 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	1-47471-227-0	01	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-
