◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11109 - CYH NZ EURO2/3/JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#66979) — 112 parça

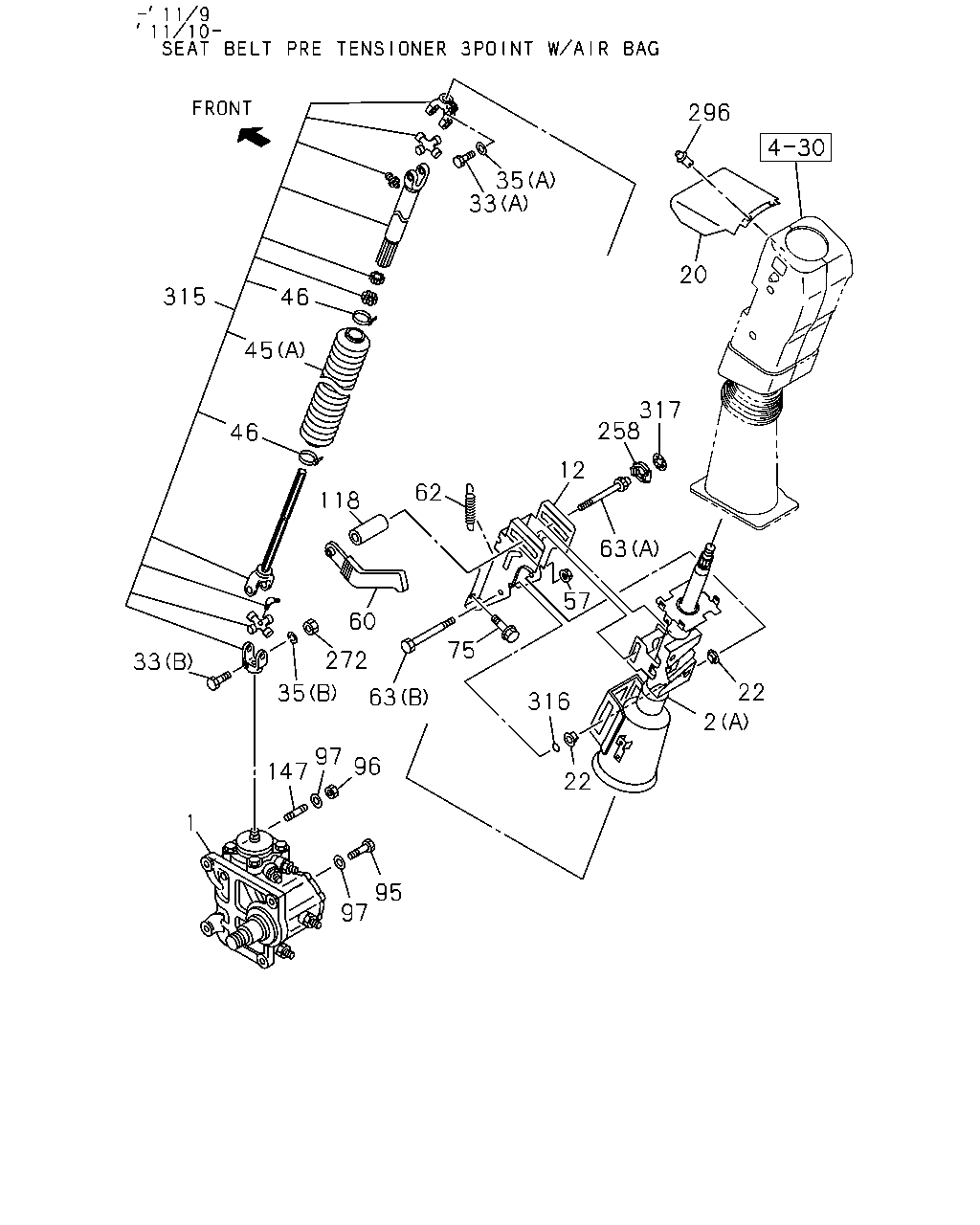

çizim 122959
296 35 33 20 315 46 45 317 258 46 12 62 118 63 57 60 75 272 33 22 35 63 316 2 97 147 96 22 1 95 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-922-2 01 1 0710-
2 SHAFT ASM; STRG
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44130-694-1 01 1 1111-
2 SHAFT ASM; STRG
(A) 		1-44130-828-2 01 1 0710-1109
2 SHAFT ASM; STRG
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44130-828-2 01 1 1110-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0710-0811
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-1109
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1110-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0710-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0710-1109
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1110-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0710-1109
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1110-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0710-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 0710-1109
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 1110-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 01 1 0710-
45 BOOT; STRG SHAFT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44139-155-0 01 1 1110-1409
45 BOOT; STRG SHAFT
(B) 		1-44139-155-0 01 1 1410-
45 BOOT; STRG SHAFT
(A) 		1-44139-163-0 01 1 0710-1109
45 BOOT; STRG SHAFT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44139-163-0 01 1 1110-1409
46 CLIP; BOOT 1-44139-156-0 02 1 0710-1109
46 CLIP; BOOT 1-44139-156-0 02 1 1110-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0710-1109
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1110-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0710-1109
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1110-
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0710-1109
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1110-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0710-1109
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1110-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0710-1109
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1110-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0710-0805
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 0806-
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 0710-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0710-
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0710-1109
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1110-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0710-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0710-1109
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1110-
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 0710-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0710-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0710-1109
296 CLIP; COVER
AIR BAG<TFQ> D6X12.5 		8-94146-425-0 01 1 1110-
315 JOINT; SPLINE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44135-345-1 01 1 1110-1409
315 JOINT; SPLINE 1-44135-345-2 01 1 1410-
315 JOINT; SPLINE 1-44135-345-1 01 1 0710-0811
315 JOINT; SPLINE 1-44135-392-0 01 1 0812-1109
315 JOINT; SPLINE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44135-392-0 01 1 1110-1409
316 RING 1-44227-152-0 01 1 0710-1109
316 RING 1-44227-152-0 01 1 1110-
317 NUT; PUSH 1-44227-148-0 01 1 0710-1109
317 NUT; PUSH 1-44227-148-0 01 1 1110-

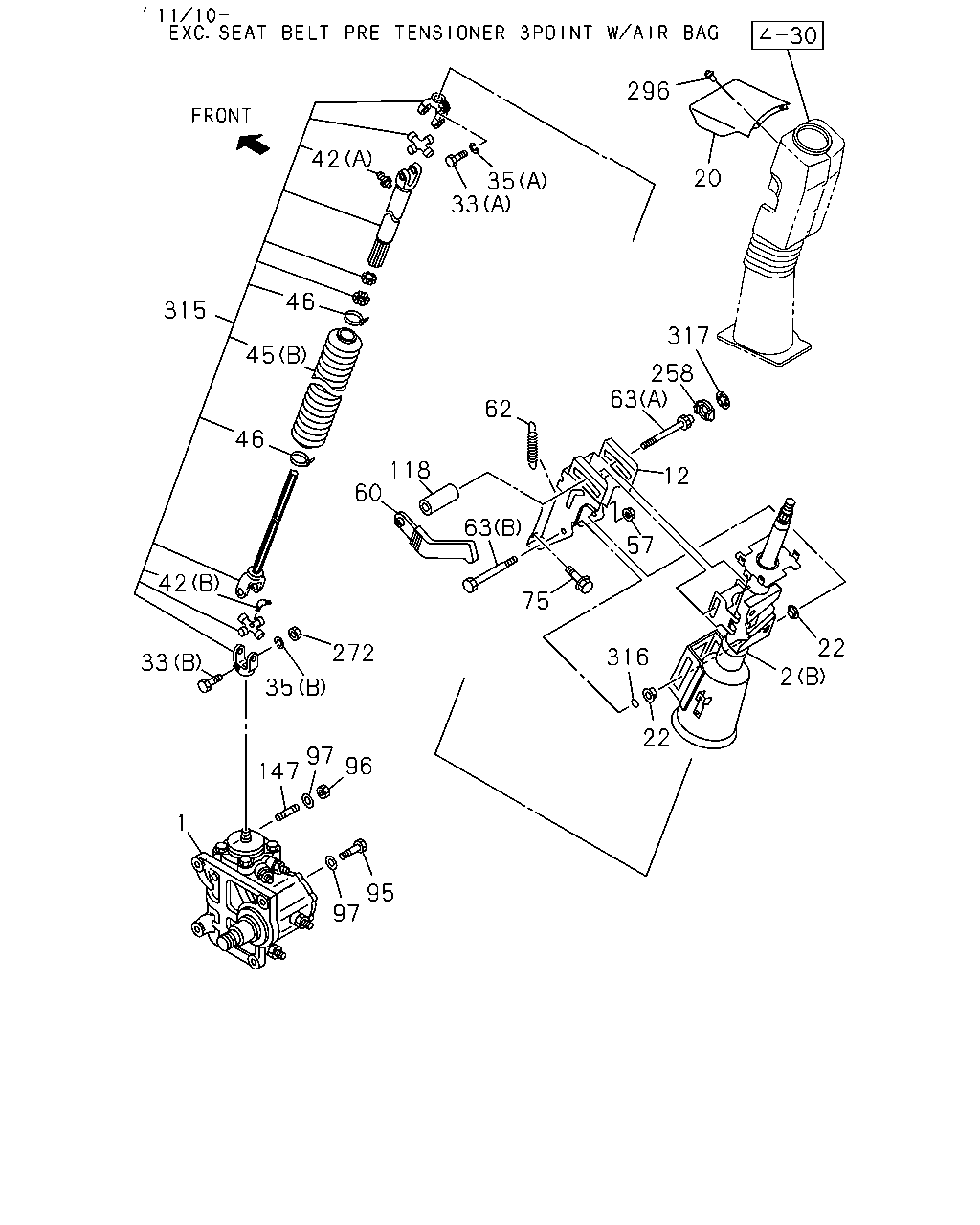

çizim 123189
296 42 20 35 33 46 315 317 45 258 63 62 46 118 60 12 63 57 42 75 22 2 272 316 33 35 22 97 147 96 1 95 97
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-922-2 01 1 0710-
2 SHAFT ASM; STRG
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44130-694-1 01 1 1111-
2 SHAFT ASM; STRG
(A) 		1-44130-828-2 01 1 0710-1109
2 SHAFT ASM; STRG
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44130-828-2 01 1 1110-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0710-0811
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812-1109
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1110-
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0710-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0710-1109
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1110-
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 0710-1109
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1110-
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0710-
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 0710-1109
35 WASHER; LK,STRG SHAFT
(A) 		1-44139-154-0 01 1 1110-
35 WASHER; LK,STRG SHAFT
(B) ID=10.2 		0-91510-810-0 01 1 0710-
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44135-375-0 01 1 1110-
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44135-376-0 01 1 1110-
45 BOOT; STRG SHAFT
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (B) 		1-44139-155-0 01 1 1110-1409
45 BOOT; STRG SHAFT
(B) 		1-44139-155-0 01 1 1410-
45 BOOT; STRG SHAFT
(A) 		1-44139-163-0 01 1 0710-1109
45 BOOT; STRG SHAFT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) (A) 		1-44139-163-0 01 1 1110-1409
46 CLIP; BOOT 1-44139-156-0 02 1 0710-1109
46 CLIP; BOOT 1-44139-156-0 02 1 1110-
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0710-1109
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1110-
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0710-1109
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1110-
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0710-1109
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1110-
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0710-1109
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1110-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0710-1109
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1110-
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
95 BOLT; STRG UNIT
M18X60 		9-91066-860-0 03 1 0710-0805
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 0806-
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 0710-
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 0710-
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0710-1109
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1110-
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 0710-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0710-1109
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1110-
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 0710-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0710-
296 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0710-1109
296 CLIP; COVER
AIR BAG<TFQ> D6X12.5 		8-94146-425-0 01 1 1110-
315 JOINT; SPLINE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44135-345-1 01 1 1110-1409
315 JOINT; SPLINE 1-44135-345-2 01 1 1410-
315 JOINT; SPLINE 1-44135-345-1 01 1 0710-0811
315 JOINT; SPLINE 1-44135-392-0 01 1 0812-1109
315 JOINT; SPLINE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-44135-392-0 01 1 1110-1409
316 RING 1-44227-152-0 01 1 0710-1109
316 RING 1-44227-152-0 01 1 1110-
317 NUT; PUSH 1-44227-148-0 01 1 0710-1109
317 NUT; PUSH 1-44227-148-0 01 1 1110-
